印度节能办公楼 · Akshaya 27,Sanjay Puri Architects

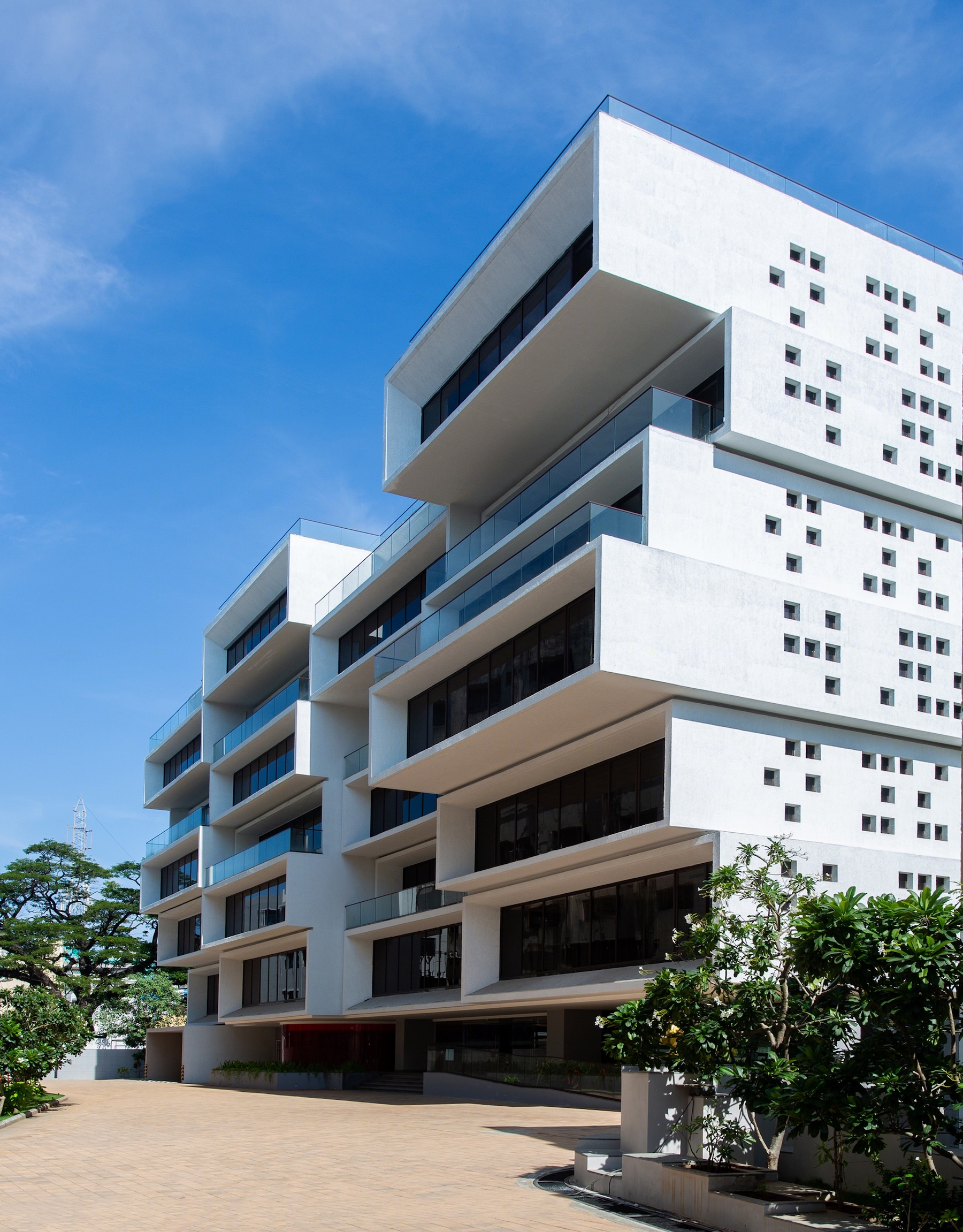

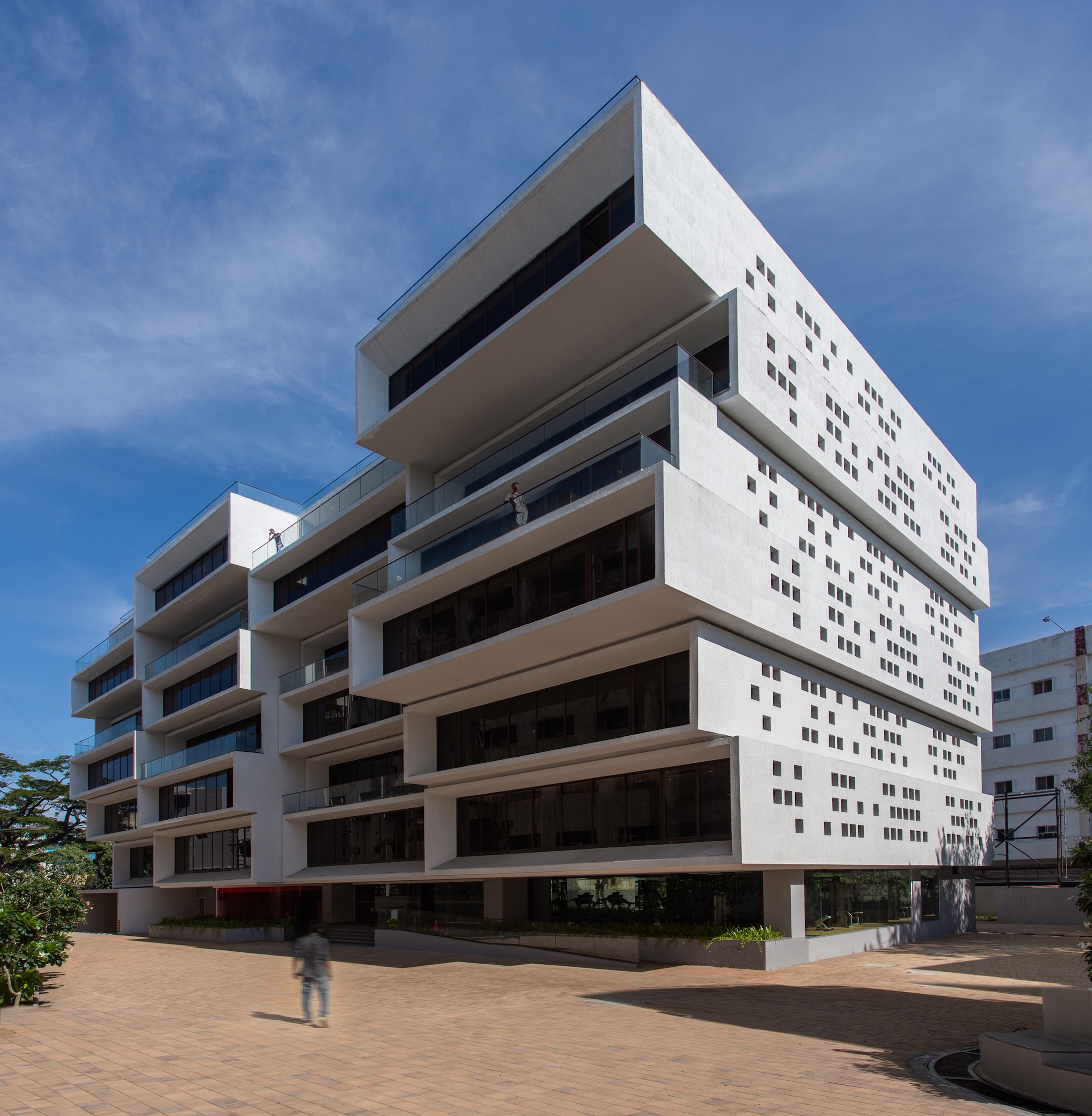

Sanjay Puri Architects：该雕塑般的长方体悬挑办公楼位于印度钦奈，项目场地坐落于钦奈南部的旧商业区，周边环境复杂，设计需要克服多重挑战。

Sanjay Puri Architects：Cantilevered cuboid volumes create a sculptural office building in Chennai, India. Located in the old business district of Chennai in South India, the plot had multiple challenges to be overcome.

这个4098平方米的地块夹在现有的建筑之间，城市主干道上的入口非常狭窄，且临街处没有道路，因此，根据客户的要求和场地条件，该建筑总面积为8000平方米，高度限制为27米。

With very narrow access from an arterial city road and no road frontage, this plot of 4,098 sqm is sandwiched between existing buildings on all sides. A total area of 8,000 sqm was to be built based upon the client’s requirements and the permissible construction area, along with a height restriction of 27M.

设计缩小了一楼大厅的面积，以方便现场内的车辆通行，并容纳自助餐厅、健身房和入口大厅等社区空间。

The ground floor is deliberately kept small to allow easy vehicular circulation within the site and houses community spaces including a cafeteria, gymnasium, and an entrance lobby.

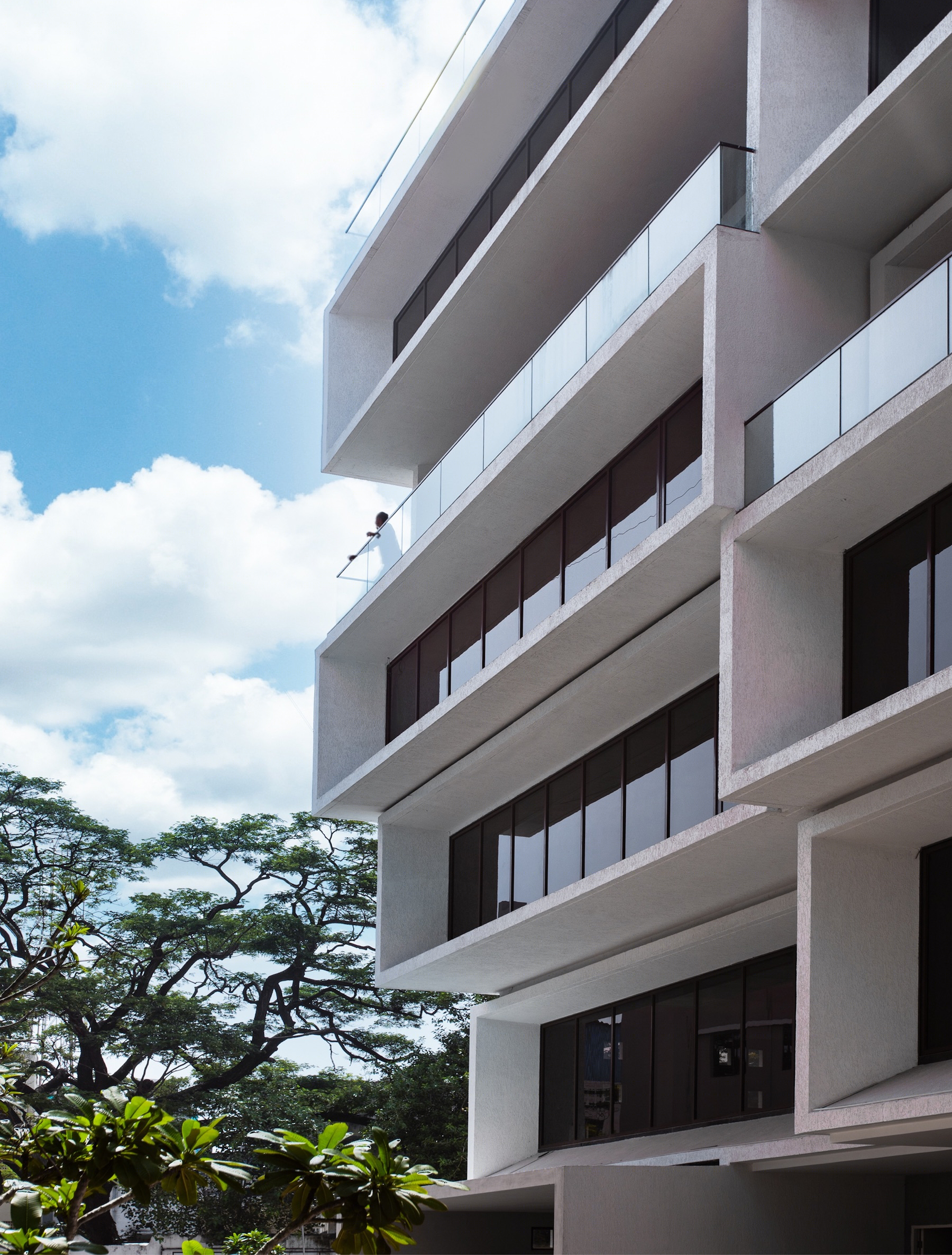

办公室一层分为四个区域，面积从165平方米到270平方米不等，从第一层开始，每层楼北面都有一个线性的阳台向外延伸。

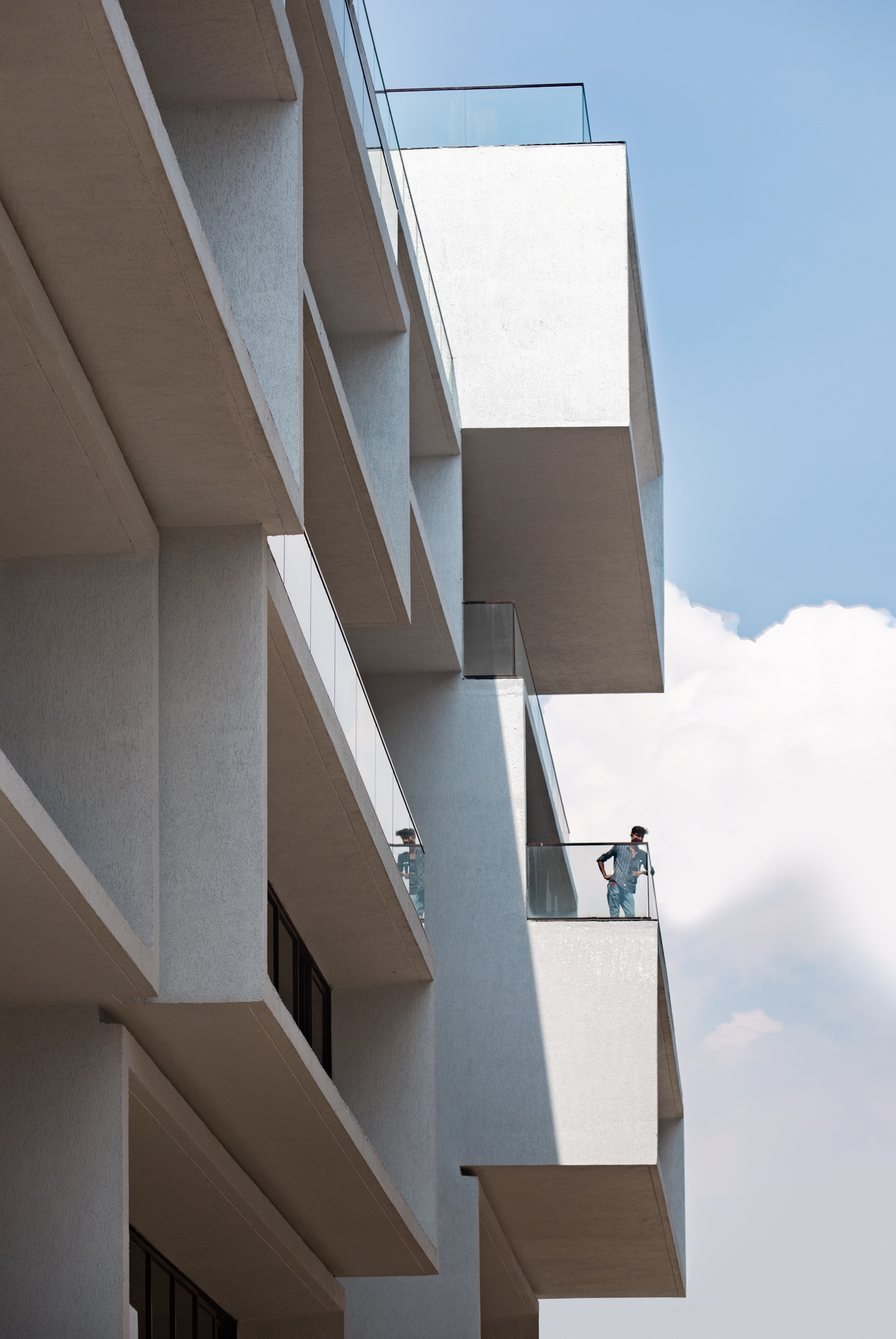

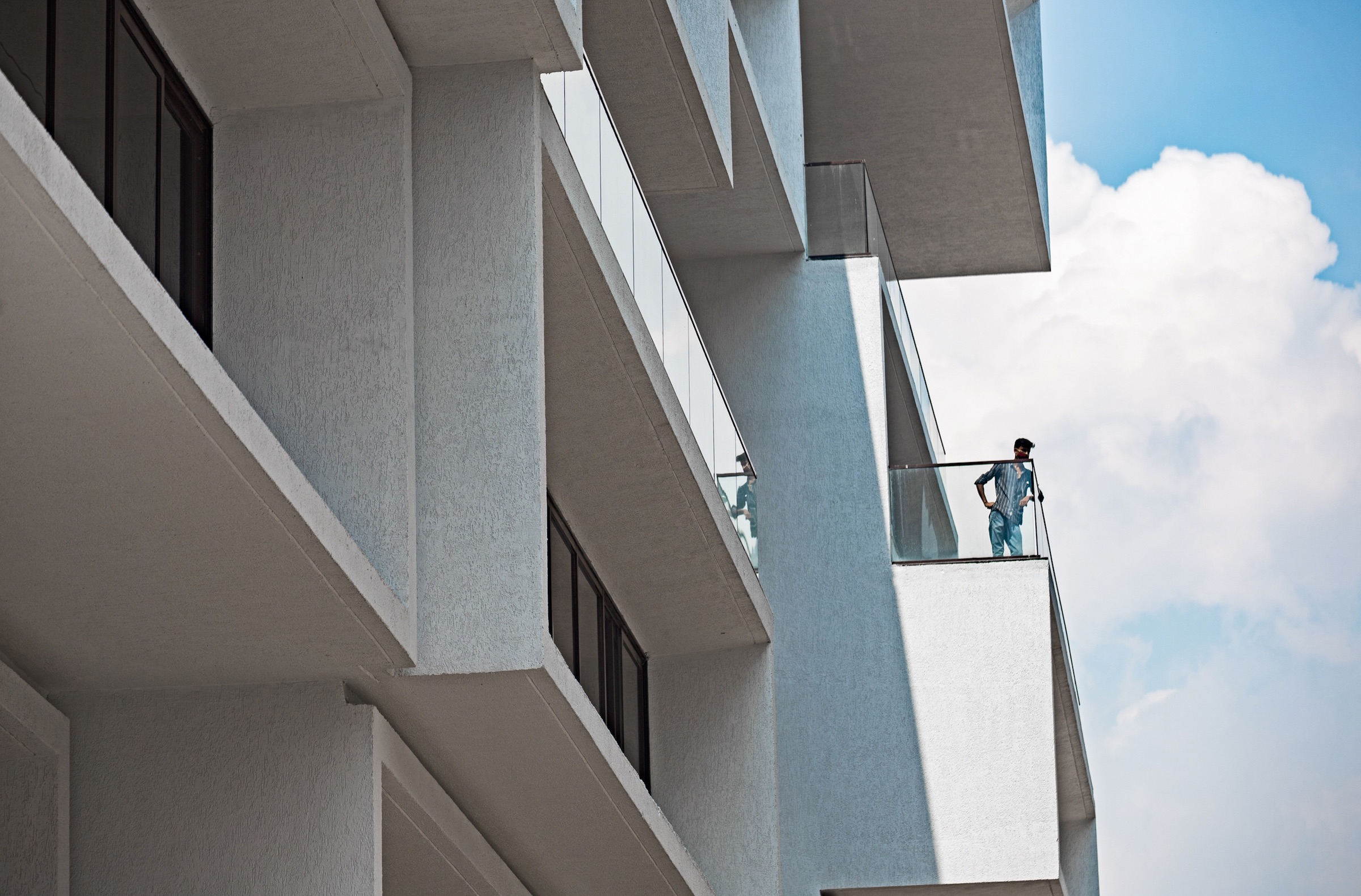

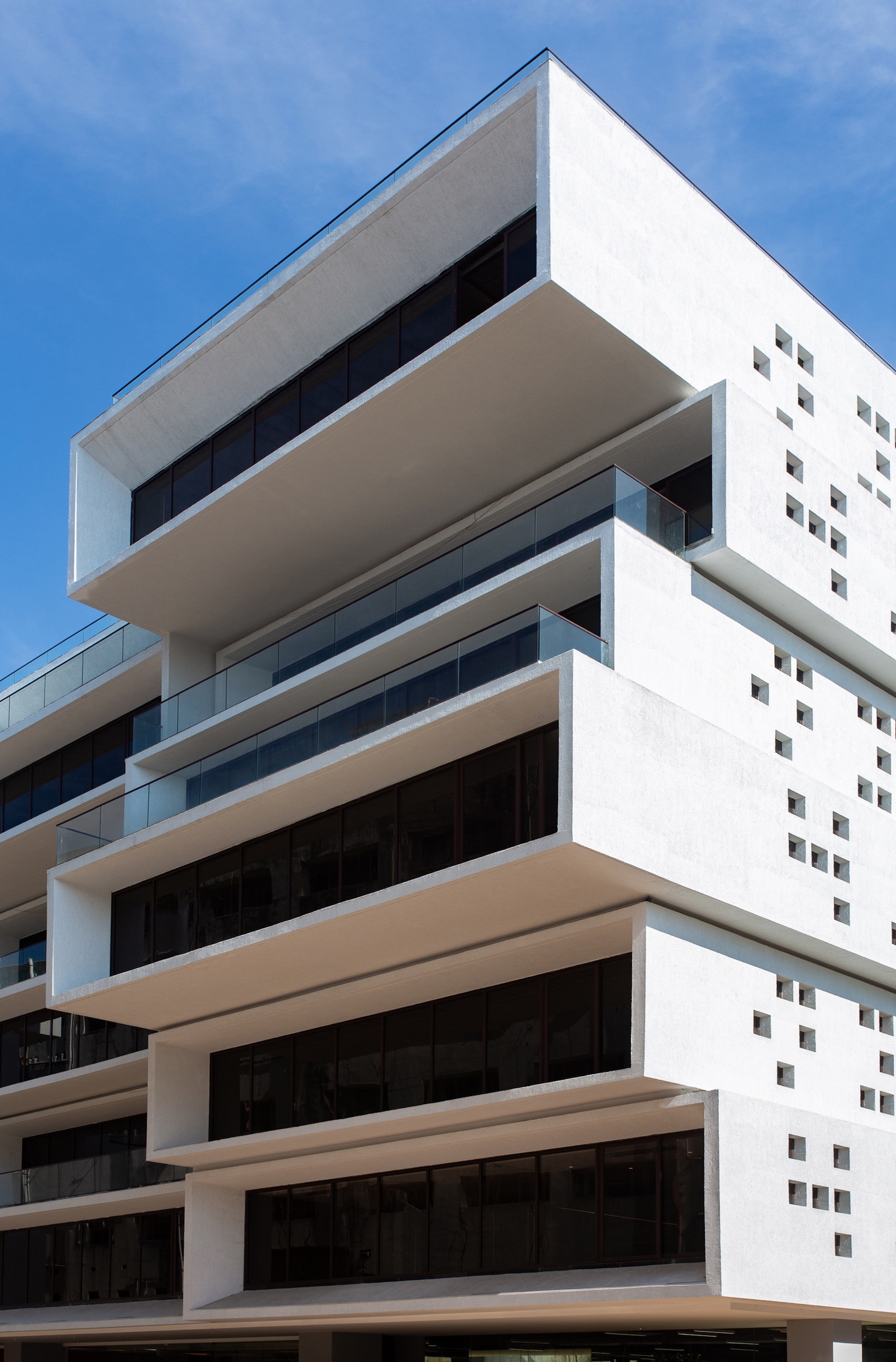

The offices divisible into 4 at a level with varying sizes from 165 to 270 sq meters cantilever out at the first floor and step back and forth creating linear north-facing terraces on every floor.

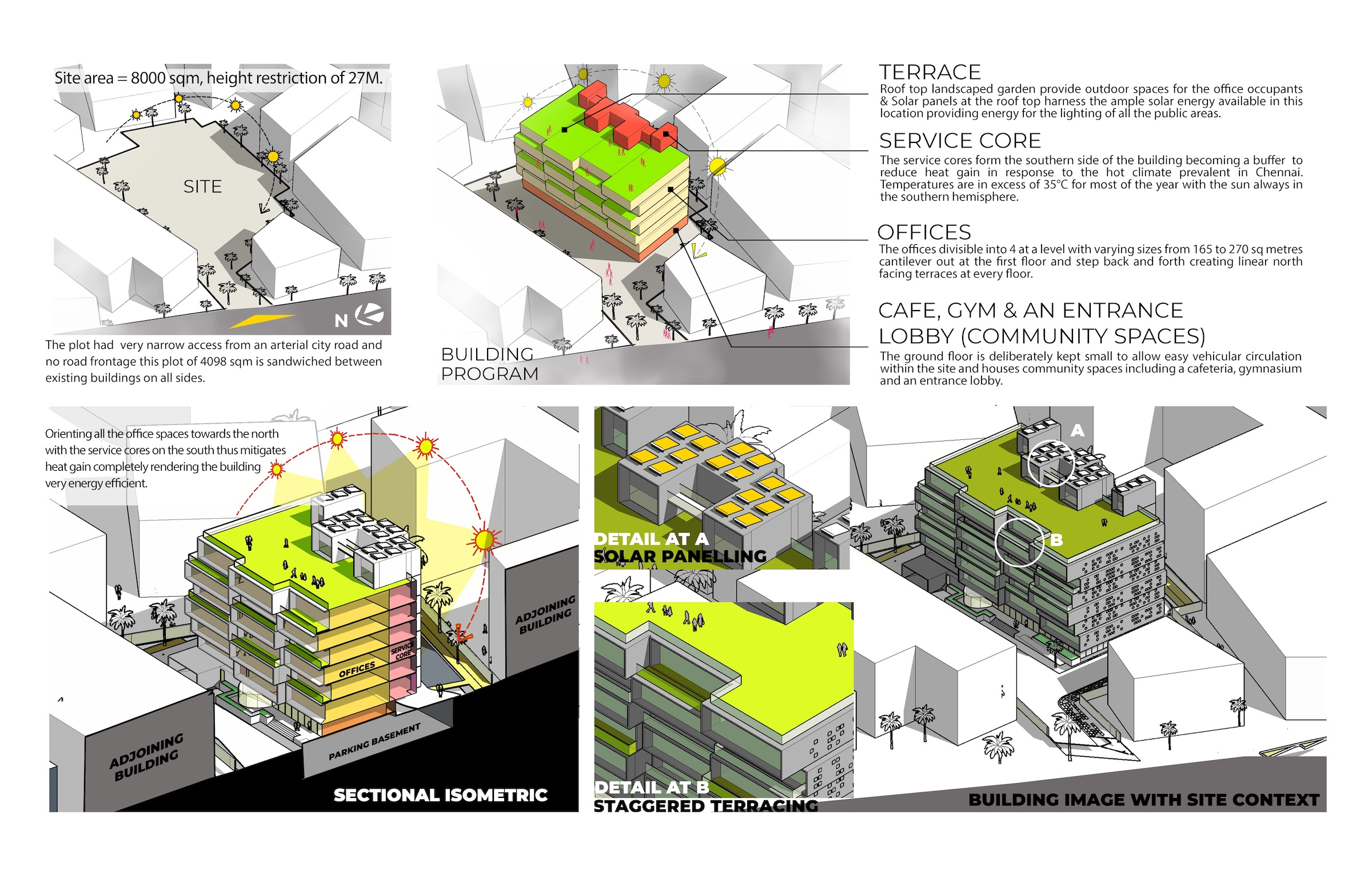

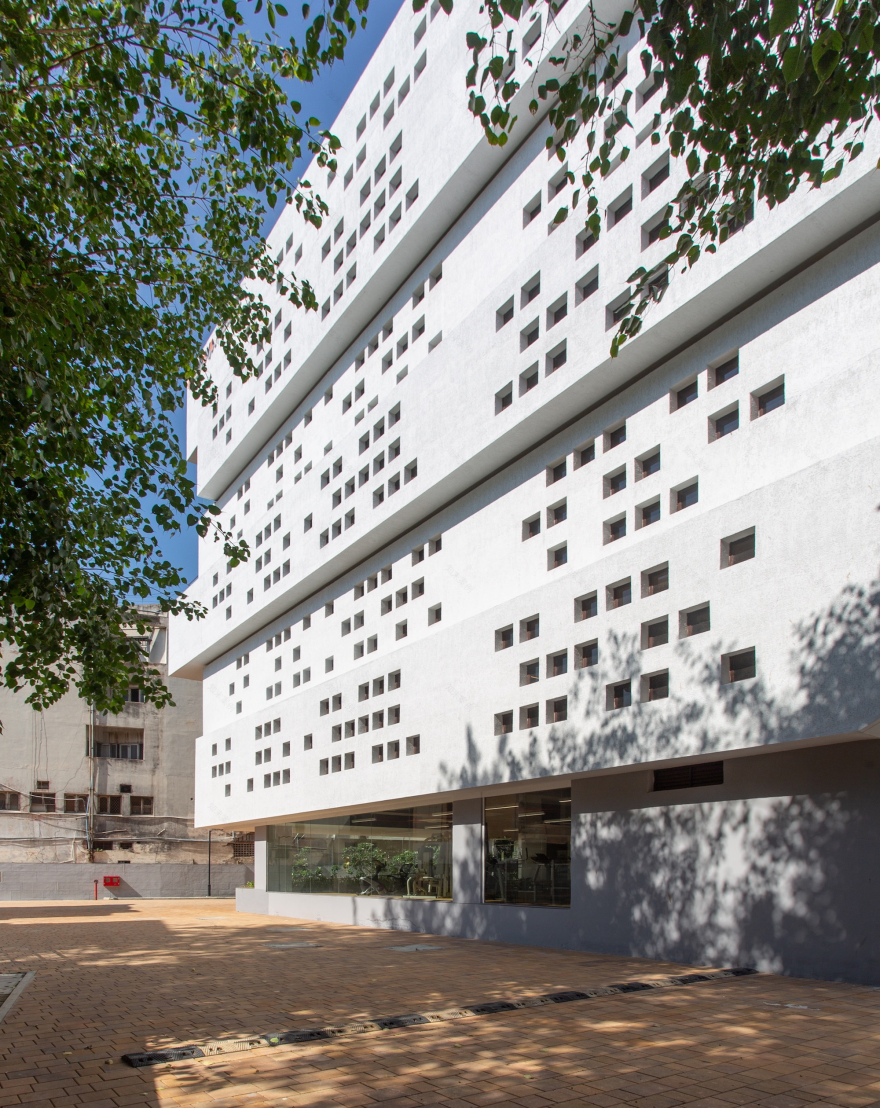

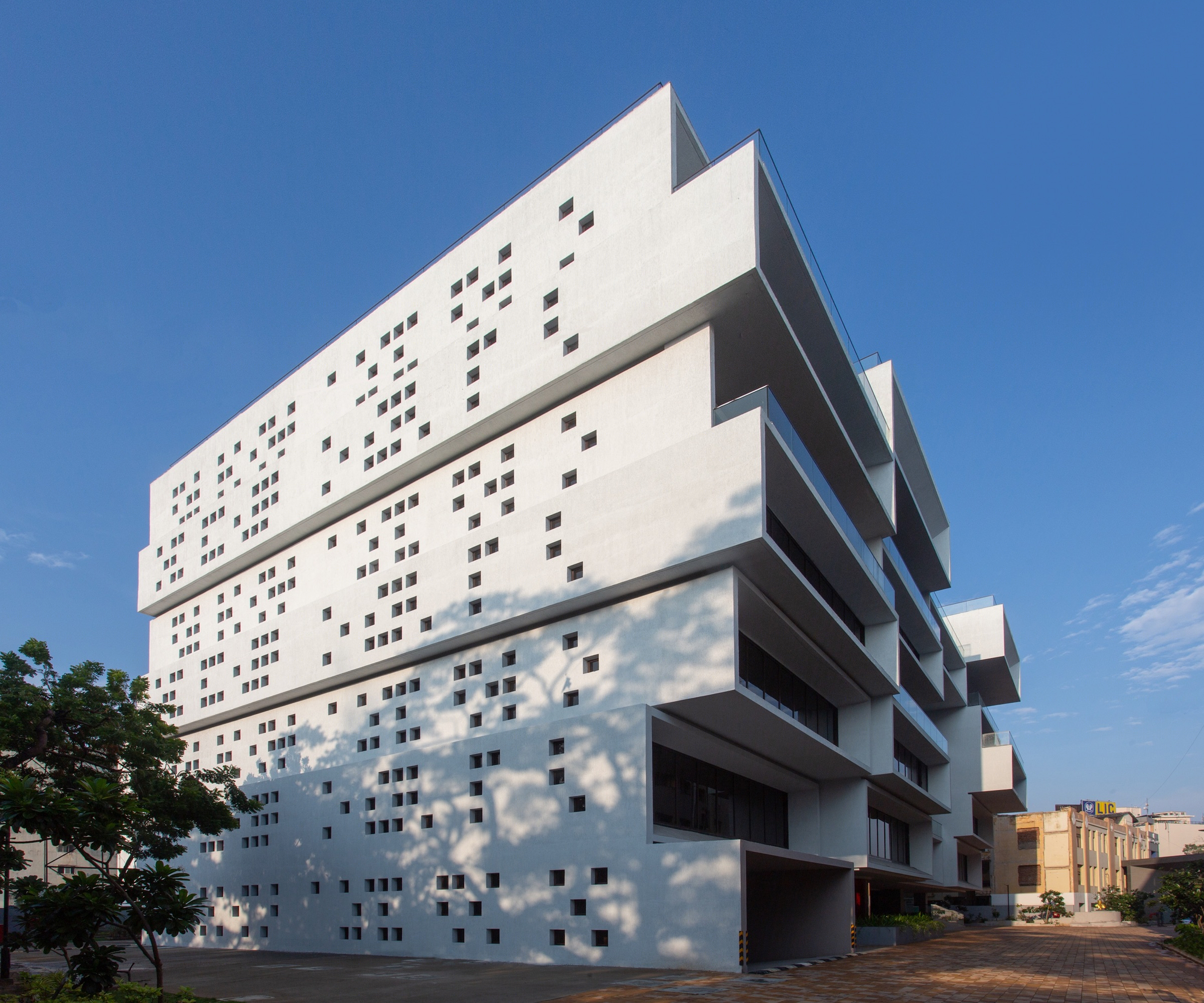

基于这座城市一年中大部分时间的气温都超过35℃，且阳光常直射南面，为缓解这种终年炎热的气候，设计师将为大楼提供服务便利的功能区设置在了建筑南面，作为楼栋中的缓冲区。

这种南面设置功能区，北面分布办公室的布局方式，不仅减少了建筑热量，同时也使得建筑非常节能。

The service cores form the southern side of the building becoming a buffer to reduce heat gain in response to the hot climate prevalent in Chennai. Temperatures are in excess of 35°C for most of the year with the sun always in the southern hemisphere.

Orienting all the office spaces towards the north with the service cores on the south thus mitigates heat gain completely rendering the building very energy efficient.

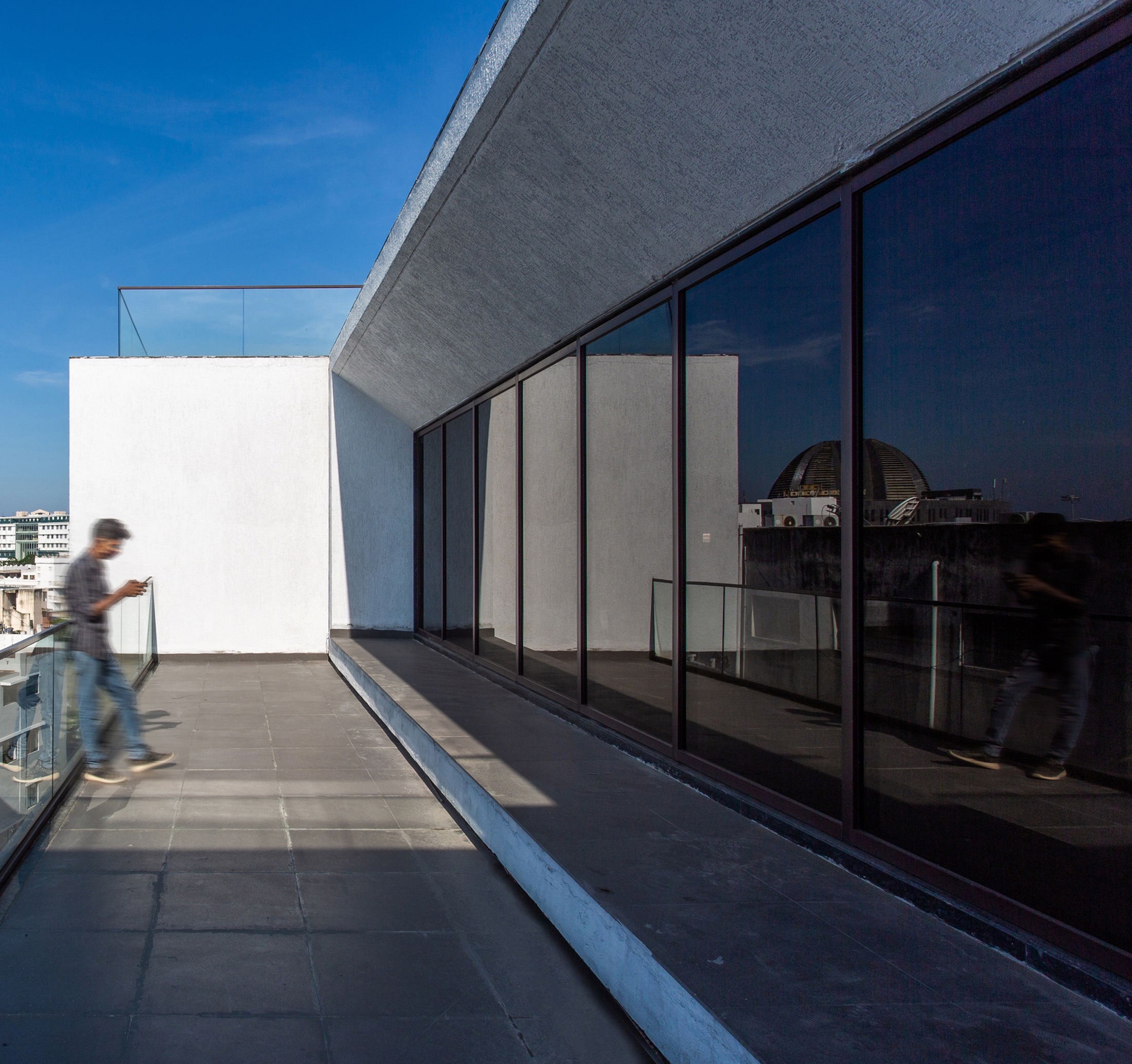

每层楼的开放式露台和屋顶景观花园为在大楼里办公的人们提供了足够的户外休闲空间。

The open terraces on every floor along with a rooftop landscaped garden provide outdoor spaces for the office occupants.

屋顶的太阳能板利用了这座城市充足的太阳能源，为所有的公共使用空间提供照明。

Solar panels at the rooftop harness the ample solar energy available in this location providing energy for the lighting of all the public areas.

该项目（Akshaya 27）专为客户针对性的解决气候和多种限制条件而设计，在创建节能办公室的同时，为大楼创造开放户外空间。

Akshaya 27 is designed in response to the climate & the client’s brief overcoming multiple site restrictions, to create energy-efficient offices that open into outdoor spaces.

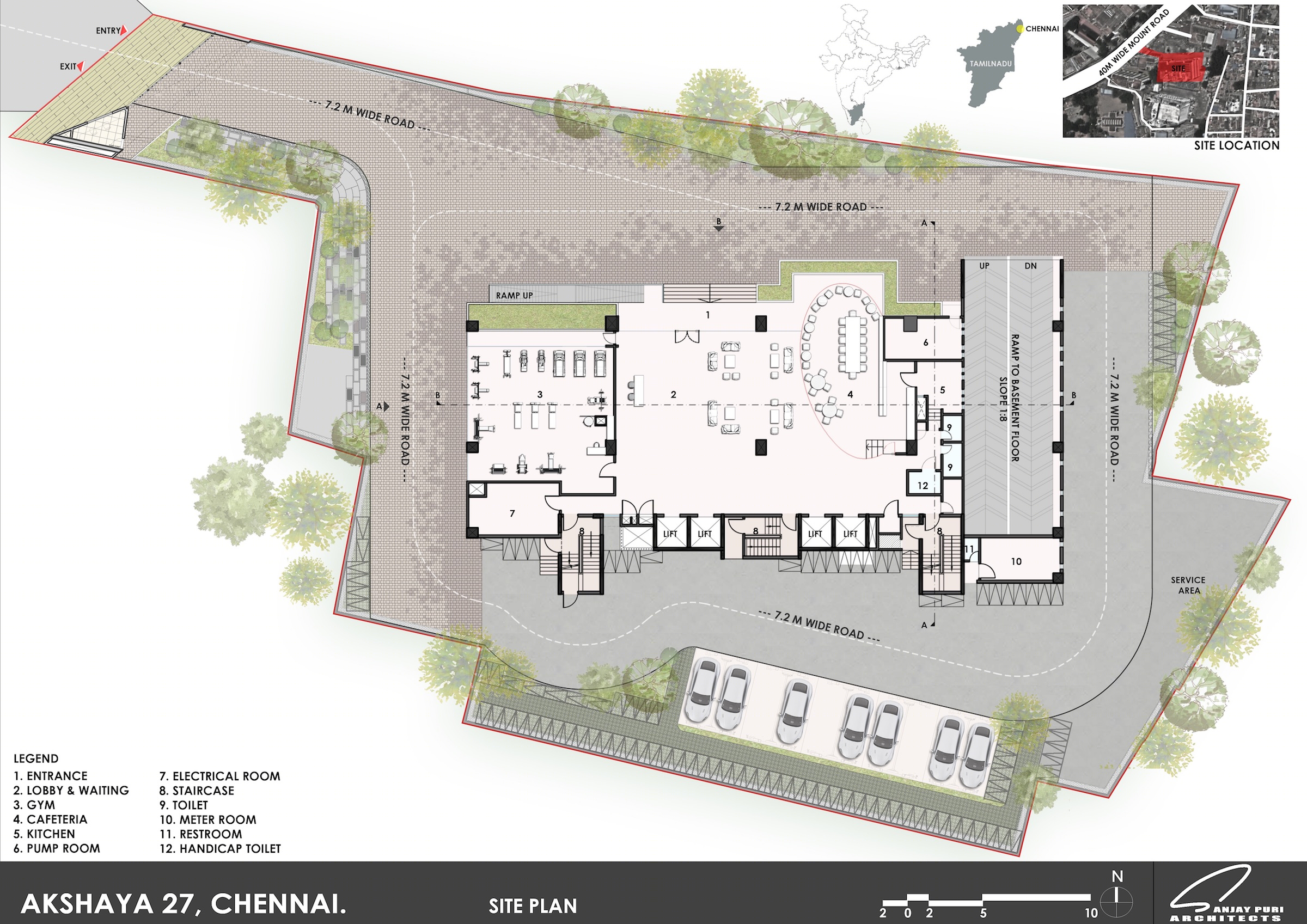

▼场地平面图 Site Plan

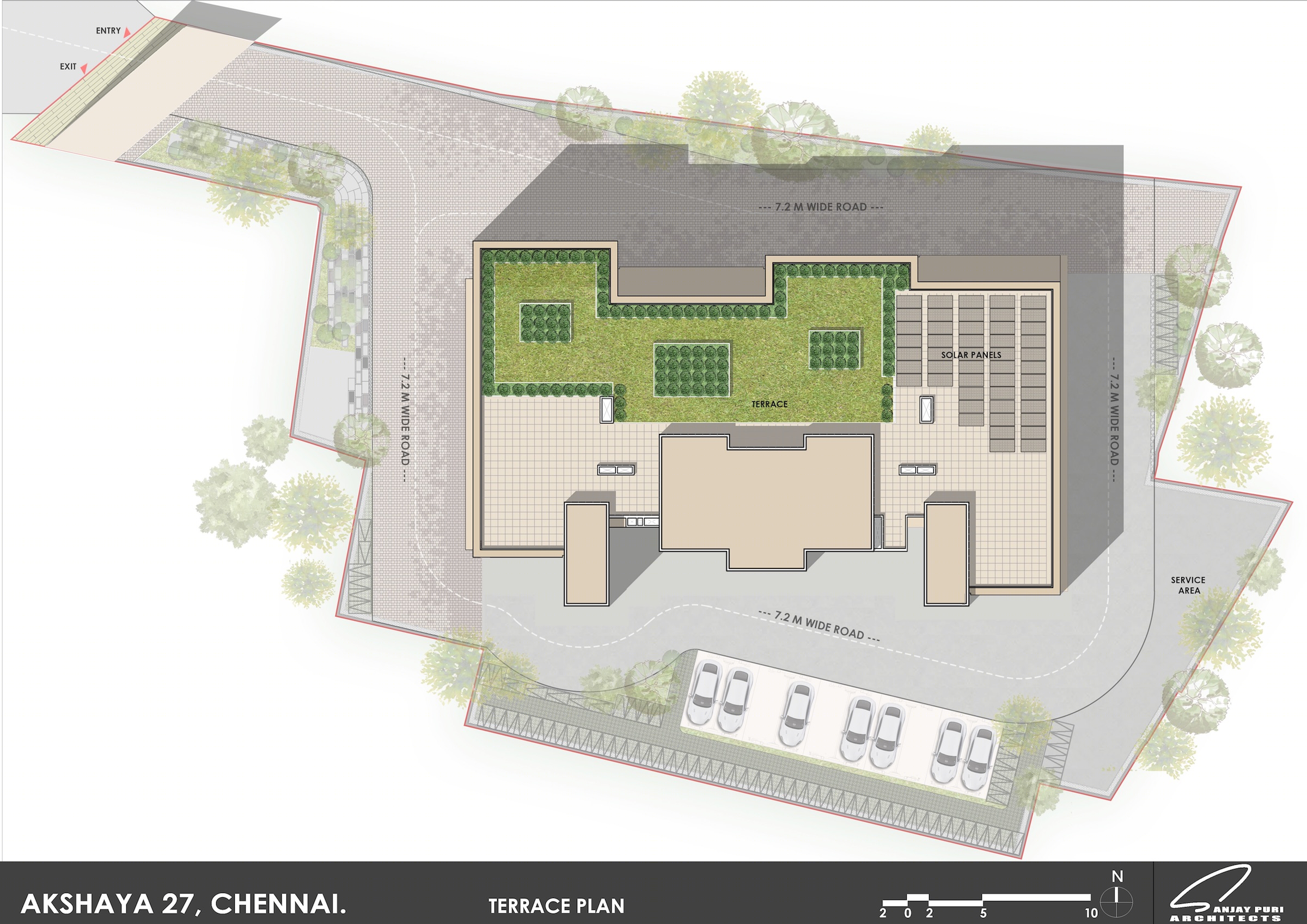

▼屋顶平面图 Terrace Plan

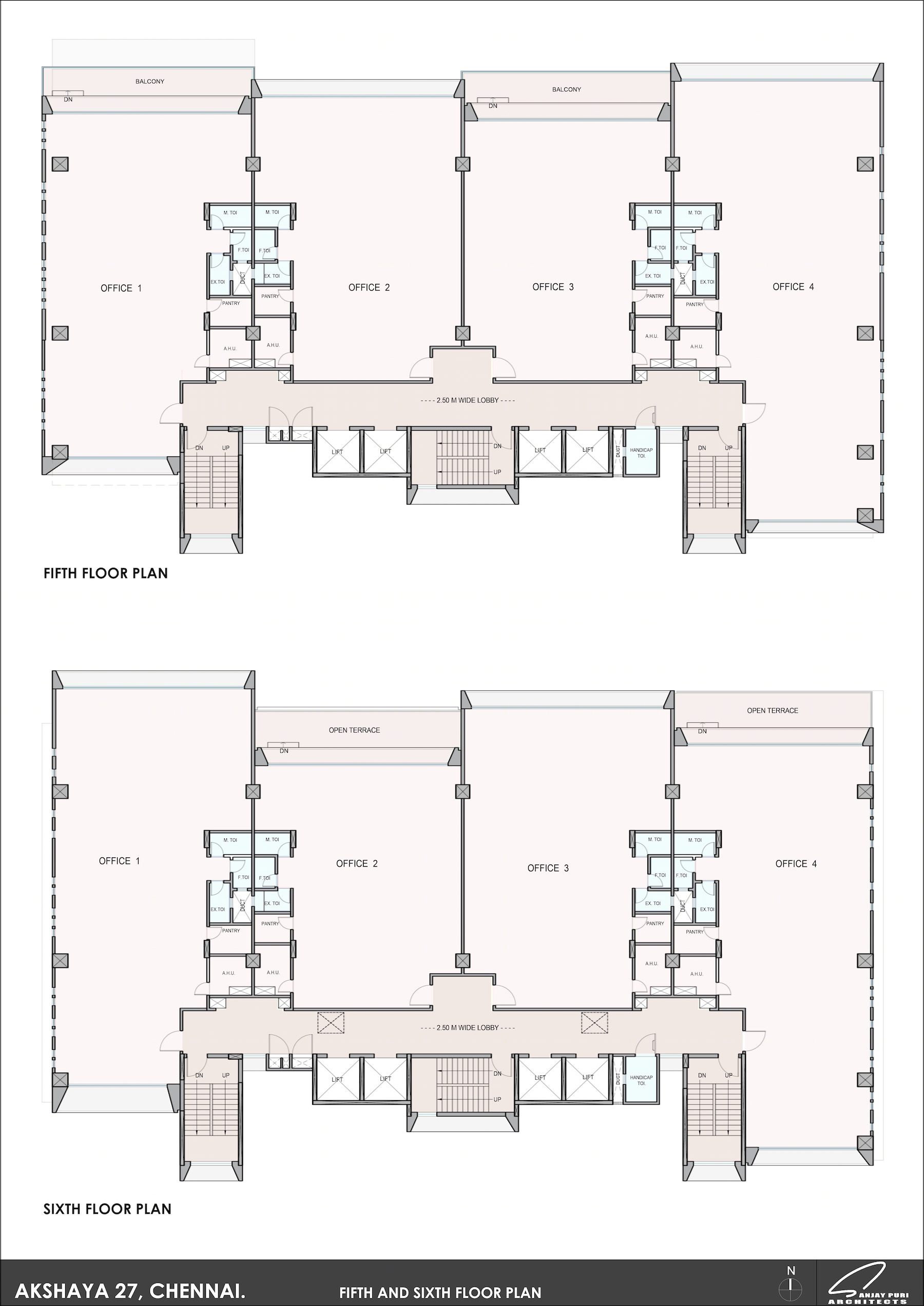

▼五层及六层平面图 Fifth & Sixth Floor Plan

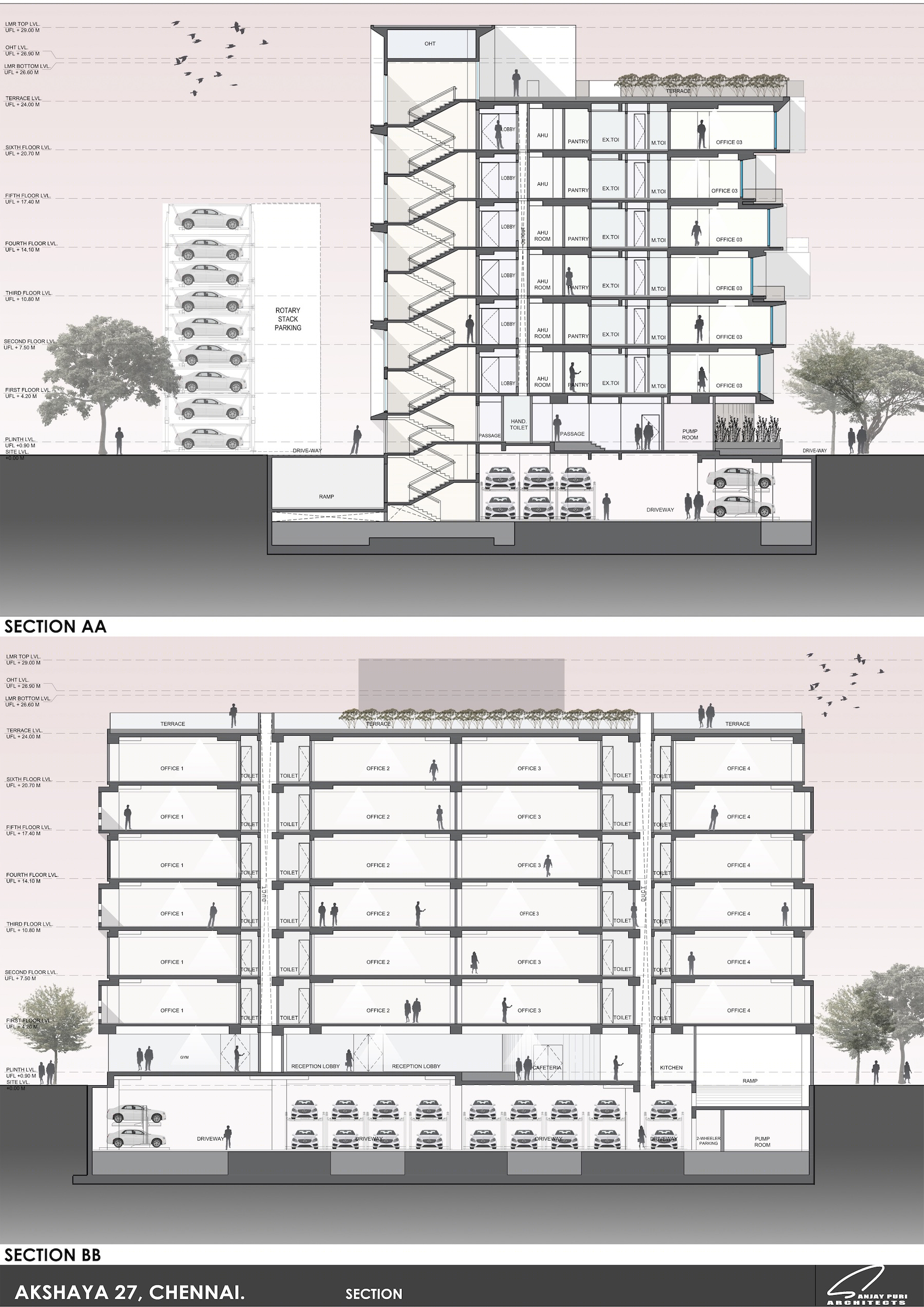

▼建筑剖面图 Sections

客户：Akshaya 集团

完成时间：2020年6月

建筑面积：8000平方米

地点：印度金奈

首席建筑师：Sanjay Puri

项目建筑师：Kapil Merchant、Pooja Sampat

图片来源：BRS Sreenag, Sreenag Pictures

Client: Akshaya Group

Completion Year: June 2020

Built area: 8,000 sqm

Location: Chennai, India

Principal architect: Sanjay Puri

Project architects: Kapil Merchant, Pooja Sampat

Photo Credit: BRS Sreenag, Sreenag Pictures
