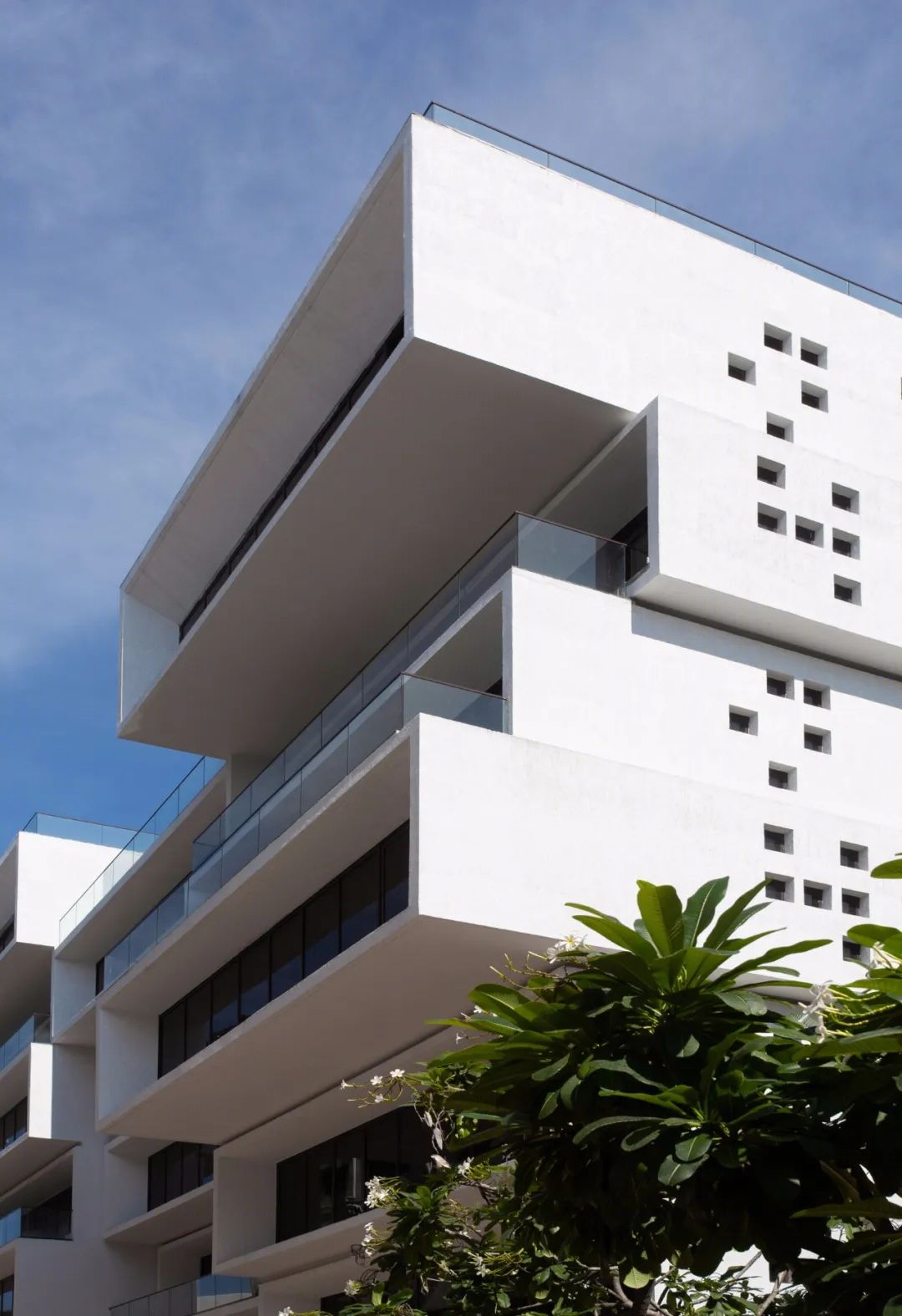

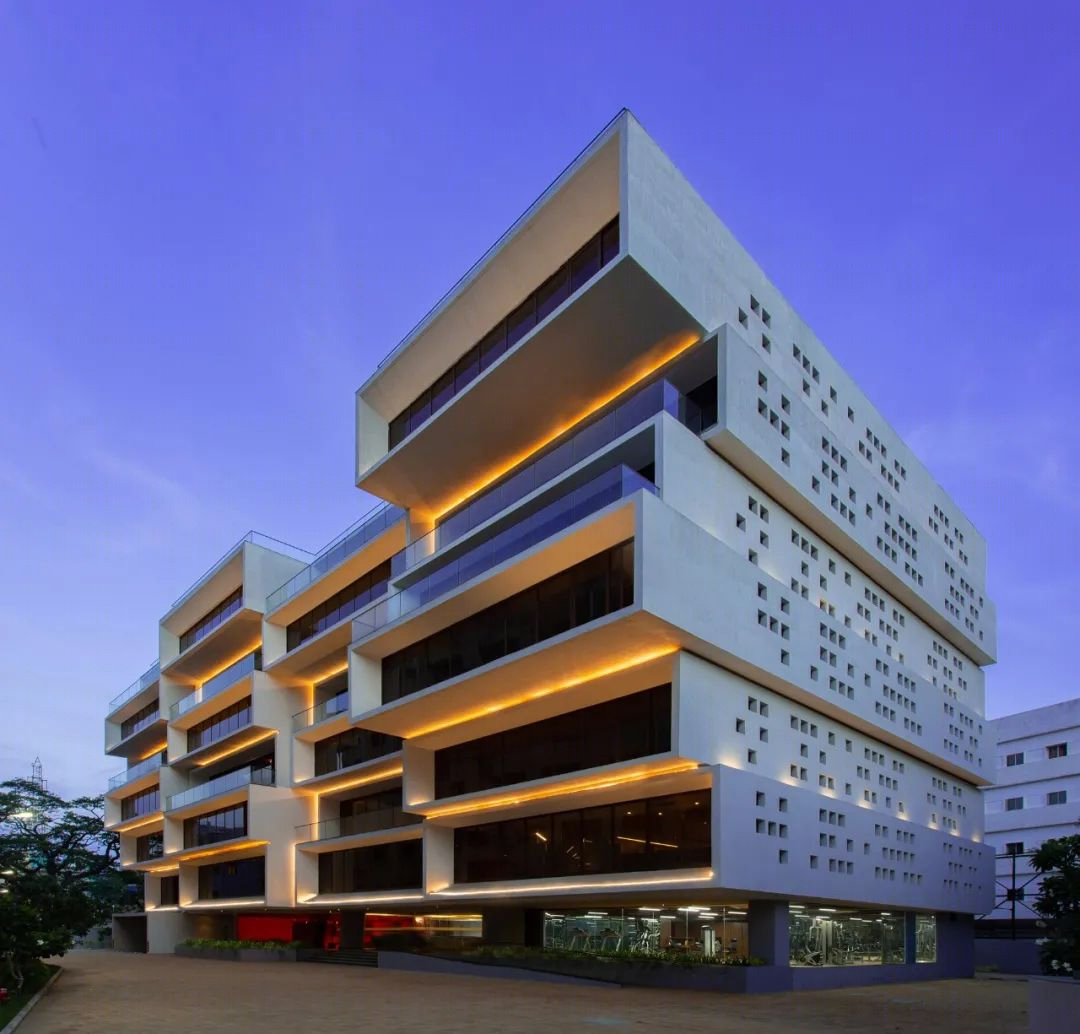

印度节能办公楼设计，悬挑长方体堆叠创造雕塑感

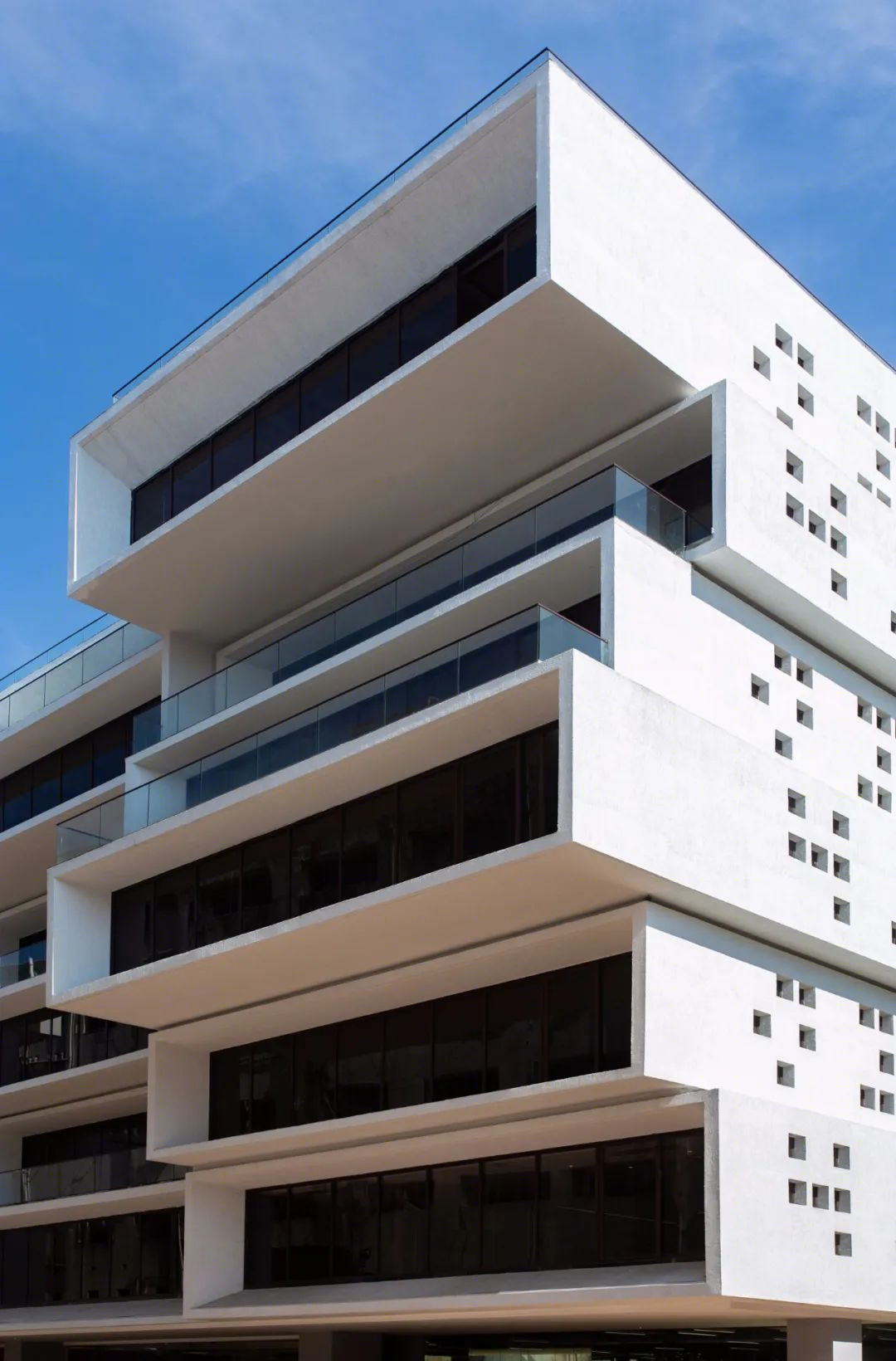

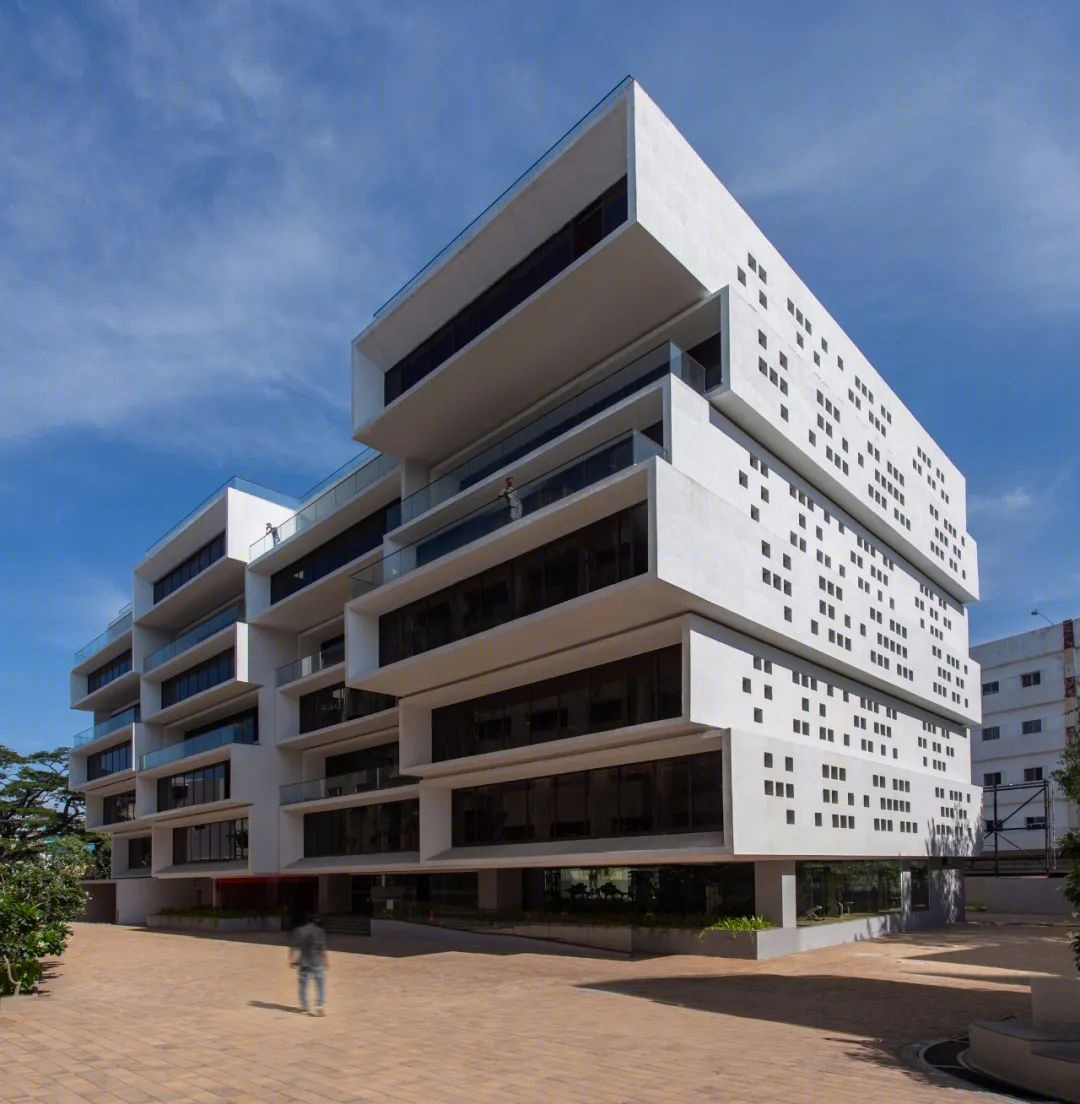

在印度的金奈，悬挑长方体体量堆叠创造了一座雕塑般的办公楼。该地块位于南印度金奈（Chennai）的旧商业区，需要克服多重挑战。

该地块占地4098平方米，可从一条非常狭窄的道路通往城市主干道，且无临街道路，将其夹在两侧现有建筑的之间。

根据客户的要求和允许的建筑面积，因此，建造了一座总建筑面积为8000平方米，其高度限制为27米。

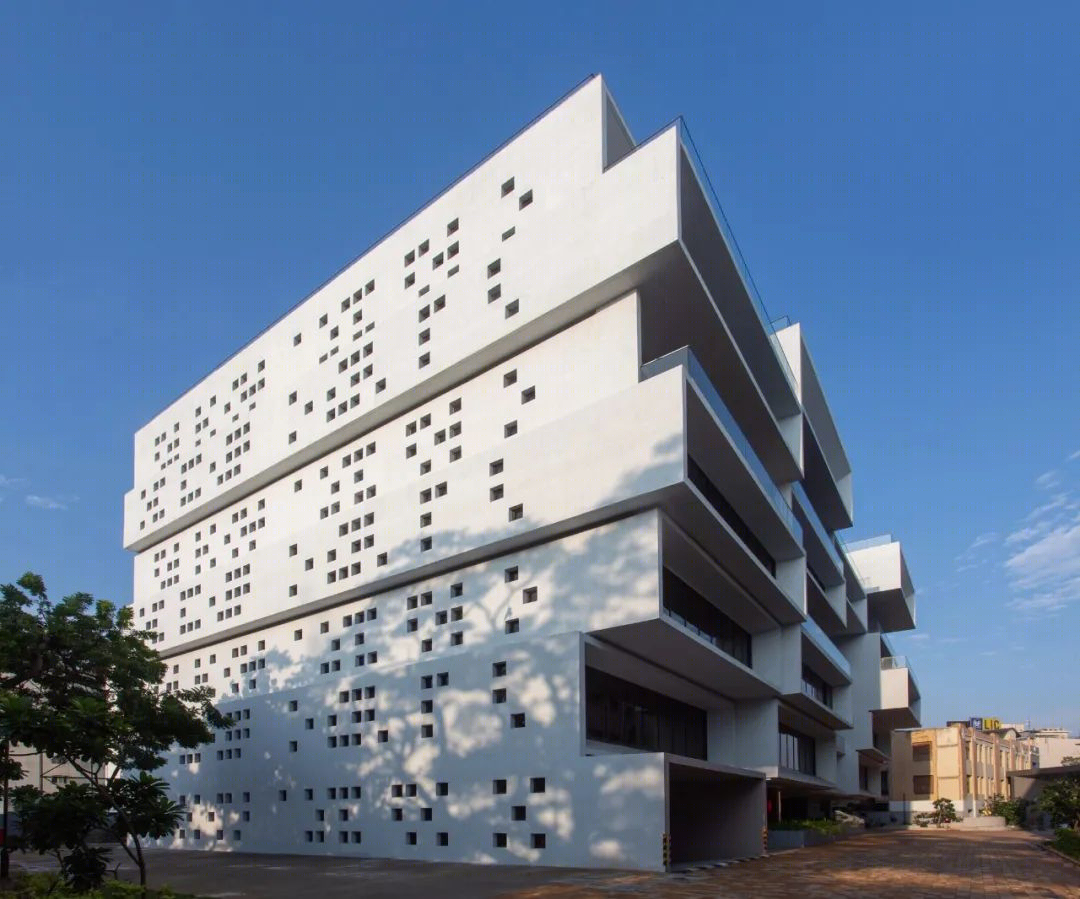

Cantilevered cuboid volumes create a sculptural office building in Chennai , India. Located in the old business district of Chennai in South India, the plot had multiple challenges to be overcome. With a very narrow access from an arterial city road and no road frontage this plot of 4098 sqm is sandwiched between existing buildings on all sides. A total area of 8000 sqm was to be built based upon the client’s requirements and the permissible construction area , along with a height restriction of 27M.

地下一层空间尺寸较小，以方便场地内的车辆流通，并设有社区空间，包括自助餐厅，体育馆和入口大厅。这些办公空间的一层可分为4个办公区，面积从165平方米到270平方米不等，在一楼悬挑出来，每层楼都有一个朝北的线性露台。

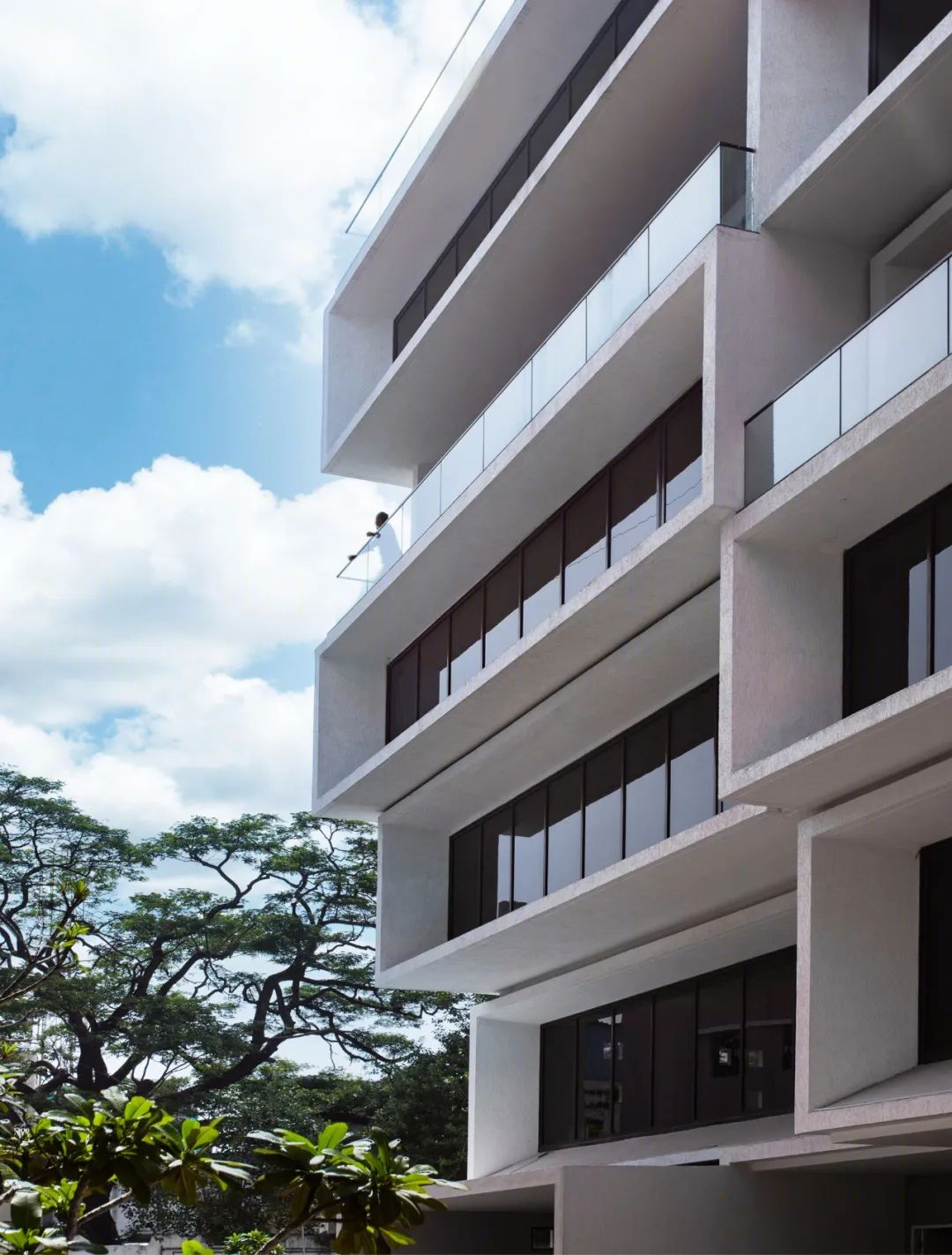

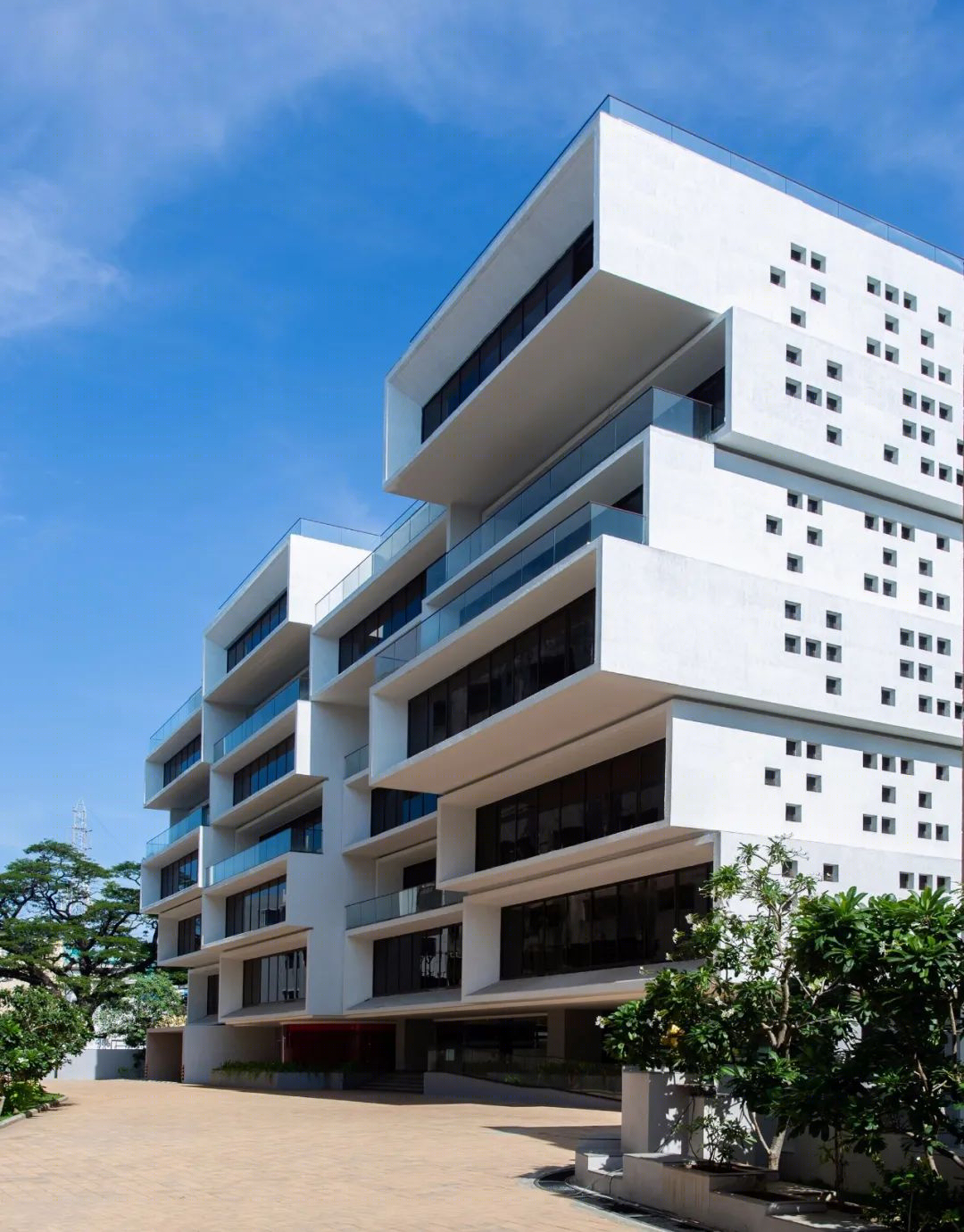

The ground floor is deliberately kept small to allow easy vehicular circulation within the site and houses community spaces including a cafeteria, gymnasium and an entrance lobby. The offices divisible into 4 at a level with varying sizes from 165 to 270 sq metres cantilever out at the first floor and step back and forth creating linear north facing terraces at every floor.

服务核心形成了建筑的南面，成为一个应对金奈炎热气候而减少热量获取的缓冲区。一年中的大部分时间里，温度都在35°C以上，而太阳始终位于南半球。

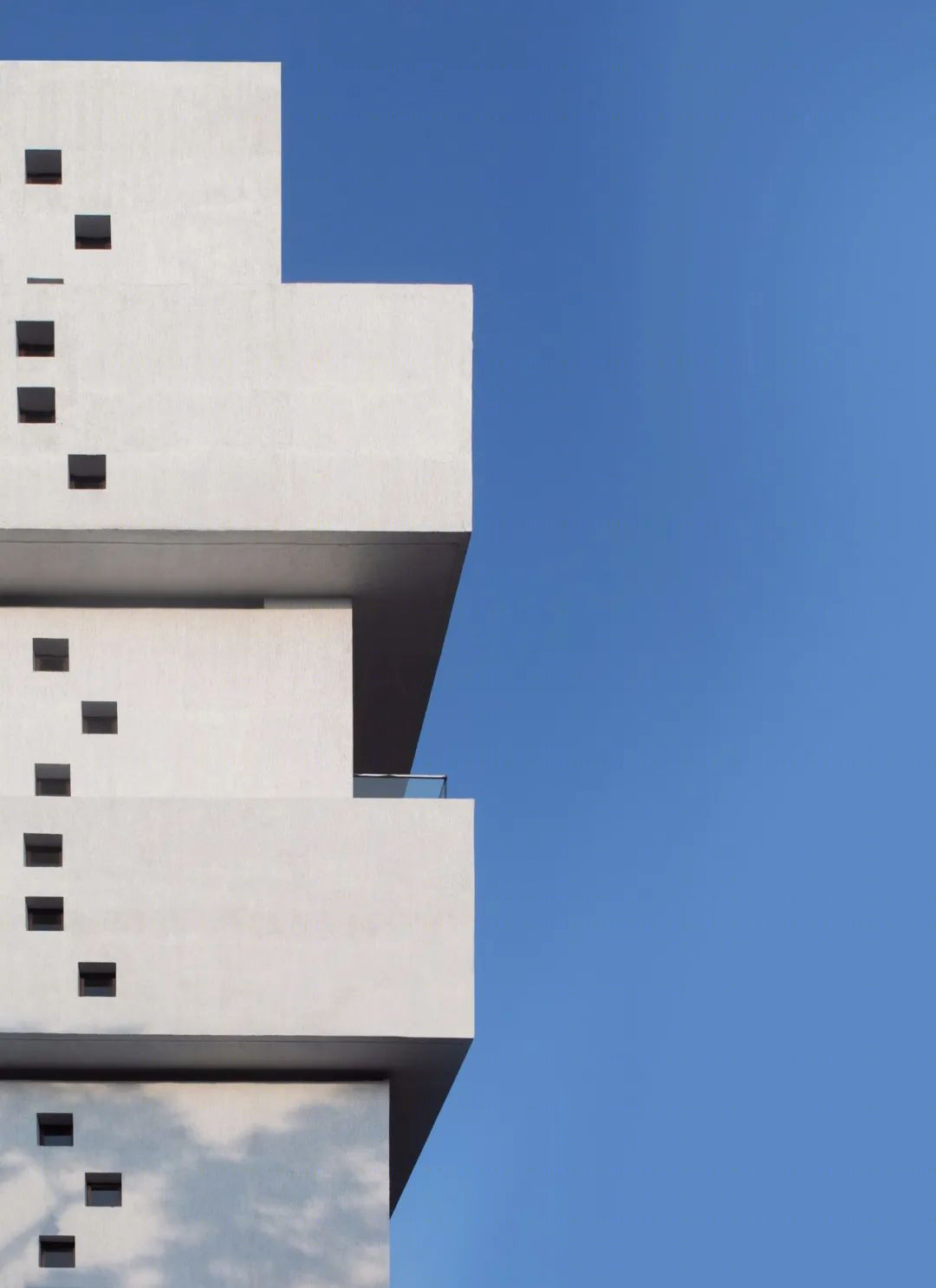

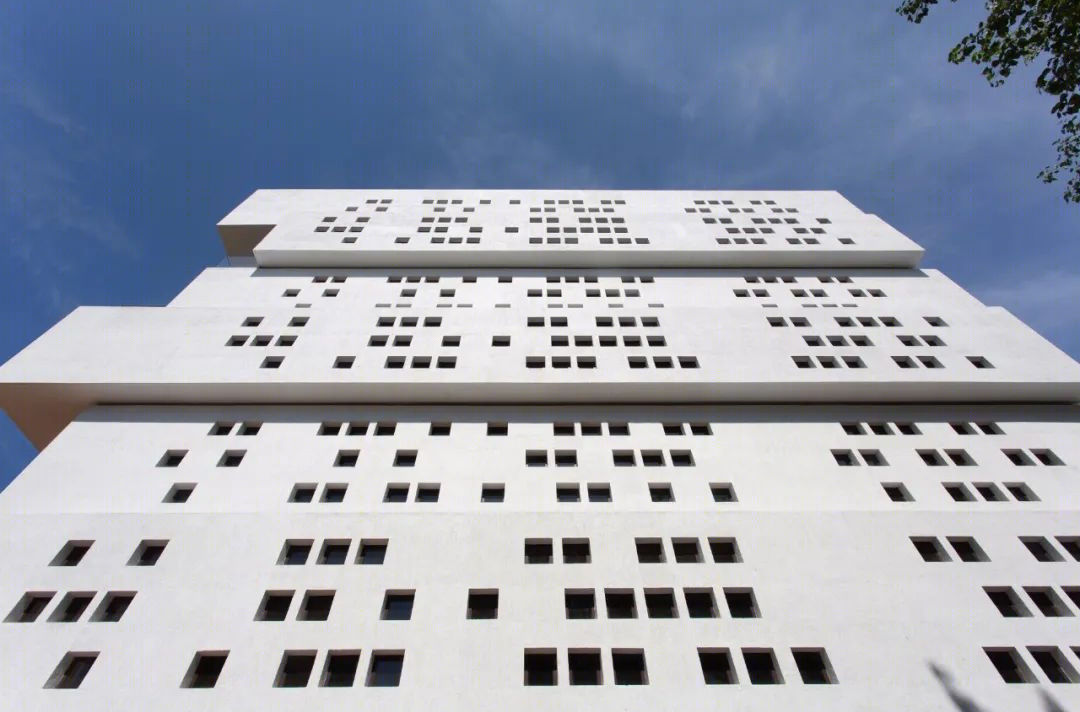

The service cores form the southern side of the building becoming a buffer to reduce heat gain in response to the hot climate prevalent in Chennai. Temperatures are in excess of 35°C for most of the year with the sun always in the southern hemisphere.

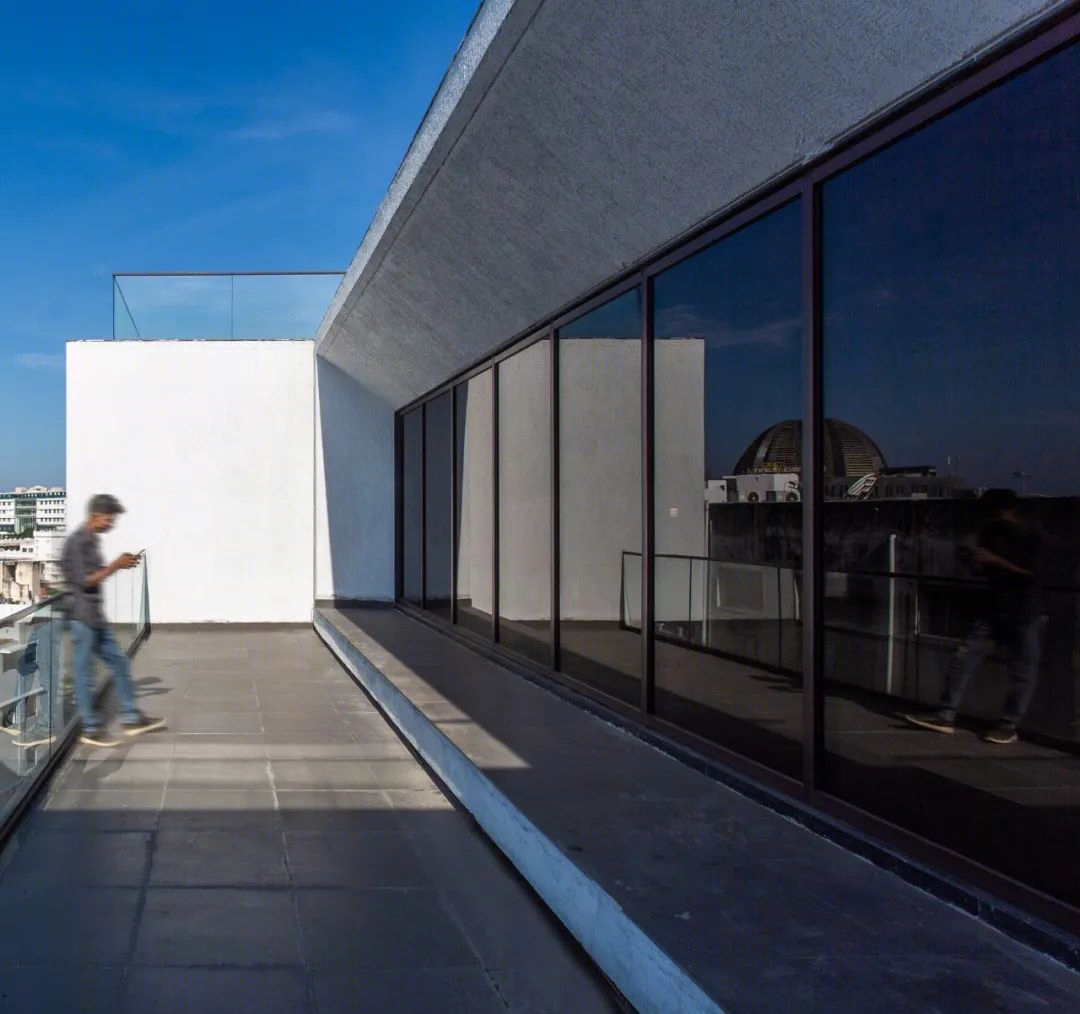

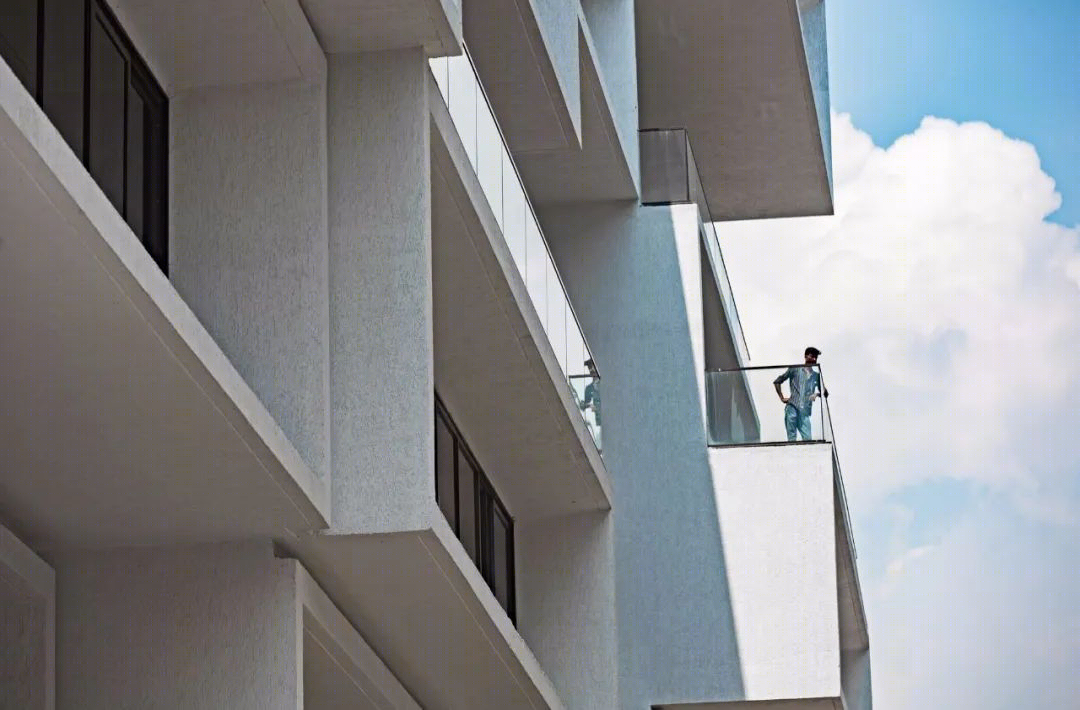

因此，将所有办公空间都朝北，而服务核心则朝南，这样就减少了热量获取，从而使建筑非常节能。每层的开放式露台以及屋顶花园为办公人员提供了户外空间。

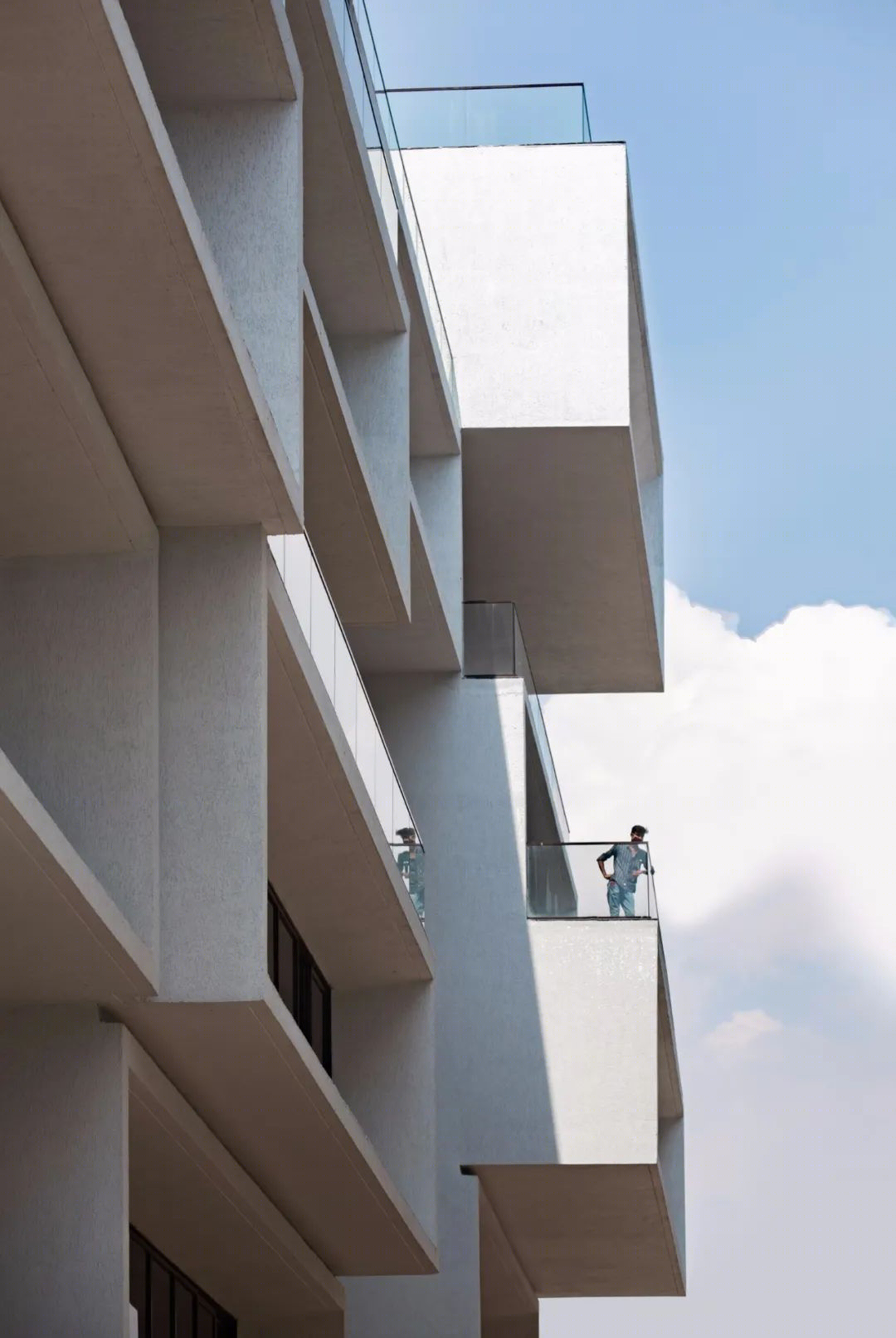

Orienting all the office spaces towards the north with the service cores on the south thus mitigates heat gain completely rendering the building very energy efficient. The open terraces on every floor along with a roof top landscaped garden provide outdoor spaces for the office occupants.

屋顶上的太阳能电池板利用了该位置可用的充足太阳能，为所有公共区域的照明提供能源。Akshaya 27的设计旨在应对气候变化以及完成客户的愿景，经克服了场地的多种限制，最终，创建了向室外开放的节能办公楼。

Solar panels at the roof top harness the ample solar energy available in this location providing energy for the lighting of all the public areas. Akshaya 27 is designed in response to the climate & the client’s brief overcoming multiple site restrictions, to create energy efficient offices that open into outdoor spaces.

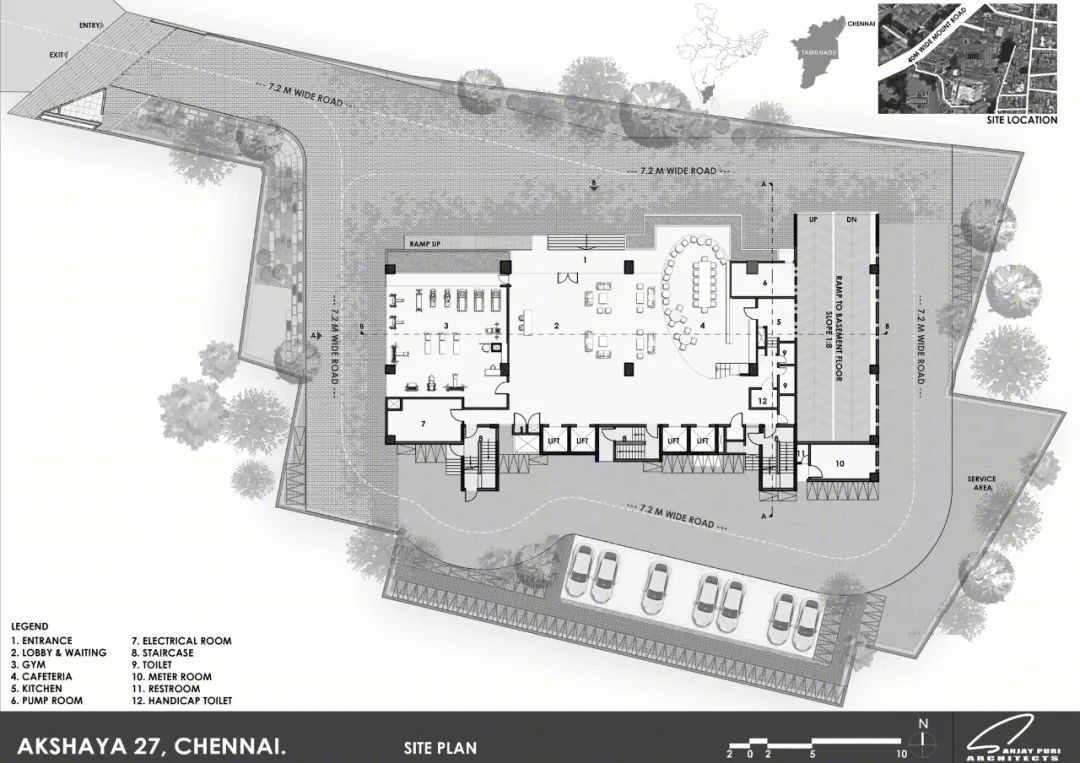

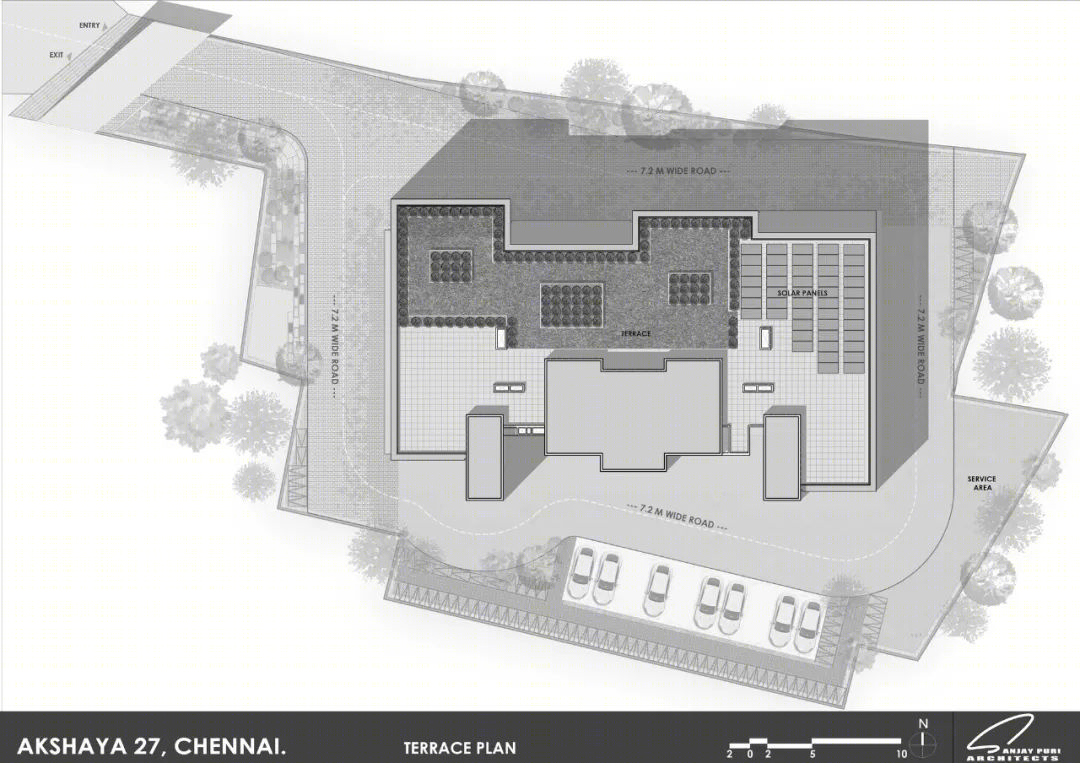

场地平面图

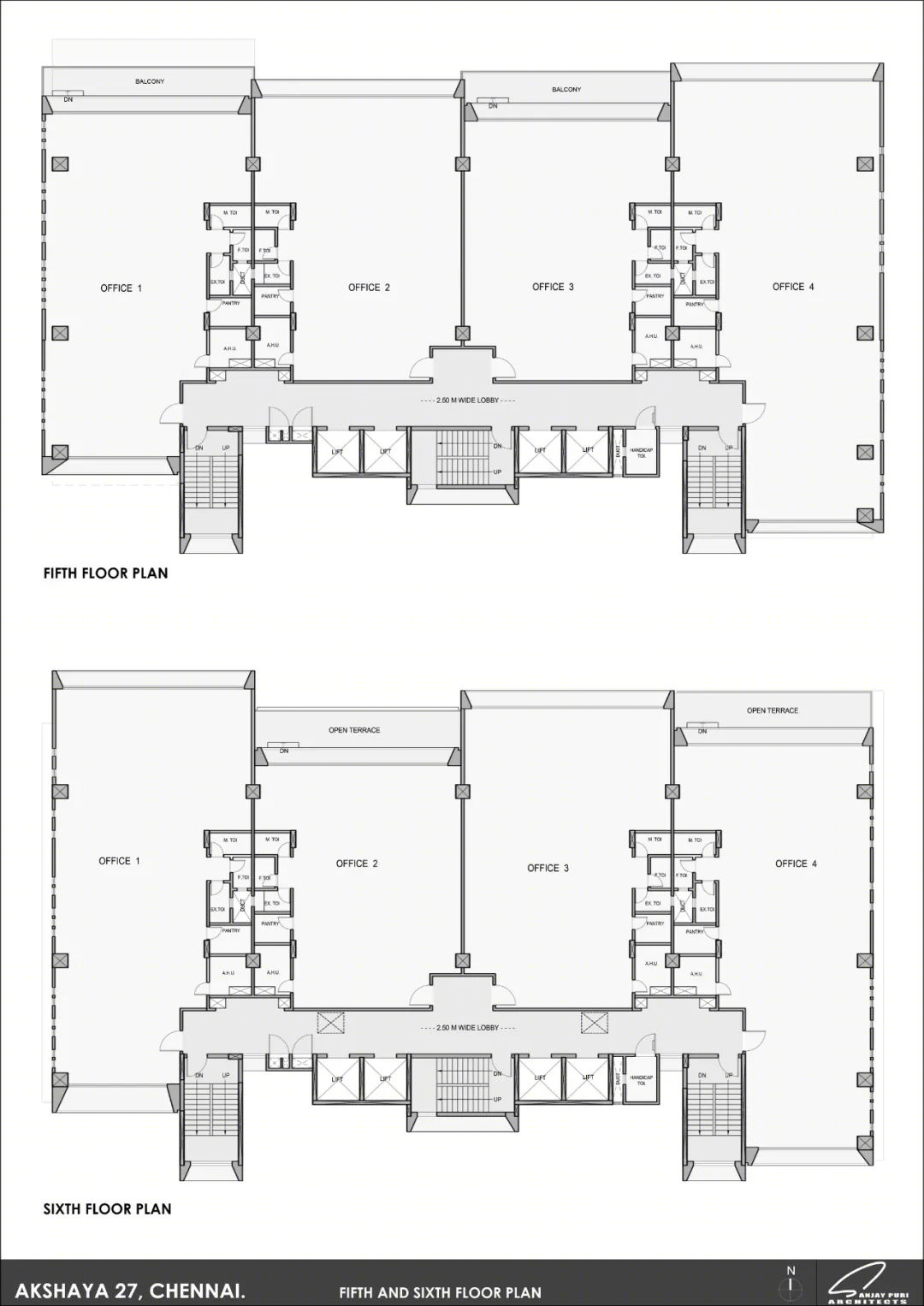

平面图

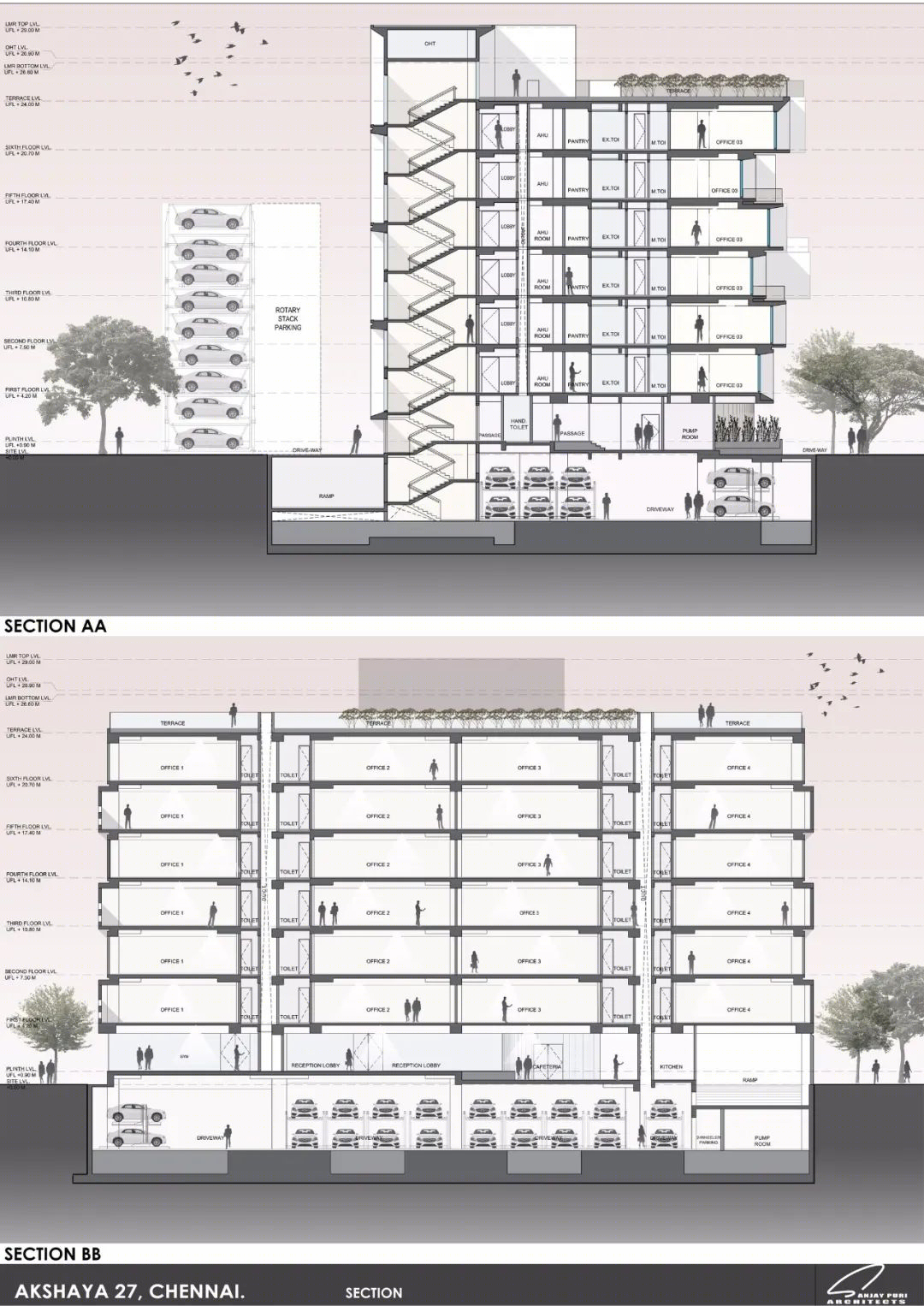

剖面图

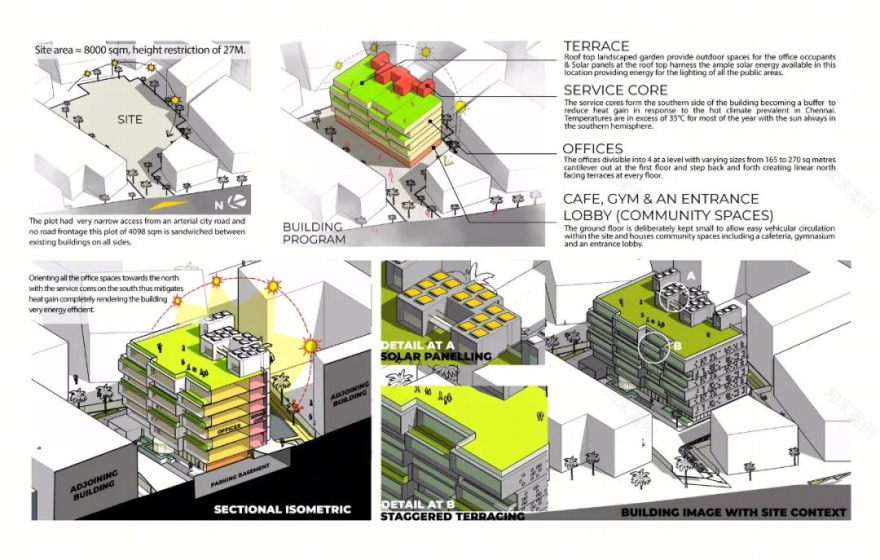

分析图

建筑师：Sanjay Puri Architects

地点：印度

面积：8000平方米
