广东建邦杭萧装配式建筑产业园 | 工业与园林的完美融合

项目背景

Project background

产业园位于广东省开平市翠山湖工业园内，项目为钢构生产基地的综合配套建筑，主体的办公区建筑面积约8000平方米（另有生活区建筑面积约7000平方米）。除了办公、服务等常规的产业功能外，这里还希望打造一个具有创新活力的研发环境和艺术气质的社交空间。

The industrial park is located in Cuishan Lake Industrial Park, Kaiping City, Guangdong Province. The project is a comprehensive supporting building for the steel structure production base, the main office area in it is about 8000m² (and the living area is about 7000m²). In addition to the regular industrial functions such as office and service, the client also hopes to create an innovative research environment and artistic social space.

▼项目概览，overall of the project

场地思考 – 工业与园林共融

Site thinking – integration of garden and industry

由于占地40000平方米的生产厂房占据了大部分的建设用地，主体建筑需布置在约50米X250米的狭长场地内。除东北侧短边靠近自然山体外，场地周边均为已建或待建的大型工业厂房。如何在此充满冲突的用地环境中实现项目多样化的定位需求是设计思考的主要切入点。

Since the production factory in 40000m² occupies most of the construction land, the main building has to be arranged in a narrow site of about 50m wide and 250m long. Except the northeast side close to the mountain, the site is surrounded by large industrial factories that have been built or are to be built. How to realize the diversified positioning of the project in this conflict-ridden environment is the main point of design thinking.

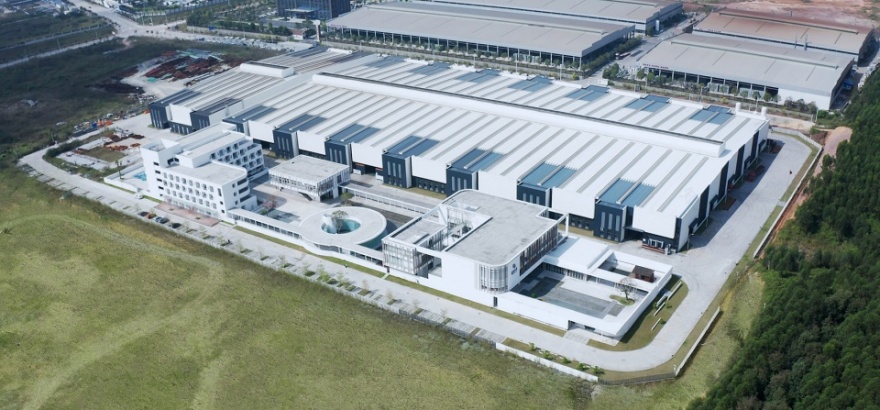

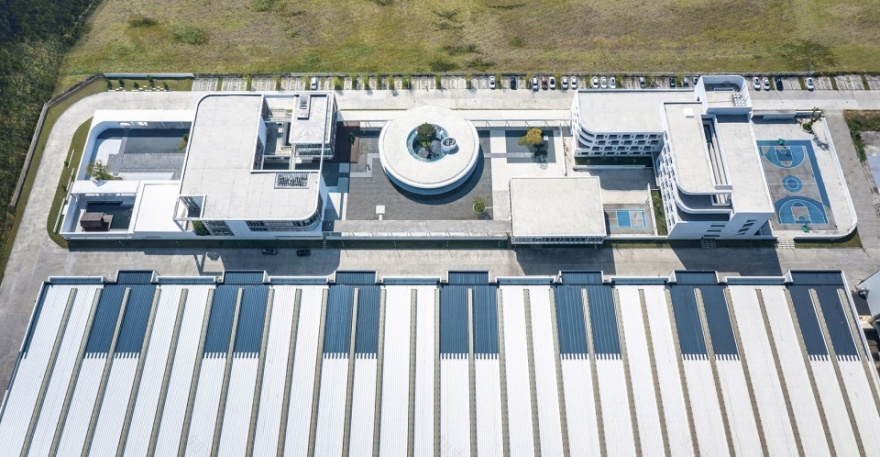

▼产业园整体鸟瞰，aerial view of the industrial park

方案选择打破产业建筑通常采用的集中式布局模式，通过将建筑体量分解成多个功能模块，采用错落的建筑布局以适应狭长的场地，重新构成以多层次庭院为主体的特色产业空间。沿周边道路设置连续院墙和长廊以限定及连接建筑群，既保证动静功能区的内外隔绝，开合的界面也保持了视线的对话，以活跃工业园沿路乏味的公共景观，从而达到园区活动场所与周边工业环境之间的动态平衡。

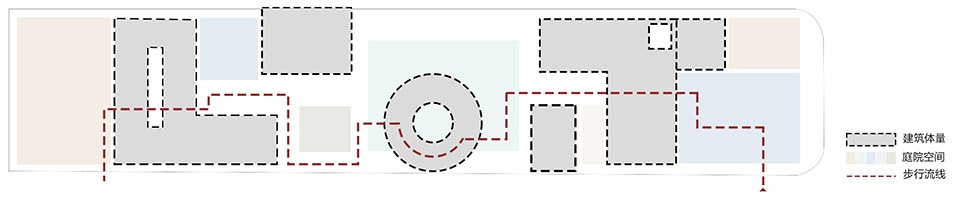

▼分析图，analysis diagram

▼产业园西向鸟瞰，west aerial view of the park

整合建筑与景观的一体化设计尝试借鉴传统园林的造园手法，以当代的园林设计语言重新阐释全新的产业“园“环境，不仅为员工的工作和生活创造了如游园般的全天候独特体验，也为企业的技术研发和文化演绎提供了丰富的空间载体。

The integrated design of architecture and landscape tries to use the traditional gardening language as reference to reinterpret the new industrial “garden” environment with contemporary forms, which not only creates a unique all-weather experience as a garden travailing for employees, but also provides a rich space carrier for enterprise research and cultural interpretation.

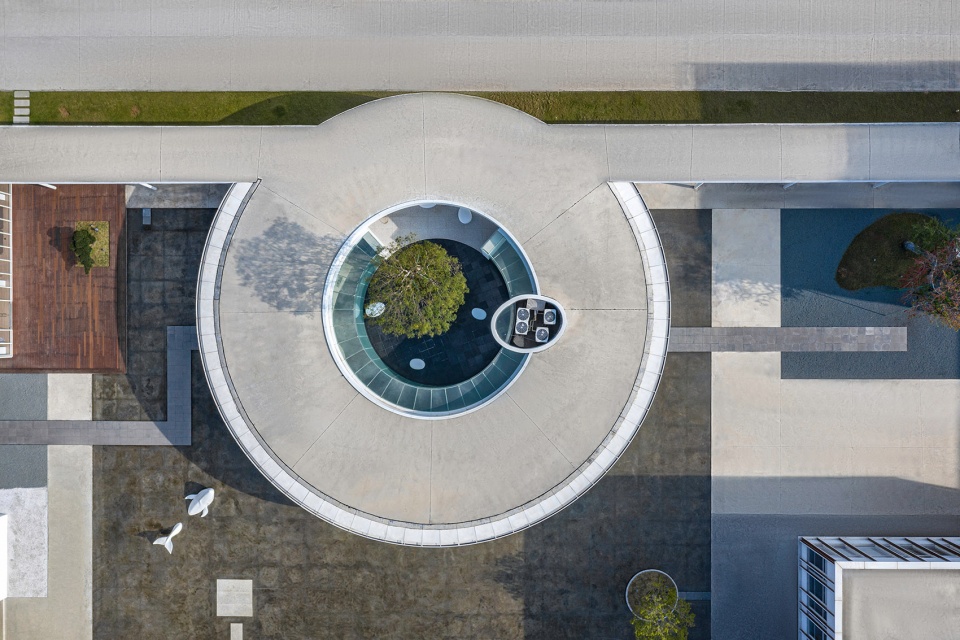

▼水庭园俯视，top view of the water garden

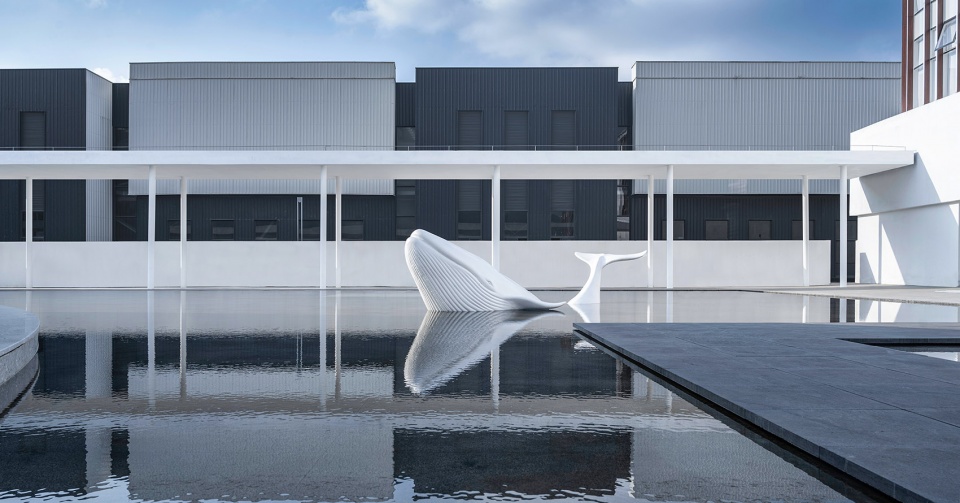

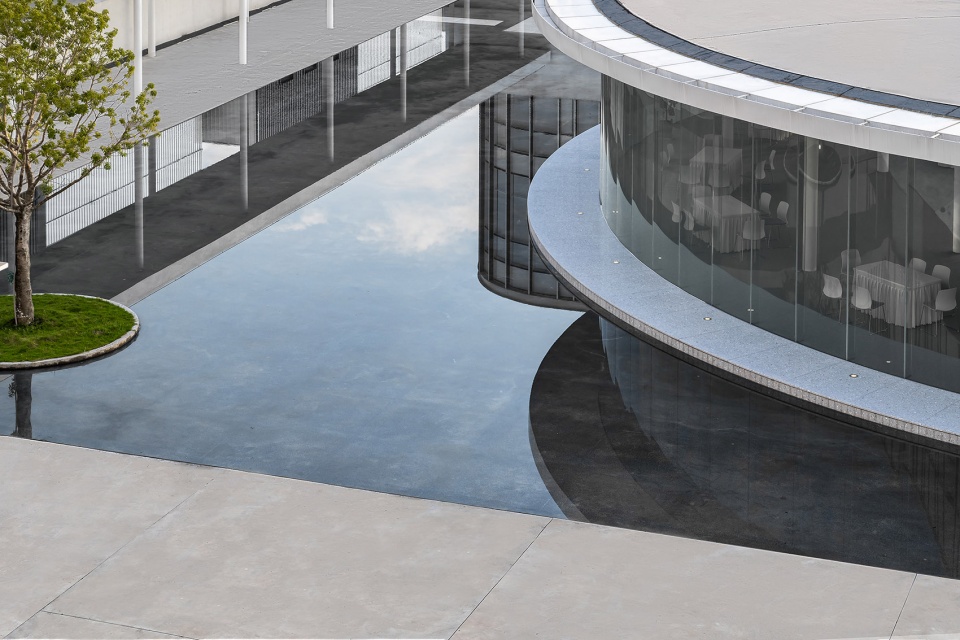

▼水庭园浅水池与亲水平台，wading pool with platform

空间语言

Spatial language

起承转合：矩形、圆形、L形等形式简洁的建筑体块，结合墙、廊、架等极简的园林建筑要素，组合形成三进的主体庭园序列、以及相互渗透的次级庭院和各层平台。立体化的外部空间使得建筑群不是一览无遗，而是通过室内外的互动在人们的活动体验中逐步展现，以产生步移景异间的惊喜。

Simple building blocks, combined with simple garden building elements such as walls, corridors, and frames, form a three levels main garden sequence, as well as an interpenetrating secondary courtyard and platforms.

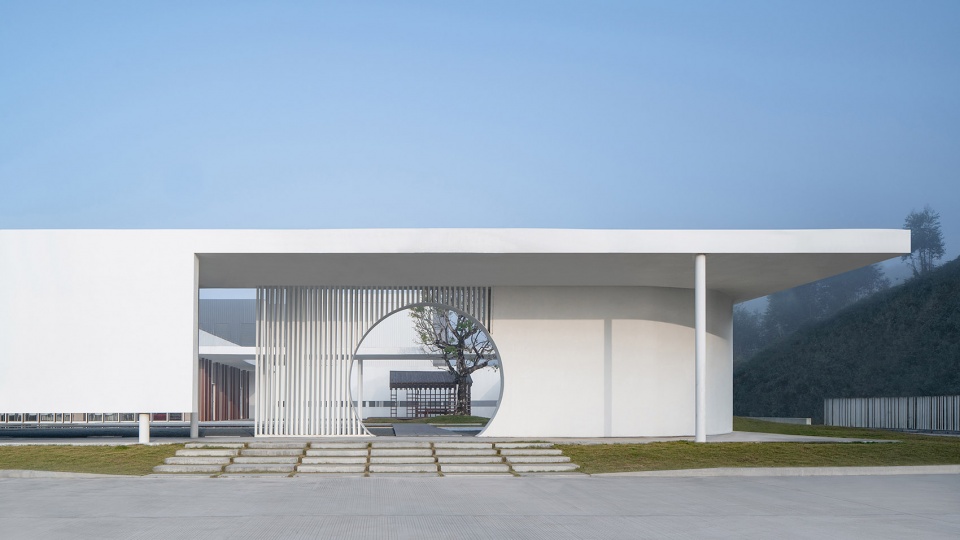

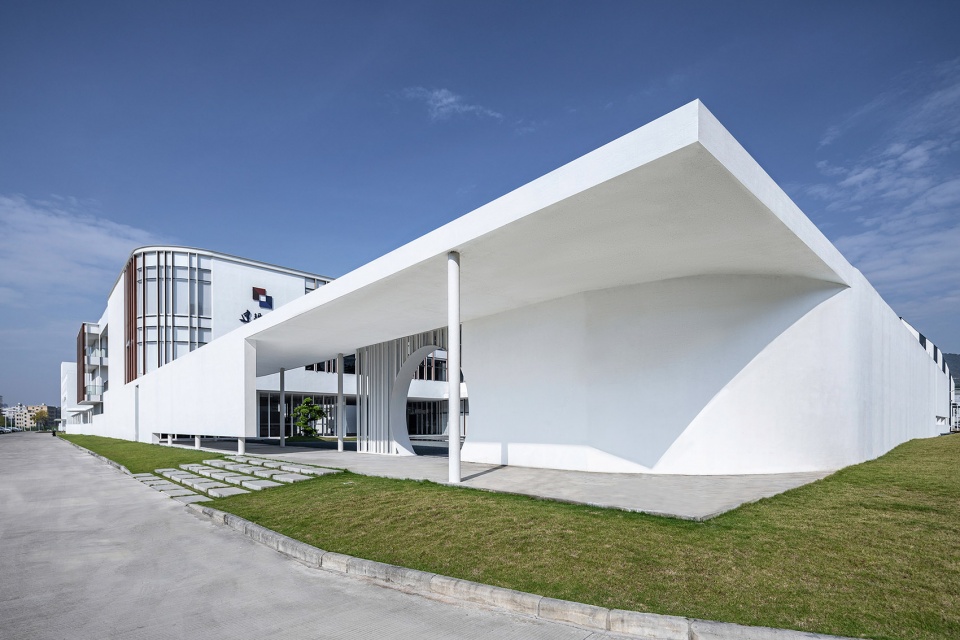

▼主入口的悬挑门廊，cantilevered porch at the main entrance

自成天地：靠近山体的端部设置产业园的敞廊式主入口，以几何构图的“枯山水”式景观入口庭园，替代产业建筑常规的交通广场和仪式性入口。带有禅意的静态纯净空间与周边喧嚣的工业环境形成强烈反差，给予访客难忘的第一印象和企业文化表达。白色长廊在入口庭园一侧划分出尺度较小的观鱼侧庭，延伸入口的空间景深。

The open corridor main entrance and the entrance garden in the geometric landscape is used to replace the conventional traffic square and ritual entrance of the normal industrial building. The white corridor divides a small fish-viewing side court on the side of the entrance garden, extending the space depth of the view.

▼入口门廊，entrance porch

▼自成天地的入口庭院，the entrance courtyard

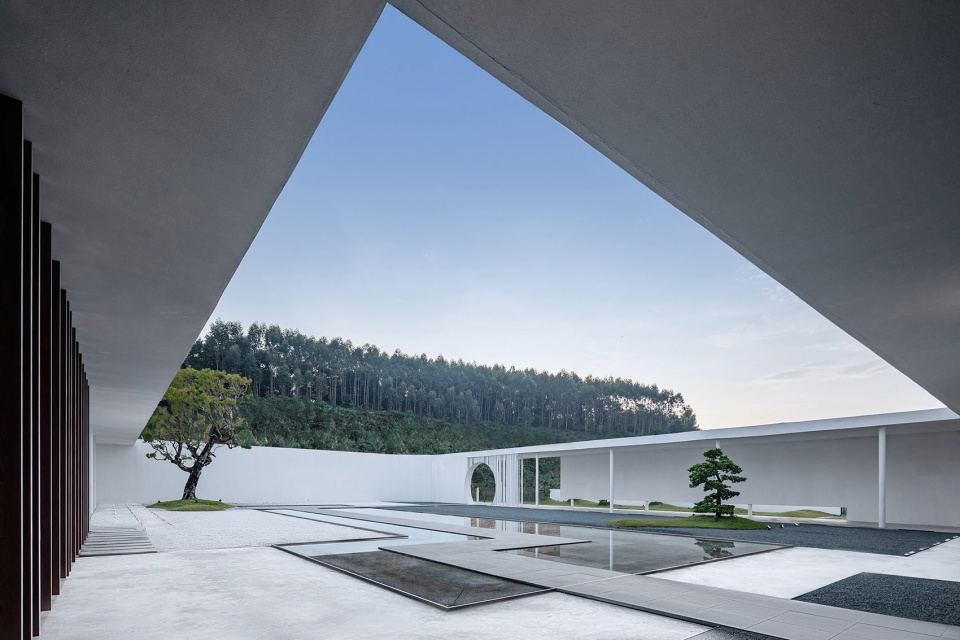

欲扬先抑：沿水面中央的折线亲水步道，可漫步穿越入口庭园转入主体建筑-办公研发楼的架空层，并分别到达两侧的办公门厅和会议门厅。相对低矮的架空层和后续收窄的步行道、内庭院，以欲扬先抑的手法形成第一、二进庭园之间的空间过渡，使进入场地中部水庭园的空间和视线顿显豁然开朗。

Along the folding walkway in the center of the water surface, you can stroll through the entrance garden and turn into the overhead floor of the main building – office and research building, and reach the office hall and conference hall on both sides respectively.

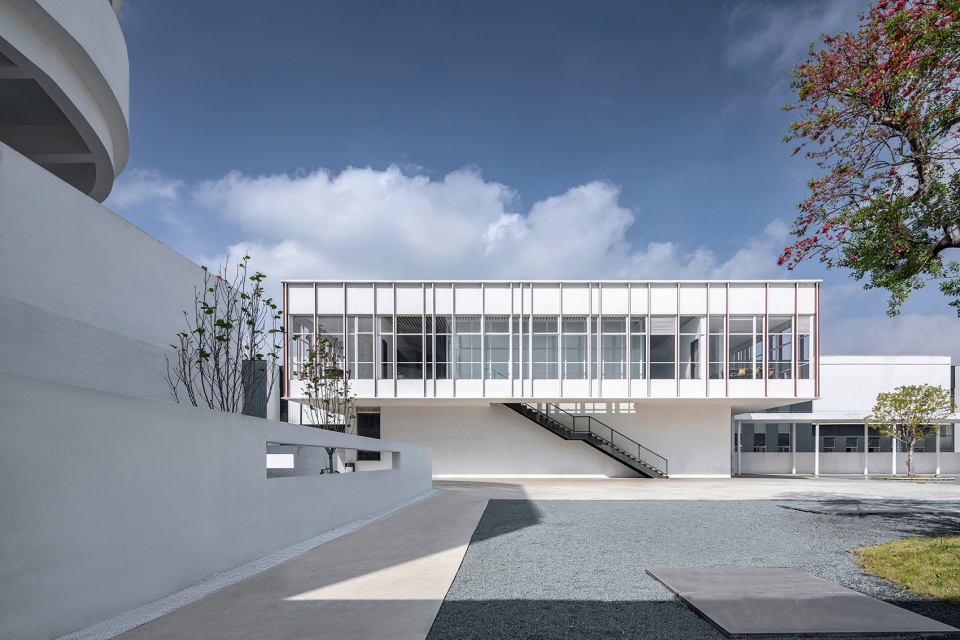

▼入口庭园望办公研发楼，viewing the office and research building from the entrance garden

▼会议多功能厅望门廊，viewing the porch from multi-function conference hall

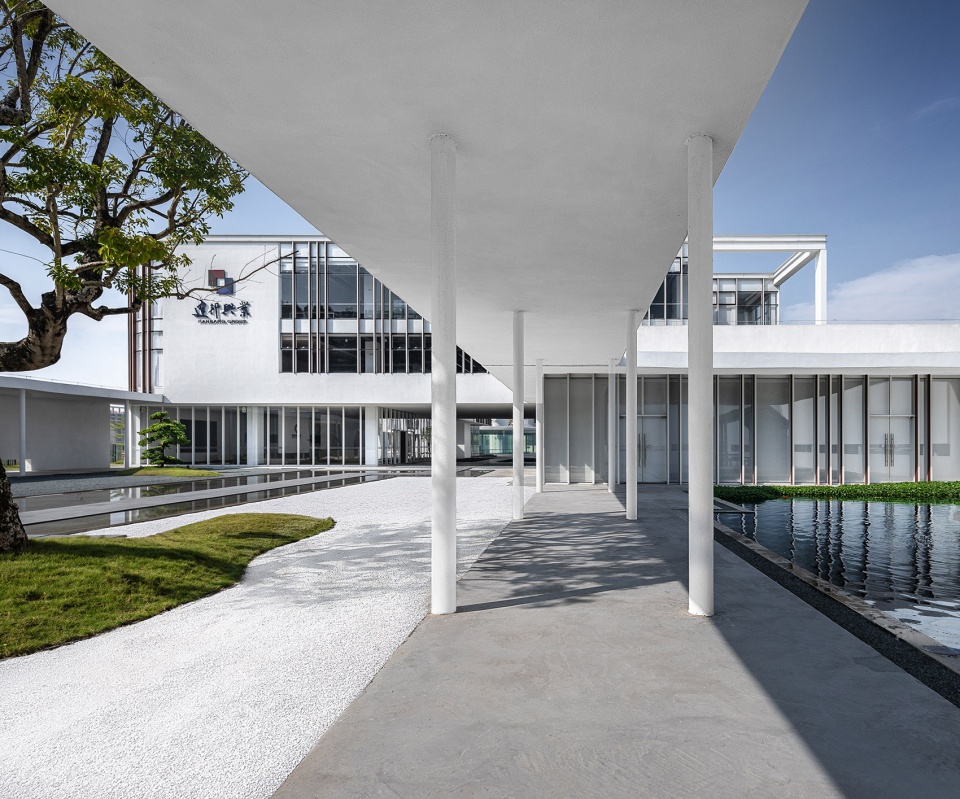

▼入口庭园长廊，promenade of the entrance garden

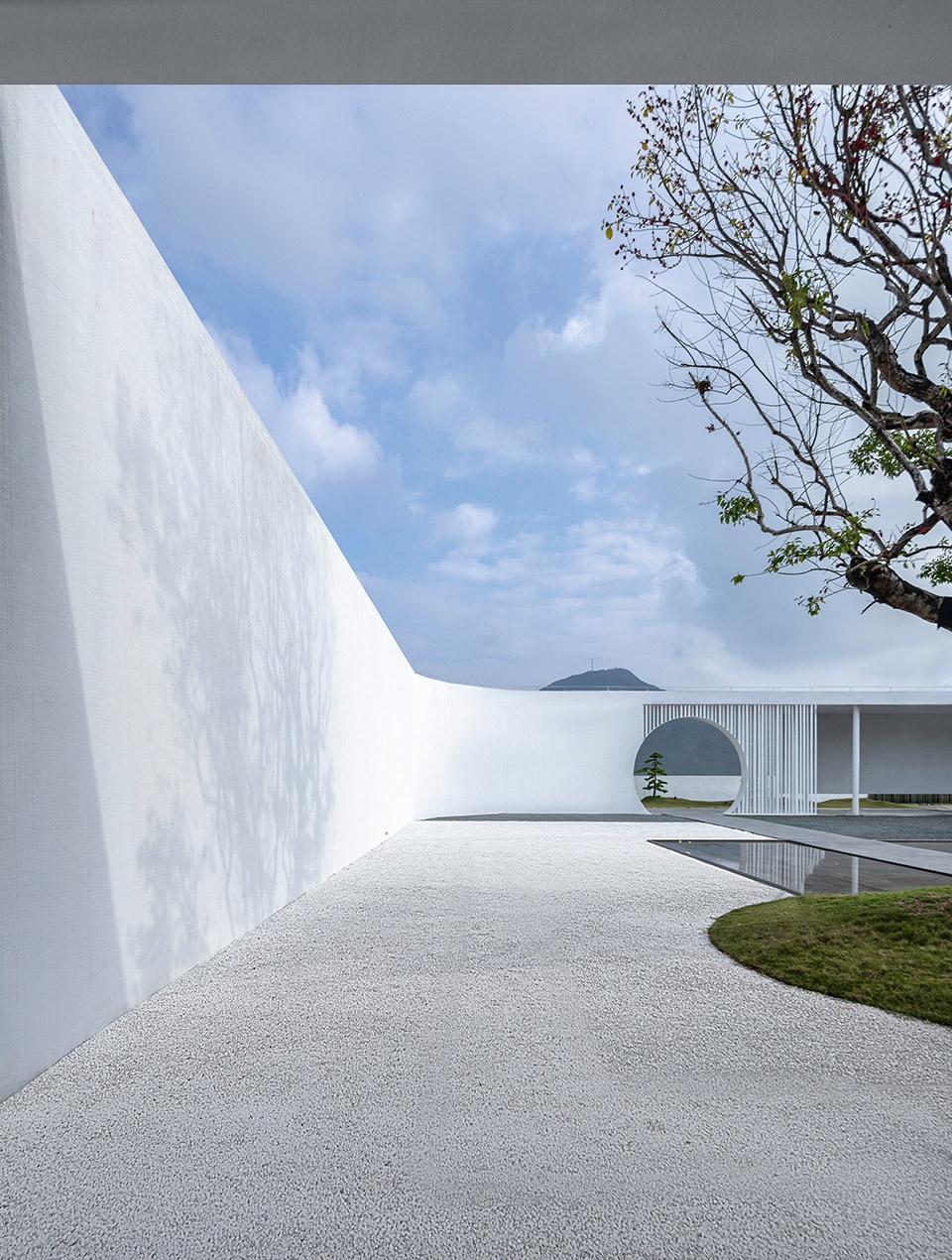

▼白色长廊与连续院墙，

white promenade and continuous courtyard wall

因水而活：除了入口庭园的静水与鱼池，水庭园突出满铺的长方形浅水池。这里以沿水面展开的圆环形员工活动中心-“湖心亭”为焦点，接待中心、亲水平台、架空围廊等沿着水面，形成开放的室内、室外及半室外活动场地，是企业重要的共享社交场所，为接待、展示、交流、团建及演艺等活动开展创造了更多的空间可能性。食堂及生活区围合第三进的生活庭园和后续的运动场地，空间安静内向，是员工生活休闲的后花园。

In addition to the still water and fish pond in the entrance garden, the water garden is also equipped with a large rectangular shallow pool. The focus in this garden is the circular staff activity center – “Lake Center Pavilion”, which is spread along the water surface. The water surface is surrounded by hydrophilic platforms, overhead corridors, etc., forming open indoor, outdoor and semi-outdoor activity places. The living garden and sports ground are surrounded by the canteen and living area.

▼入口庭园望观鱼庭，viewing the still water and fish pond from the entrance garden

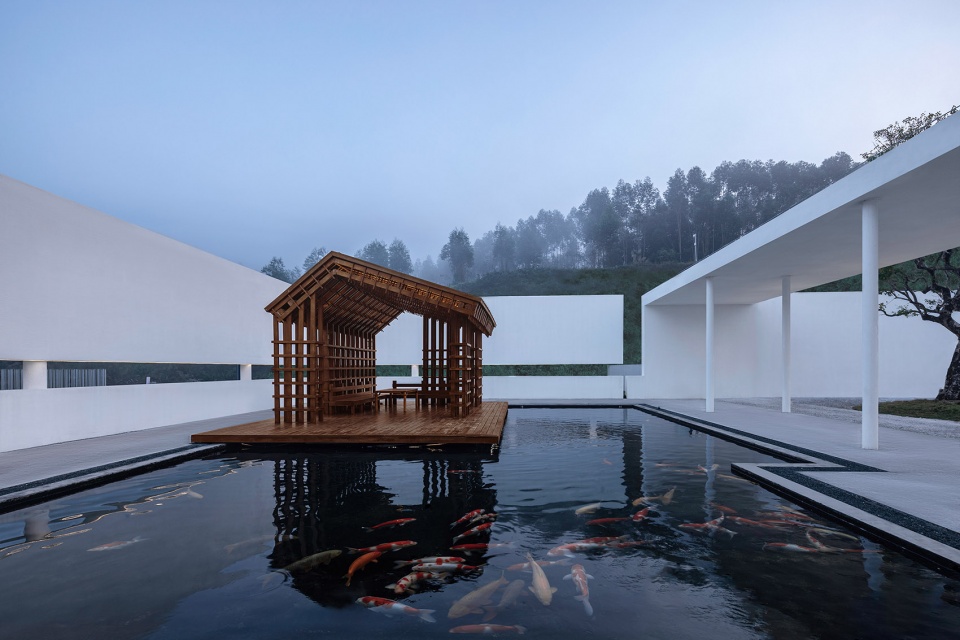

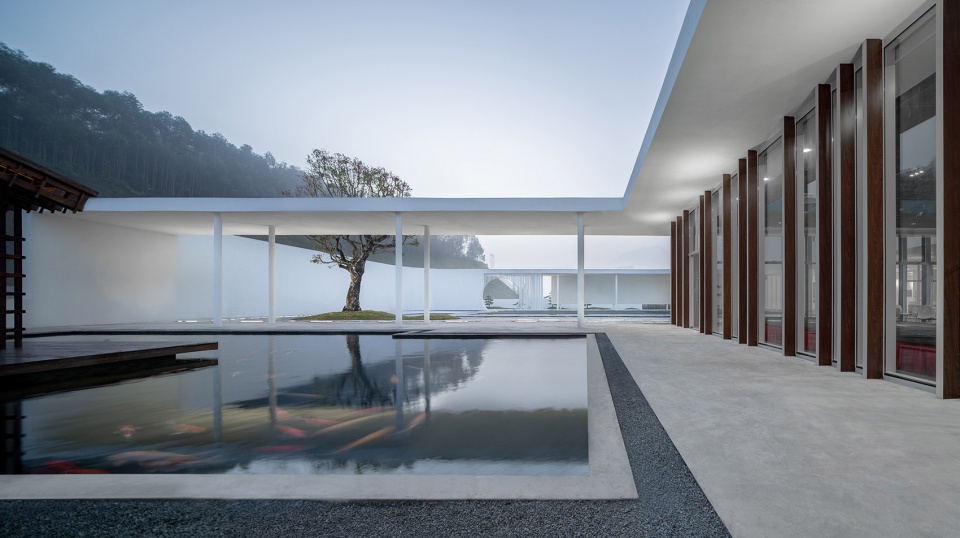

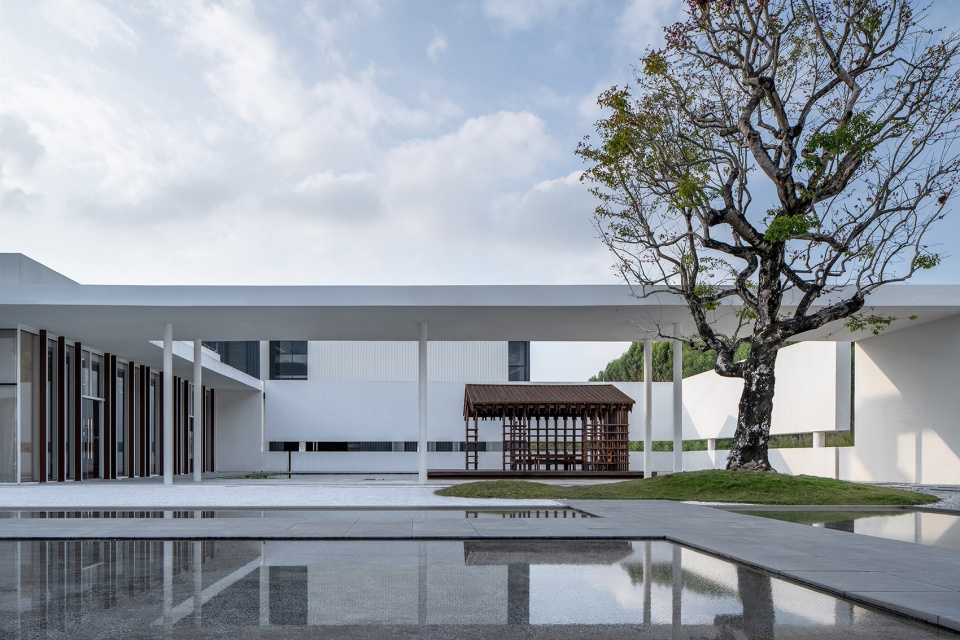

▼以赏鱼木亭为中心的观鱼庭，the still water and fish pond

对景借景：结合层层递进的主庭园序列，建筑体量之间通过减法处理形成丰富的室内外对景，并为各个功能区提供多样的室外空间和交往场所。以鱼池和木亭为中心的观鱼庭与全落地玻璃围合的多功能会议厅相互对话；连续院墙上的开口及轮廓变化，对内强调周边山体及绿植的借景，对外则丰富工业园的道路景观；“湖心亭”内的圆形树庭为内部员工活动空间引入树木对景和光影变化；办公研发建筑内的不同楼层也切分形成多处绿化庭院和观景平台。

Combined with the main garden sequence, the building volumes are also subtracted to form a rich indoor and outdoor landscape, and provide a complex outdoor space and communication place for each functional area.

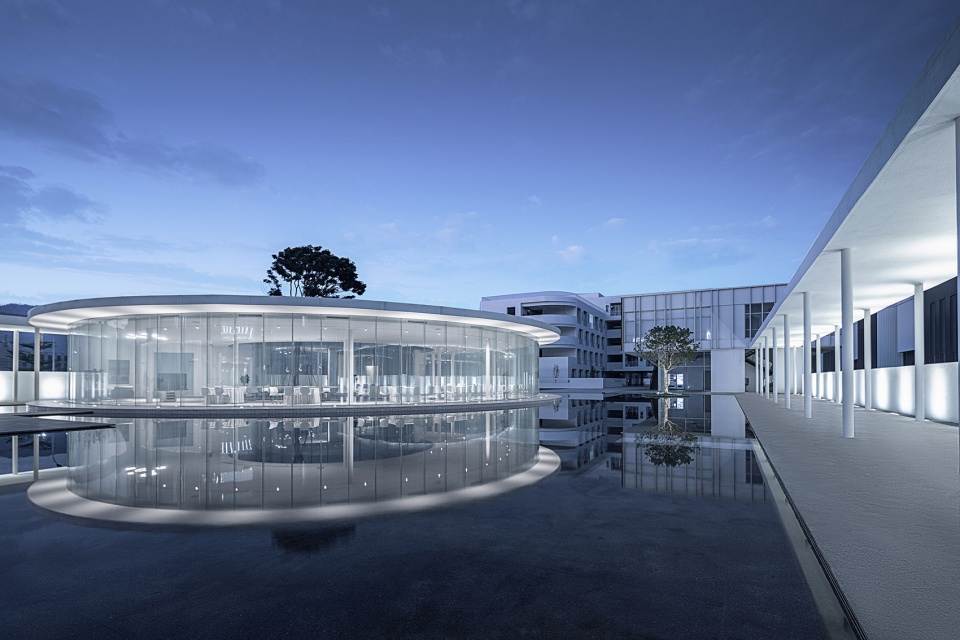

▼水庭园夜景，night view of the water garden

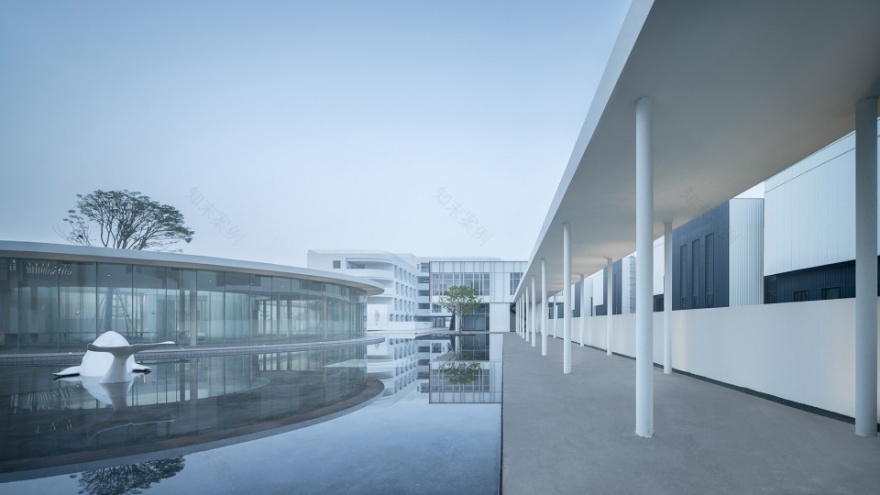

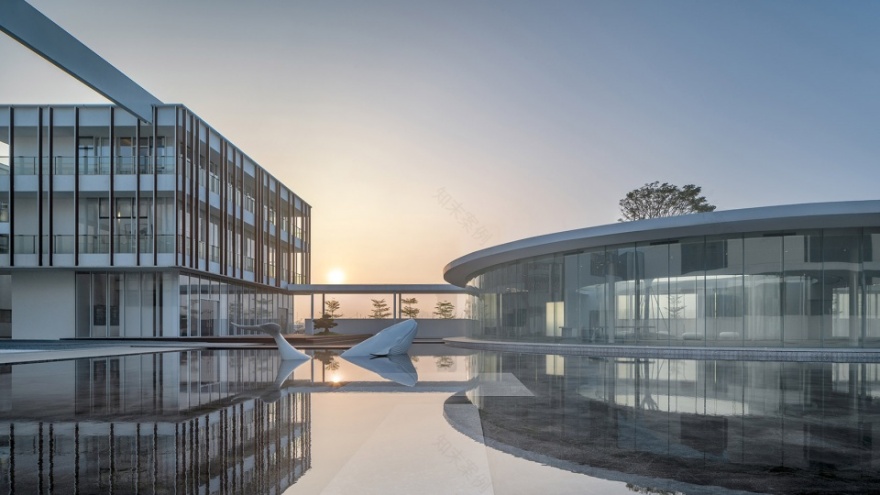

▼黄昏中的水庭园共享空间，sharing space of the water garden

▼水庭园望生活区，viewing the living area from the water garden

▼作为园林背景的厂房立面，the factory facade as the background of the garden

景观语言

Landscape Language

庭园景观设计延续抽象表现自然的园林设计手法，在连续白色长廊和院墙的整体衬托下，黑白碎石、静谧水面、曲折步道等共同展开色调素雅、构图简练的庭园景观画卷，在其上惜墨点缀造景大树和艺术装置，成为各个庭园的点睛之笔。

The landscape design continues the traditional garden language of abstract expression of nature. Under the overall background of white corridor and courtyard wall, it shows the landscape picture with black and white gravel, quiet water surface, zigzag path, etc. in simple color and shape, on which the landscape trees and artistic installations are decorated to become the finishing touch of each garden.

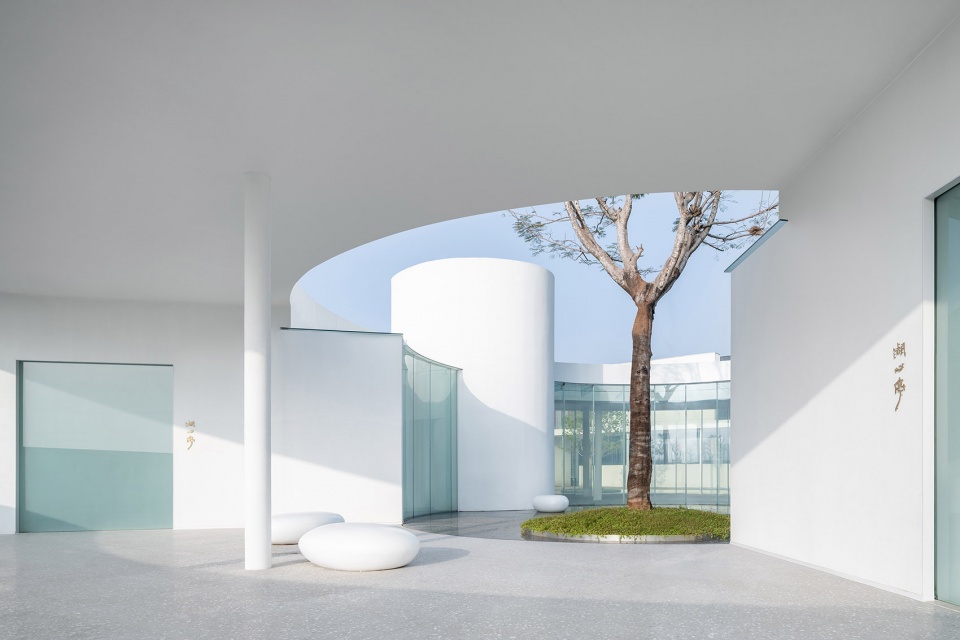

▼湖心亭主入口，main entrance to  the “Lake Center Pavilion”

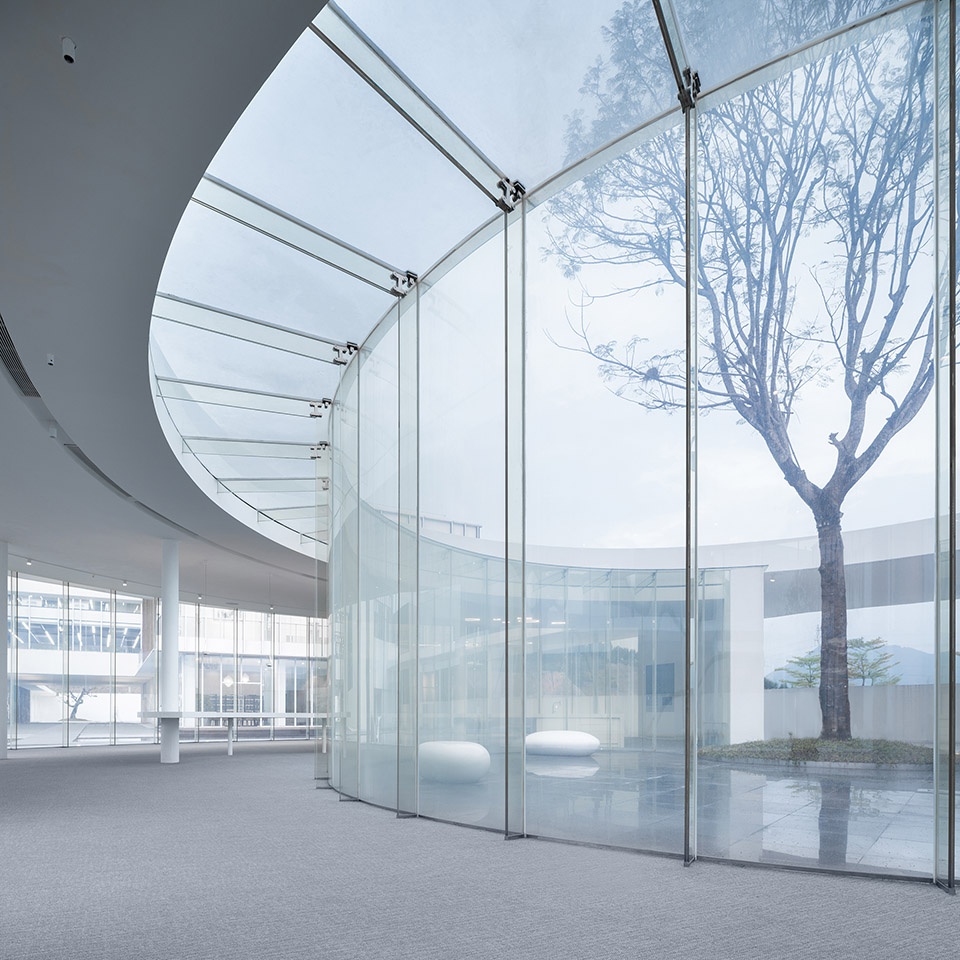

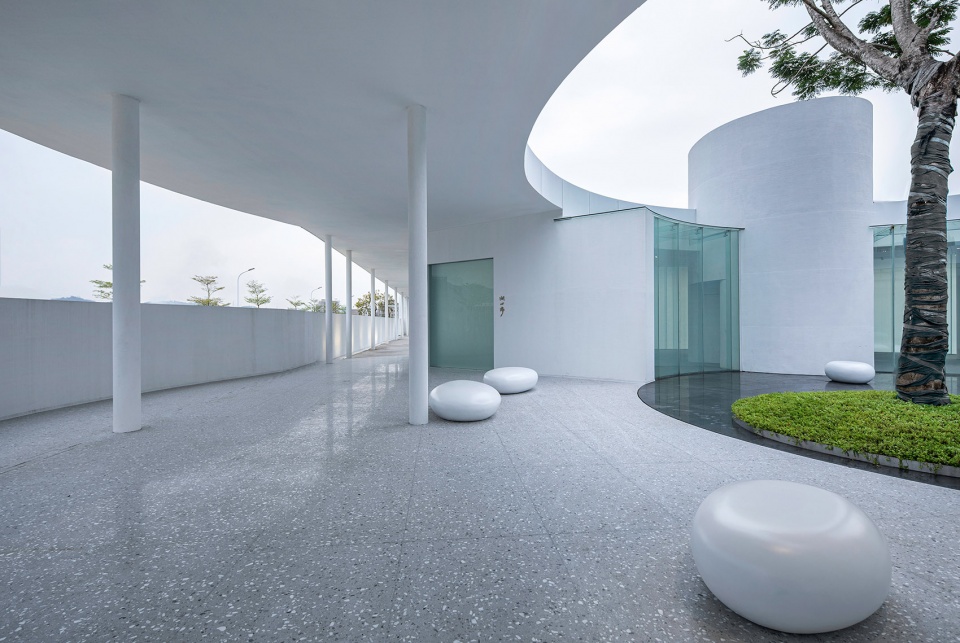

▼湖心亭的中央树庭，the central tree court of the lake pavilion

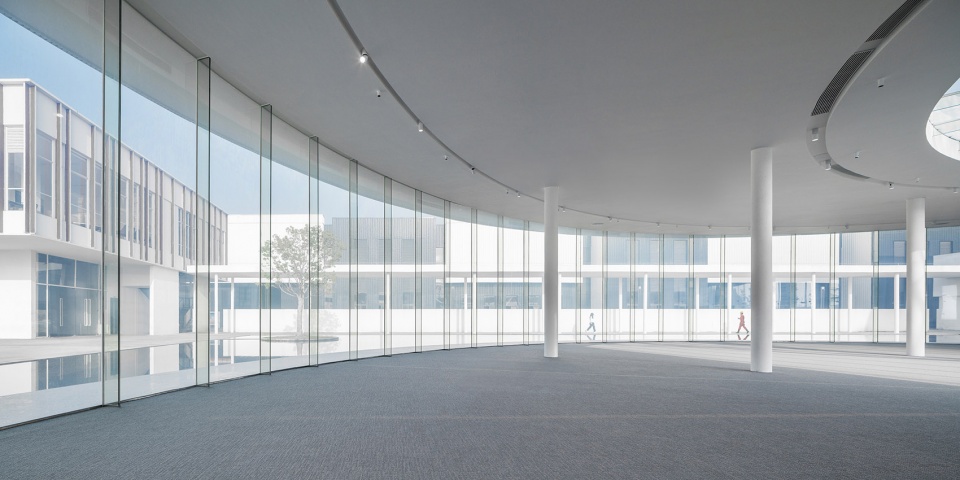

▼湖心亭的弧面视野，interior of the lake pavilion

▼员工活动中心望树庭，viewing the courtyard from the pavilion

造型语言

Building language

设计试图以空间原型和材料色彩表达传统园林的空间意境，而不追求形式上的直观重现。体量感强的简约形体，配合大面积白色实墙、空中廊桥、超白玻璃幕墙及格栅等虚实对比强烈的造型语言，在功能上符合产业建筑的使用属性，在尺度上协调周边的厂房体量，同时也塑造了园区内在的文化调性。构造细节上着力表现工业建筑和钢构企业的技术特色：如钢结构支撑的大片悬挑长廊、以工地常见的角钢通过平面不规则排列构筑的入口抽象“月亮门”造型及通透院墙、工字钢压顶、以及景观铺装中成本经济的预制混凝土块、人造石、砾石、水磨石等。

The design attempts to express the space artistic conception of traditional gardens with space prototypes and colors, instead of pursuing visual reproduction in form. The structural details focus on the technical characteristics of industrial buildings and steel structure enterprises: such as the large overhanging corridor supported by steel structure, the abstract “moon door” shape of the entrance and the transparent courtyard wall constituted with the L-shape section steel, and the prefabricated concrete blocks, artificial stones, gravel, terrazzo, etc. in low-cost landscape pavement.

▼产业园东南侧沿道路外观，southeast side of the industrial park

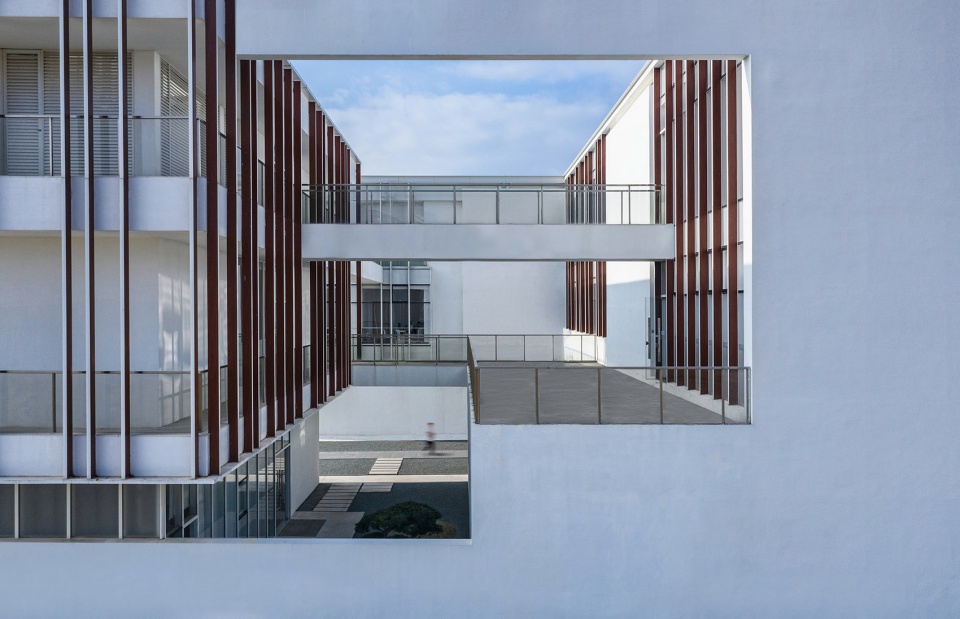

▼办公研发楼的各层平台及连廊，platforms and corridors on each floor of the office R&D building

▼庭园之间的架空层，elevated levels between the gardens

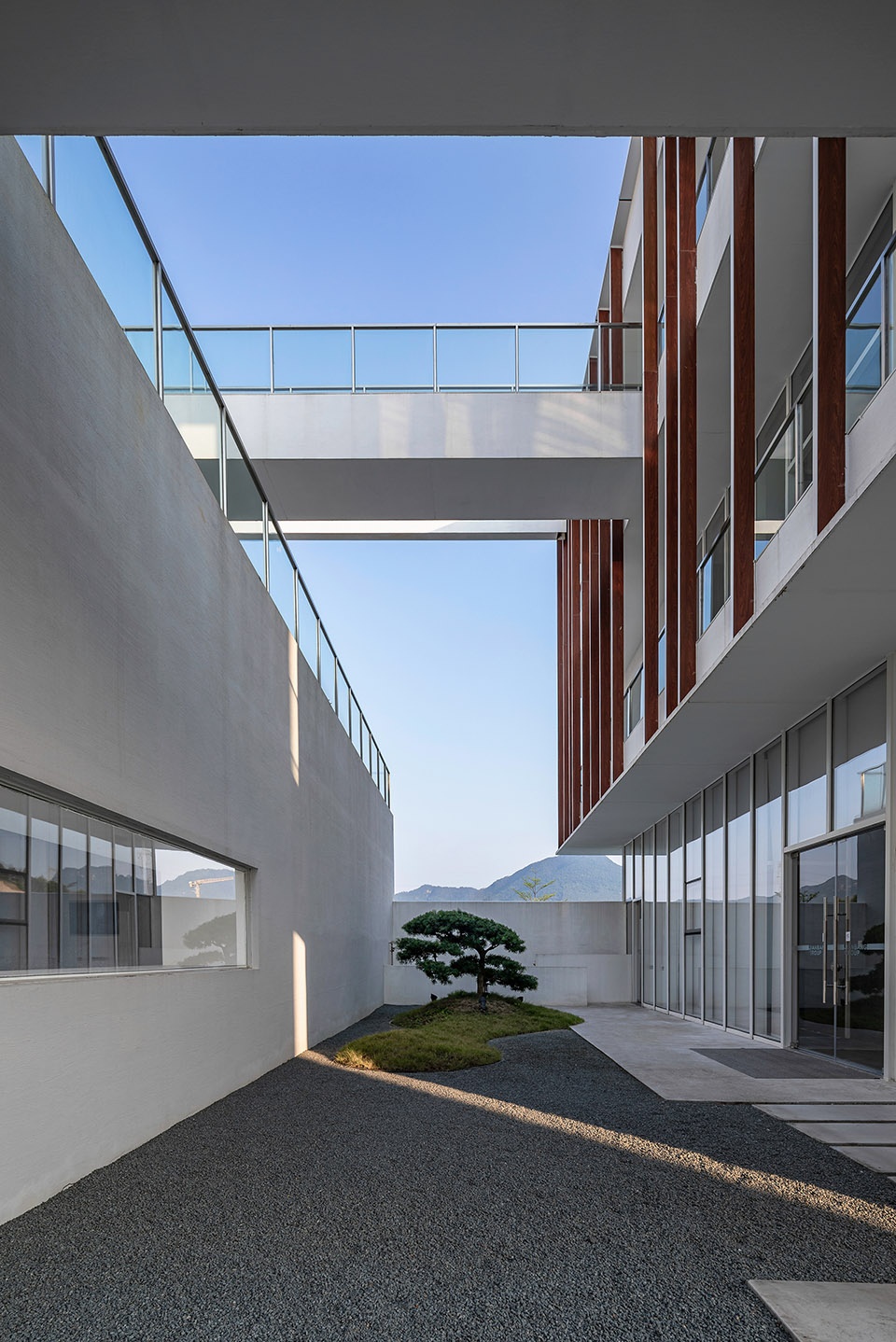

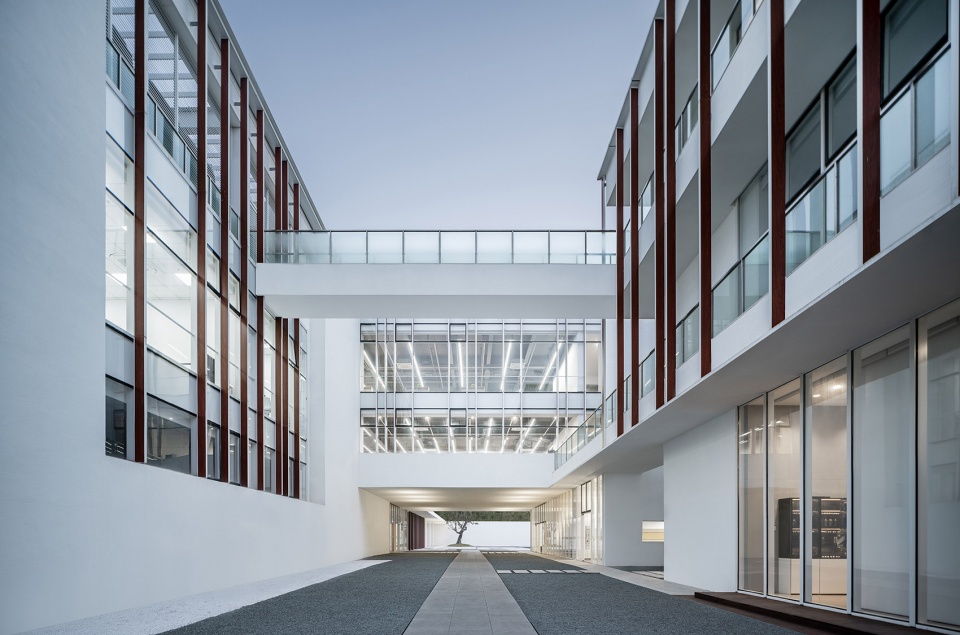

▼办公研发楼内庭院，courtyard of the office R&D building

紧邻的生产厂房在标准工业形制的基础上，以立面上凹凸变化、黑白相见的压型钢板外墙模块搭配形成“钢琴键”般的造型韵律，在尺度和色彩上为园区提供了整体协调的外部建筑背景。

On the basis of the standard industrial form, the façade forms a “piano key” shape rhythm with the concave-convex and black-and-white profiled steel exterior wall modules, which provides an overall external architectural background for the park in terms of scale and color.

▼产业园西北侧沿道路外观，northwest side of the industrial park

▼食堂与生活庭园，canteen and courtyard of the living area

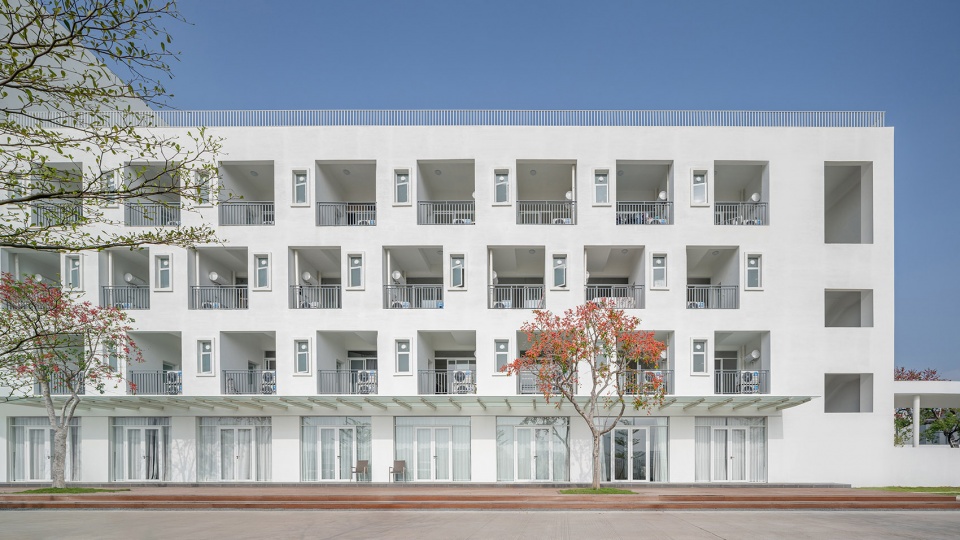

▼生活区的休憩平台，facade of the residential buidling

设计赋能

Design Values

以当代园林为主体的设计表达，为生产企业塑造了科技与艺术相结合的复合园区环境，成为一个员工研发交流的场所，一个展示与社交的场所，一个传达企业文化的场所，乃至一个艺术与时尚的发源地，以空间为媒介提升了企业的文化附加值和品牌效应。

The design expression with contemporary gardens has created a unique park environment that combines technology and art. It becomes a place for research and communication, a place for display and social interaction, a place to convey corporate culture, and even a birthplace of art and fashion.

▼办公研发楼入口门厅，entrance hall of the Office R&D building

▼会议多功能厅内景，interior view of multi-function conference hall

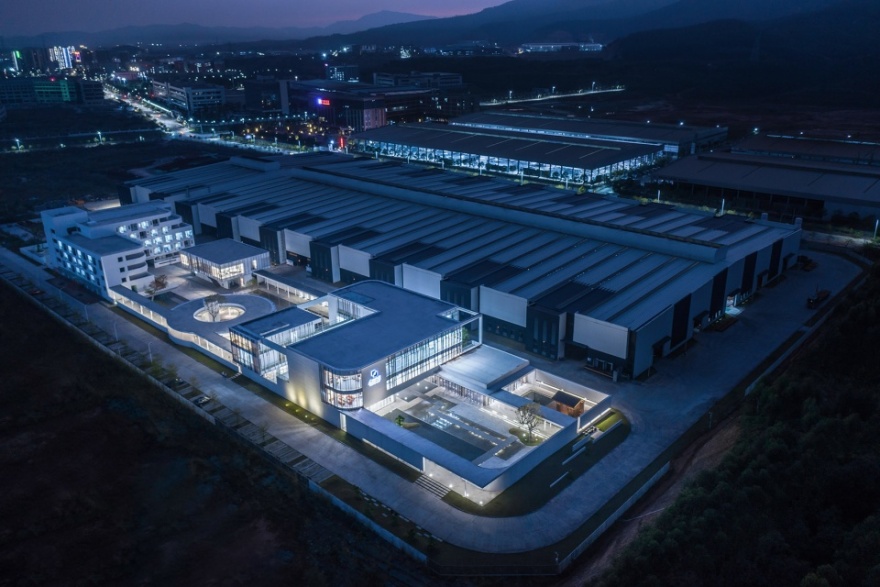

▼夜景，night view

▼总平面图，master plan

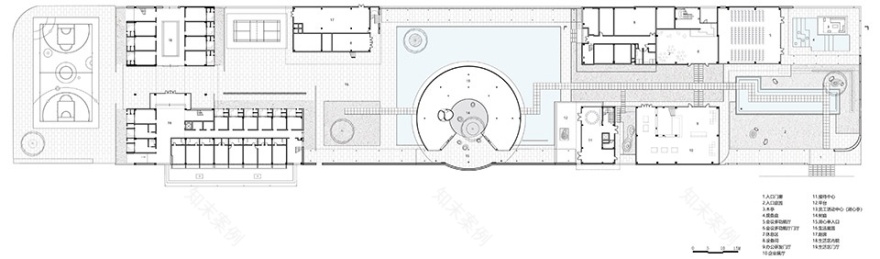

▼一层平面图，ground floor plan

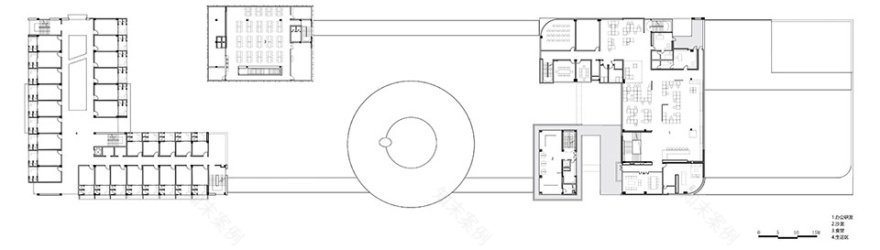

▼二层平面图，first floor plan

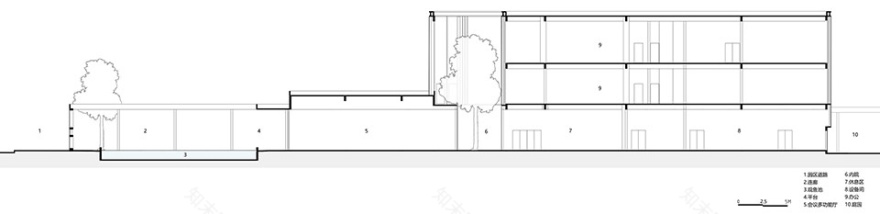

▼剖面图，section

项目名称：广东建邦杭萧装配式建筑产业园

项目类型：建筑/景观

设计方：华南理工大学建筑设计研究院有限公司

公司网站：

项目设计：2019-2021

完成年份：2022

设计团队：何小欣、苏平（设计主创）

林琳、张瀚、阮益权、范静、张延彬、蒋璐（建筑）

伍朝晖、冯舒殷（景观）

梁均宇、谢琪、陈翩翩（室内设计顾问）

项目地址：广东省开平市

建筑面积：15000㎡（主体办公区8000㎡）

摄影版权：阿尔法摄影@邹林、廖沁芳（除标注外）

合作方：江门市建筑设计院有限公司（施工图配合单位）

李燕（艺术装置:鱼渔愉）

深圳市光艺规划设计有限公司（泛光照明）

客户：广东建邦杭萧装配有限公司

材料：白色外墙涂料、超白玻璃幕墙、角钢、预制混凝土块铺地、砾石

Project name: Guangdong Jianbang Hangxiao Prefabricated Building Industrial Park

Project type: Architecture/Landscape/Interior

Design: Architectural Design and Research Institute of SCUT Co., Ltd.

Website:

Design year: 2019-2020

Completion Year: 2022

Leader designer & Team: He Xiaoxin, Su Ping (leader designer)

Lin Lin, Zhang Han, Ruan Yiquan, Fan Jing, Zhang Yanbin, Jiang Lu (architecture)

Wu Zhaohui, Feng Shuyin (landscape)

Liang Junyu，Xie Qi ，Chen Pianpian(interior)

Project location: Kaiping City, Guangdong Province

Gross built area: 15000㎡

Photo credit: Alpha photography

@Zou

Lin, Liao Qinfang（Except marking）

Partner: Jiangmen Architectural Design Institute Co., Ltd. (construction drawing cooperation unit)

Li Yan (Art installations)

Shenzhen Guangyi Planning and Design Co., Ltd (Lighting)

Clients: Guangdong Jianbang Hangxiao Prefabricated Building Co., Ltd

Materials: exterior wall coating, ultra-white glass curtain wall, L-shaped steel, precast concrete pavement, gravel
