西班牙奇皮奥纳港口建筑群

该项目包含港口内的一系列建筑，旨在逐步为港口提供所有必要的服务。材料的运用是该项目的一个特征所在：几乎每栋建筑都使用了预制的白色混凝土板，为不同的功能空间赋予了统一感。从格栅结构到更加复杂的通风外壳，该材料的使用满足了建筑的各种需求。

This project includes a set of buildings located inside the Port premises that aspire to provide all the necessary services progressively. As a main characteristic, it is necessary to mention the use of a material – prefabricated white concrete slabs – that appears in all of them. It guarantees certain homogeneity to the buildings that respond to diverse programs. This material will fulfill different functions: from those of latticework to ventilated exterior sheet of more complex enclosures.

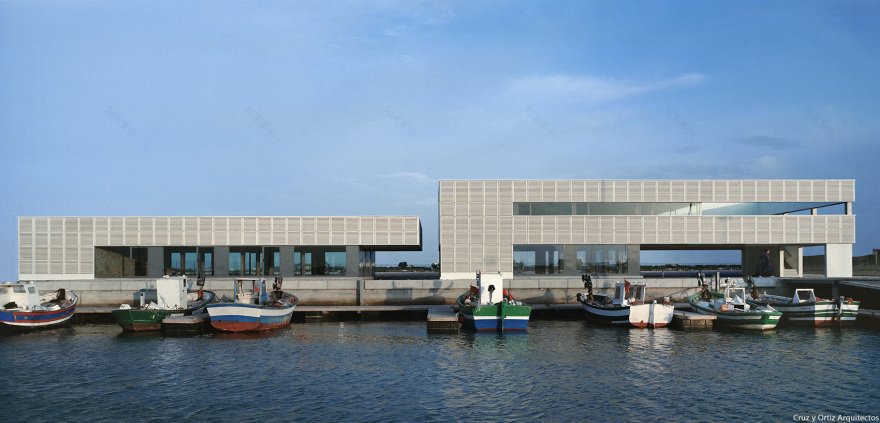

▼建筑群外观，exterior overview

▼预制的白色混凝土板为不同的建筑赋予了统一感，the use of prefabricated white concrete slabs guarantees certain homogeneity to the buildings that respond to diverse programs

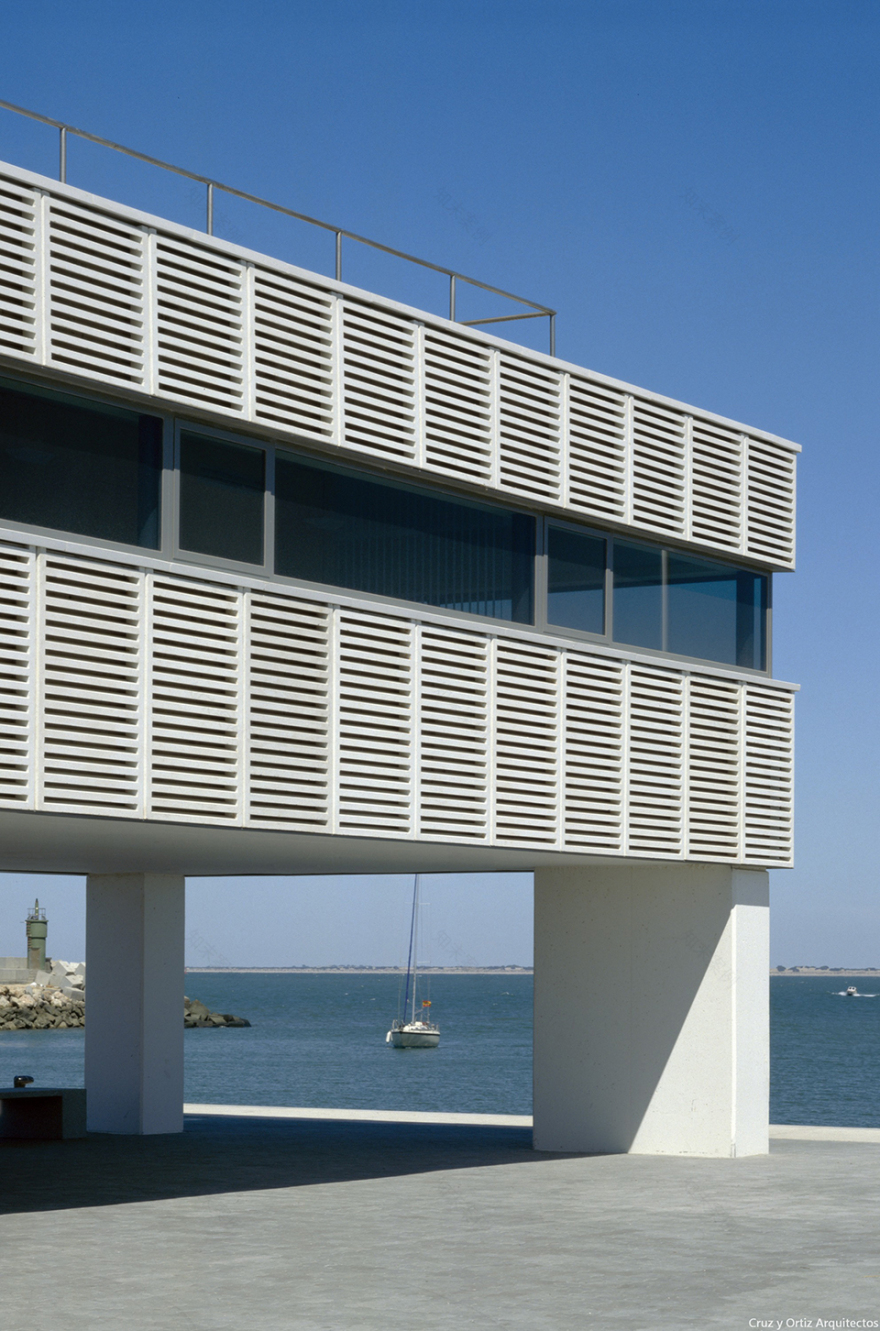

▼从格栅结构到更加复杂的通风外壳，混凝土板的使用满足了建筑的各种需求，this material will fulfill different functions: from those of latticework to ventilated exterior sheet of more complex enclosures

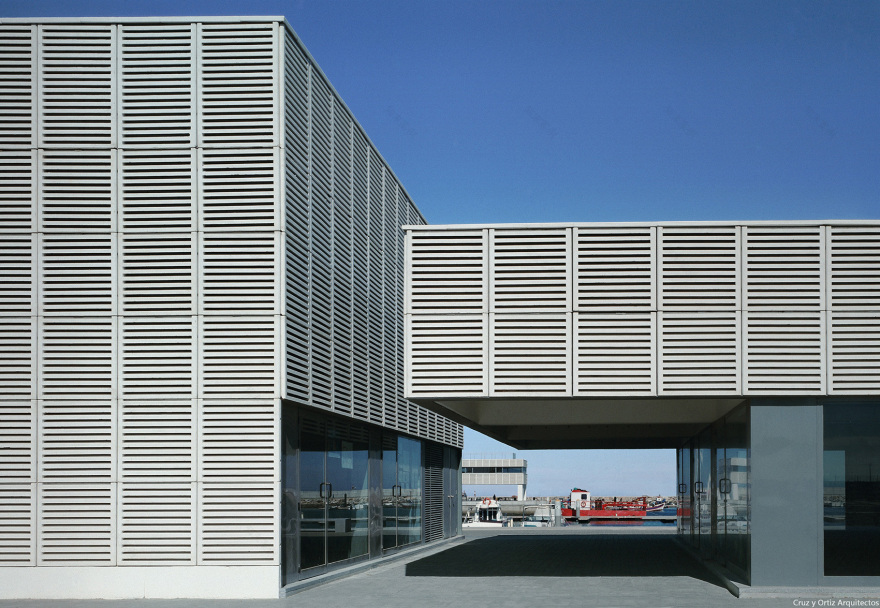

▼立面细部，facade detail

除了调度室之外，以上提到的这些功能空间在外观上并无十分明显的差异。商用区域、维修车间和用于存放渔网的小仓库等均采用了较为密闭的建筑形式，这种不张扬的处理手法主要是考虑到建筑本身的功能比较简单。相似的元素虽然被重复运用，却避免了对称和位移的观感，最终以不同的形式出现在一系列建筑当中。

On the other hand, the different programs referred above have the same lack of significance: with the possible exception of the control building. The other buildings-commercial areas, repair workshops or small warehouses for storing fishing nets allow, or almost force, to resort to a hermetic architecture and little expressive; in this case according to the lightness of the functions they house. Thus, the series and repetition of formally similar elements that insist on asymmetries and displacements that, in one way or another, appear in all the buildings.

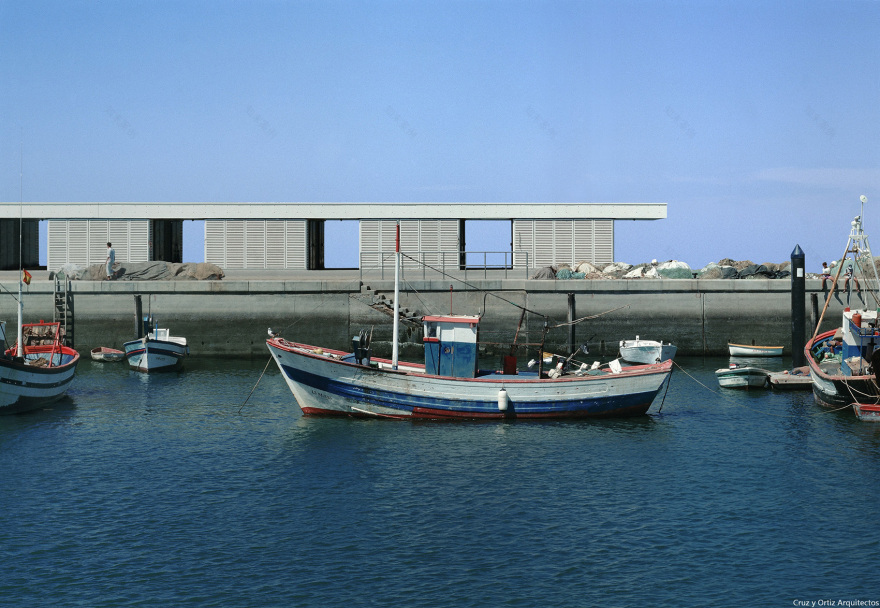

▼用于存放渔网的仓库，the nets rooms

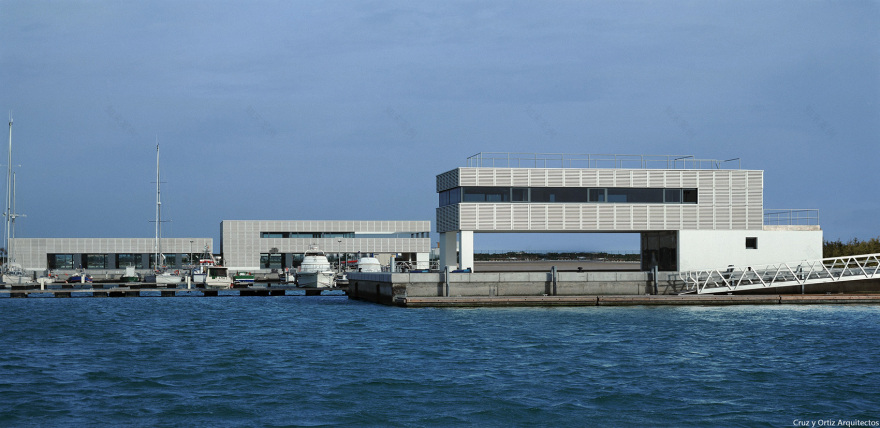

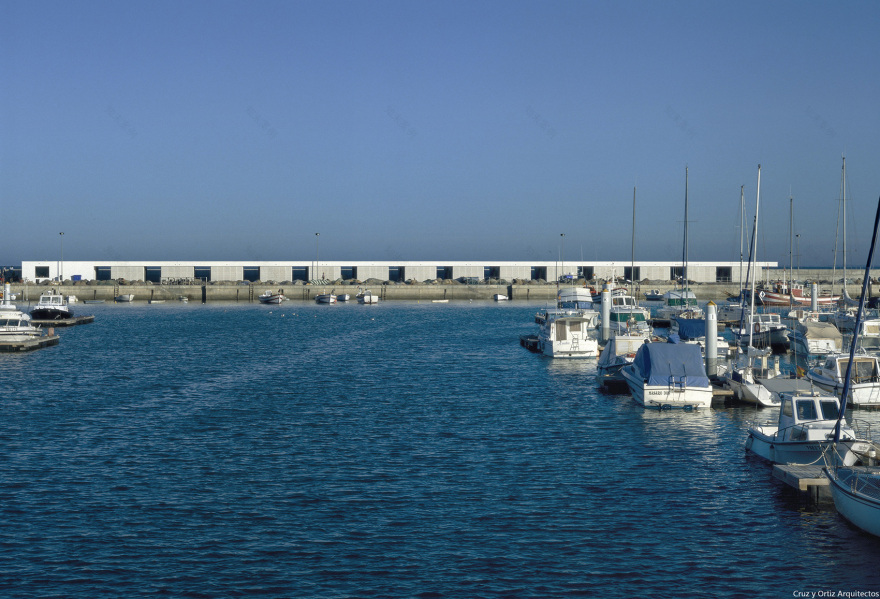

▼建筑远景，overview

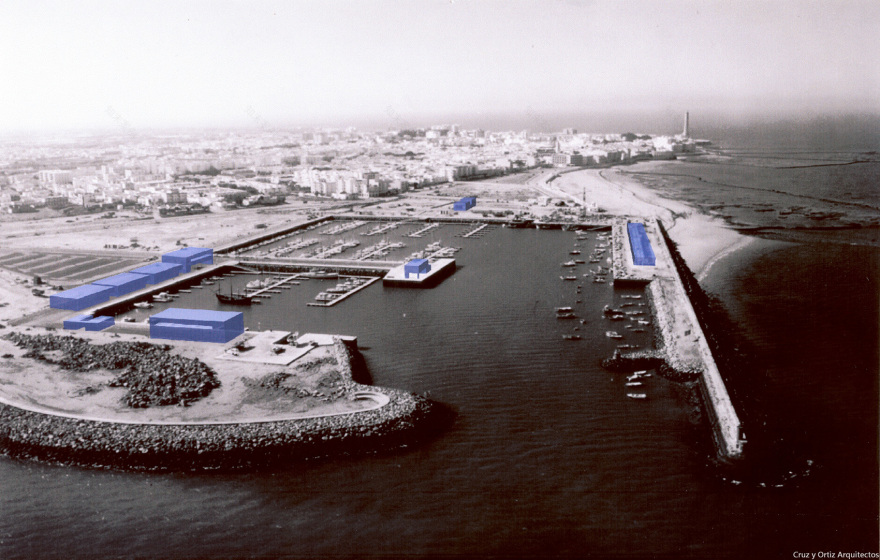

▼建筑分布示意，location

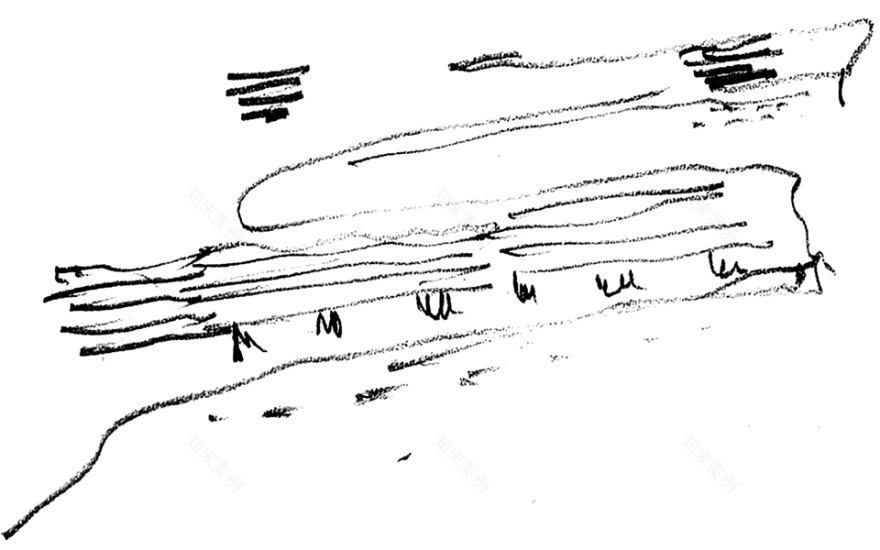

▼设计草图，design concept

▼场地平面图，site plan

▼首层平面图，ground floor plan

▼剖面图，sections

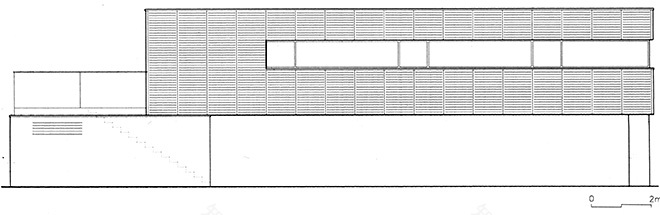

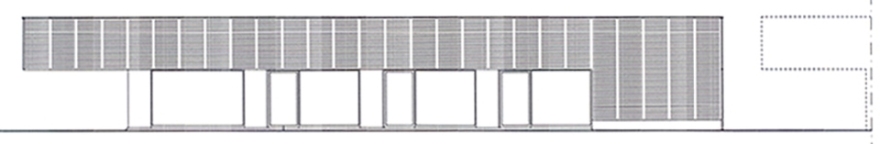

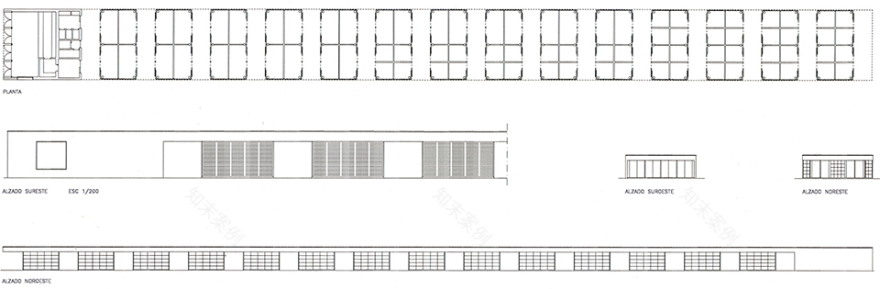

▼渔网仓库平立剖， net room drawings

Marina and fishing port in Chipiona. Captaincy, commercial and warehouses buildings. Cádiz, Spain Client: The Public Company of Andalusia, Andalusian Government Address: Puerto Chipiona, C/ Mar del Caribe s/n. 11550 Chipiona. Cádiz, Spain Type: Transport, Sports and Leisure, Offices, Commercial, Mixed uses Status: Built DATAS Design of project: 1994 Construction: 1994 – 1995 Implementation: 1995 SURFACES Site: 9.184 m2 Main building: Harbor Master: 228 m2 Other buildings: Nets rooms: 1.880 m2, Services: 2.380 m2, Installations: 388 + 352 m2 TOTAL: 2.605 m2 PROJECT TEAM Main Architect: Cruz y Ortiz Arquitectos Collaborators: Blanca Sánchez, Miguel Velasco Lighting design: JG Ingenieros Photography: Duccio Malagamba Structural engineering: Tedeco Ingenieros Climate engineer: JG Ingenieros Building physics advisor: JG Ingenieros Survey: Cruz y Ortiz Arquitectos Site control: Bernabé Ramírez Contractors: Cubiertas y Mzov
