项目位于巴黎郊区Montreuil,Murs à pêches公共游泳池的前院,为了给炎炎夏日在户外等待的游客们带来更加舒适的体验,业主委托Collective Parenthèse事务所对前院进行了设计,最终项目以一个能够服务五年的临时木结构形式呈现在大众眼前,以景观装置的形式巧妙地满足了游客们的需求。
The development of the swimming pool forecourt of the Montreuil fishing walls is essential for the comfort of users in the face of long waiting times and the hot summer temperatures. The Collective Parenthèse offers an ephemeral installation lasting 5 years that meets the needs of visitors.
▼装置整体鸟瞰,aerial view of the project ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-3
这个架空的木制结构宛如一片夏日的云朵,通过遮阳棚与雾气蒙蒙的排队区为游客们带来了清凉。一排排的木柱落在地面上,如同一片柱子的森林,在稳固地支撑上部结构的同时,对排队等候区进行了分区,形成游客路线的自然向导。
Like a summer cloud, this suspended wooden structure brings refreshment by shading and misting the queue area. A forest of poles makes it possible to take up the efforts on the ground and to orient the users.
▼架空的木制结构装置概览,suspended wooden structure ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-7
▼遮阳棚与雾气蒙蒙的排队区为游客们带来了清凉,the structure brings refreshment by shading and misting the queue area ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-9
▼整齐排列的木柱宛如一片树林,The orderly columns looked like a forest ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-11
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-12
▼装置具有向导与排队分区的功能,The device has the function of orientation and queuing partition ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-14

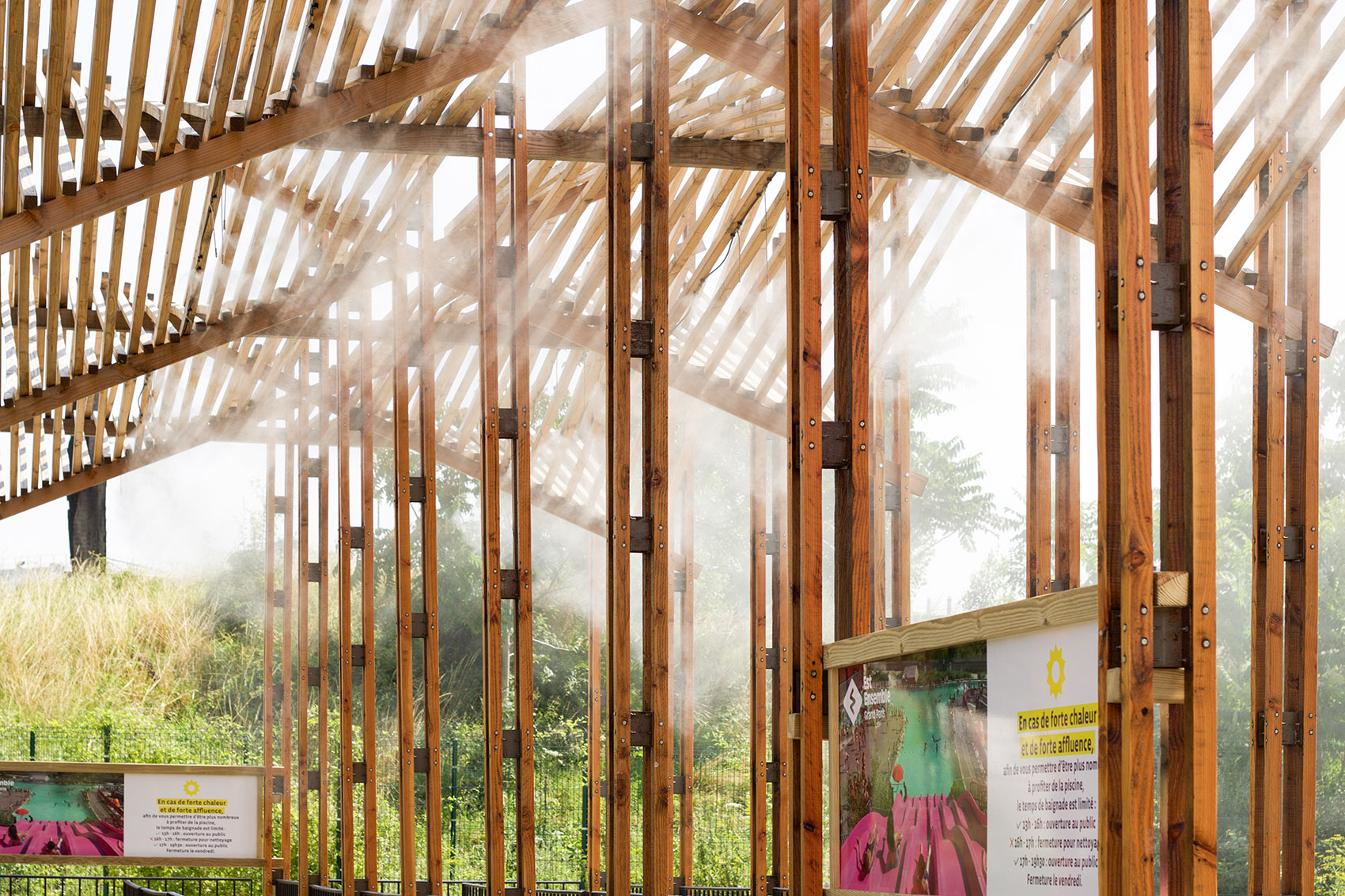

▼装置上设有预防中暑与中暑处理的警示牌,The device is equipped with information boards on heat stroke prevention and treatment ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-16
木柱高度从5米到6米不等,结构紧凑、坚固,用途广泛、美观,同时易于组装。结构的稳定性计算由TESS工程事务所负责,除了为本项目提供结构方案与合理化计算外,该事务所还曾为无敌舰队活动的装置绘制了施工图。如今,工程师们将之前的项目经验运用在了Montreuil游泳池的前院装置中。
The masts are distinguished by their compactness, solidity, versatility, aesthetics and ease of assembly. With a height varying from 5 to 6 meters, the stability was calculated by the TESS engineering workshop which developed the structural construction systems, provided the justification calculations and produced the graphic parts of the assemblies for the event of the Armada. The engineers have adapted this calculation note to the forecourt of the Montreuil swimming pool.

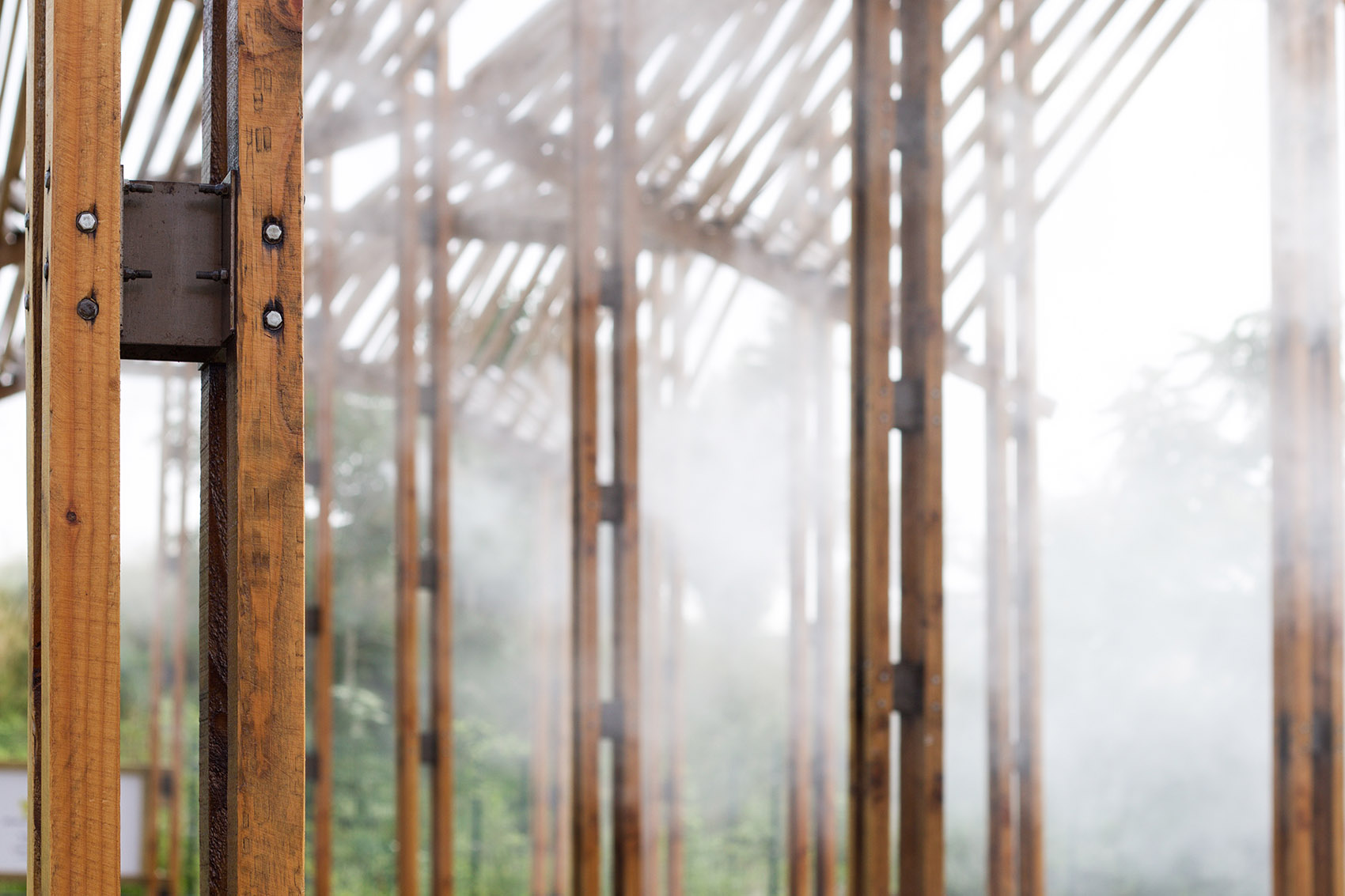

▼雾气中的装置,Device in the steam fog ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-20
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-21
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-22
▼结构细部,details of the structure ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-24
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-25
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-26

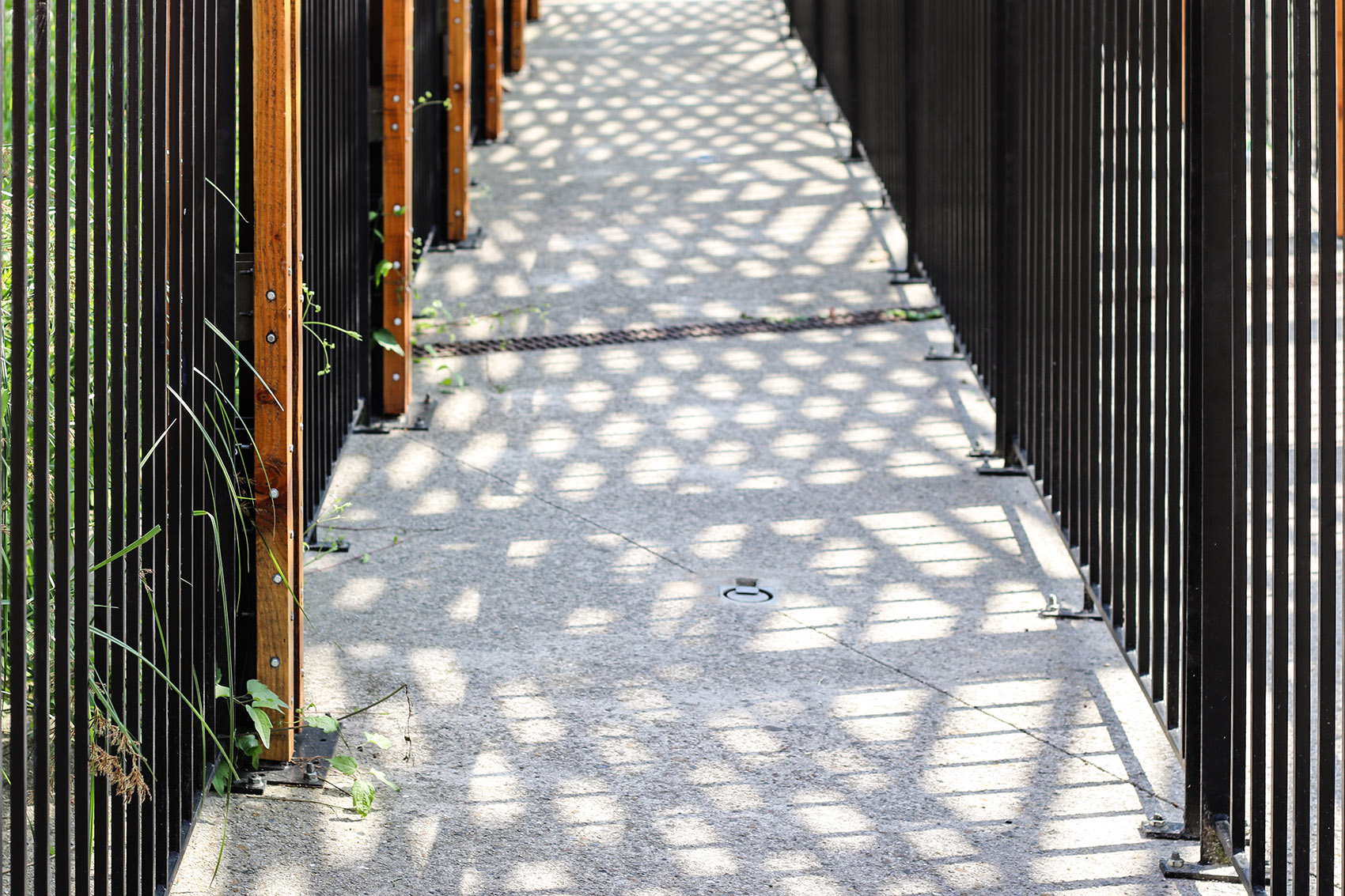

▼装置在地面上产生丰富的光影效果,The installation creates rich light and shadow effects on the ground ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-28
▼轴测图,axonometric drawing ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-30
▼结构分析图,construction detail ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-32
▼平面图,plan ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-34
▼立面图,elevation ©Collective Parenthèse
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-36
Micro-Architecture Décembre 2020 de 50 000€ pour Est Ensemble à Montreuil
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-38
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-39
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-40
法国 Montreuil 游泳池前院景观装置丨法国巴黎丨Collective Parenthèse 事务所-41
