Y·阁楼城市

叠术建筑：如果不复刻一线城市楼盘形态与欧式外立面风格，广阔的中国腹地能否找到自己对城市生活的新定义？叠术建筑用 80 后住宅项目 Y-Loft City 回答了这个问题。

在山西长治市的老工业区，Y-Loft City 再次整合了公共空间与住宅空间，去除围墙与大门，让三座塔楼公寓成为视线汇聚的白色地标。高度落差与旋转处理打破了单调的水平、垂直重复。明亮的白色轻质立面明快连续地跨过间隔空间，以纹理与周边社区形成强烈又和谐的对比。雕塑手法令阳台跳出乏味的整齐排列，仅用暗色水平阴影就完成了整体质感的表达。这种低成本但个性鲜明的现代设计风格，替代了整齐划一、随处可见的“标准欧陆风格社区”，协助业主用合理预算造出更有吸引力的生活场所，成为长治新 CBD 区域的关键节点。Y-Loft City 为 Y 世代青年客户展现了本地现代社区生活的新可能，以高出周边 60% 的定价成功发售。

Superimpose Architecture: Can the vast hinterland of China find its own new definition of urban life if it no longer has the form of first-tier cities and the style of European facades? Y-Loft City, a post-80s residential project, answers this question.

In the old industrial area of Changzhi City, Shanxi Province, Y-Loft City reintegrates public and residential Spaces, removing walls and gates, making the three tower apartments become white landmarks with converging views. The height drop and rotation treatment break the monotonous horizontal and vertical repetition. The light, bright white facades flow brightly and continuously across the space between, creating a strong and harmonious contrast between the textures and the surrounding community. Sculpture technique makes the balcony jump out of the tedious orderly arrangement, only with dark horizontal shadow to complete the expression of the overall texture.

This low-cost but distinctive modern design style replaces the uniform and ubiquitous “standard European style community” and helps the owners to create more attractive living places with a reasonable budget, becoming a key node in the new CBD area of Changzhi. Y-Loft City presents the new possibilities of local modern community life to young Gen Y customers. It was successfully launched at a price 60% higher than that of the surrounding area.

Y-Loft City:旧城，新生活｜Y-Loft City: Old City, New Life

你会如何想象一种北上广深之外的现代社区生活？不再批量复制随处可见的“欧式”公寓楼群，一线城市之外能否诞生自己的新建筑定义？

How would you imagine a modern community life beyond Beijing, Shanghai, Guangzhou and Shenzhen? Instead of churning out copies of ubiquitous “European” apartment blocks, can a new definition of architecture emerge outside first-tier cities?

在山西省长治市，这个曾有过繁荣重工业历史的小城，叠术建筑用 80 后住宅项目 Y-Loft City 做了次大胆尝试。

In Changzhi City, Shanxi Province, a small City with a history of prosperous heavy industry, Zhaishu Architecture has made a bold attempt with Y-Loft City, a post-80s residential project.

With the post-80 residential projects for a bold attempt

Y-Loft City 位于长治市的新 CBD 区域，这里有深厚的工业社区历史。过去，人们在此共享着同一种对现代化的期望与工业文化传统。当工业文化变为工业遗产，原本的坐标系随之消失，长治被以地价、商业等元素重新定位为三线、四线城市，人们只能以一线城市为模板想象理想生活。

The fifty thousand square meters mixed-use development is located in a new CBD district of Changzhi, In the past, people here shared a common sense of modernization and industrial culture.a fourth tier industrial city in Shanxi Province which is facing rapid urbanisation and has around three million inhabitants.

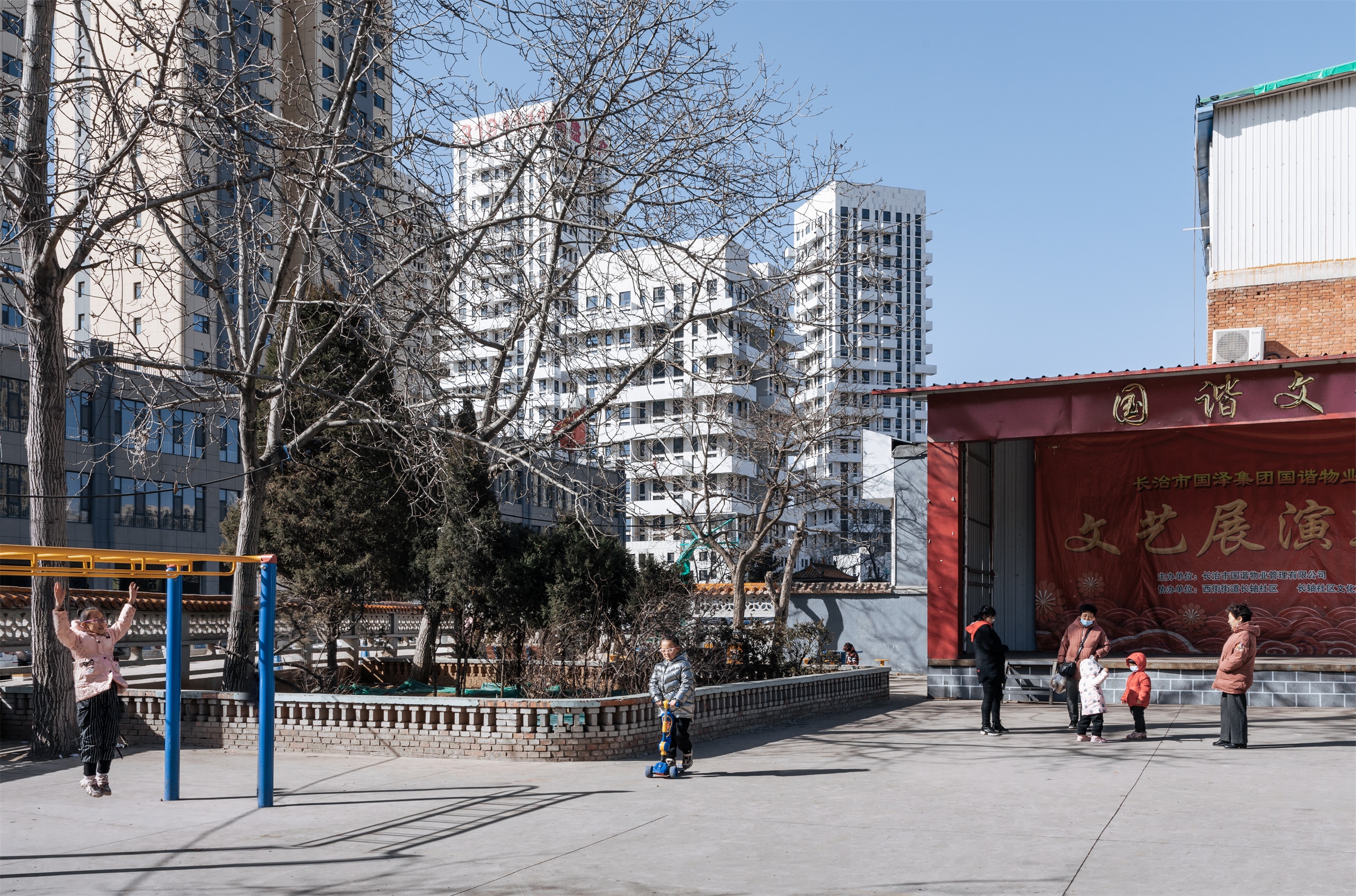

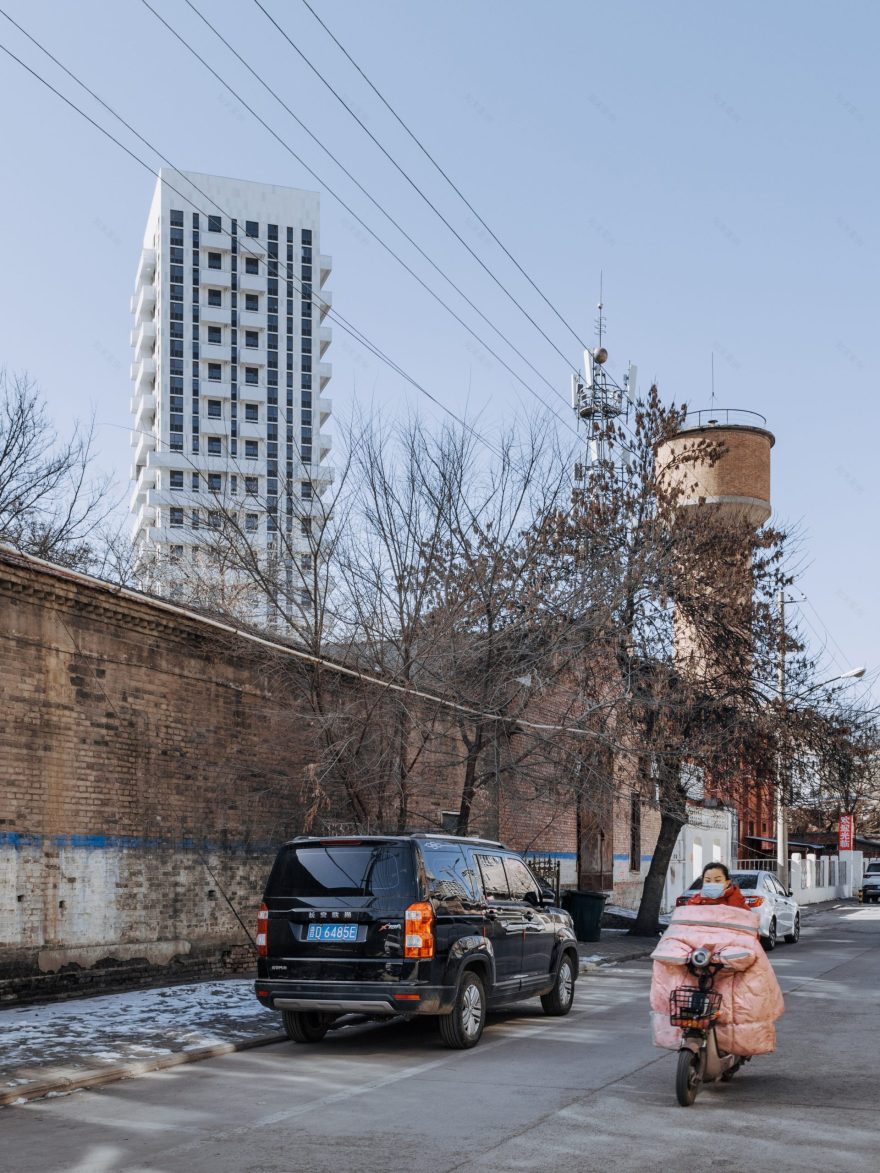

▼Y-Loft City，打造长治市新 CBD 的城市新地标 Y-Loft City, a new landmark of Changzhi City’s new CBD

对叠术而言，Y-Loft City 项目是挑战。如何为这个融合着不同历史元素的区域重新展现一种共同生活——既根植于自己的本土文化体验，又能够汇聚社区的力量持续更新。

Superimpose convinced client and government to deviate from the standard approach in order to stand out and differ from classicistic European-style drab residential developments that are dominating the new-built residential skyline in China’s hinterland. Most importantly the design challenge was to target and appeal to a young generation.

▼打造既根植本土文化又汇聚社区的新展现项目 Create a new display project that is rooted in local culture and brings together the community

叠术在宏观与微观的空间层面精巧地组合出对这个挑战的回应。

Y-Loft City 所在的空间，如果与数十年前轴承厂时代的空间时空重叠，将会呈现出一种意外的共同特征：多种城市和社区功能，在同一个有机体内组合。轴承厂所属的厂房、住宅区、医院、学校曾经连为一体。Y-Loft City 区域也与基于旧厂区建造的博览中心、文创园建筑等公共空间遥遥呼应。

Superimpose responses to this challenge are skillfully combined at the macro and micro spatial levels.

Superimpose responsed to this challenge in both macro and micro scale with simple tools in order to improve usability, liveability, general appearance, and connectivity with the other sites within the masterplan:The workshop, residential area, hospital and school that the bearing factory belongs to were once connected as one.The plan layout intentionally opens up to the surrounding sites with schools, a hotel, cultural hubs and hospital;

在更小的尺度上，Y-Loft City 再次重新组合了公共空间与住宅空间。与周边那些早期建成的住宅社区相比，最直接的差别是“围墙++ 大门”的消失。开放的公共空间包含斜向交错的通道与地面、下沉面双重活动区域。5 万平方米的建筑面积通透呈现，让 Y-Loft City 不仅是周边区域处处视线可及的白色地标，也成为人们随时可到达的行动中心点。

On a smaller scale, Y-Loft City recombines public and residential Spaces once again. The most immediate difference is the disappearance of the “wall + gate” compared to the earlier built housing communities around it. The open public space consists of oblique staggered passageways and dual activity areas on the ground and sunken surface. With a construction area of 50,000 square meters, Y-Loft City is not only a white landmark that can be seen everywhere in the surrounding area, but also a central point of action that people can reach at any time.

叠术拒绝使用整齐划一的复制方式。三座公寓建筑高低不同，朝向各异，却彼此呼应，成为整体空间的三个构建支点。社区共同体与独立居住这两种氛围在由支点构成的区域内兼容并存。这种空间结构，引导了人们从内、从外观看建筑的方式。

Superimpose Refuse to use neat and uniform copying. The three apartment buildings have different heights and orientations, but they echo each other and become the three construction fulcrum of the whole space. The two atmospheres of community and independent living coexist in the region formed by the fulcrum. This spatial structure guides the way people view the building from inside and outside

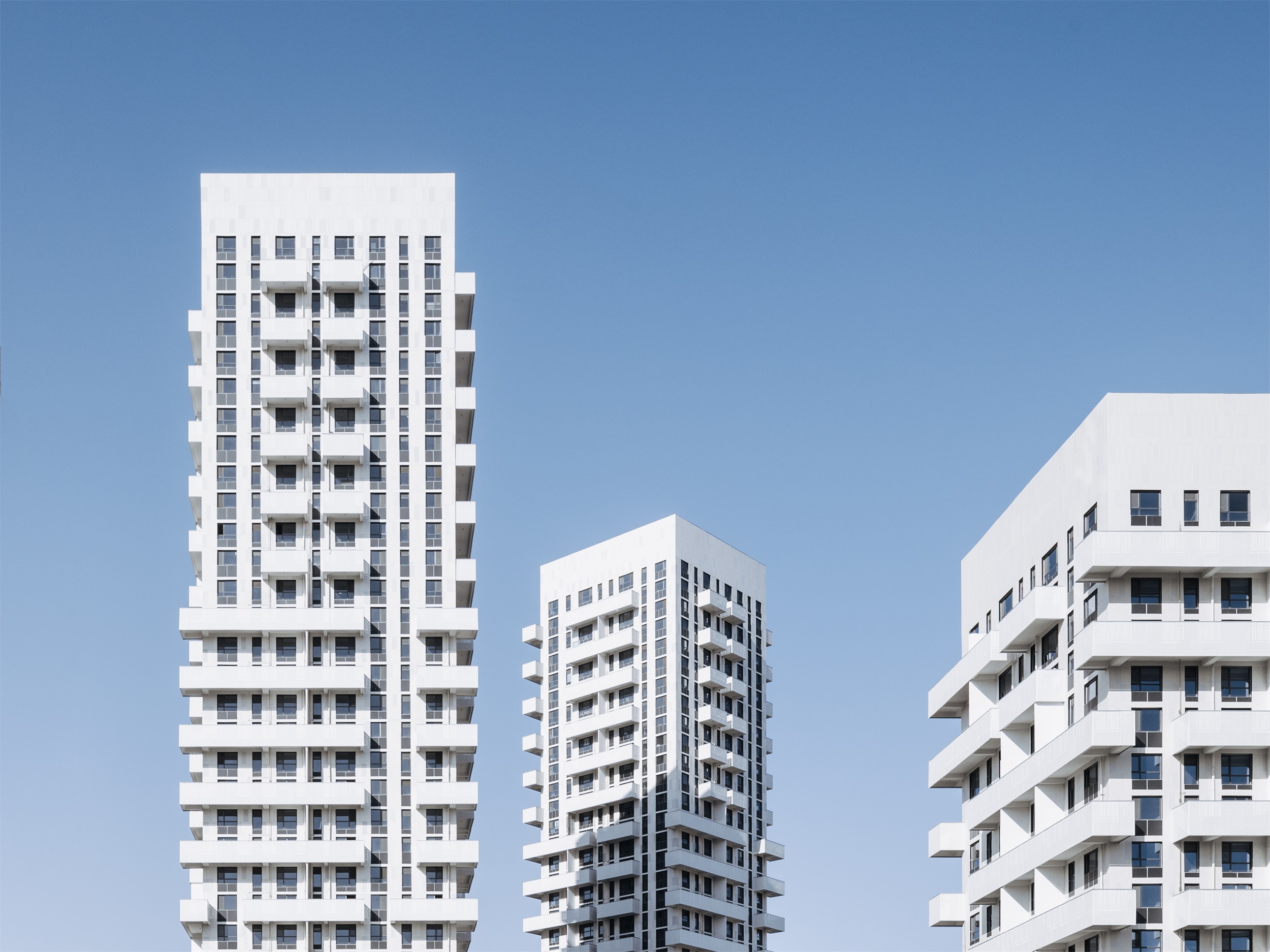

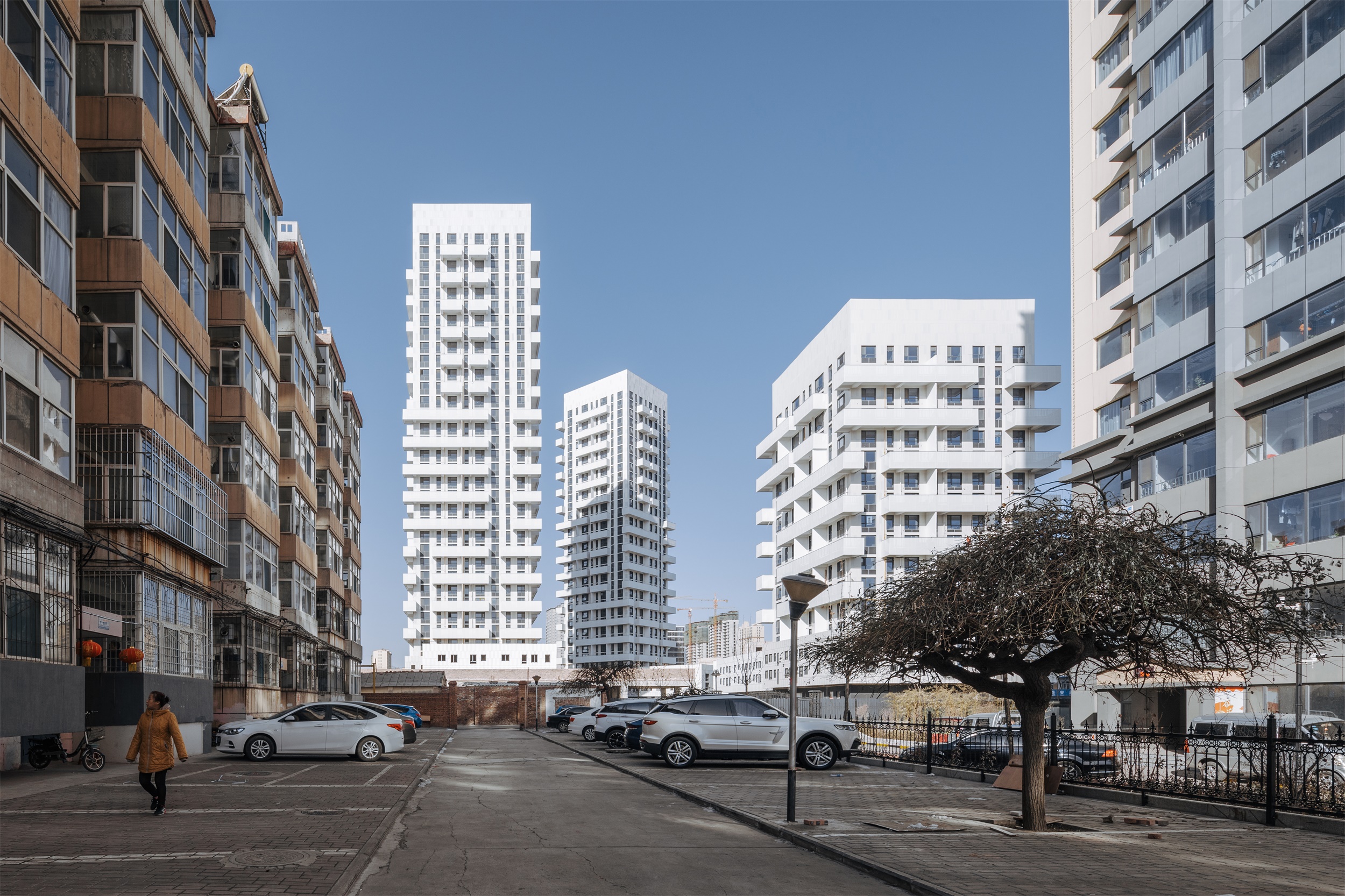

▼三座高低朝向各异又彼此呼应的公寓成为视线汇聚的白色地标

Three apartments with different orientations and corresponding to each other become white landmarks with convergent views

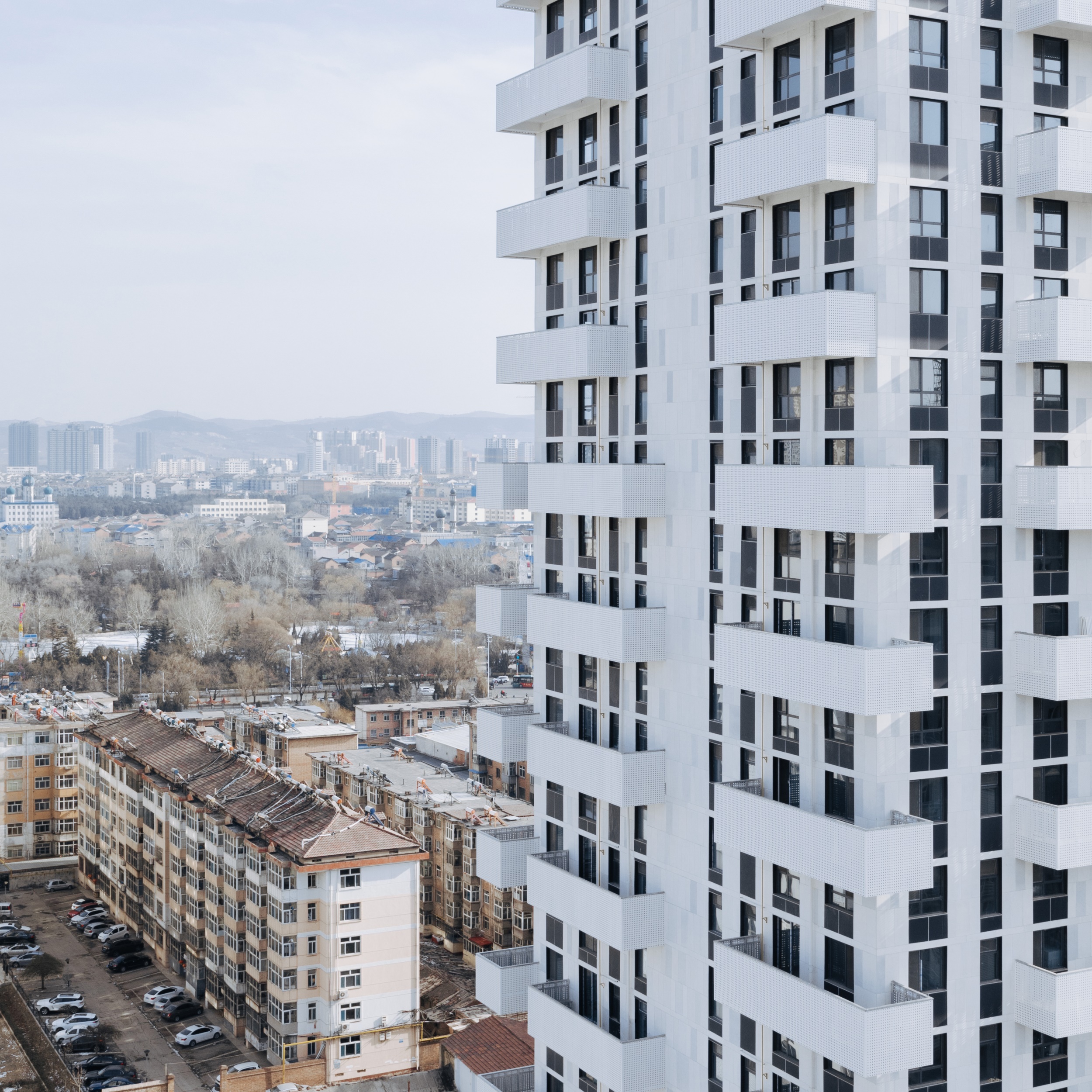

作为主体的 Y-Loft City 强有力地直接介入环境中，与大规模住宅社区单体建筑的存在感被整体所压制的常态截然不同。三座塔楼布局时的高度落差与旋转处理打破了单调的水平、垂直重复。明亮的白色轻质立面低成本但明快，连续地跨过楼外间隔，在三座建筑之间呈现出一贯的纹理，也与周边的早期社区色调形成了鲜明而不失和谐的对比效果。

The residential towers have been rotated, shaped and positioned to increase uninterrupted views out from each single living space while simultaneously orientating each apartment to maximized sunlight exposure; Keeping the construction budget low was key to achieving an inexpensive and affordable development for the Y-generation.

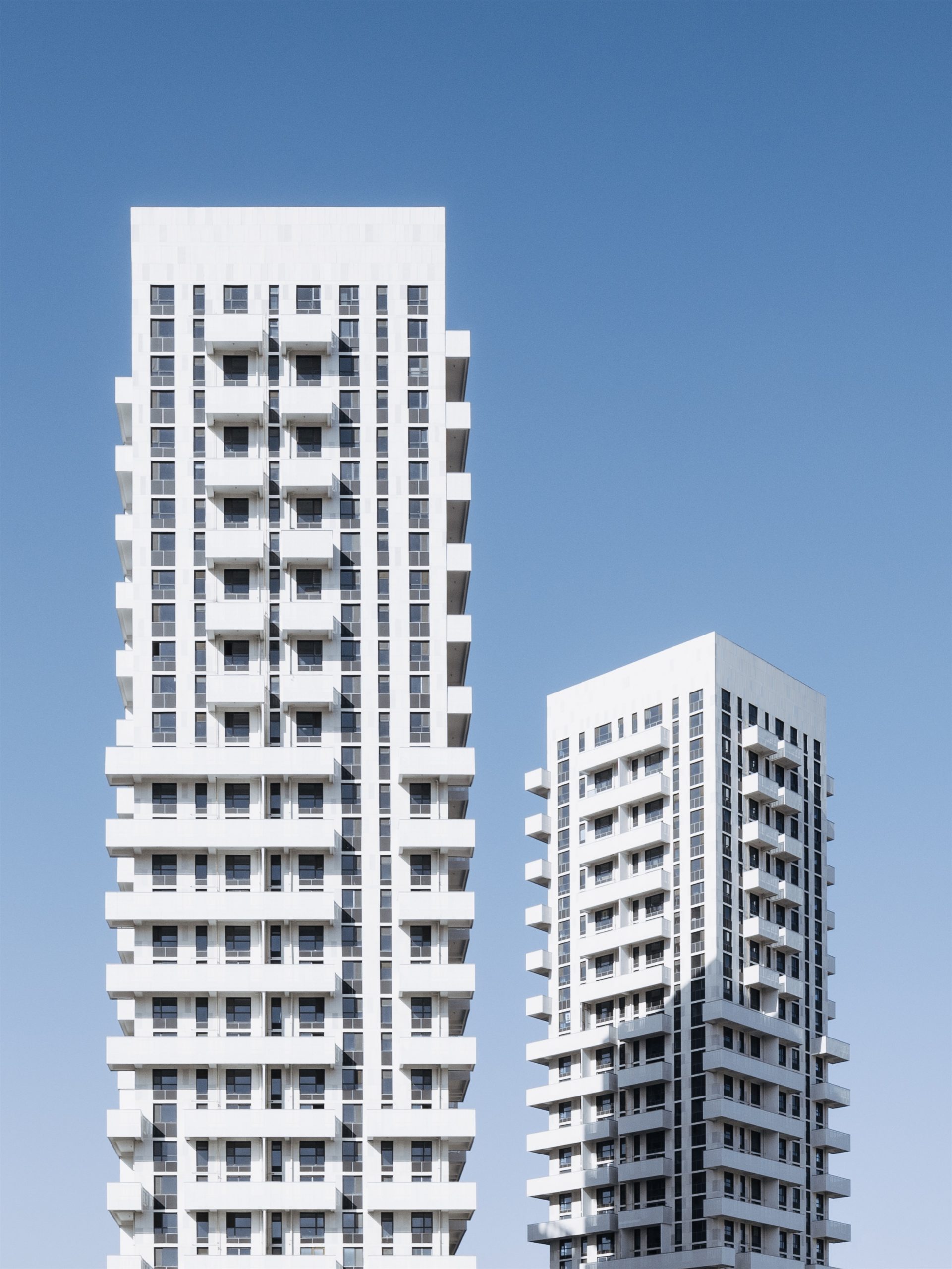

布局、高差打破单调水平，形成鲜明而不失和谐的对比效果 Difference of layout, height breaks drab level, form bright and do not break harmonious contrast effect

与连续、一贯的整体风格感并存的，是每一个个体 Loft 单元同时得以凸显于观看者眼前。叠术用雕塑手法把阳台从乏味的整齐排列中拉出，将直角元素从外立面的平面扩展为每座公寓四面上的立体凹凸结构。这种变换中的构造强调着阳台所通往的个体居住想象。作为与白色主体的对比，暗色从每一层窗框、窗玻璃延伸到阳台的金属栏杆，呈现着强烈的存在感。

Light and bright materials have been used to contrast with the dull surrounding developments; A loft-concept has been applied in order to achieve more living space per square meter and a variety of unique balconies have been added to each residential unit in order to provide identity to the tower and valuable outdoor space to each inhabitant and unlike other nearby developments.

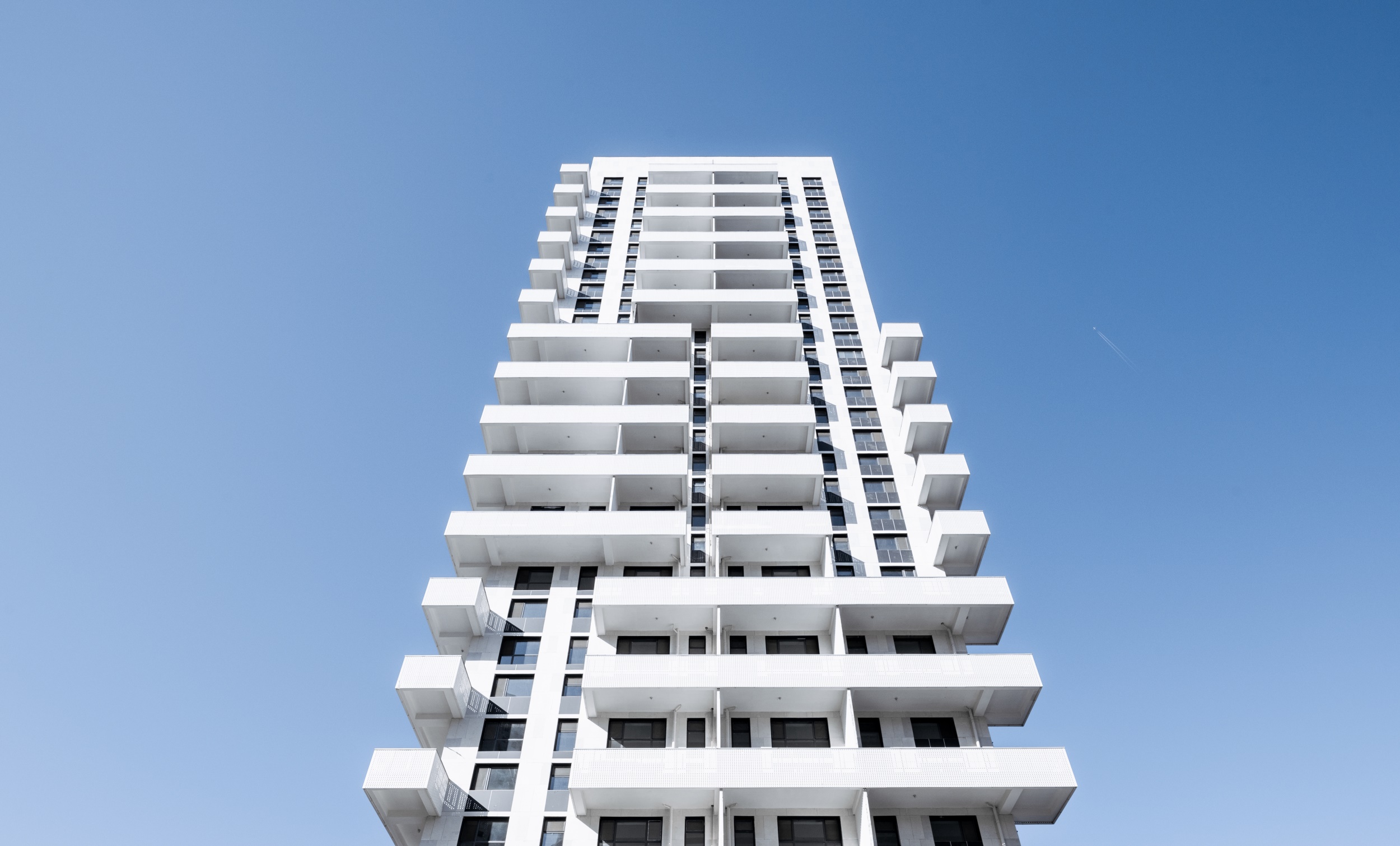

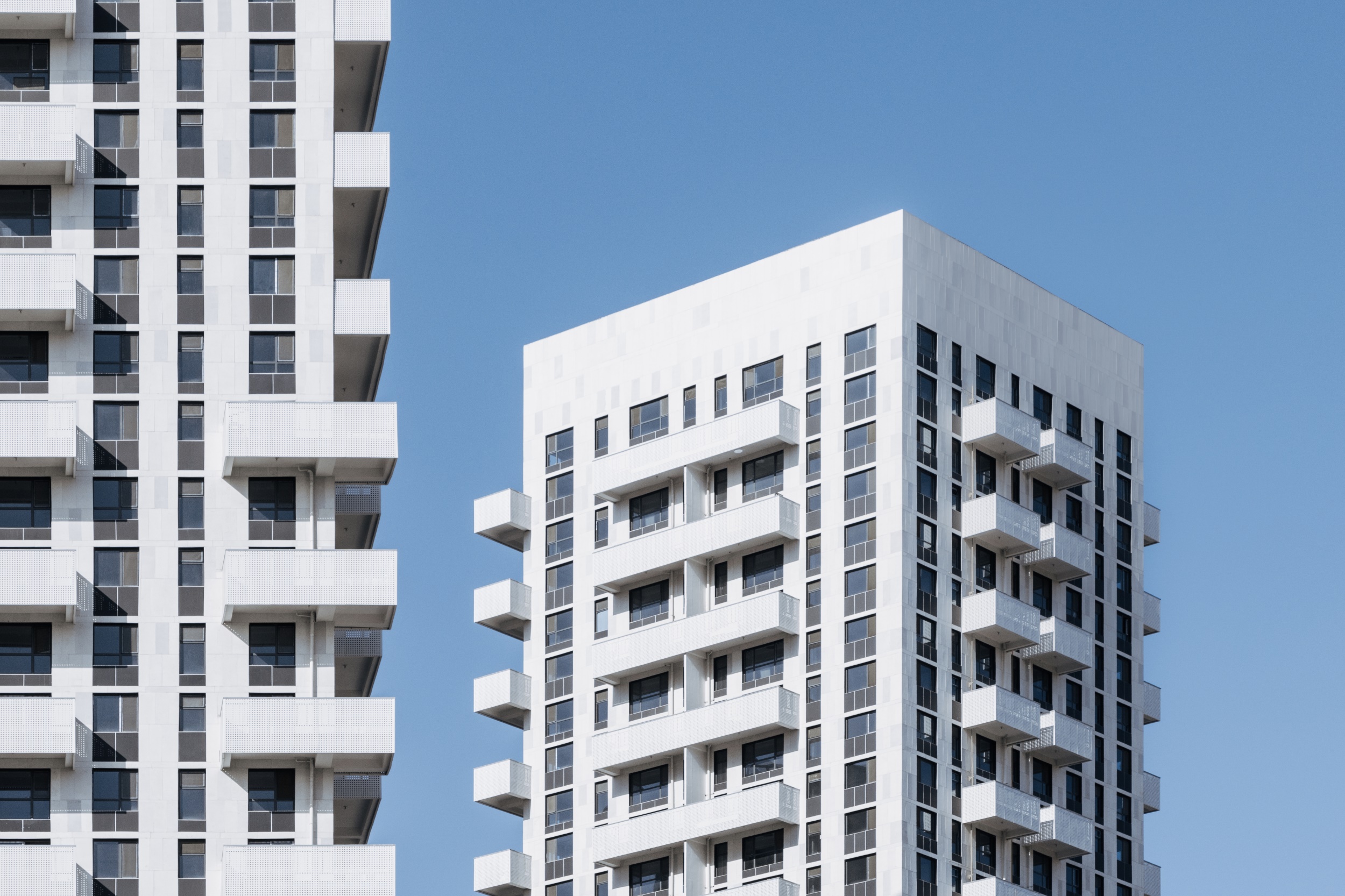

▼凹凸结构设计强调阳台所通往的个体居住想象 The concave and convex structure emphasizes the individual living imagination that the balcony leads to

阳台的这种凸显设计并不只是出于形式的动机，它也塑造了一种真实的均质生活体验：不论是三座塔楼中的哪一座、哪一个房间，都能最大限度地拓展光照范围。叠术与开发方在使用规则上也有共识：阳台不会封闭，这种所有居住者共同享用的体验会一直持续。

Unlike the majority of developments with balconies, this developer has agreed with providing strict rules on how inhabitants should remain to use their balconies as outdoor space. Instead Superimpose opted for a simple yet refined material palette of white facades with contrasting dark aluminium window frames and panels, together with slightly reflective glass. The balconies have been cladded with white perforated aluminium.

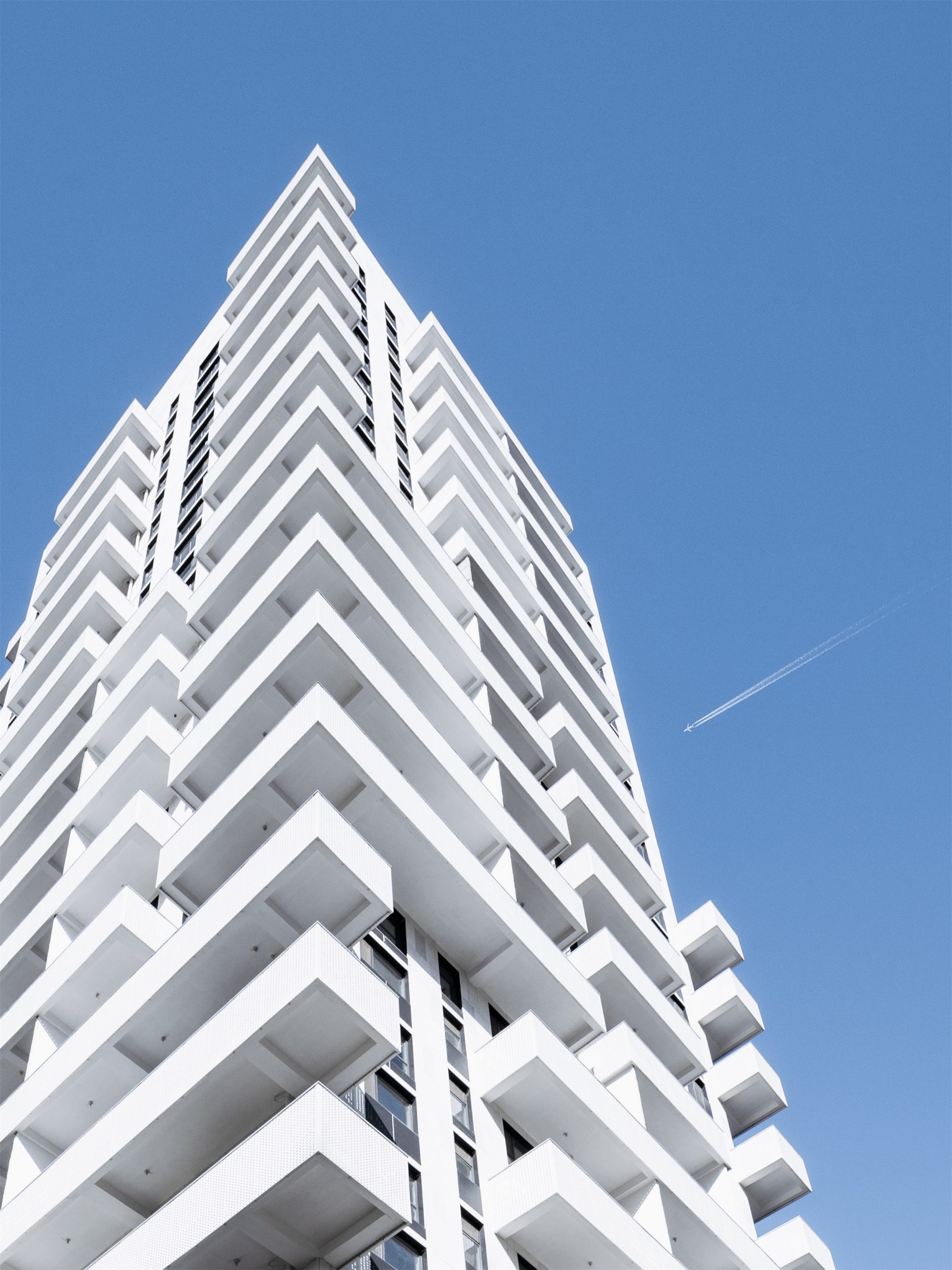

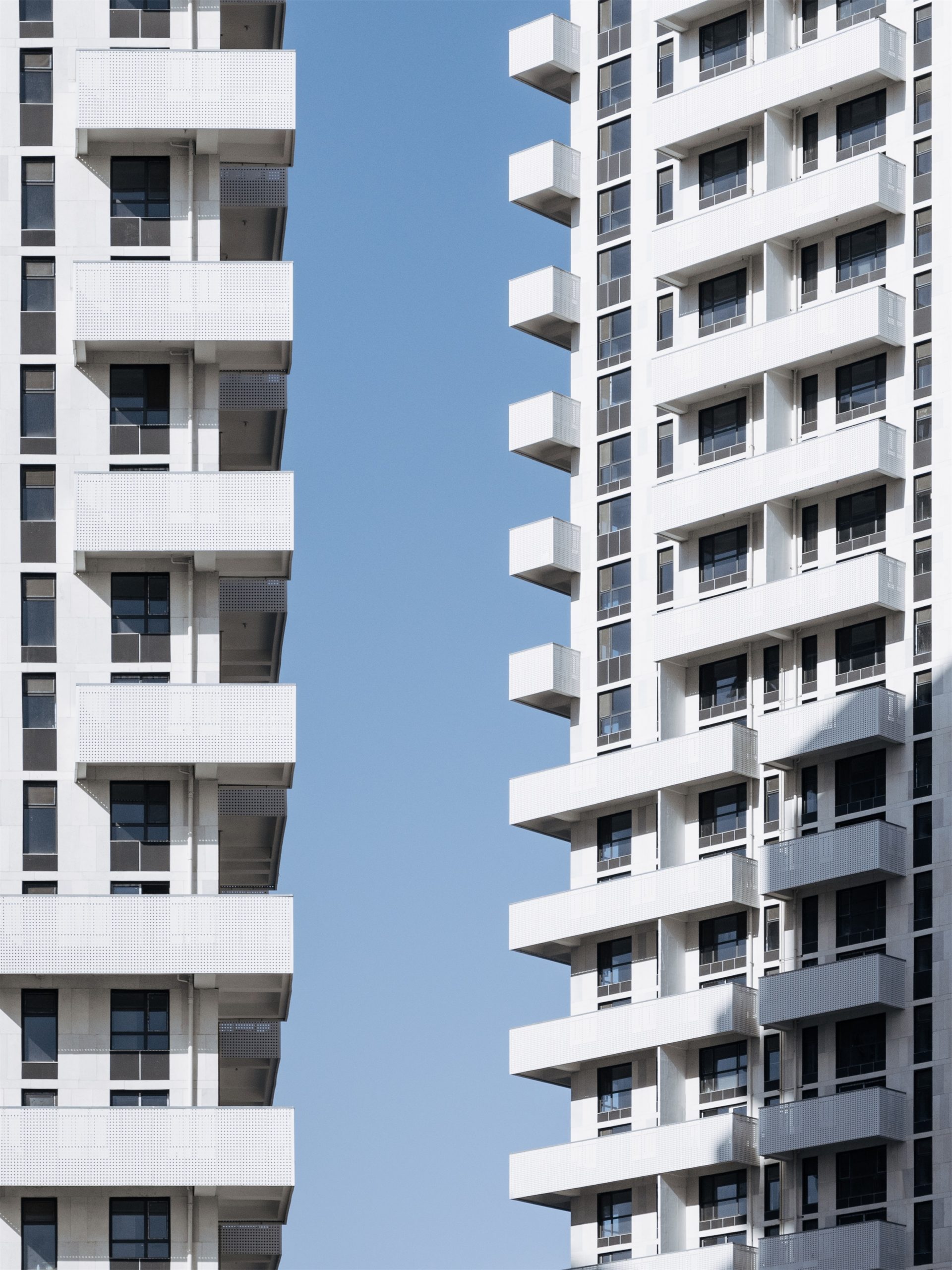

▼开放阳台能最大限度扩展光照的同时塑造均质生活体验 Open balconies maximize light while creating a homogeneous living experience

业主期望用合理的预算造出真正的现代设计风格。叠术在 Y-Loft City 项目中使用简单而独特的强对比方法，替代掉泛滥的繁复装饰结构，降低了外立面所占用的造价成本。对于 Y 世代青年用户而言，这是更具有吸引力的生活场所，又不会由于堆砌装饰而让价格高不可攀。因此，Y-Loft City 以高出周边社区 60% 的定价成功发售。

Superimpose designed three white sculptural residential loft apartment towers for the so-called Y-generation, focused on quality of life and breaking with the conventional residential development typology. Within months, all apartments were sold for 160% of the surrounding residential market value. The towers are situated on top of a non-gated and community orientated retail village and integrated as part of the Changzhi CBD masterplan, also designed by Superimpose.

▼简单独特立面设计更具吸引力的现代风格住所 Simple and unique facade design for a more attractive modern style residence

Y-Loft City 既是叠术对开头问题的回答，又是新的提问——在无数急速发展中的中国小城，是否也能产生这一种以生活/社区形态而非价格、地段为核心吸引力的住宅项目？建筑师还能为新的社区形态演进做些什么？设计者与业主应怎样协作，珍惜利用既有的文化资源以创造新的社会生活？这是未来我们必将继续探索的问题。

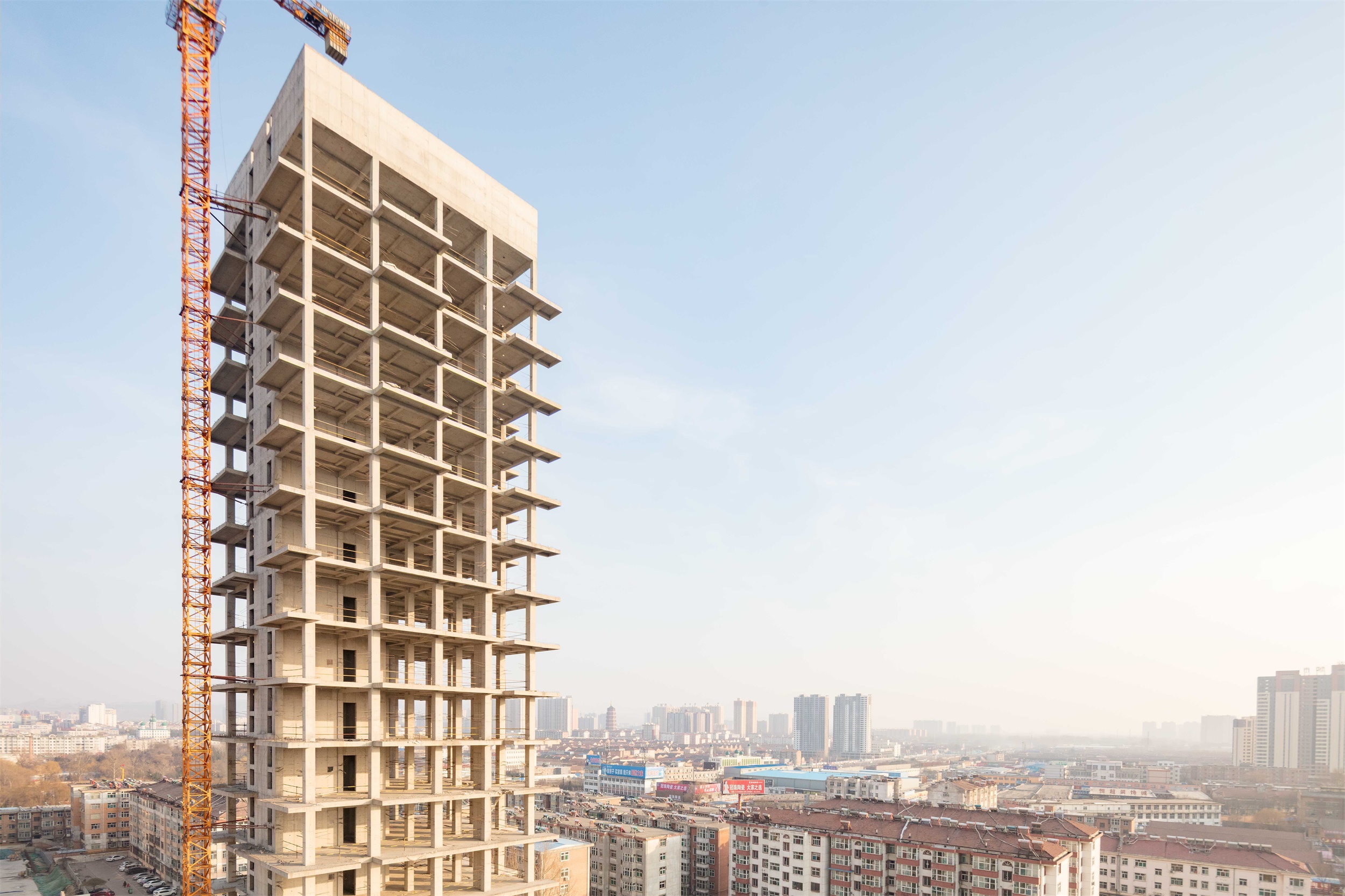

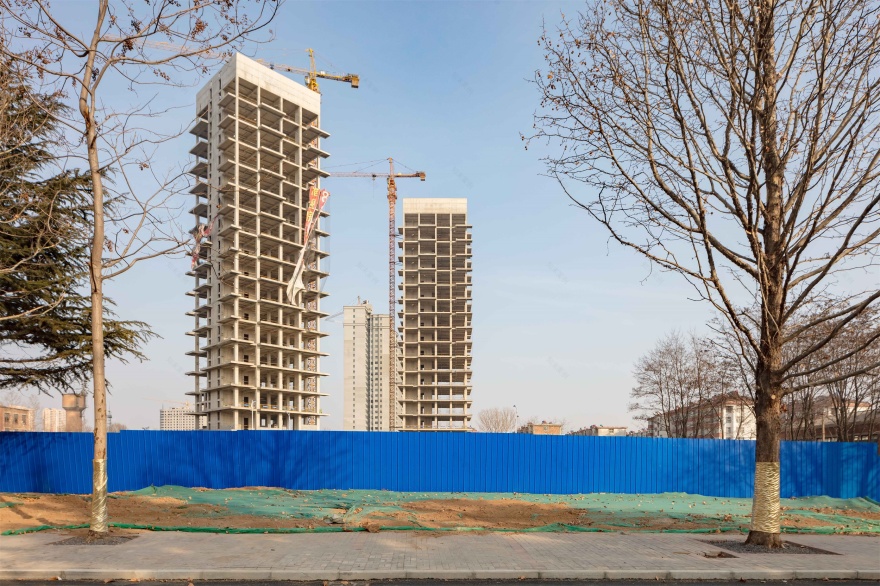

Y-Loft City 主体结构 Y-Loft City construction structure

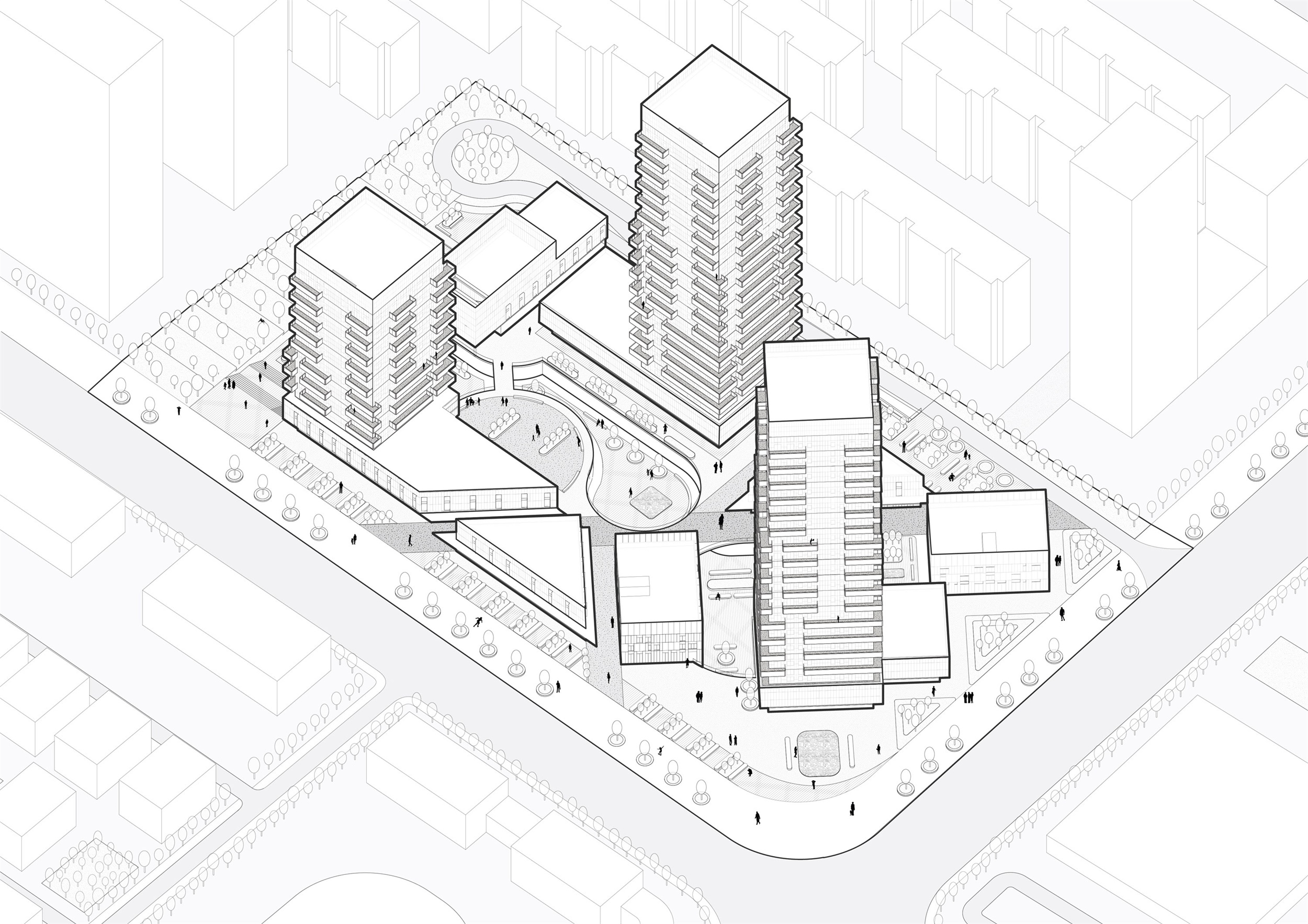

▼轴测图 Axonometric drawing

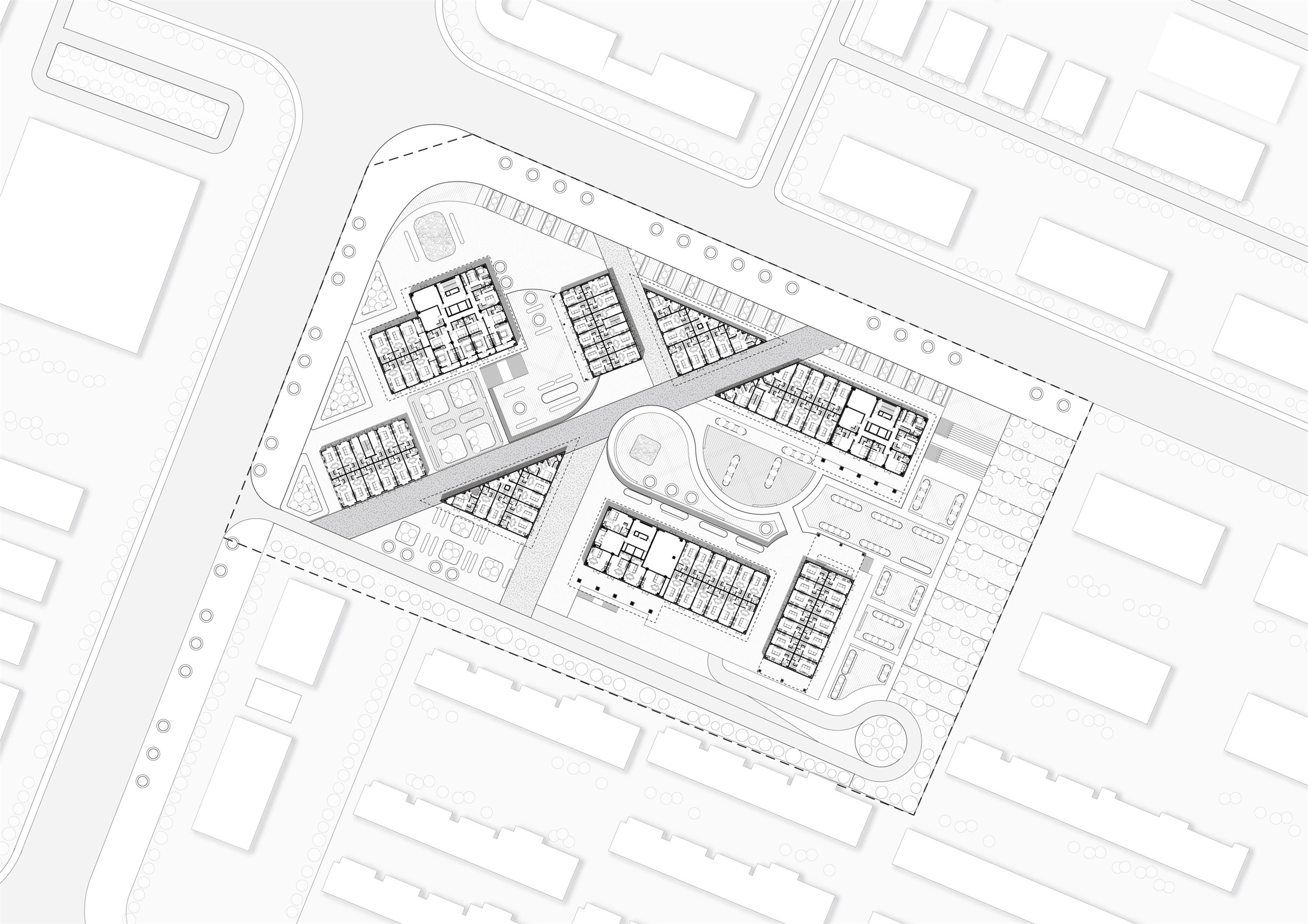

▼首层平面 The first floor flat

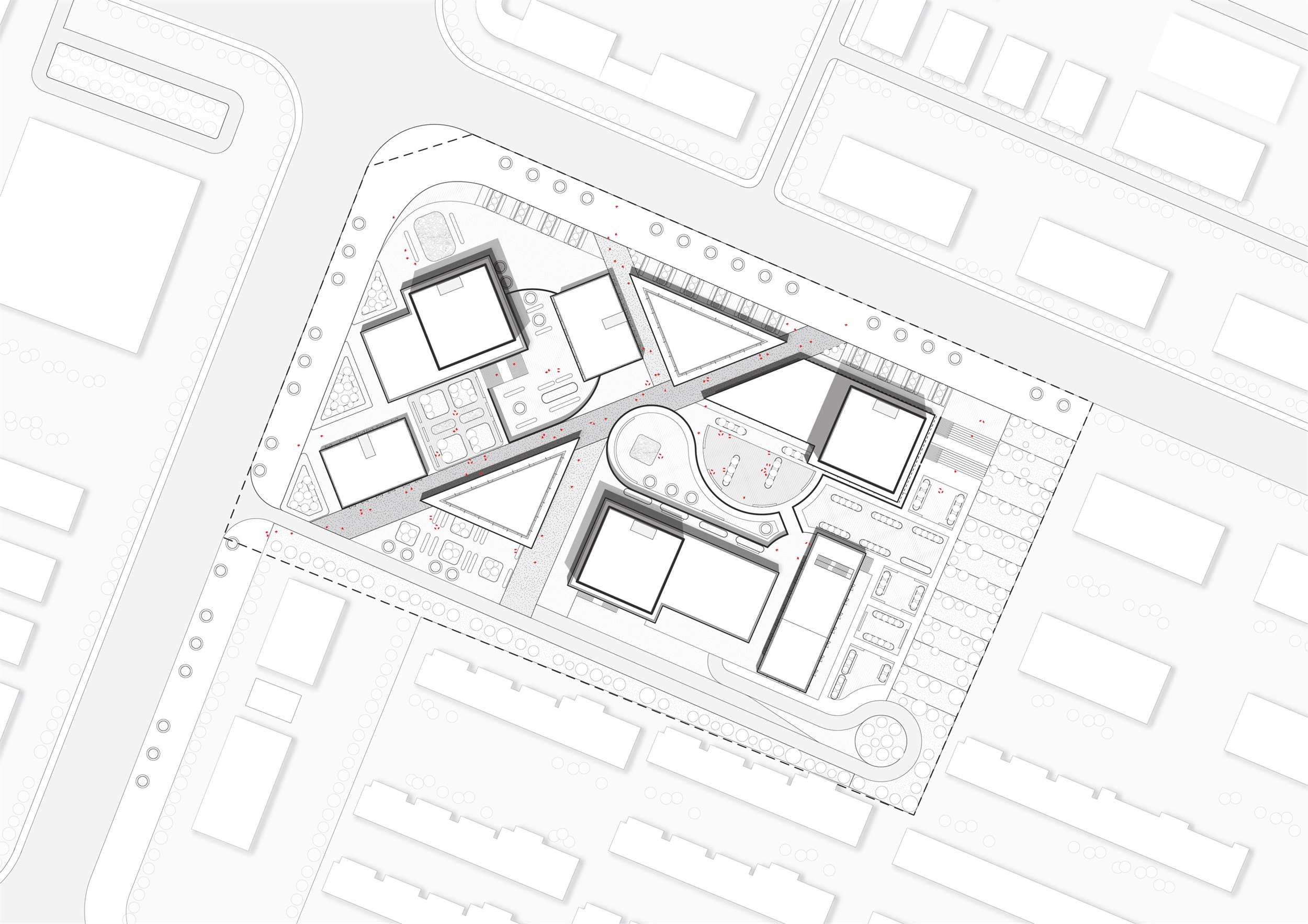

▼屋顶平面 The roof plane

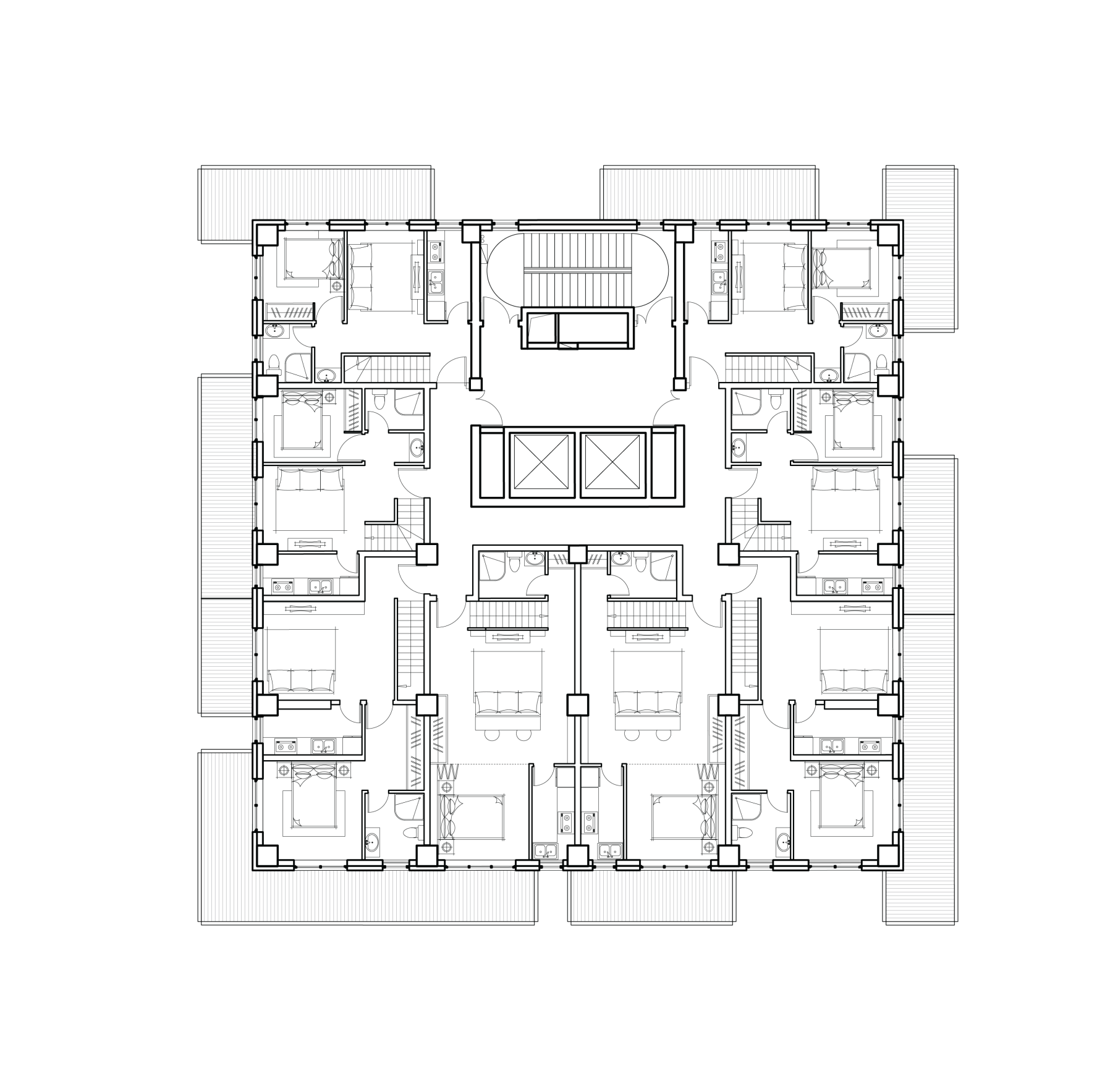

▼标准层平面 The roof plane

项目名称：Y-Loft City

项目位置：山西长治

项目类型：住宅

建筑功能：Loft 公寓和商业

设计范围：建筑设计

设计公司：Superimpose 叠术建筑

合伙人：Carolyn Leung, Ben de Lange, Ruben Bergambagt

建筑师：Carolyn Leung, Ben de Lange, Ruben Bergambagt, Pablo Gonzalez Gonzalez, 谢慧敏

业主：长治市昌盛房地产开发有限公司

建筑面积：50,150 m²

建筑高度：最高 100 m

建造日期：2018 – 2021

建造材料：外立面：铝面氟碳漆保温装饰一体板（材料生厂商：四川福美来装饰）；外立面：灰泥面氟碳漆保温装饰一体板（材料生厂商：四川福美来装饰）；阳台：白色穿孔铝板

摄影师 – 建成：CreatAR

摄影师 – 建造中：Marc Goodwin

Project Name: Y-Loft City

Location ：Changzhi,, Shanxi Province, China

Project Type: Residential and retail

Function ：Loftt apartments

Scope：Architecturee Design

Design Company : Superimpose Architecture

Partners in charge : Carolyn Leung, Ben de Lange, Ruben Bergambagt

Architects：Carolynn Leung, Ben de Lange, Ruben Bergambagt, Pablo Gonzalez Gonzalez, Xie Huimin

Client：Changzhii Changsheng Real Estate Co., Ltd.

Building area : 50,150 sqm

Height：1000 meterConstruction period : 2018 – 2021

Building materials: Facade: Thermal insulation composite wall panel with aluminium finishing (Manufacturer: Fumeilai Deco); Facade: Thermal insulation composite wall panel stucco finishing (Manufacturer: Fumeilai Deco); Balconies: White perforated aluminum panels

Photographs Completed : CreatAR
