越南河内Roc Von餐厅丨Vo TrongNghia Architects

Vietnam Hanoi Roc Von restaurant

设计方：VoTrongNghia Architects

位置：越南

分类：商业建筑

内容：实景照片

设计团队：Mai Lan Chi

承包方：La Vong group JSC.

图片：17张

这是由Vo TrongNghia Architects设计的Roc Von餐厅。该建筑距河内市30公里，位于连接河内市与和平市质检的主干道边上。该区域是巴士和汽车中途停留地，以让司机匆匆长途路途中获得休息，同时这里也是河内人享受一日游的旅游目的地。为了提供一个私密的空间，同时隔绝繁忙马路的喧嚣，该餐厅的地面标高比道路标高要低。从繁忙的道路走下来到就餐区，顾客可以面向着自然湖泊而坐，头顶还可欣赏竹木制造的拱。这12根竹柱向上延伸，支撑着半露天就餐区的屋顶结构。弧形的中央舞台可以用于活动表演，同时营造了亲密的氛围。

译者：筑龙网艾比

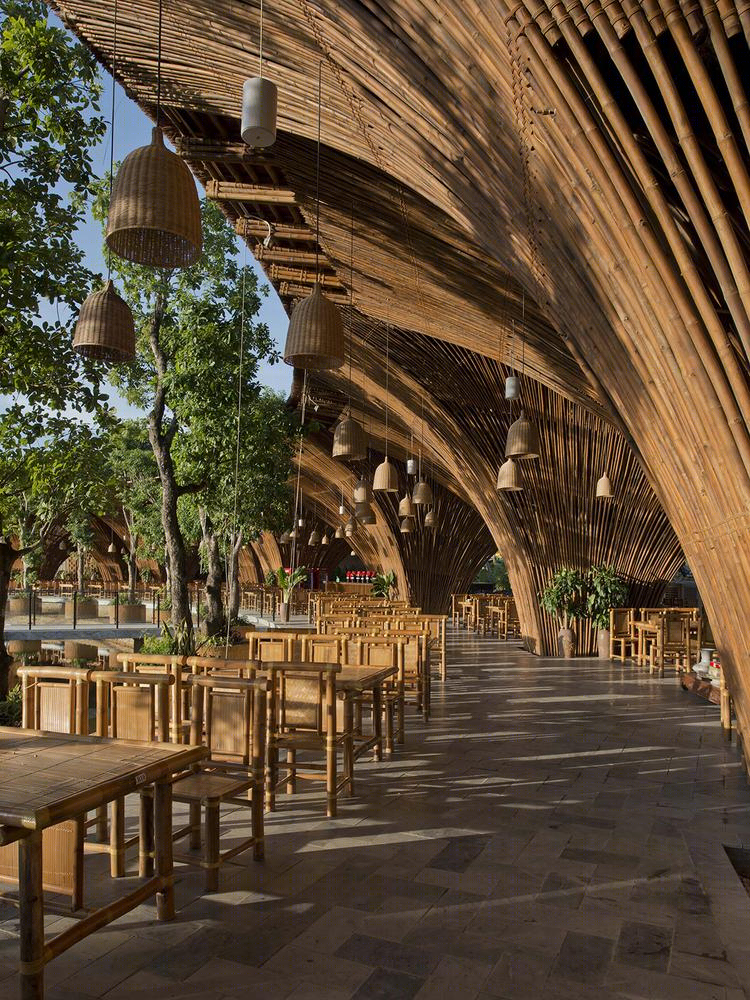

The building is located 30 km from Hanoi, besides the main road connecting Hanoi and HoaBinh. This area is popular for stopover of buses and cars in order to enjoy and have a rest long journey and also it is a destination for Hanoians to enjoy one day trip. The restaurant is located right next the road. To create an intimate space and protect guests from the busy road the floor of the restaurant is designed lower than the road. After stepping down from the busy road to the dining space, the guests are facing to a natural lake with a bamboo arches above their heads. The 12 bamboo columns with the shape spreading upwards are supporting the roof structure of semi-outdoor dining area. The curved plan with center stage is prepared for events usage at the same time giving embracing intimate atmosphere.

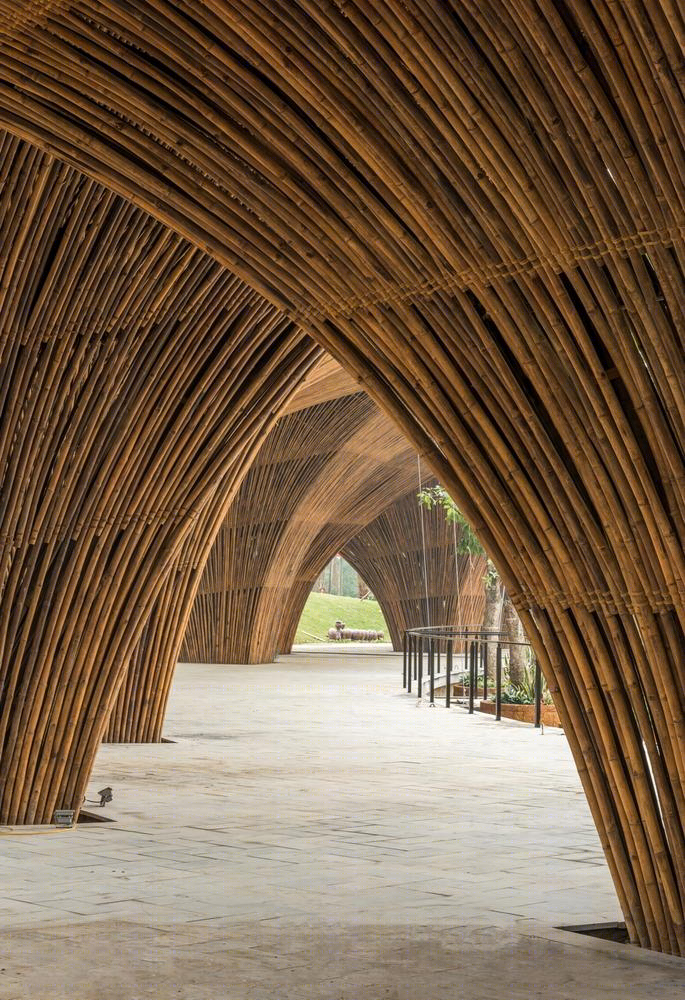

For the bamboo columns we have used two different bamboo species - Tam Vong and Luong. Each of them provides different material qualities which are crucial for the building structure. The bamboo has been treated by Vietnamese natural traditional method in order to reach the high quality and long term durability of the material. The natural treatment contributes to a sustainable building approach as well.

The space under the columns is naturally cross ventilated and a cooled by evaporation of water from the adjacent lake. The support area is separated building volume with the walls cladded by a local material – laterite blocks. These orange colored soil blocks express traditional in the area together with the bamboo structure.The building provides the space where guests can feel the strong connection to the local culture of the North Vietnam. The application of an open space and usage of natural materials meet the required connection.

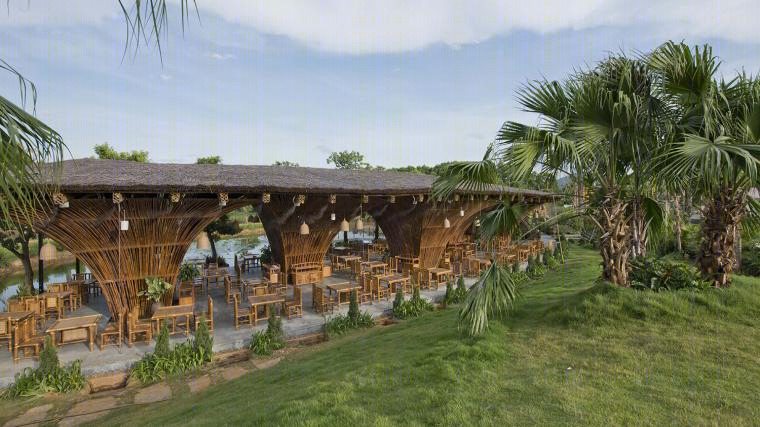

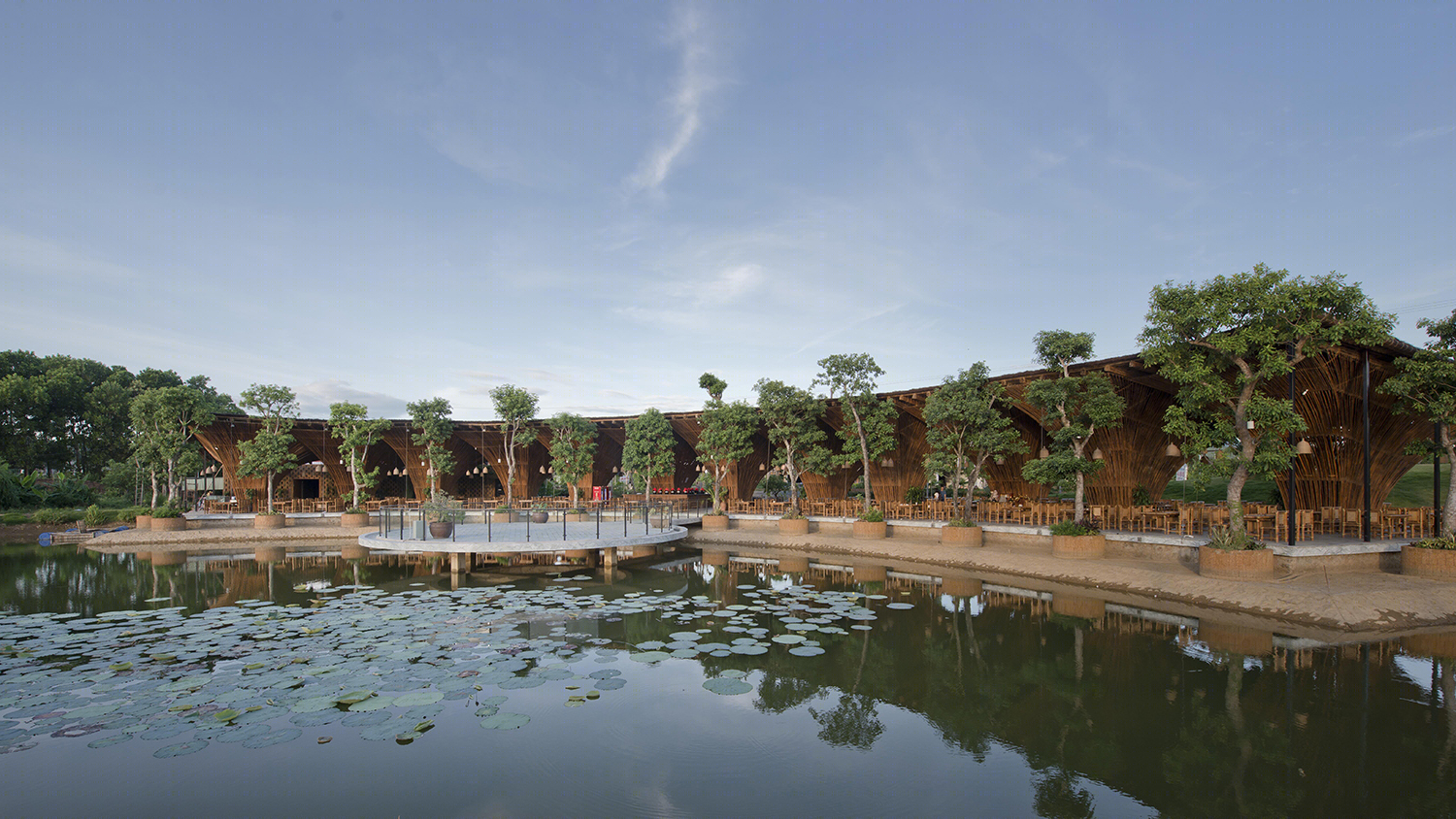

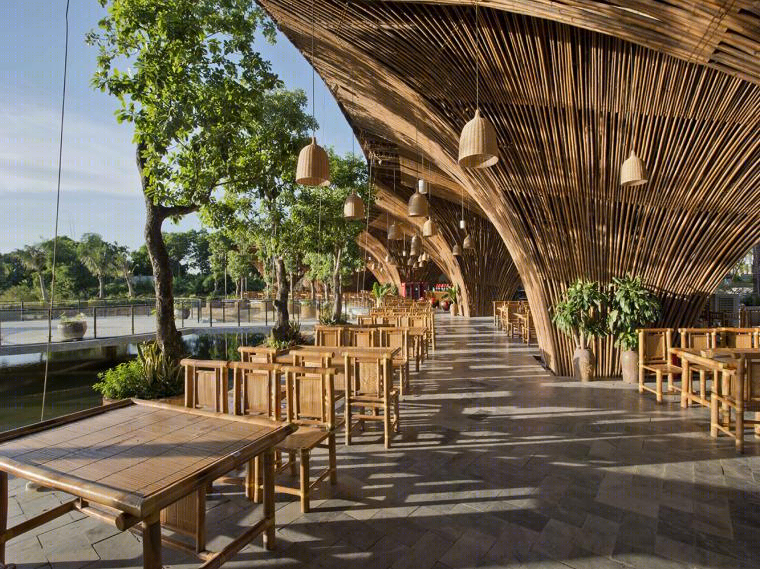

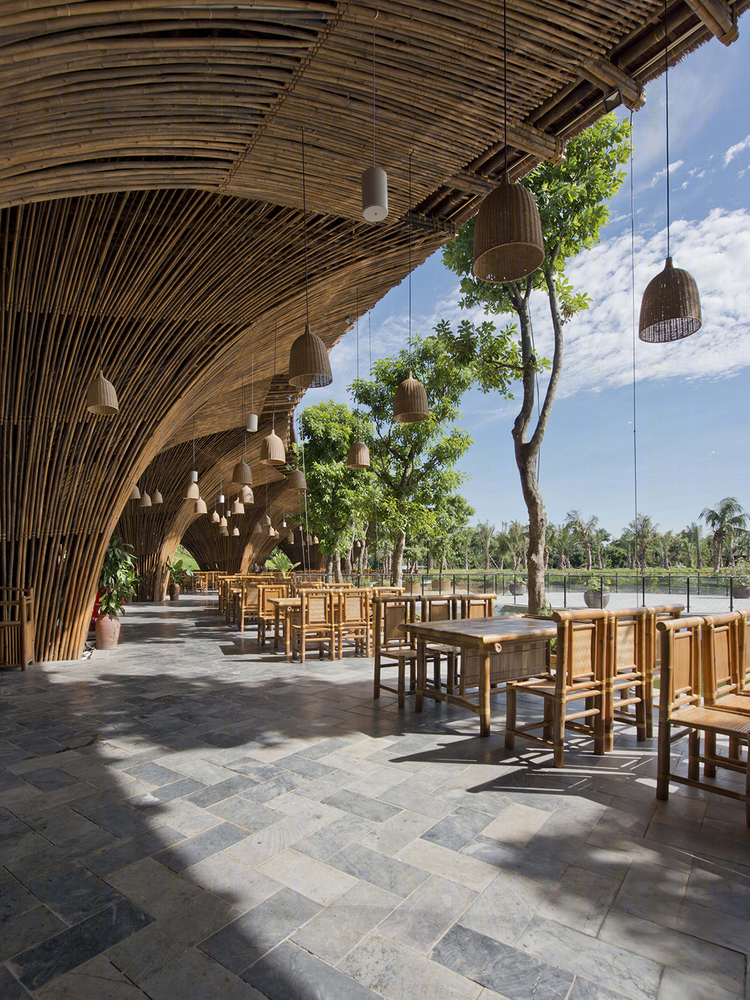

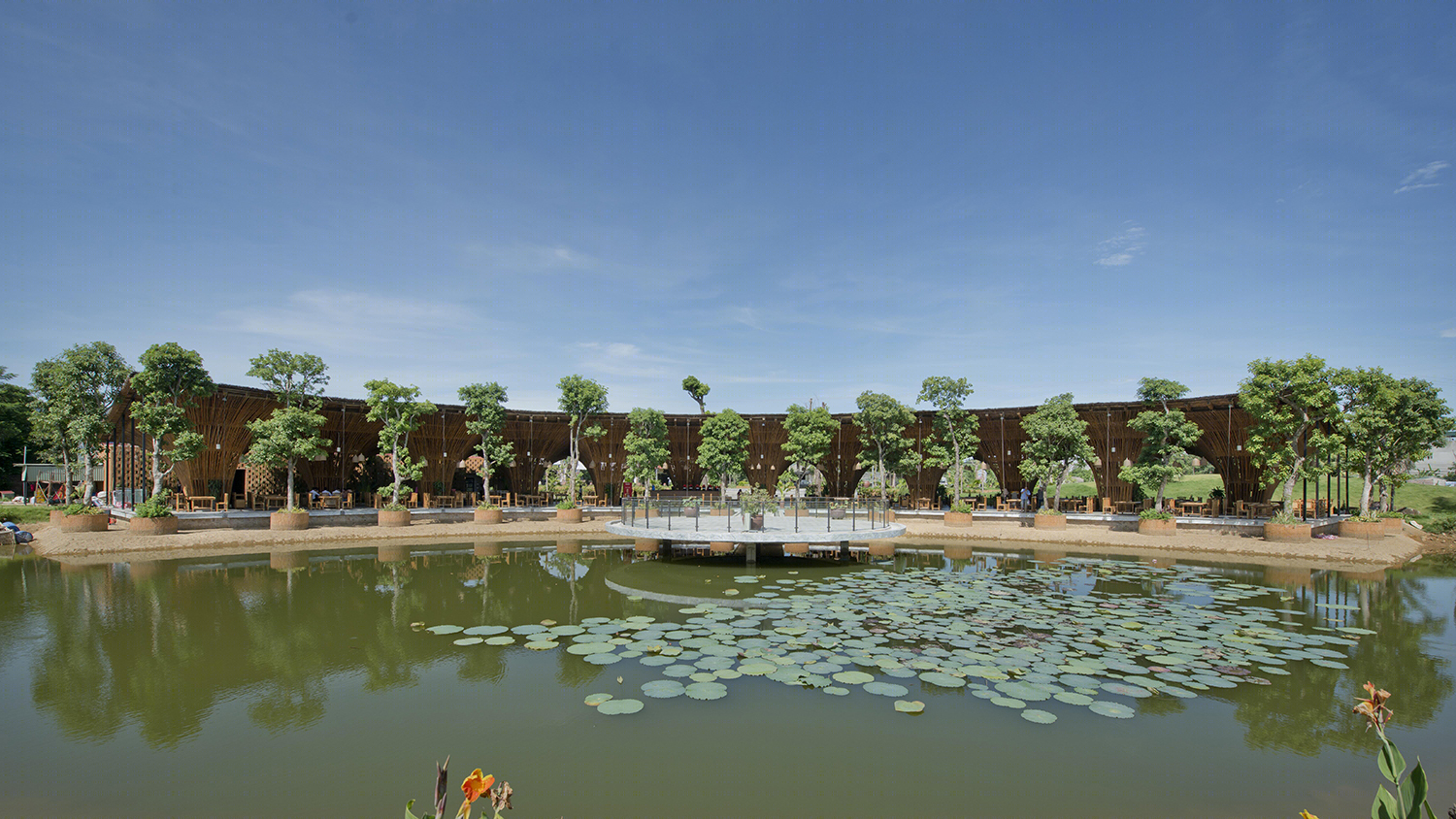

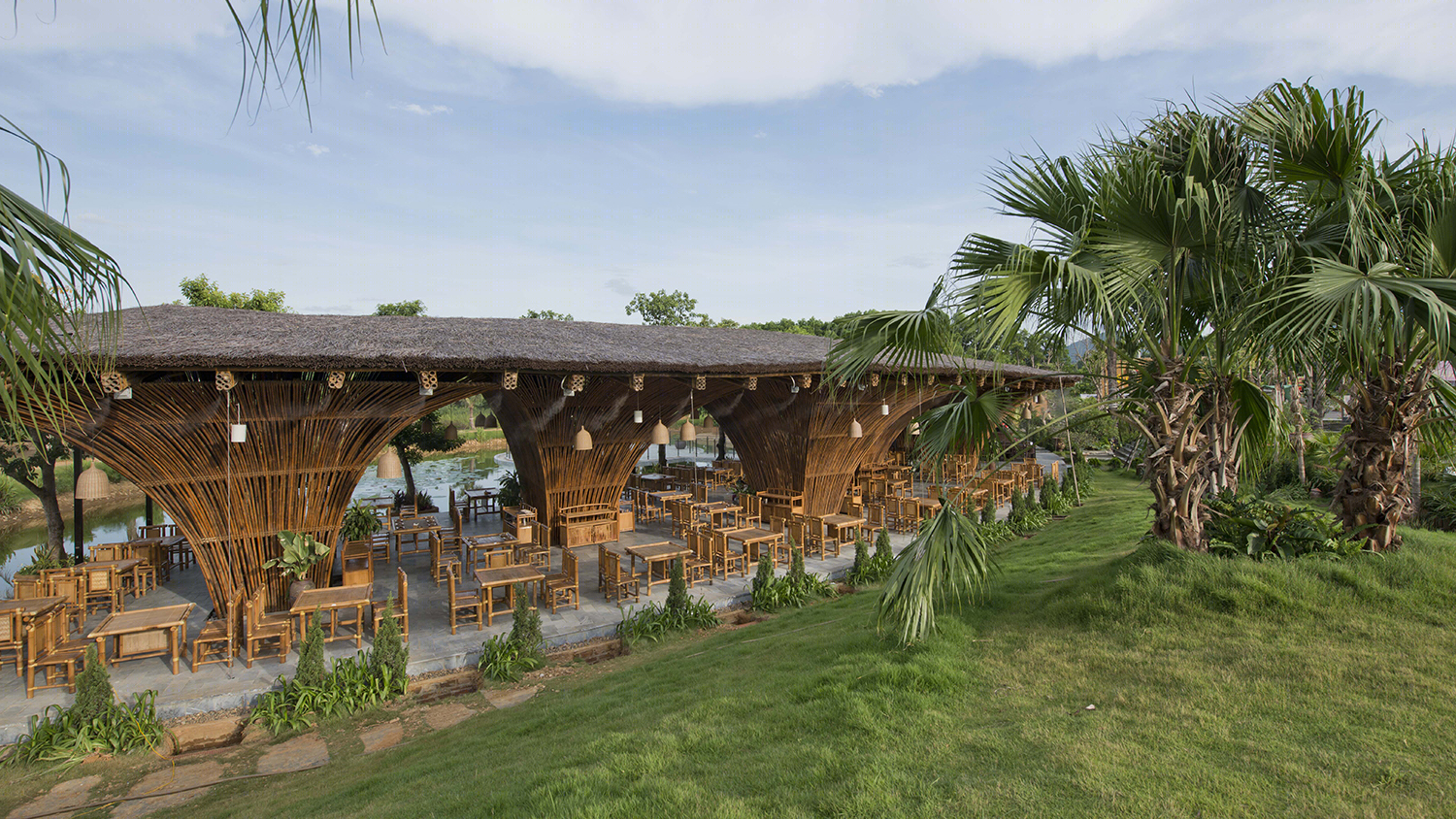

越南河内Roc Von餐厅外部实景图

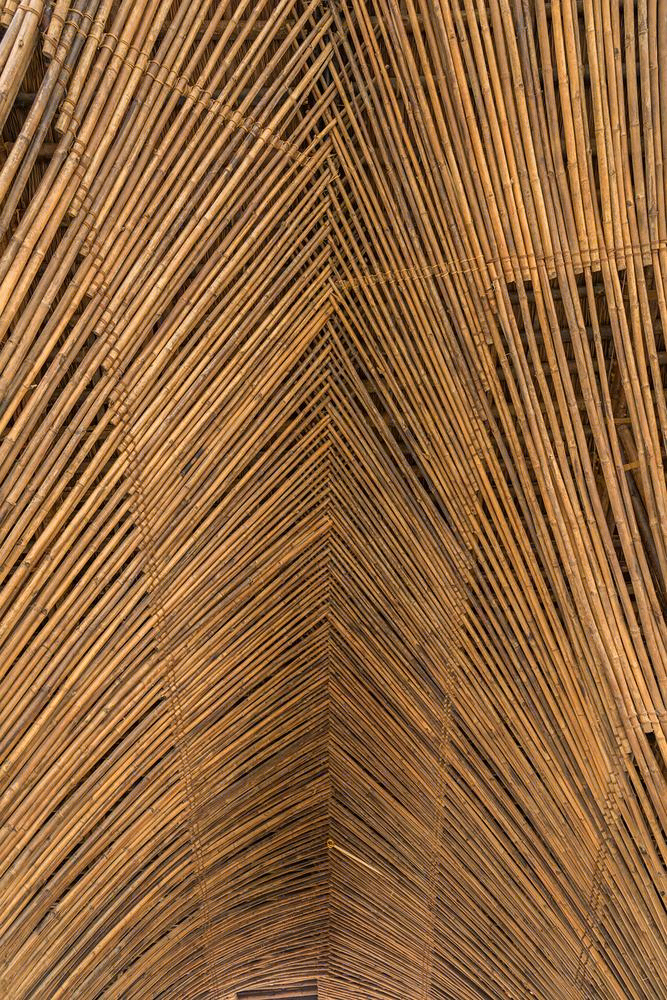

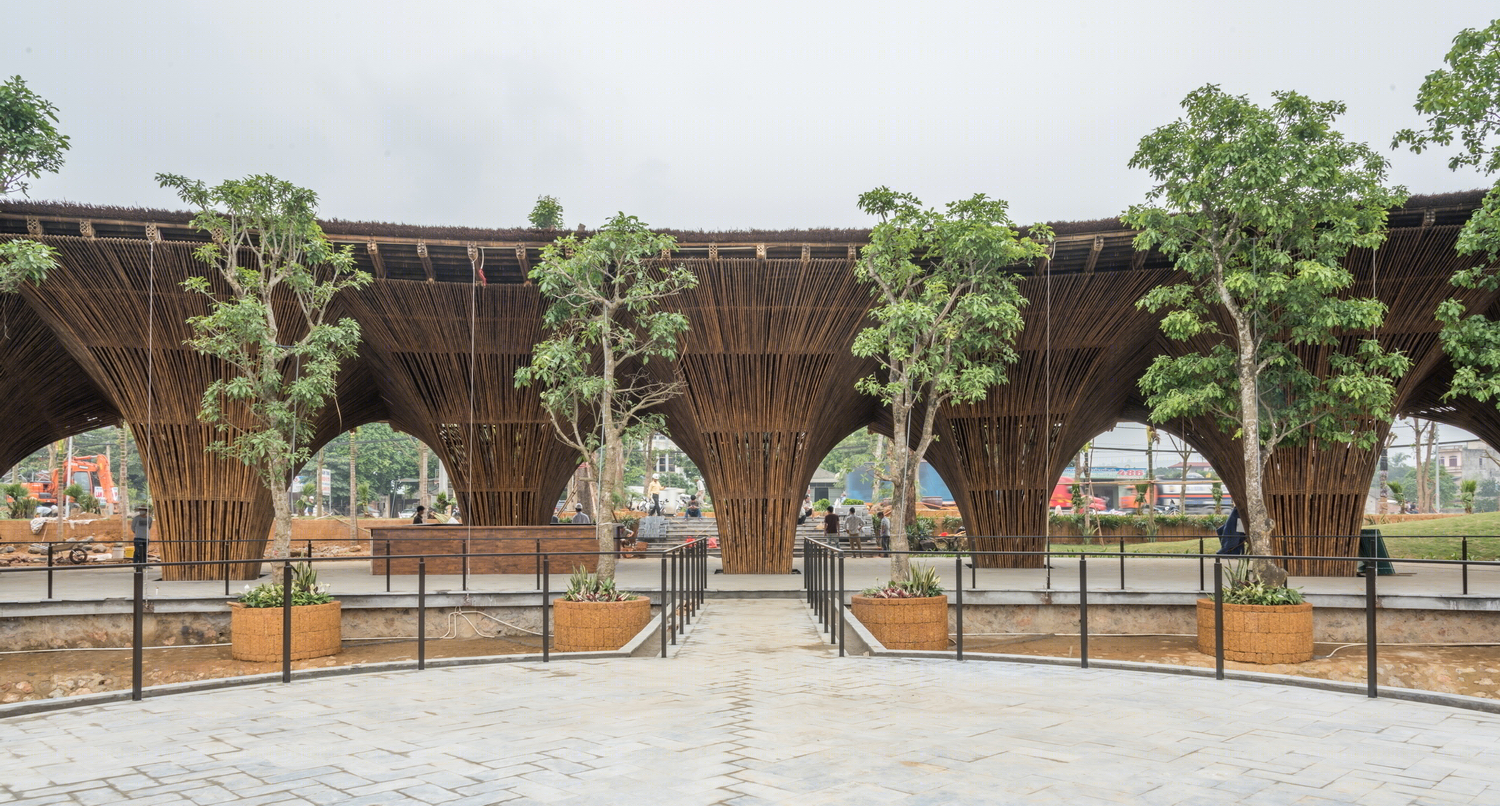

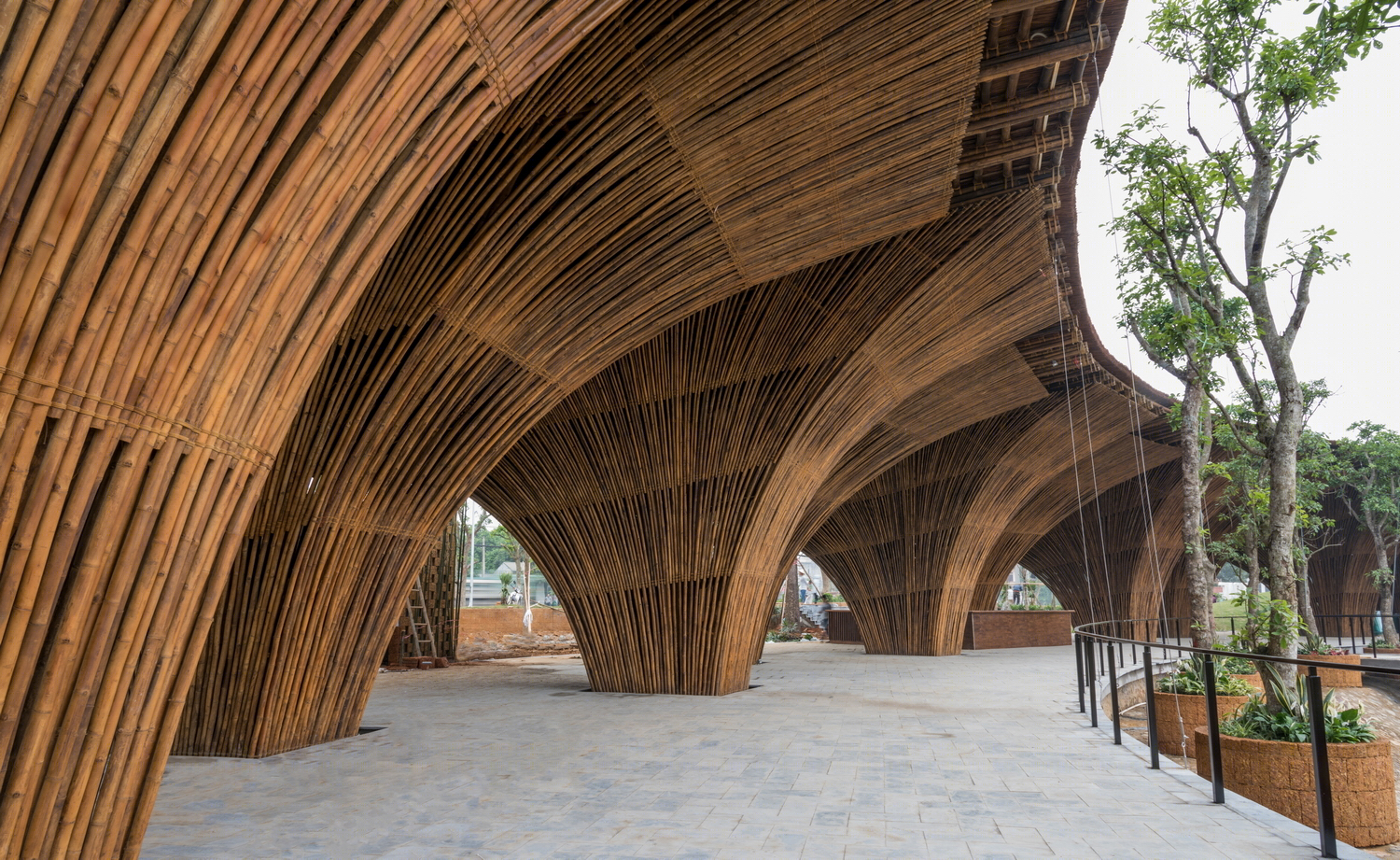

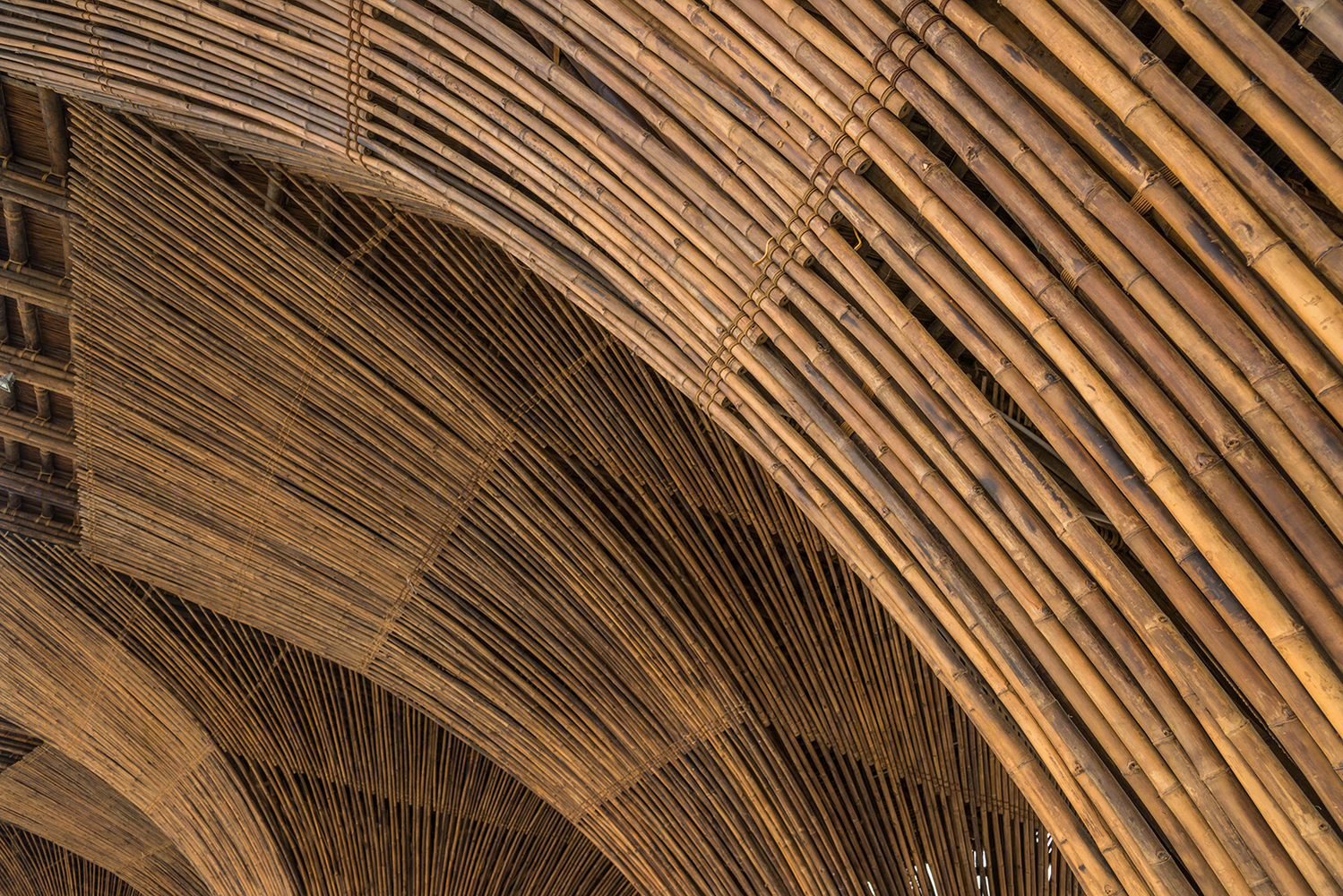

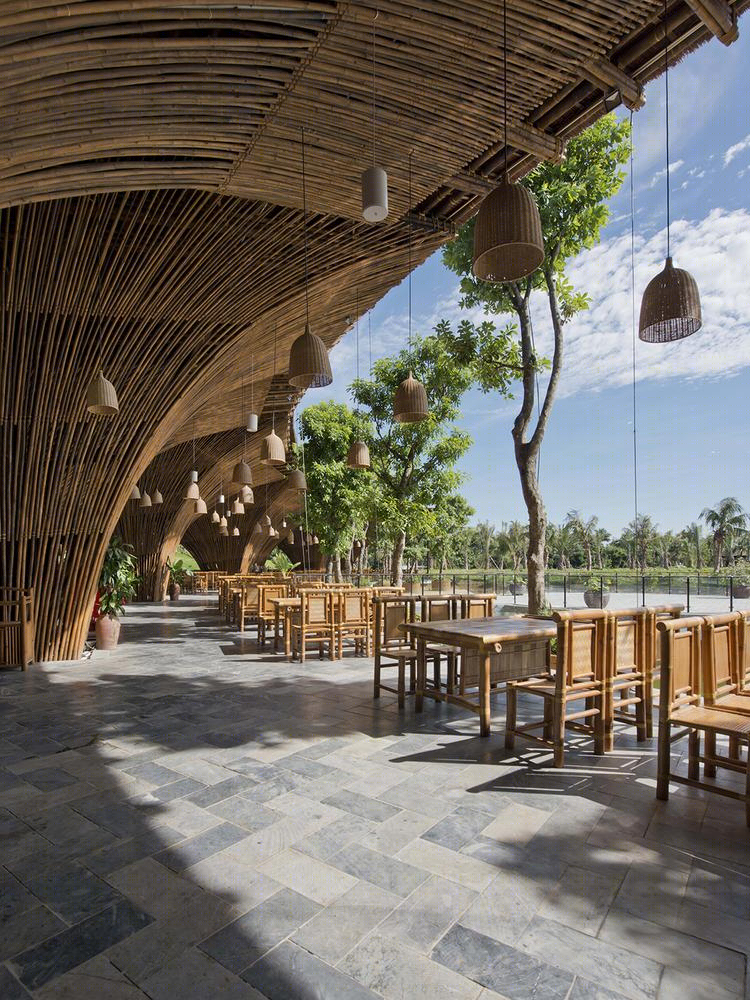

越南河内Roc Von餐厅外部局部实景图

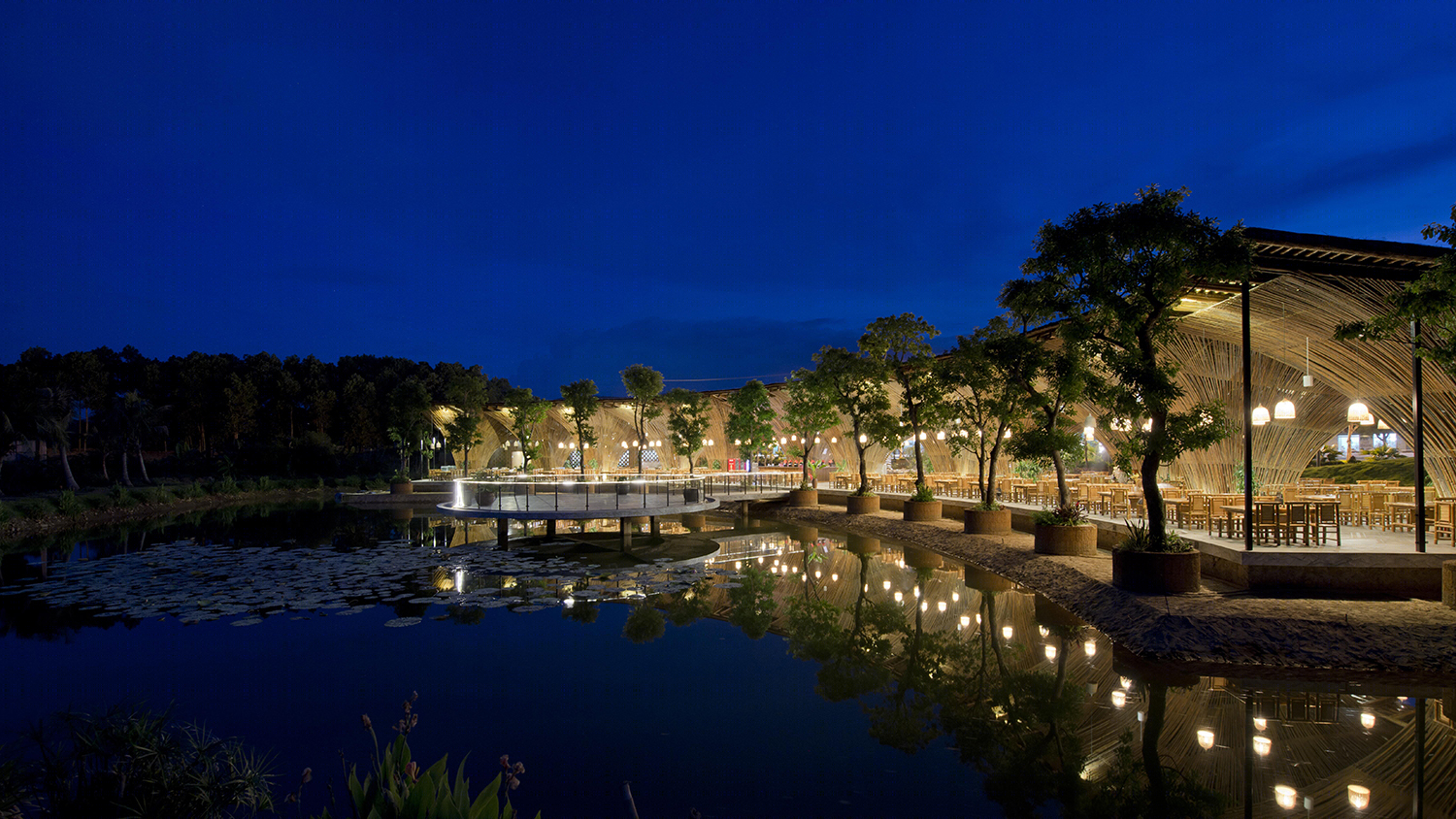

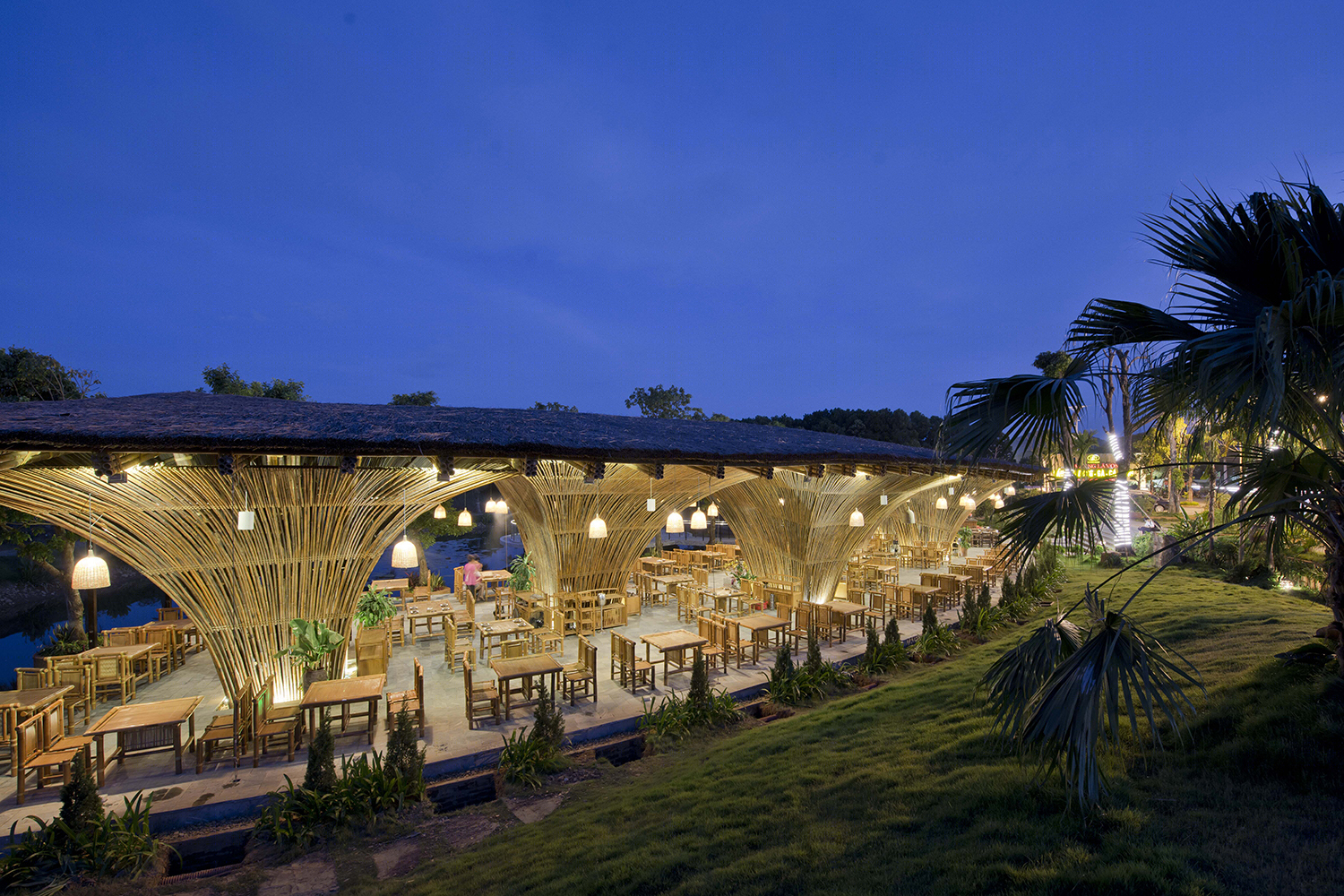

越南河内Roc Von餐厅外部夜景实景图

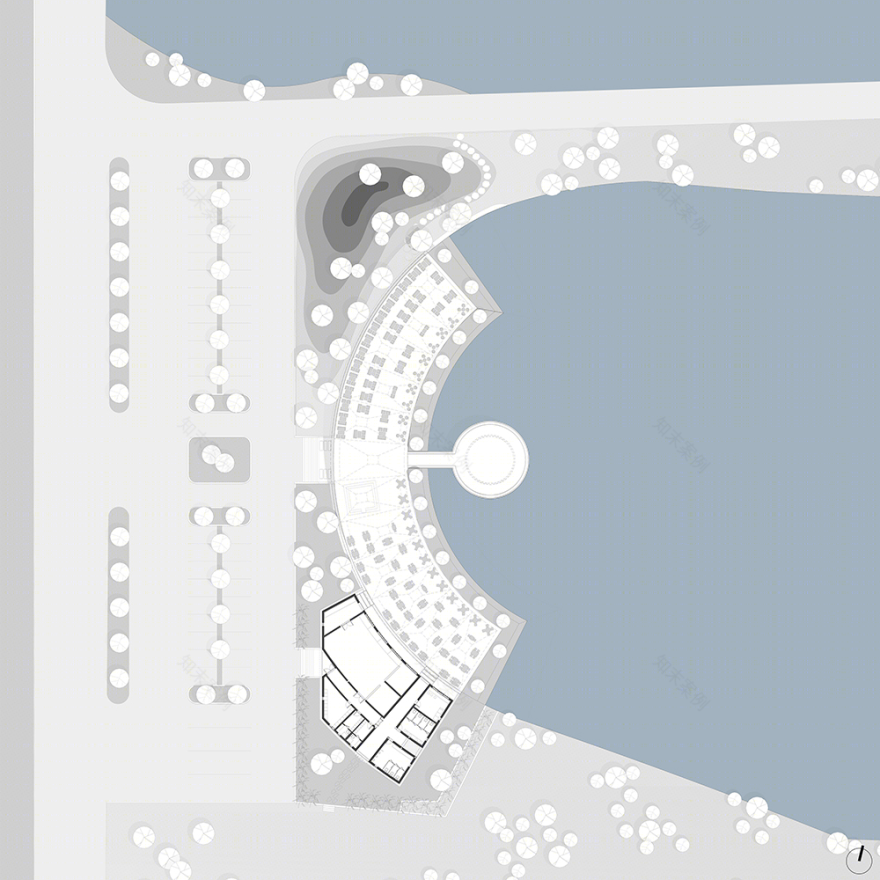

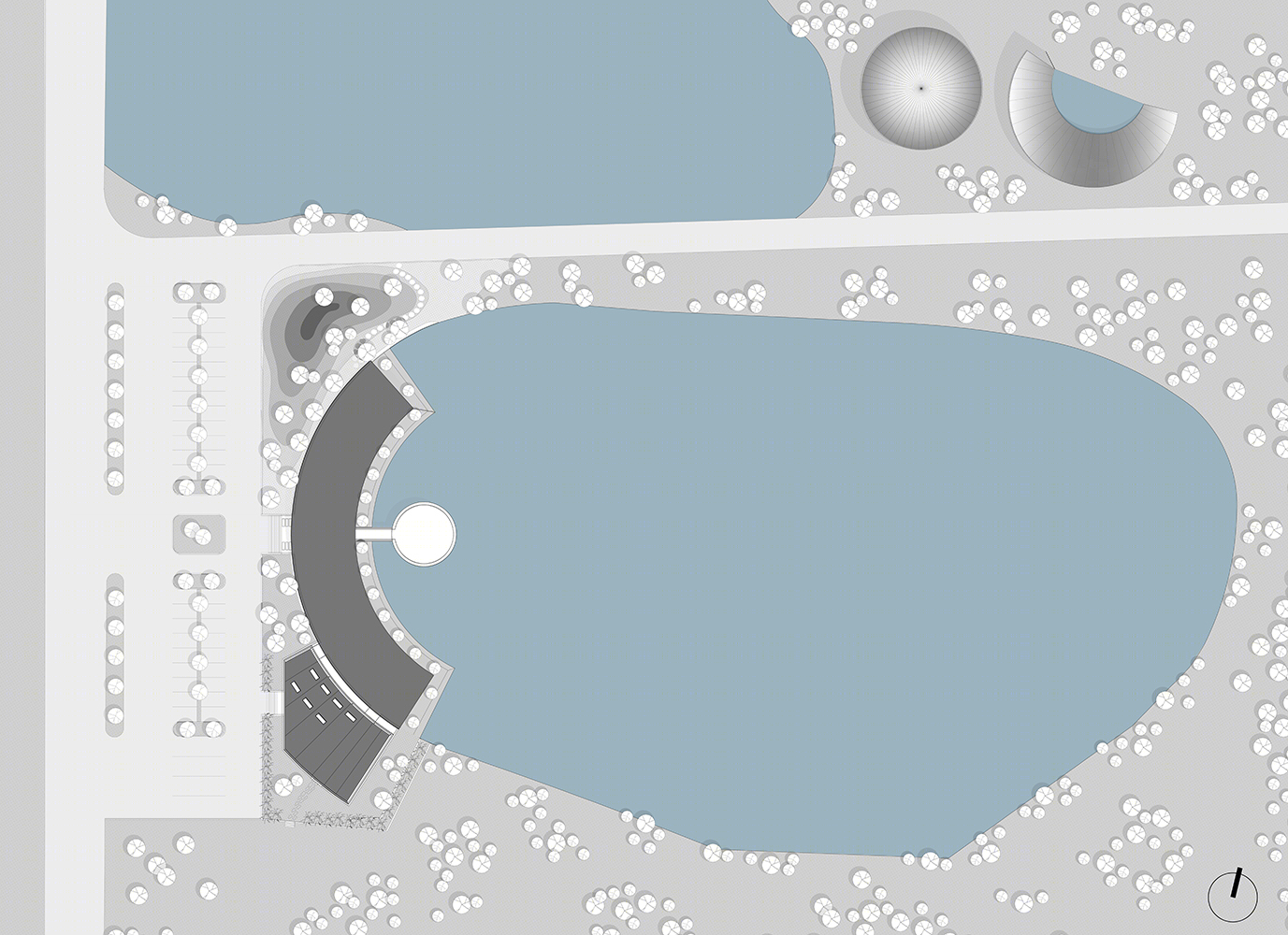

越南河内Roc Von餐厅平面图

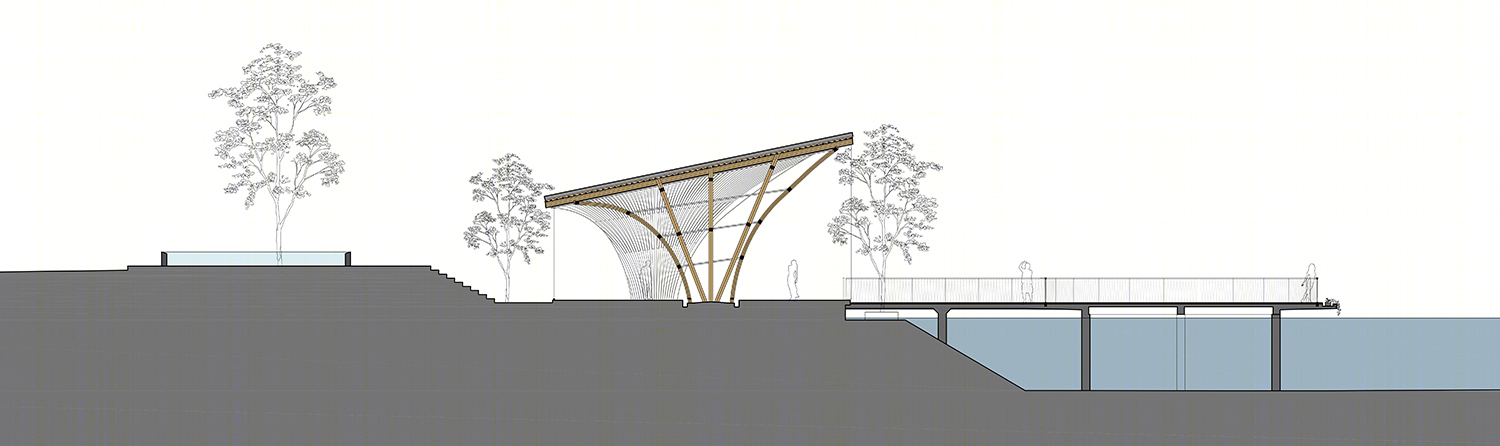

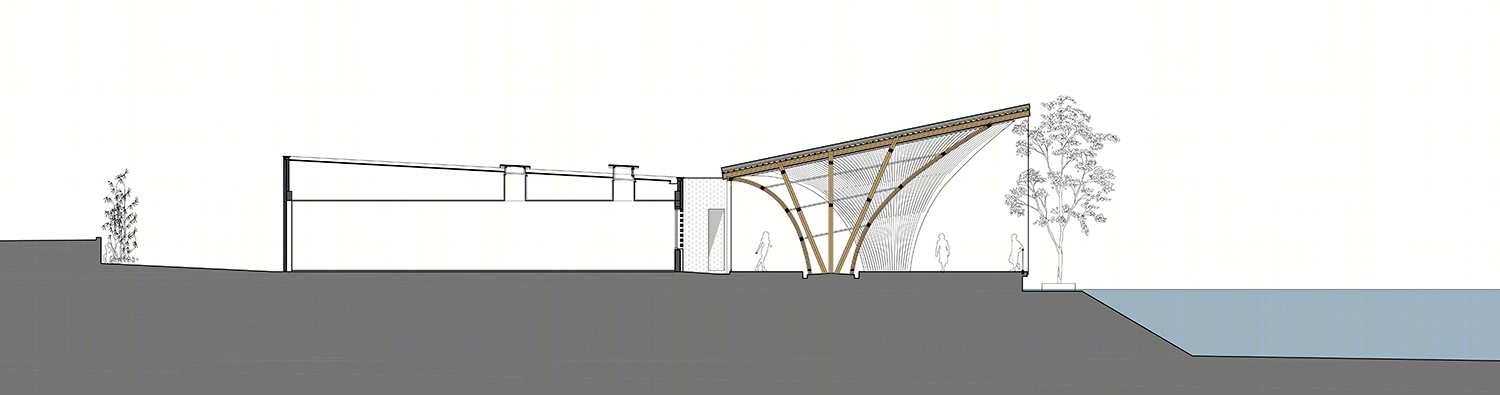

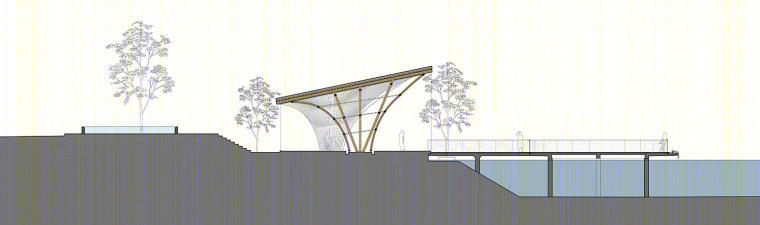

越南河内Roc Von餐厅剖面图
