玻璃馆

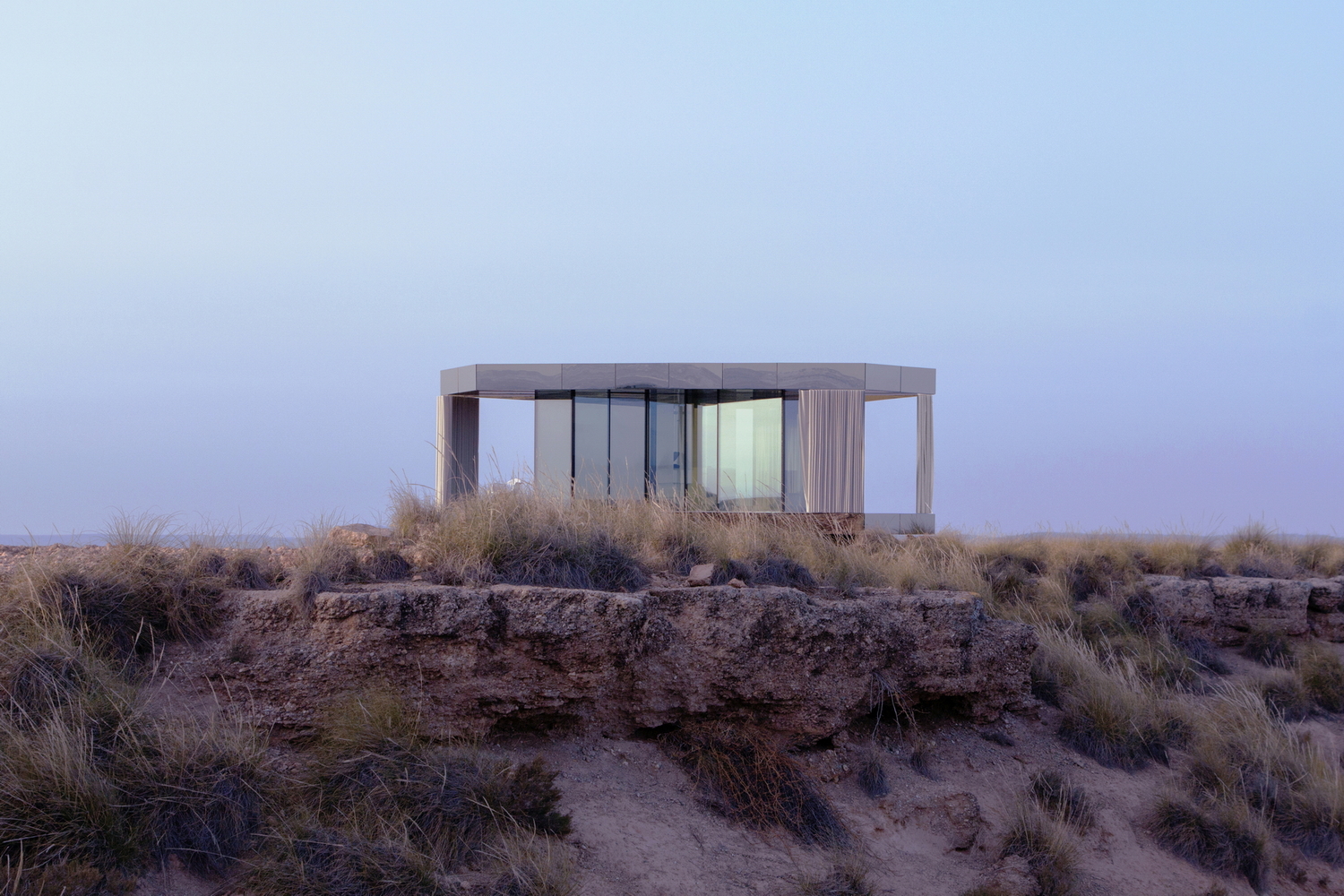

Courtesy of Guardian Glass photo Gonzalo Botet

卫报玻璃照片冈萨洛·博泰

研究玻璃馆是一个研究原型，一个舒适的，如果初级撤退，在紧张的并列与恶劣的周围环境。由卫报玻璃发起的这个项目对玻璃的热和结构能力提出了挑战。这一概念不是只聚焦于“玻璃作为窗口元素”，而是探索了它的高级潜力，例如透明但遮阳的元素，一个薄而高效的外壳，它也是唯一的结构支撑。

RESEARCH The Glass Pavilion is a research prototype for a comfortable if elementary retreat in a tense juxtaposition with harsh surrounding environment. The project, initiated by Guardian Glass is challenging thermal and structural abilities of glass. Instead of focusing only in “a glass as a window element” the concept explored its advanced potentials, e.g. transparent but shading element, a thin but thermally efficient envelope that is also the sole structural support.

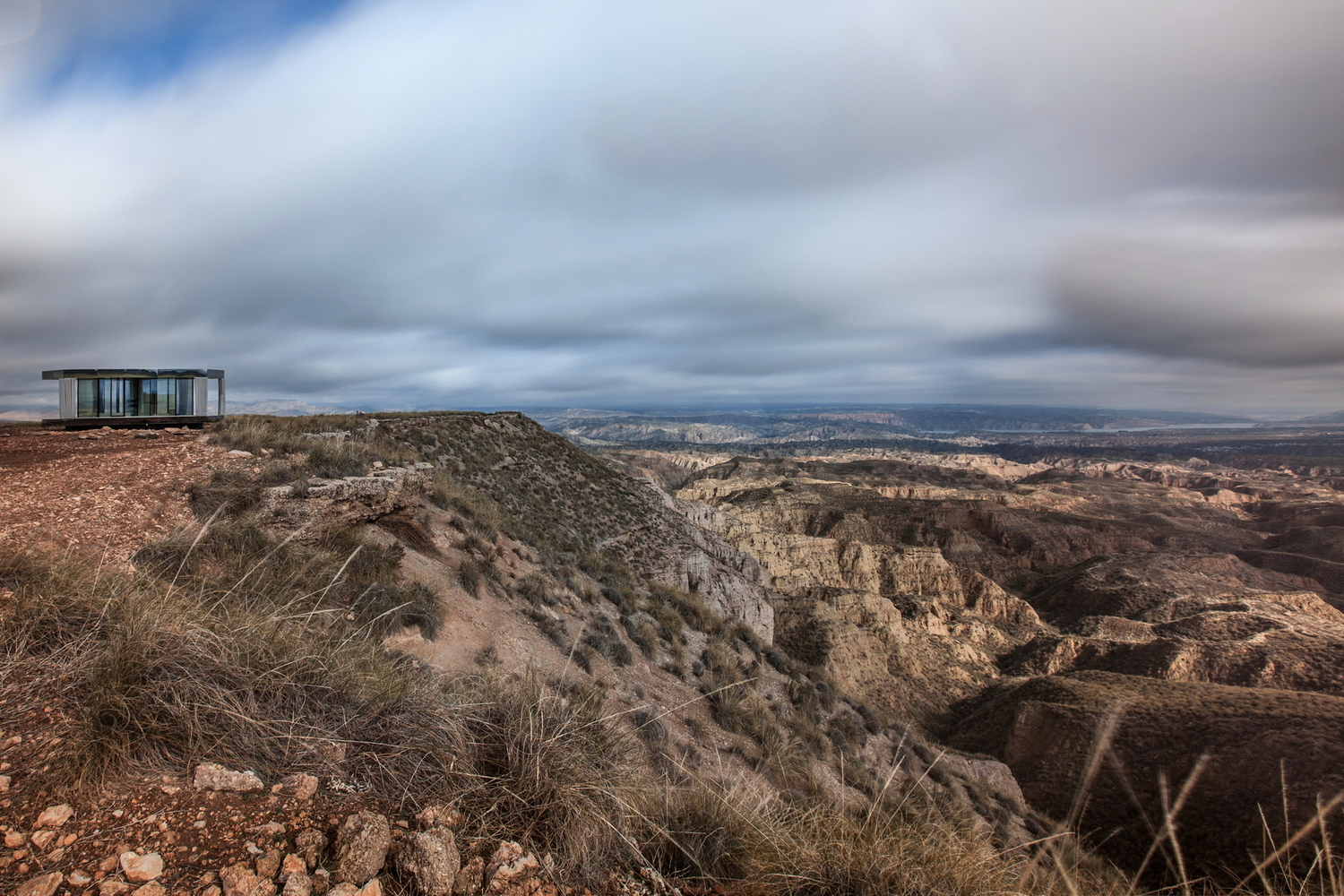

© Jose Navarrete

(何塞·纳瓦雷特)

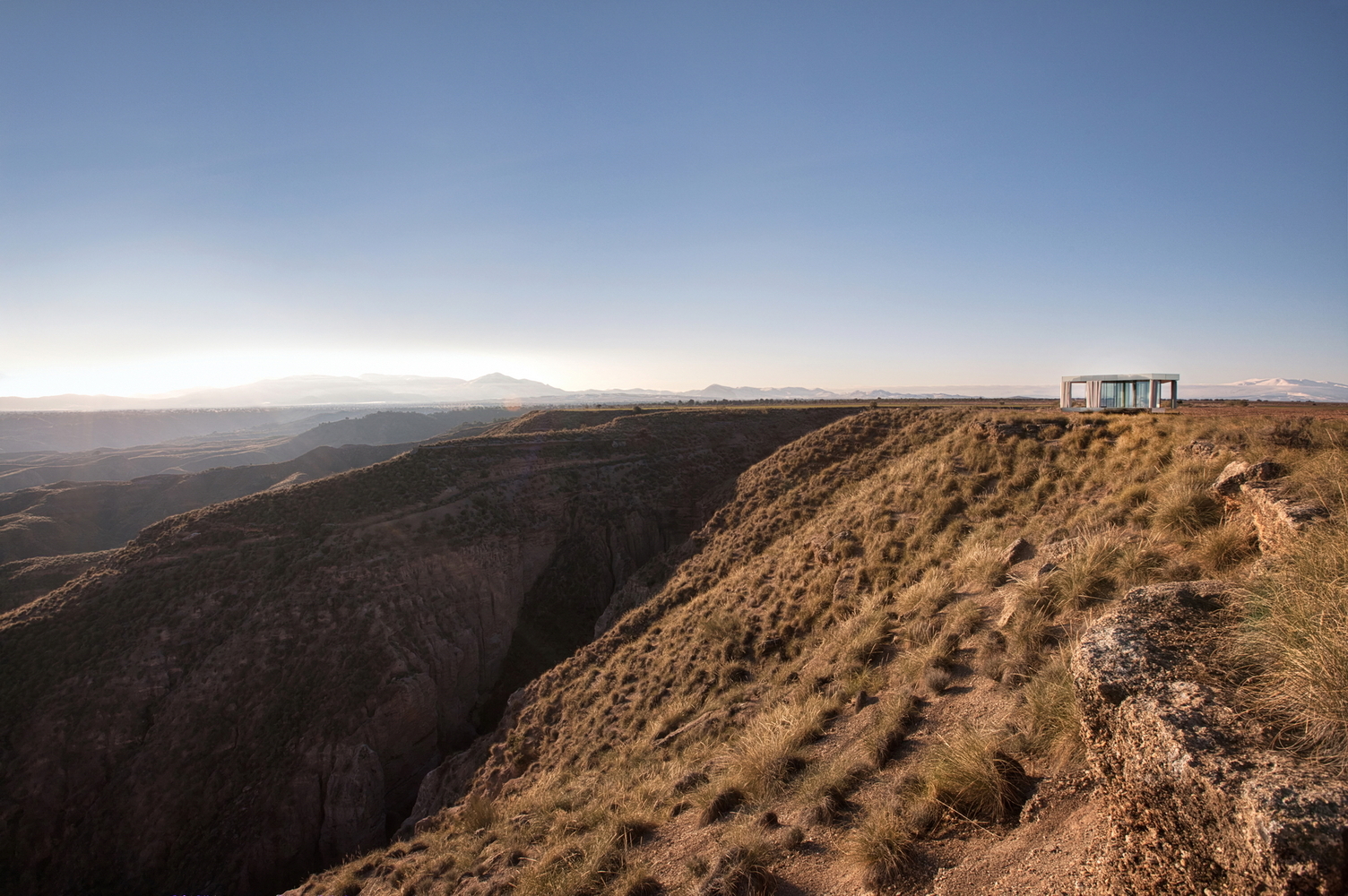

© Jose Navarrete

(何塞·纳瓦雷特)

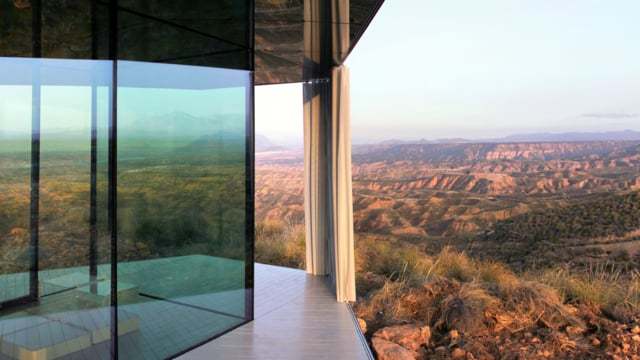

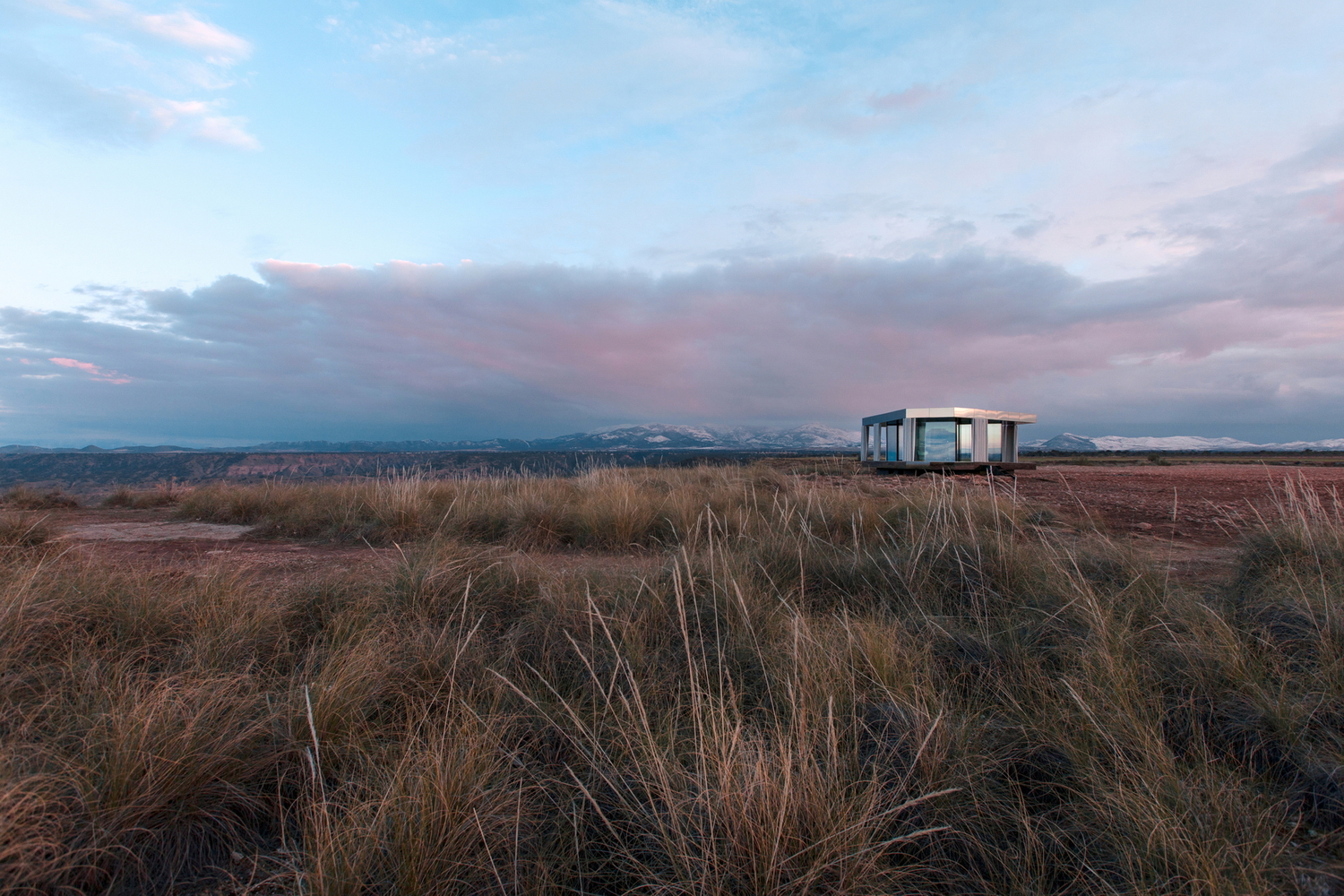

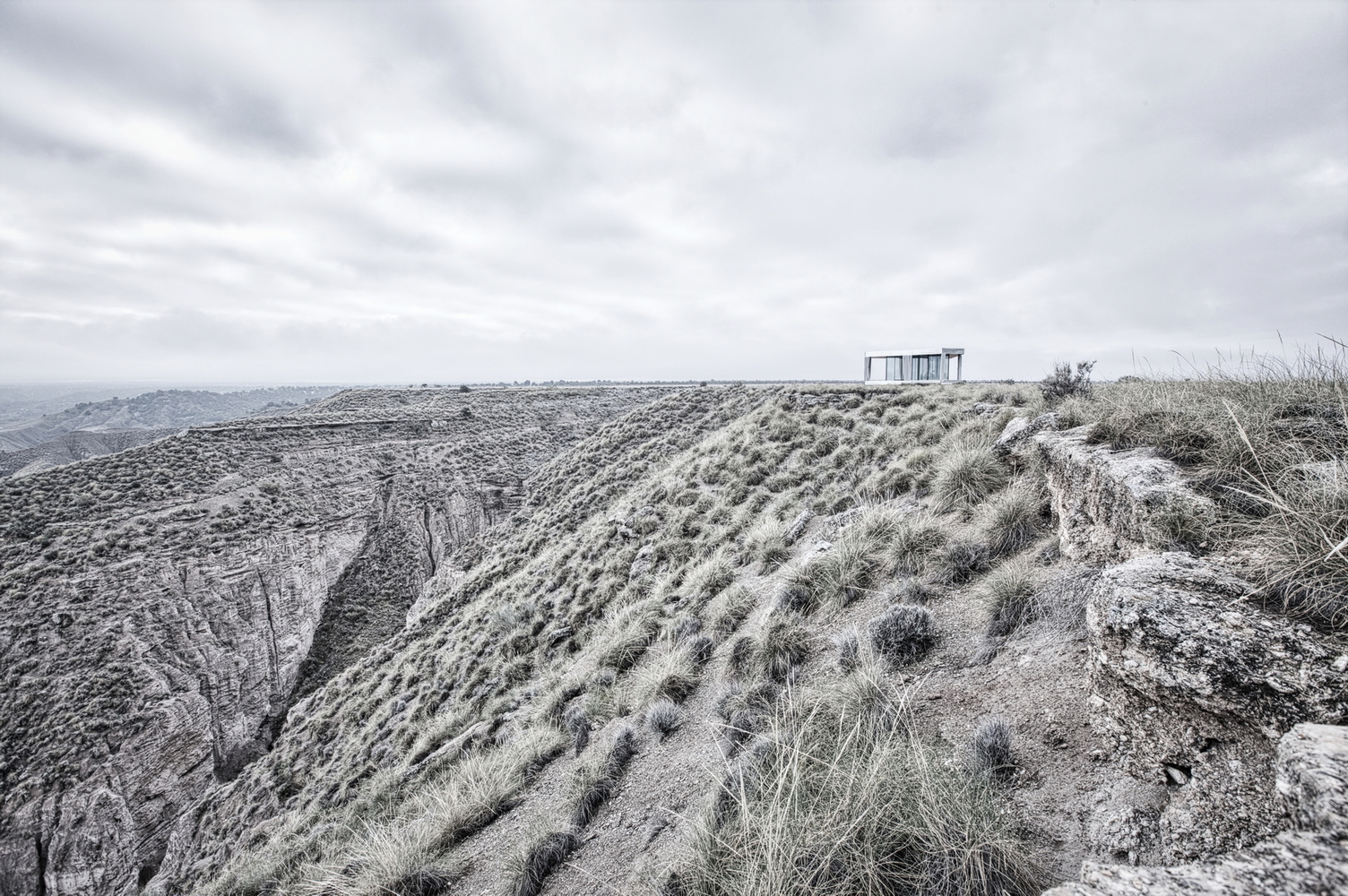

这个项目是对当地沙漠气候条件的回应。它既涉及被动设计，也涉及可再生能源的产生。这座建筑的足迹包含了从能源生产到废水处理的所有元素，同时保持舒适的室内环境，周围只有令人惊叹的、不间断的360‎°景观。

This project is a response to the local, desert climate conditions. It is about both passive design and renewable energy generation. The building's footprint contains every element that makes life possible from energy production to waste water treatment, while maintaining a comfortable interior only surrounded by a stunning, uninterrupted 360‎° views.

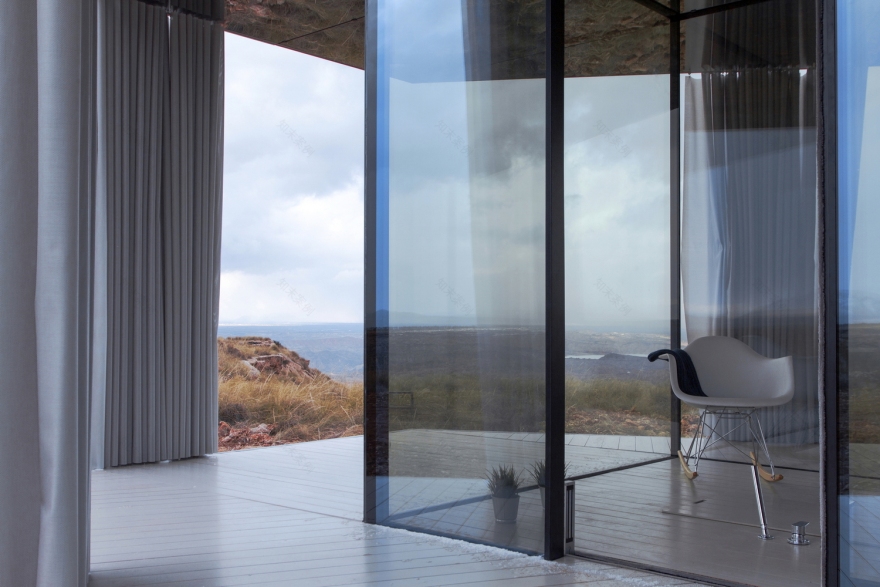

© Jose Navarrete

(何塞·纳瓦雷特)

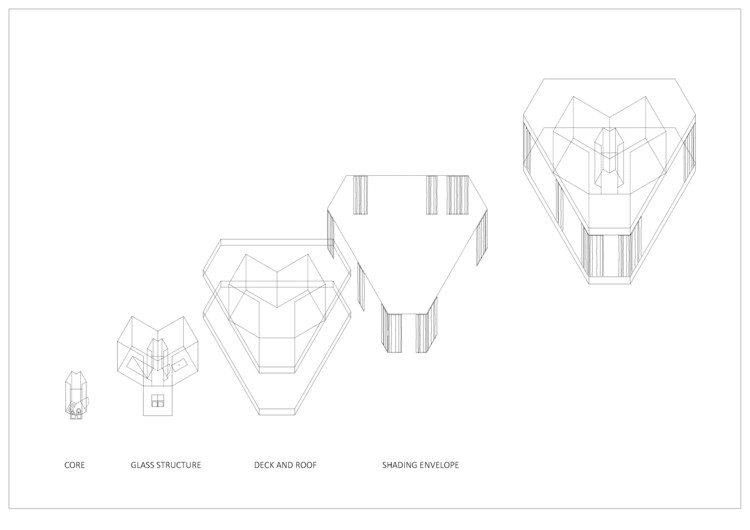

Concept 01. Image Courtesy of OFIS arhitekti

概念01。奥菲斯·阿希特克蒂的形象礼貌

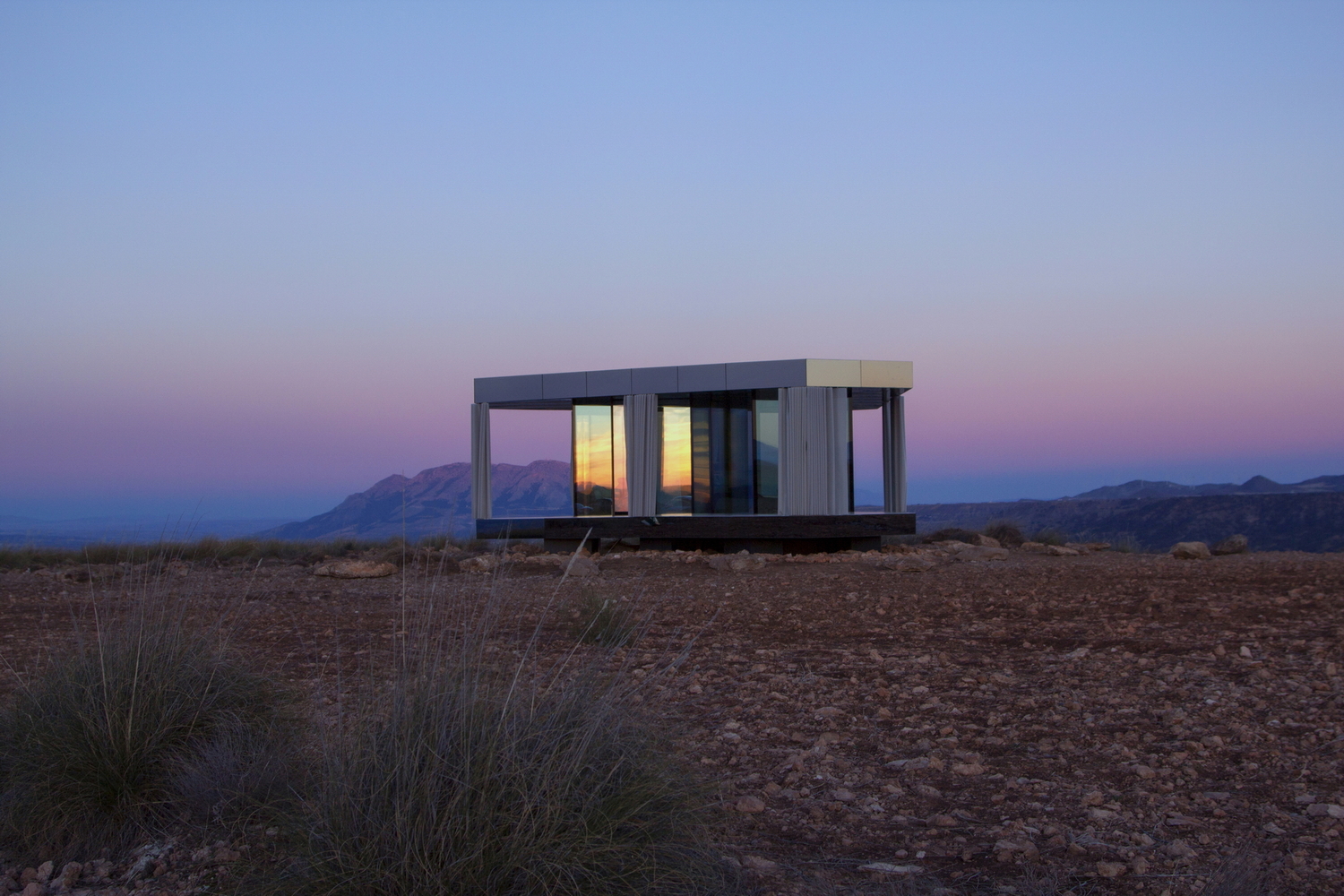

Courtesy of Guardian Glass photo Gonzalo Botet

卫报玻璃照片冈萨洛·博泰

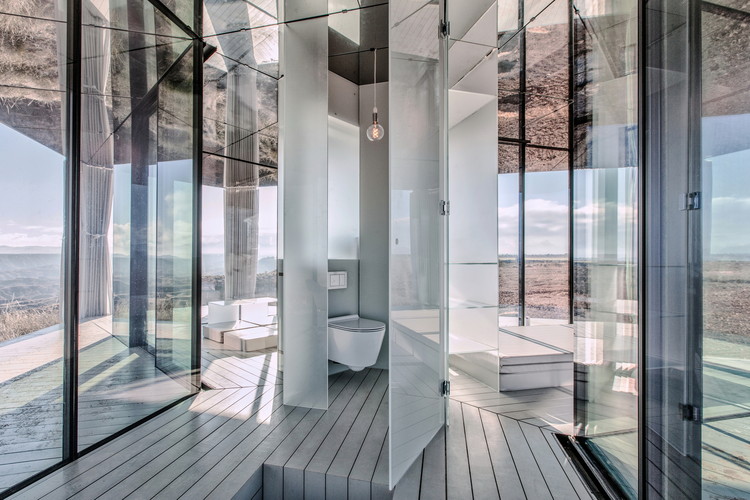

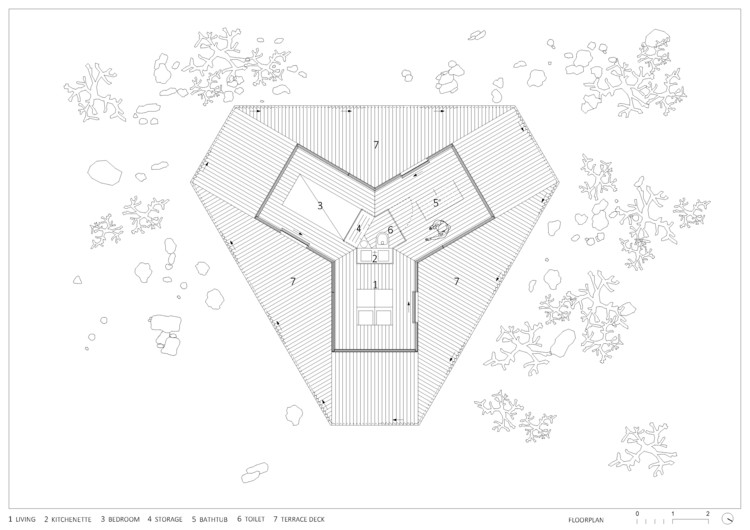

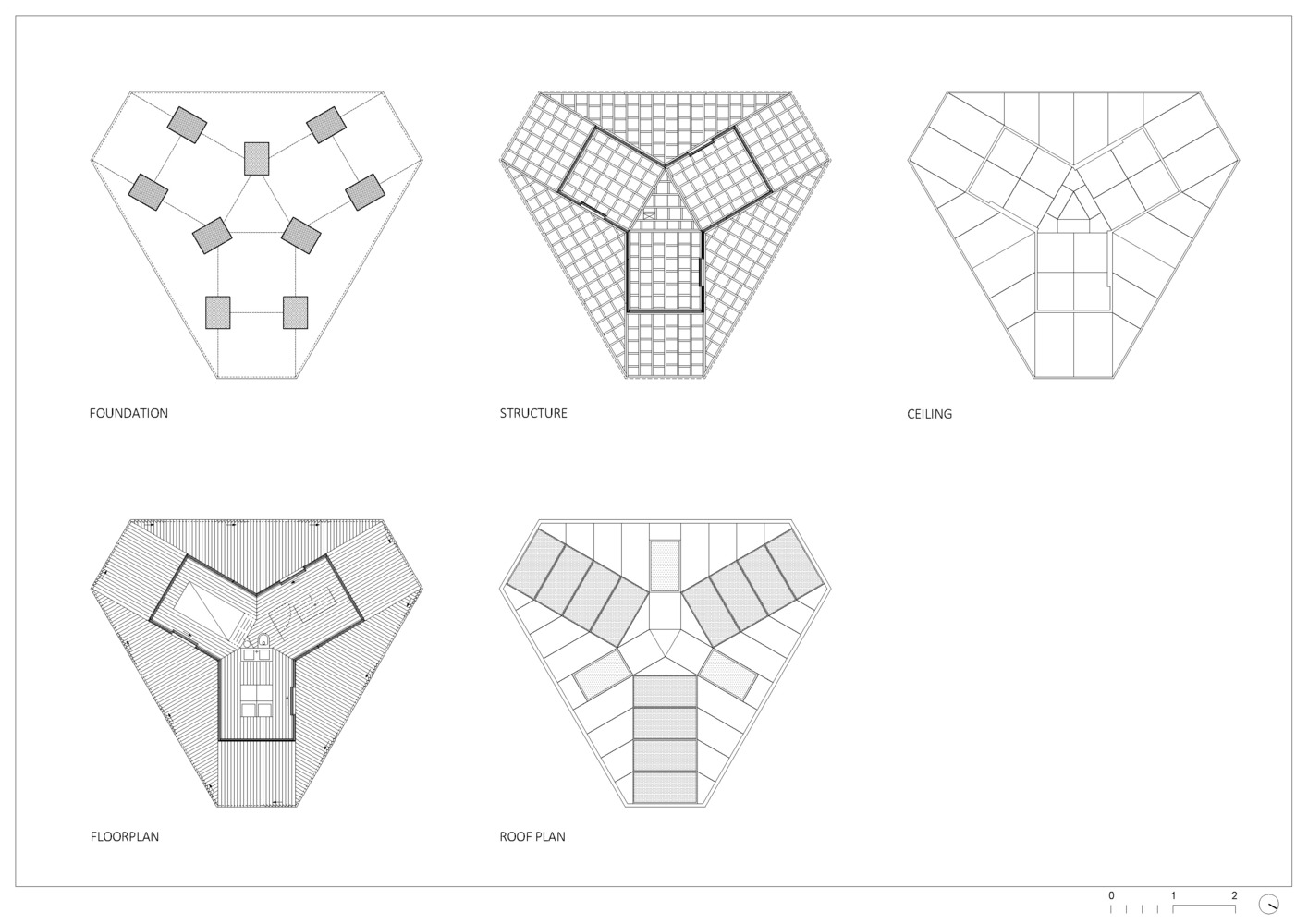

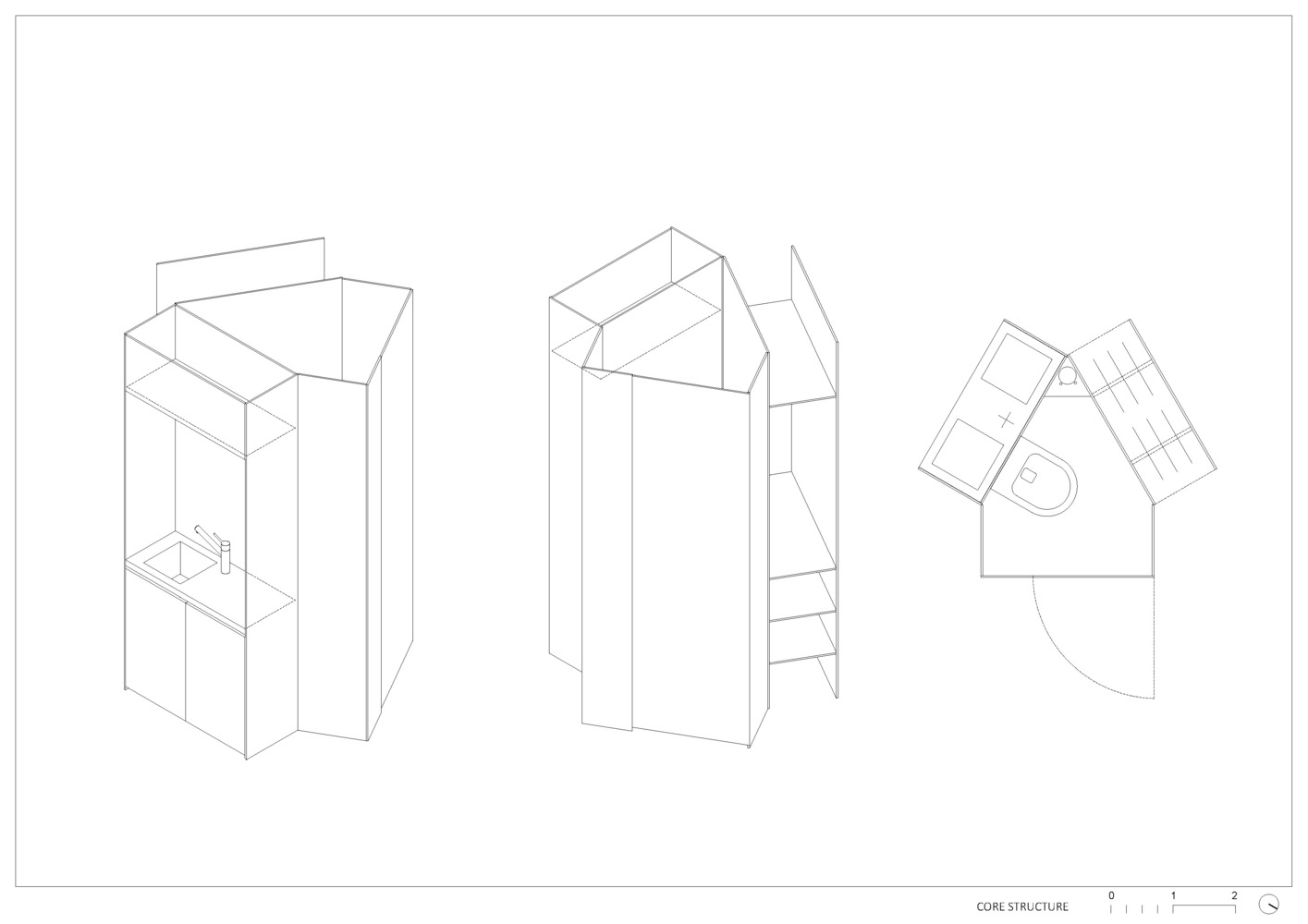

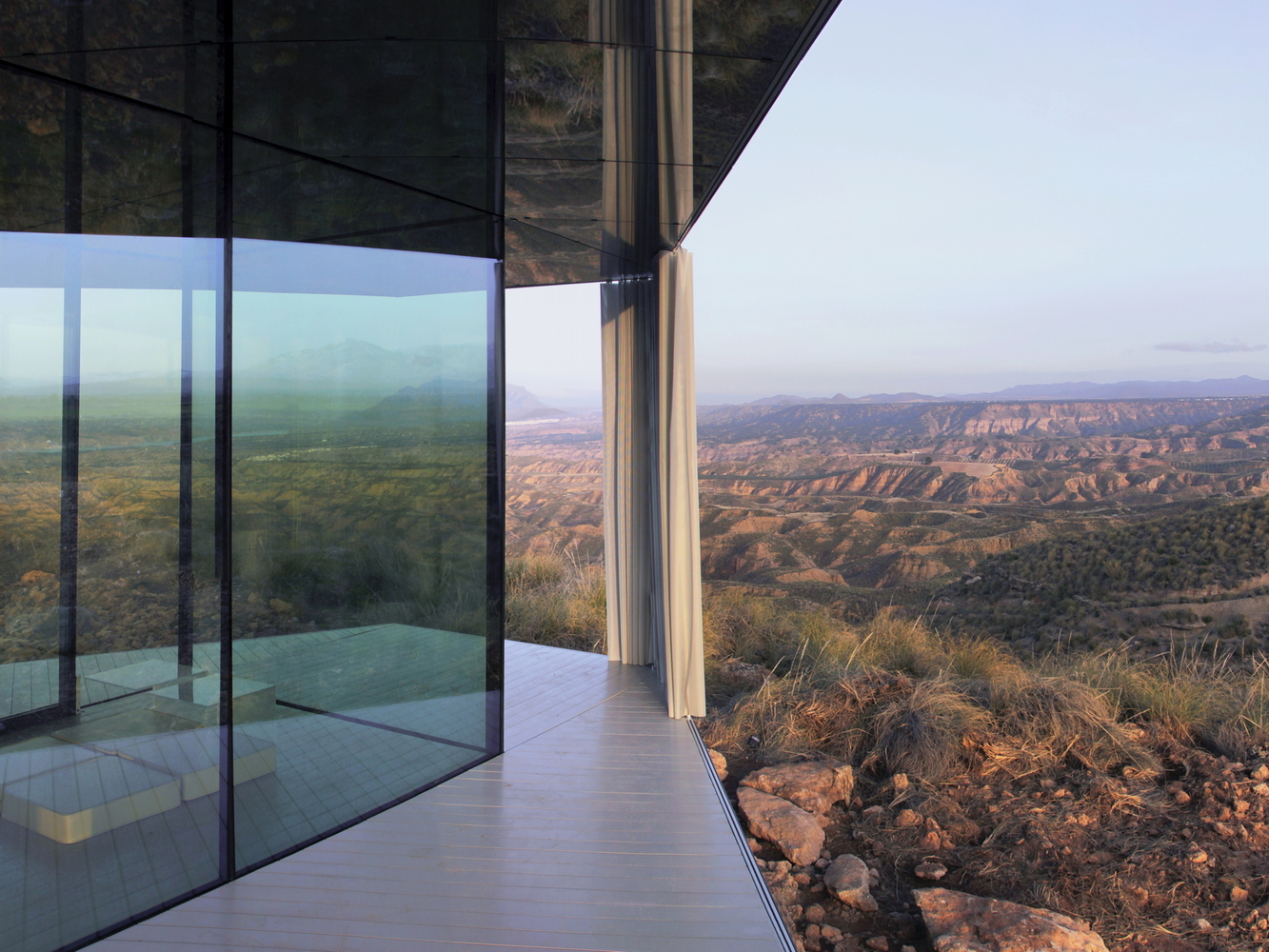

玻璃馆将为单身人士或夫妇举办为期一周的务虚会。客人将从不同的旅游共享平台中挑选。内部空间分为卧室、客厅和浴室三个部分，中间是卫生核心，所有空间都向门廊开放，门廊是一个遮阳的外部平台，受阳光和风的保护。

PROGRAM The Glass Pavilion will be the setting of a 1-week retreat for a single person or a couple. The guests will be selected from different tourist sharing platforms. The internal space is organized in 3 parts: bedroom, living area and bathroom with sanitary core in the middle with all of the spaces opening towards the porch which is a covered and shaded external platform that is protected from the sun and wind.

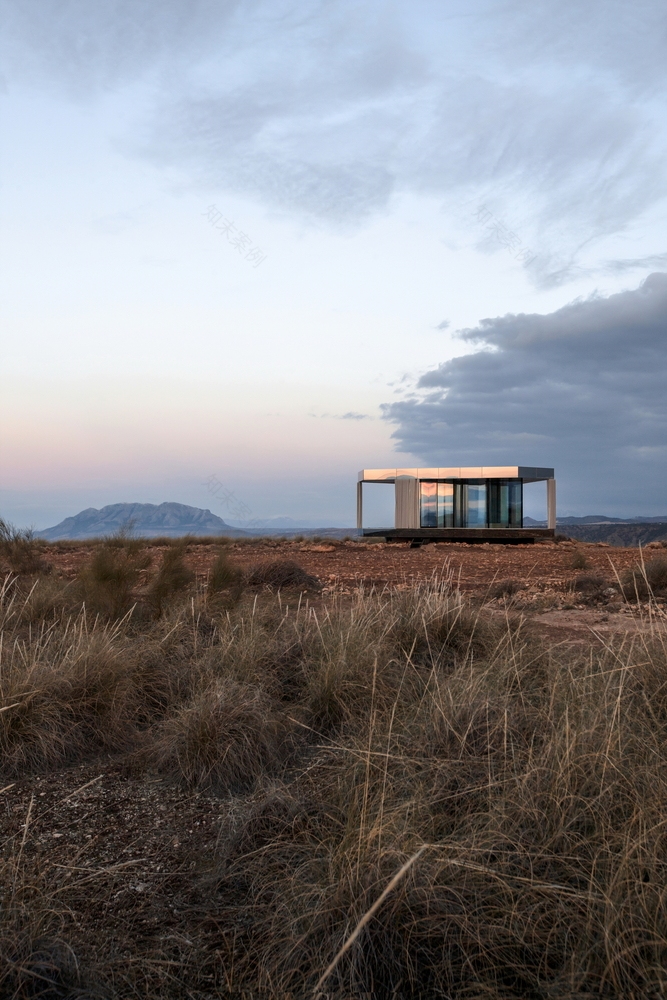

Courtesy of Guardian Glass photo Gonzalo Botet

卫报玻璃照片冈萨洛·博泰

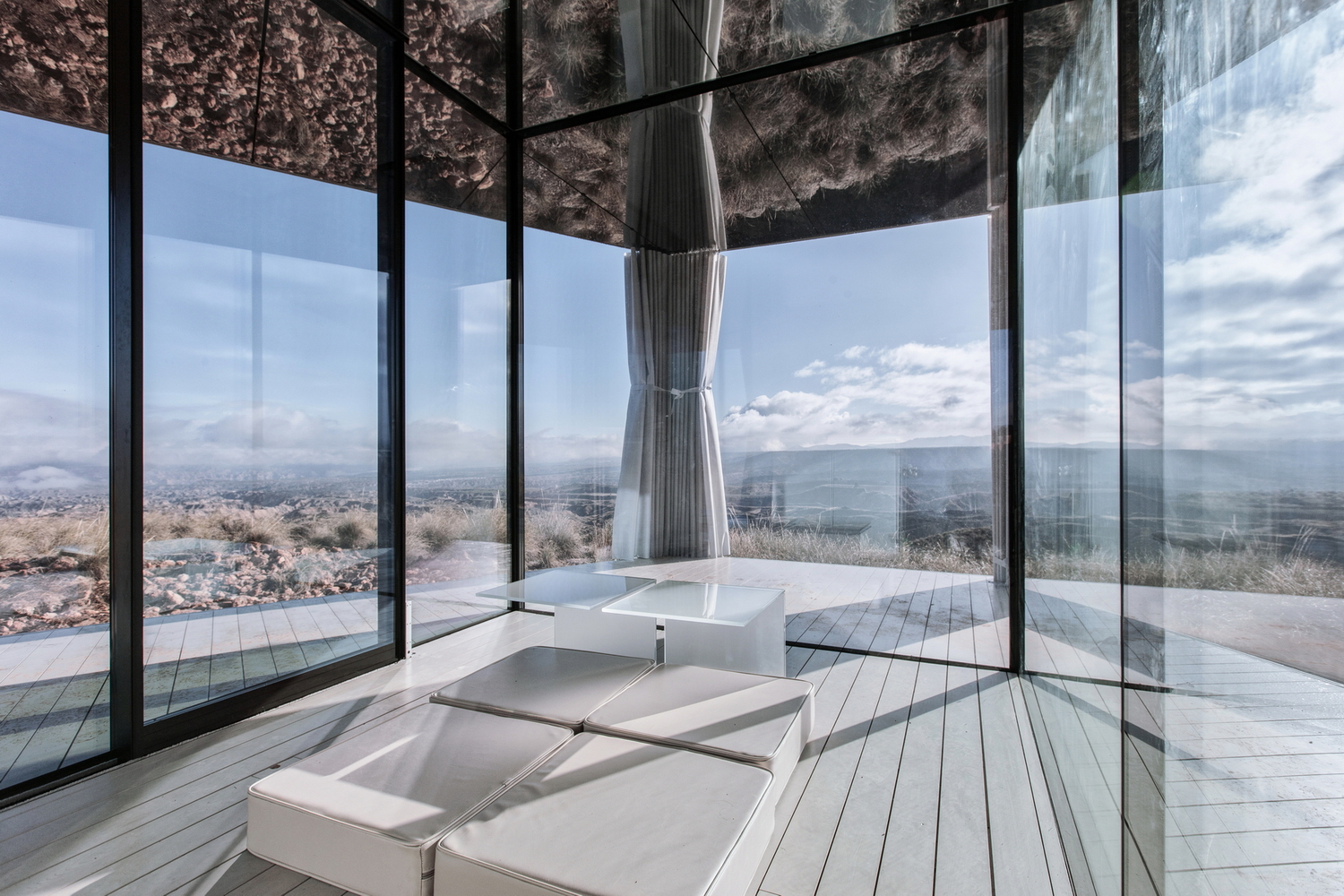

© Jose Navarrete

(何塞·纳瓦雷特)

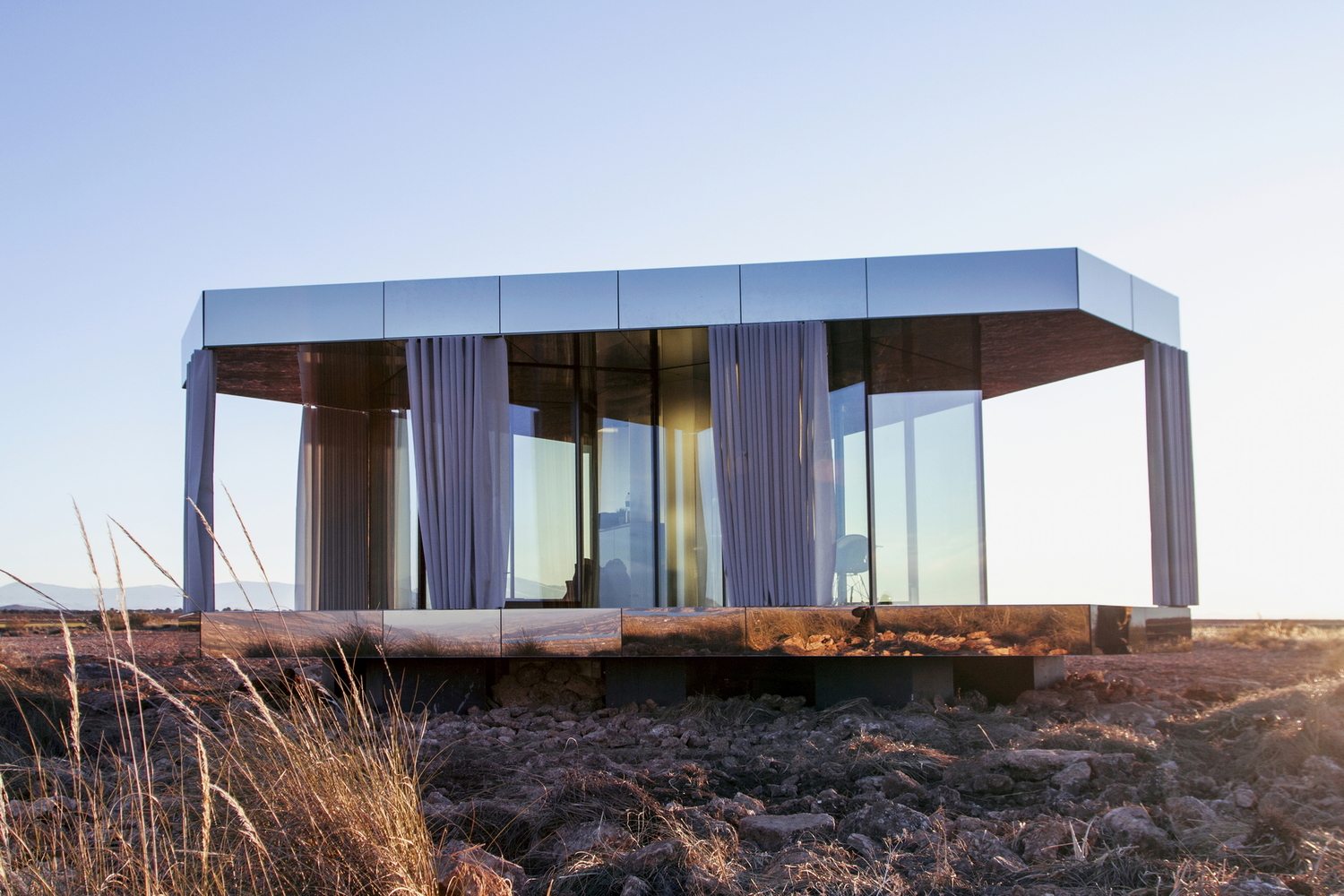

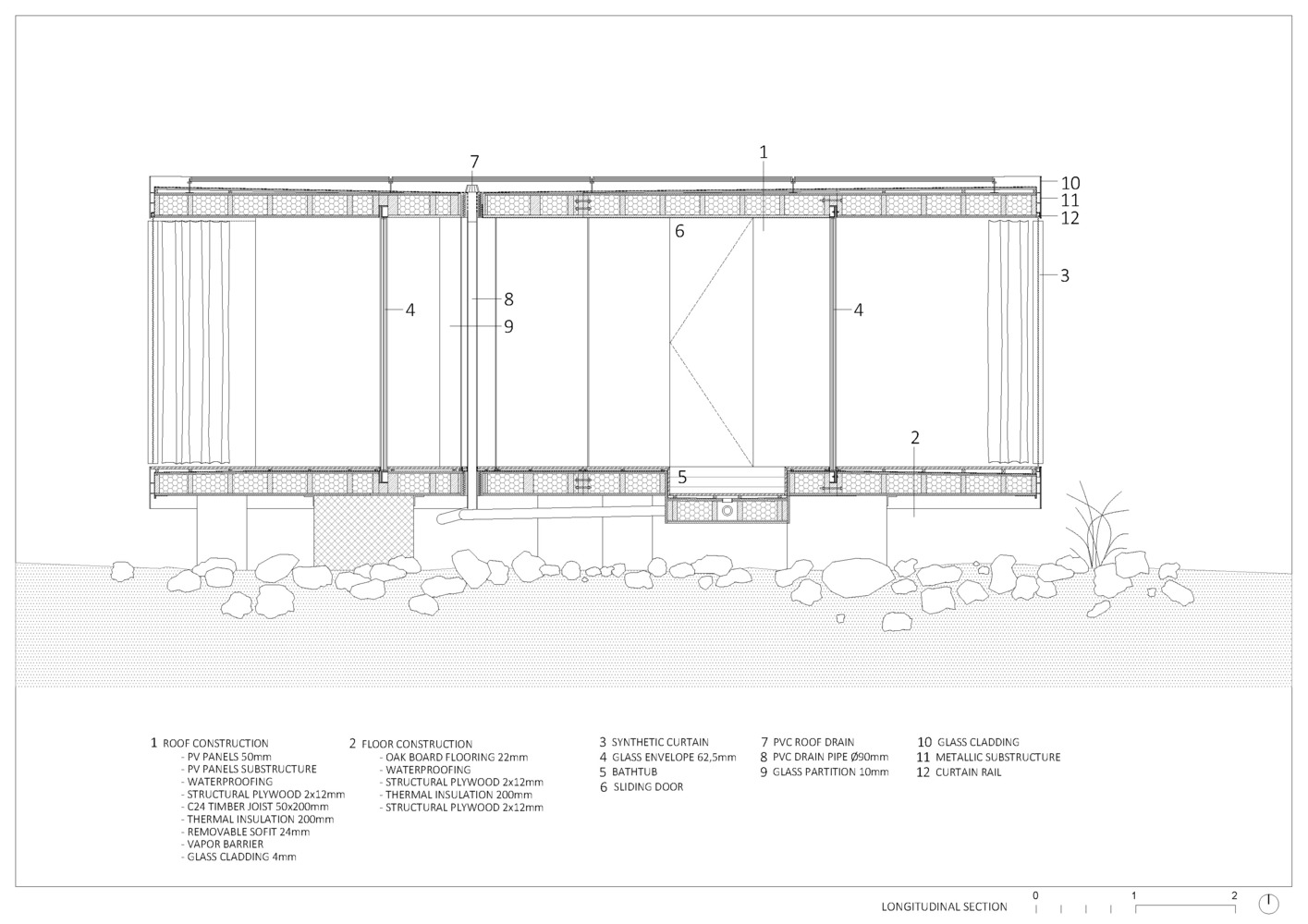

玻璃墙为A结构
单位采用垂直玻璃板的围护结构墙，抵御沙漠的高速风，并支持木材应力皮屋顶和甲板。玻璃热效率高的信封是由三层玻璃墙构成的，由于使用了几乎看不见的涂层，可以保护内部不受太阳的照射。

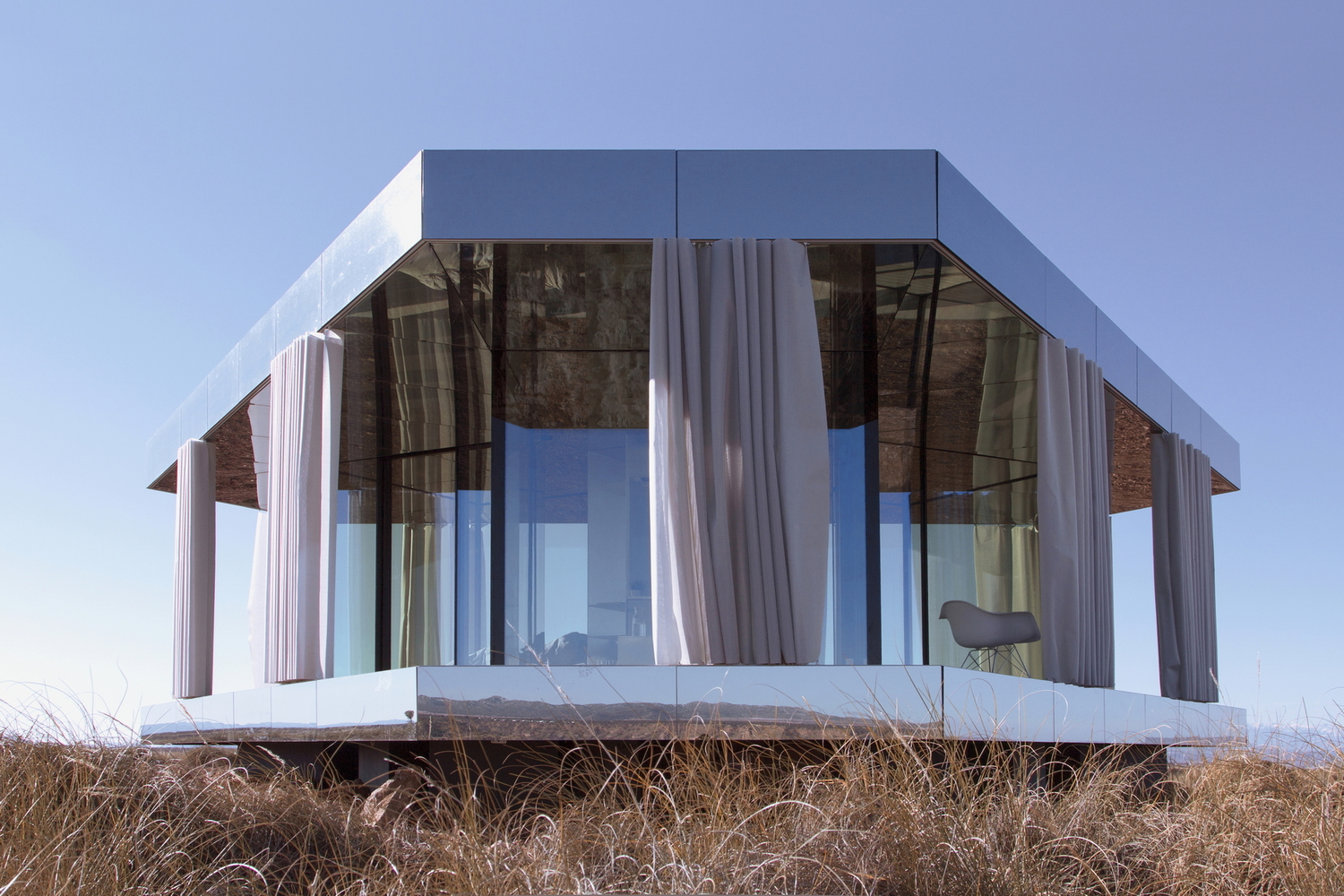

GLASS WALLS AS A STRUCTURE
The unit uses the vertical glazing panels of the envelope as structural walls, resisting the desert’s high-speed winds and supporting the timber stressed skin roof and deck. The glass thermally efficient envelope is constructed of triple glazing walls that, due to use of almost invisible coatings, protects the interior from the sun.

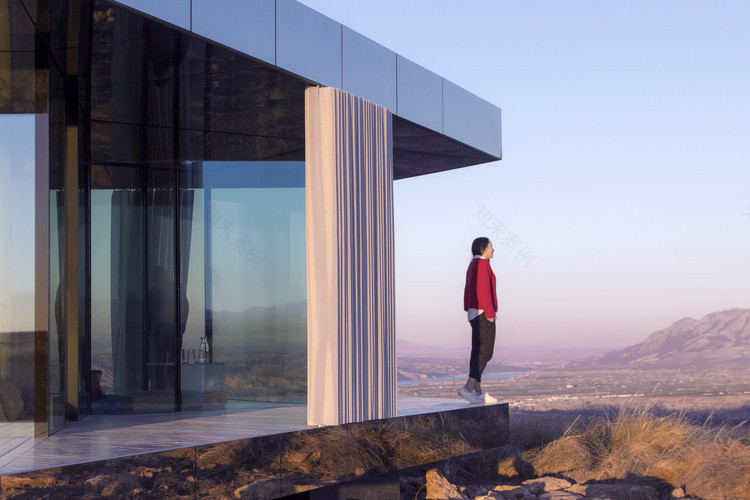

© Jose Navarrete

(何塞·纳瓦雷特)

Courtesy of Guardian Glass photo Gonzalo Botet

卫报玻璃照片冈萨洛·博泰

摘自AKT II结构工程师：“这是我们在研究和设计方面与Ofis建筑师合作的第三次迭代，继续我们对玻璃和木材的内在结构性质的探索。在西班牙戈拉菲沙漠恶劣的天气条件下，该单位使用围护层的垂直玻璃板作为结构墙，抵御沙漠的高速风，并支撑木材受力的表皮屋顶。我们的信封组开发了定制的细节，以适应玻璃的结构功能，并在采购阶段支持客户。“

Excerpt from AKT II structural engineers: “This is the third iteration of our collaboration in research and design with OFIS Architects, continuing our exploration into the intrinsic structural nature of glass and timber. Set in the harsh weather conditions of Spain’s Gorafe desert, the unit uses the vertical glazing panels of the envelope as structural walls, resisting the desert’s high-speed winds and supporting the timber stressed skin roof. Our Envelopes team developed bespoke details to accommodate the structural function of the glazing, and supported the client during the procurement phase.”

Courtesy of Guardian Glass photo Gonzalo Botet

卫报玻璃照片冈萨洛·博泰

Architects OFIS arhitekti

Location Gorafe, 18890, Granada, Spain

Team Rok Oman, Spela Videcnik, Andrej Gregoric, Janez Martincic, José Navarrete Jiménez, Lucas Blasco Sendón, Jakub Chaloupek, Agnieszka Sukienniczak

Area 20.0 m2

Project Year 2018

Photographs Jose Navarrete

Category Small Scale

Manufacturers Loading...
