瓜亚基尔积分灯光商业建筑丨Jannina Cabal & Arquitectos

Guayaquil integral light commercial buildings

设计方：Jannina Cabal & Arquitectos

位置：厄瓜多尔 瓜亚基尔

分类：商业建筑

内容：实景照片

合作人：Alejandra López, Marco Sosa, Katty Cuenca

图片：29张

摄影师：Juan Alberto Andrade

这是由Jannina Cabal设计的积分灯光商业建筑。该项目在一个菱形的地块中开发，总面积为1050平方米。该建筑分为三层，第一层有停车场、大门、餐厅展览厅和一个可以全览内部花园的大厅。第二层包括销售区域、展览区域、会议室、电影室和储物室。第三层为作业区和管理区。建筑的主立面被划分为两部分，一边是钻石般的不规则三角形，另外一边是简单的玻璃菱形，架空的金属结构，形成了一个停车空间。立面的面板是由一种混合的金属组成，包在特别适用于户外使用的中灰色的织物中。这种能够透过光线的物质是通过RGB色的LED反射器点亮，这些都是自动化系统的一部分，从而改变建筑的颜色。在某些特殊的区域，外立面的材料采用外露的深灰色金属结构和玻璃表面。室内设计比较简单，采用混凝土底板、白色的墙体、天花板和家具。尽管这是个商业建筑，但是却有很少朝大街的窗户。

译者： 艾比

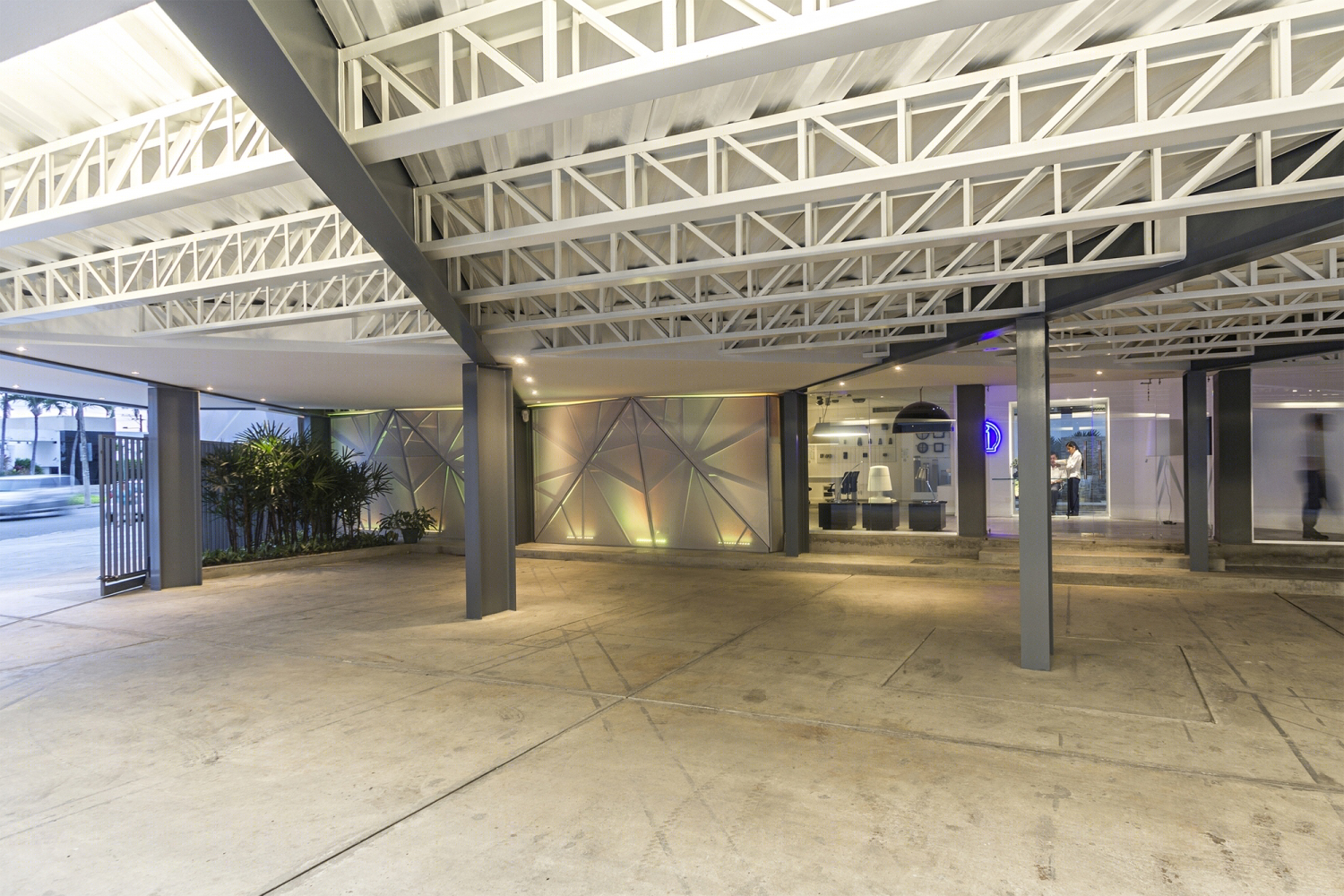

From the architect. The Integral Iluminación commercial building oriented from north to south was developed in two diamond-shaped plots with a total area of 1050m2.Two volumes on the main facade are clearly defined, one wrapped in a fabric designed with geometric shapes whose pattern was based on the diamond plan, which was decomposed into irregular triangles. The other is a simple glass prism with two levels, raised on an exposed metal structure, thus creating the parking area under the large roof.

For the design, three levels were proposed. The first level contains the parking area, gate, dining room, exhibition room and lobby overlooking the interior garden. The upper level contains a double height area with windows above, plus more sales and exhibition areas, meeting and conference rooms, a cinema and storage areas. The entire third level is proposed for the operational area, management, design, administration.

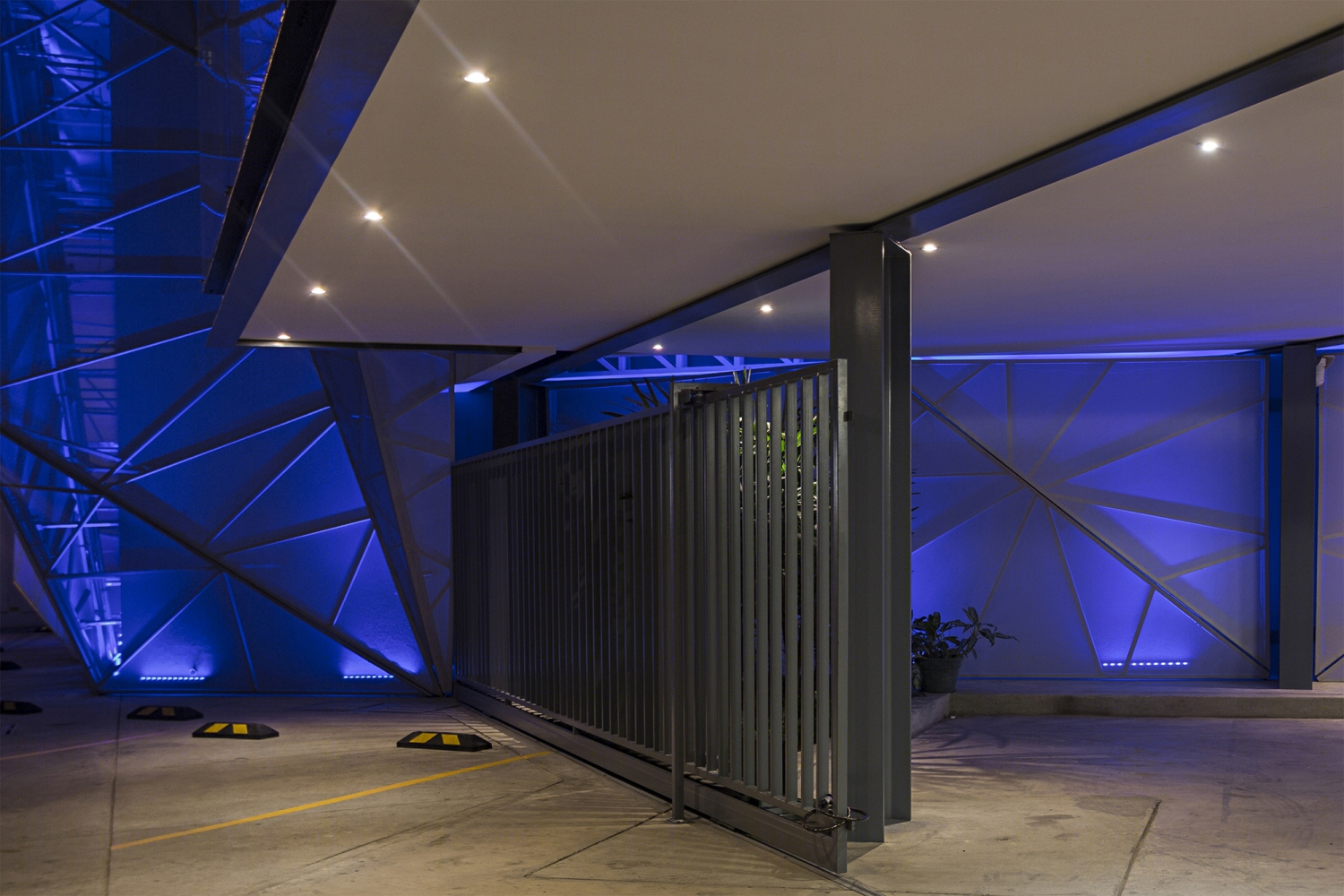

The facade panels are made of a mixed metal structure of steel and aluminum wrapped in a medium gray textile developed specifically for outdoor use. This mesh fabric permeable to light is lit with RGB LED reflectors, these are component parts of an automation system that controls the building allowing color changes. This facade is also made of exposed dark gray metal structures with large glass surfaces in certain areas.

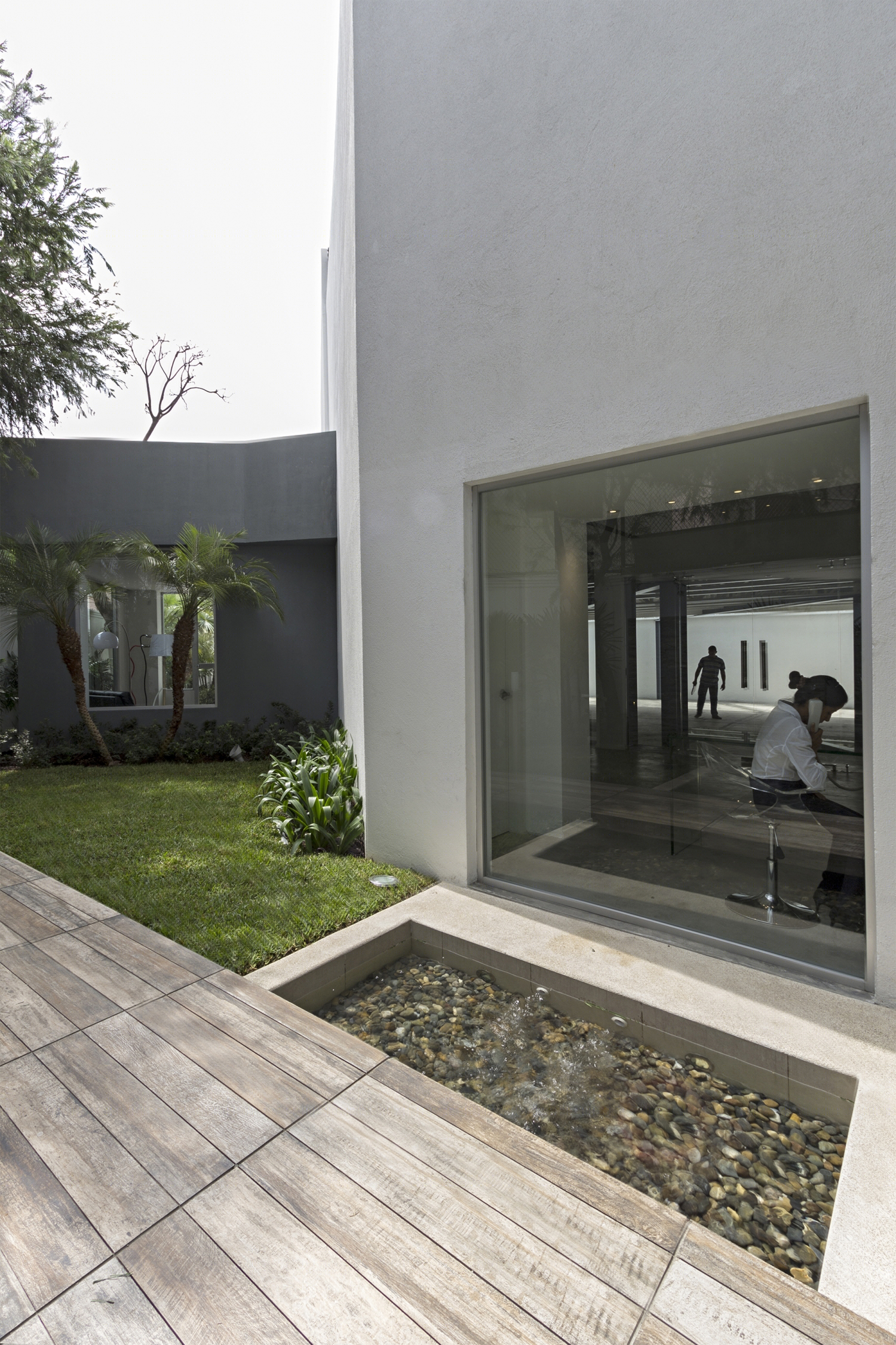

Interior areas of the project were designed looking for simplicity, with colors and materials like concrete floors and white walls, ceilings and furniture. Despite being a commercial project with few windows to the street, from the entrance there are open and naturally lit areas with an interior courtyard and a fountain as focal elements in the circulation of the ground floor.

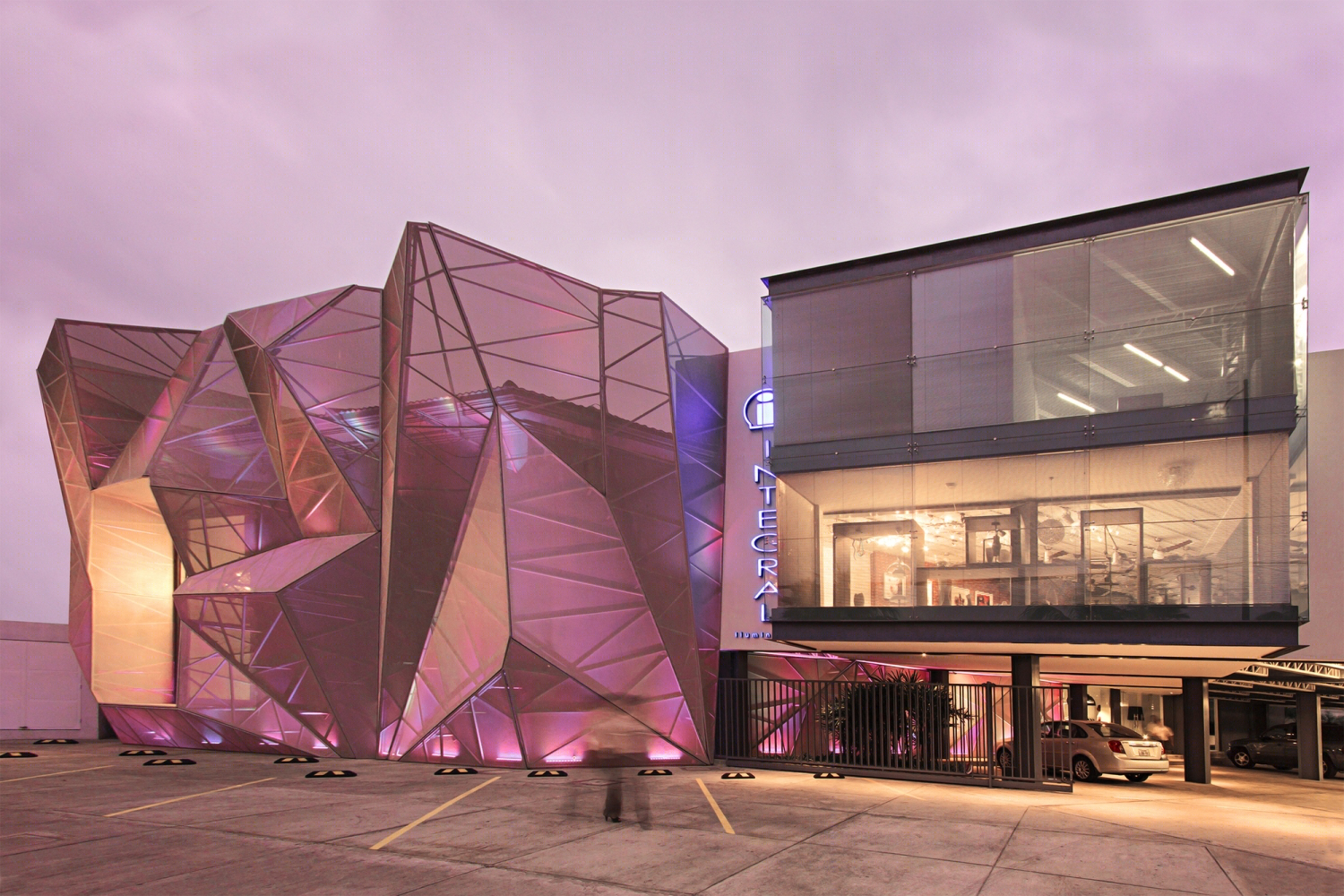

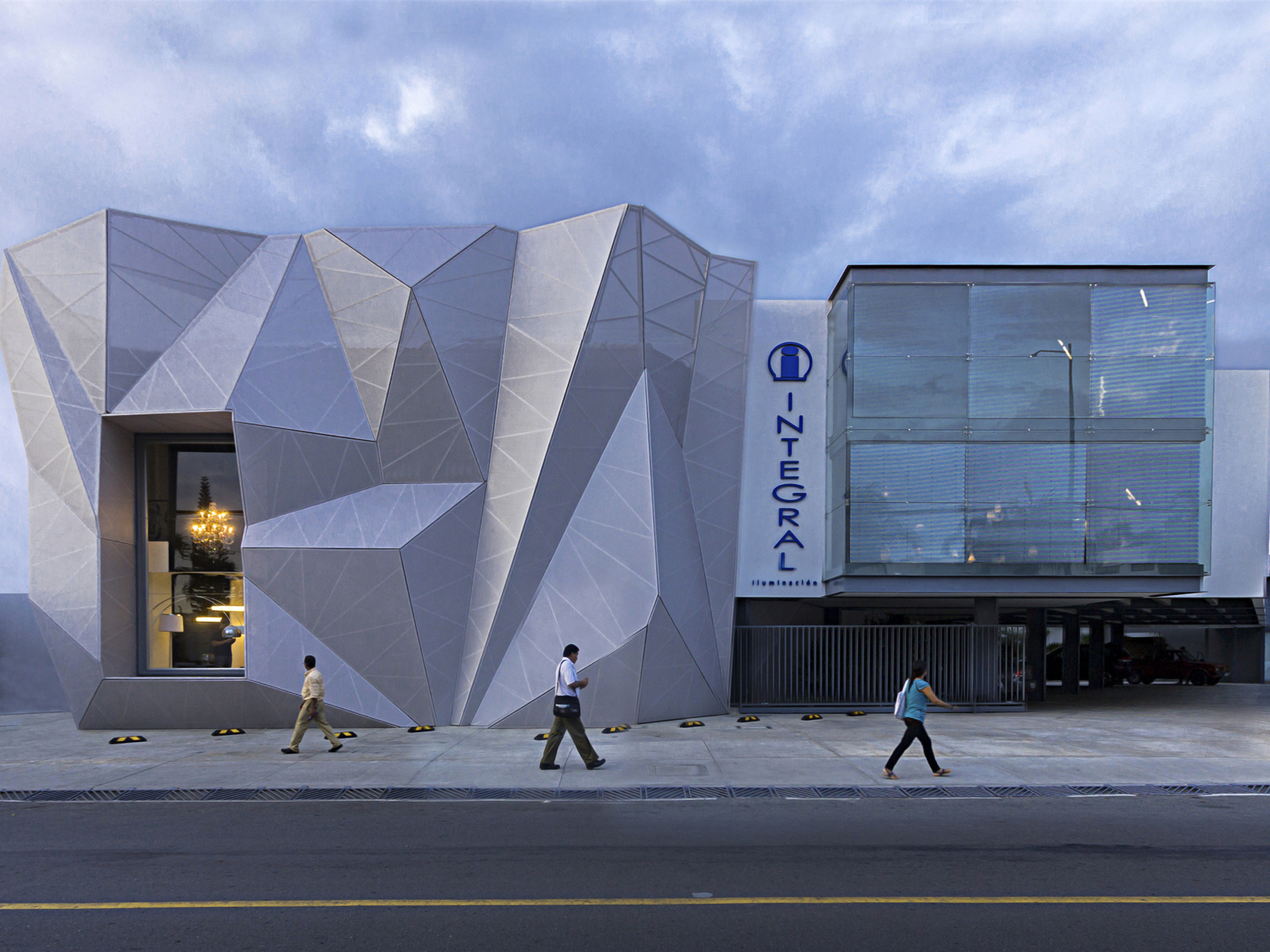

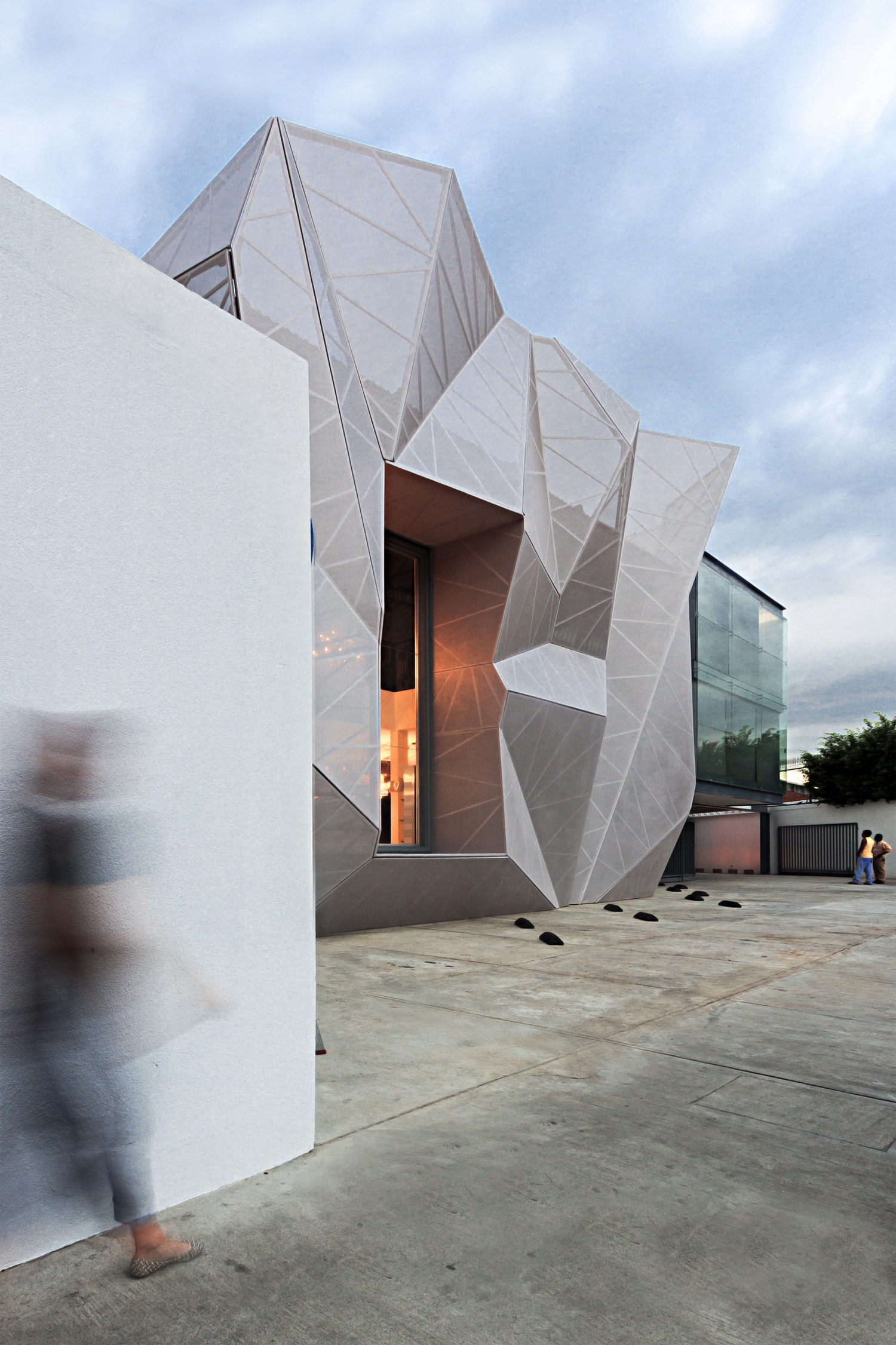

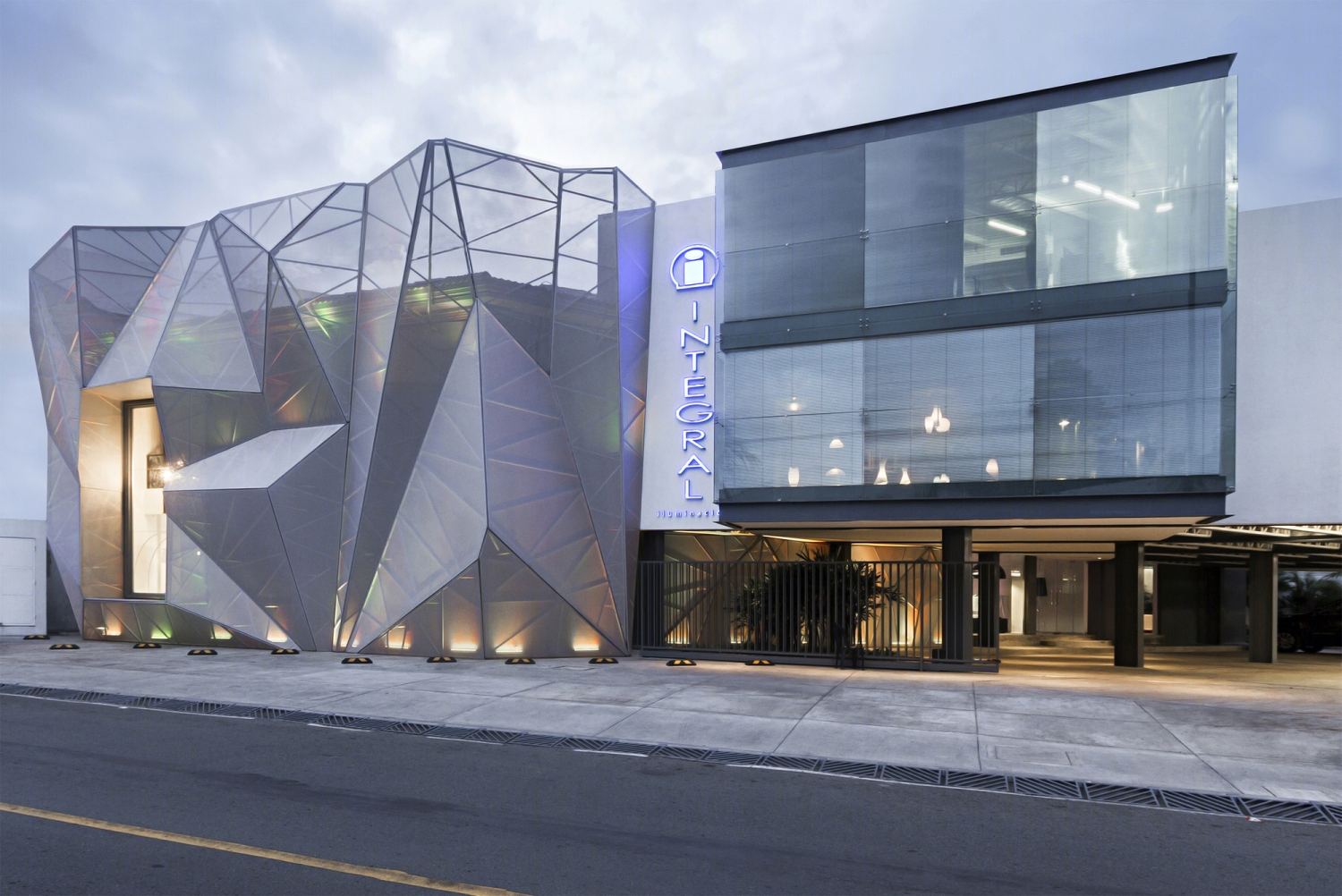

瓜亚基尔积分灯光商业建筑外部实景图

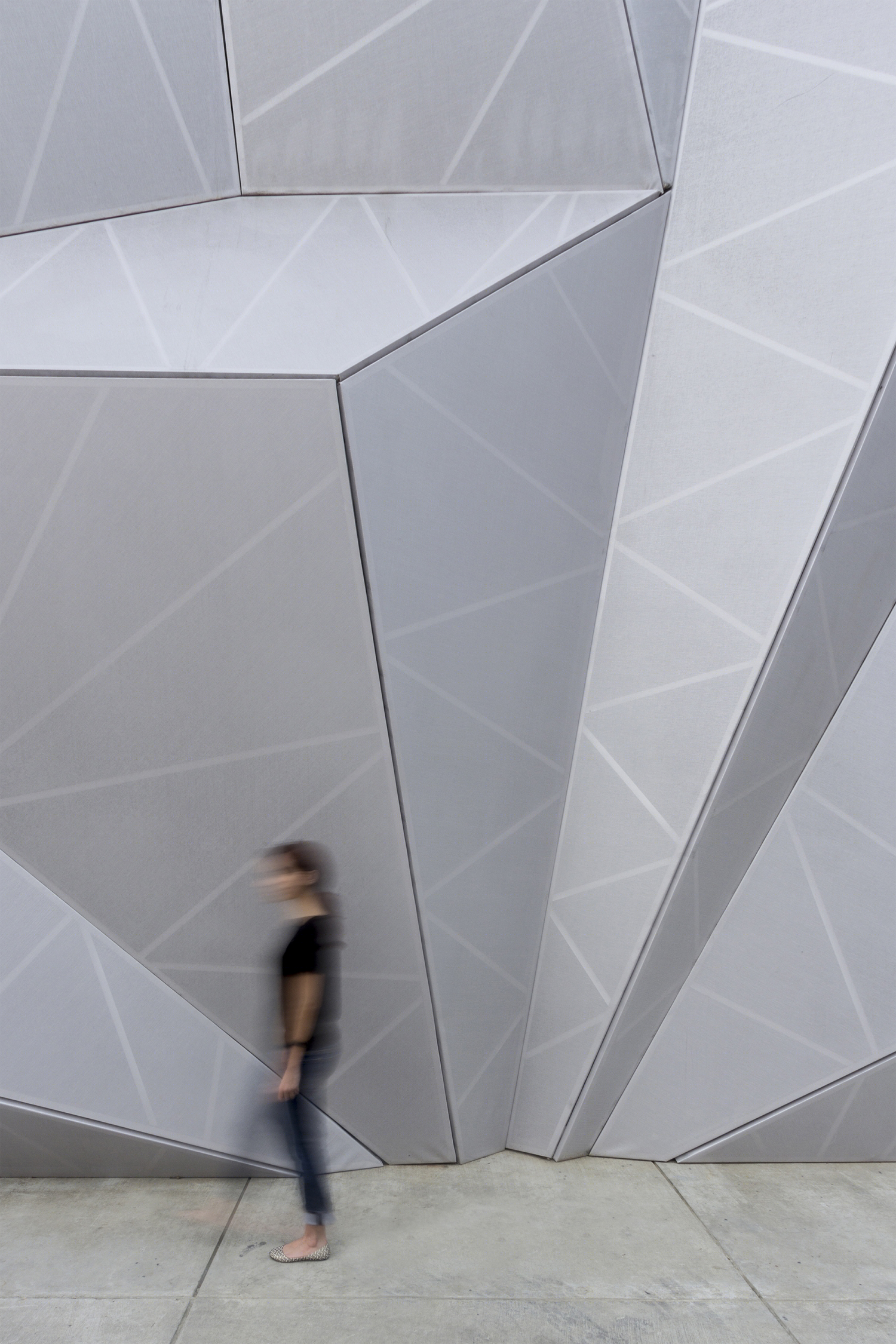

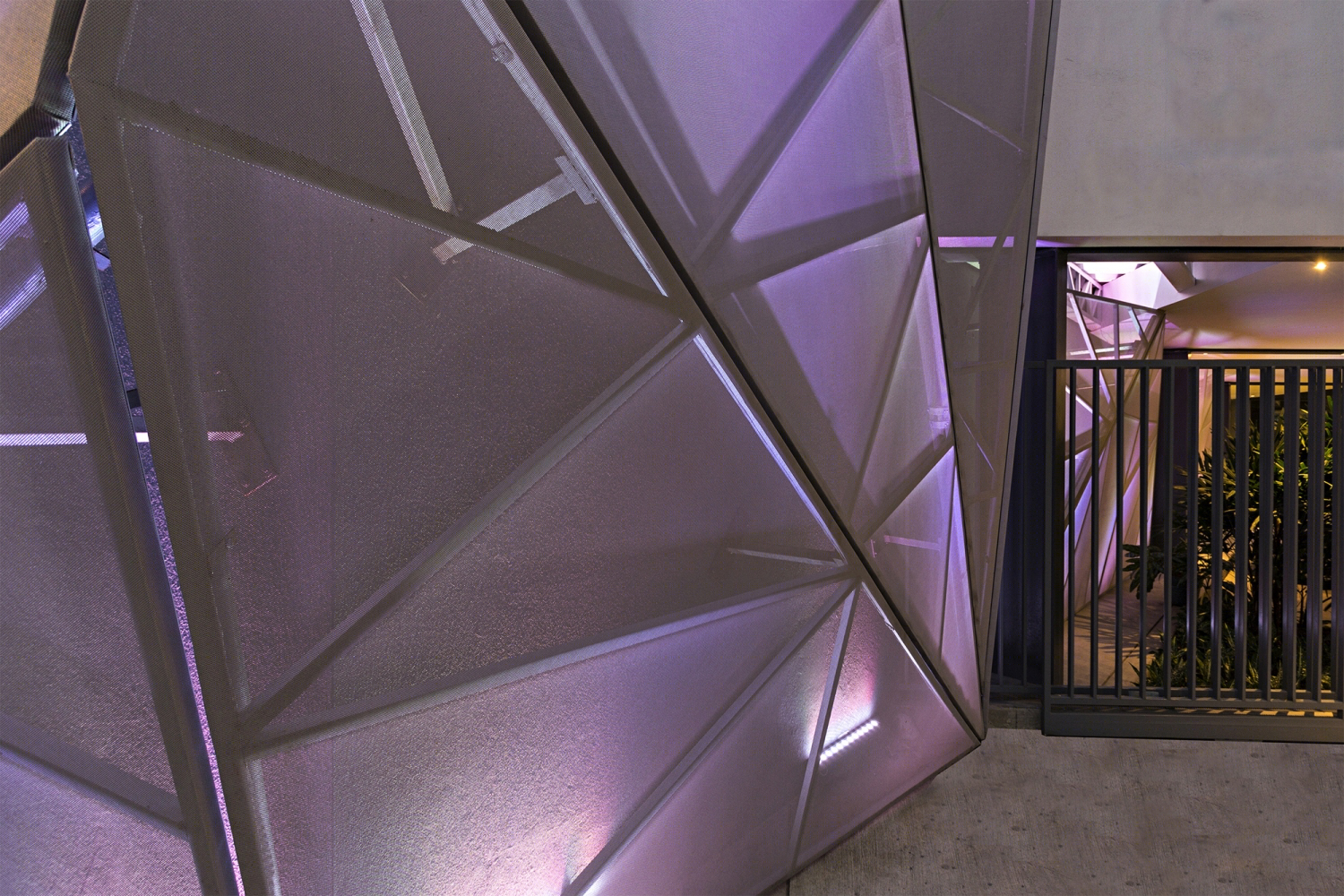

瓜亚基尔积分灯光商业建筑外部局部实景图

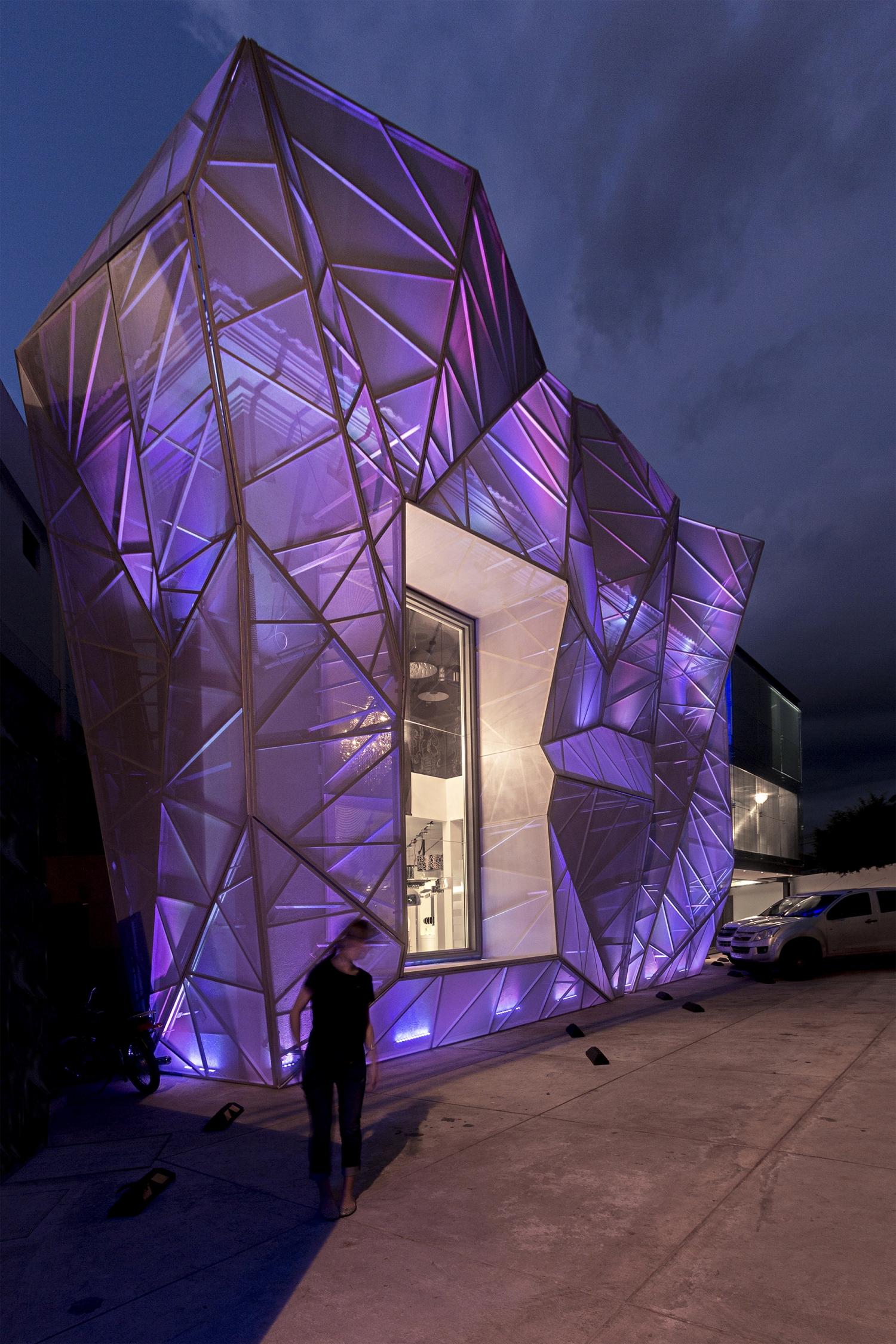

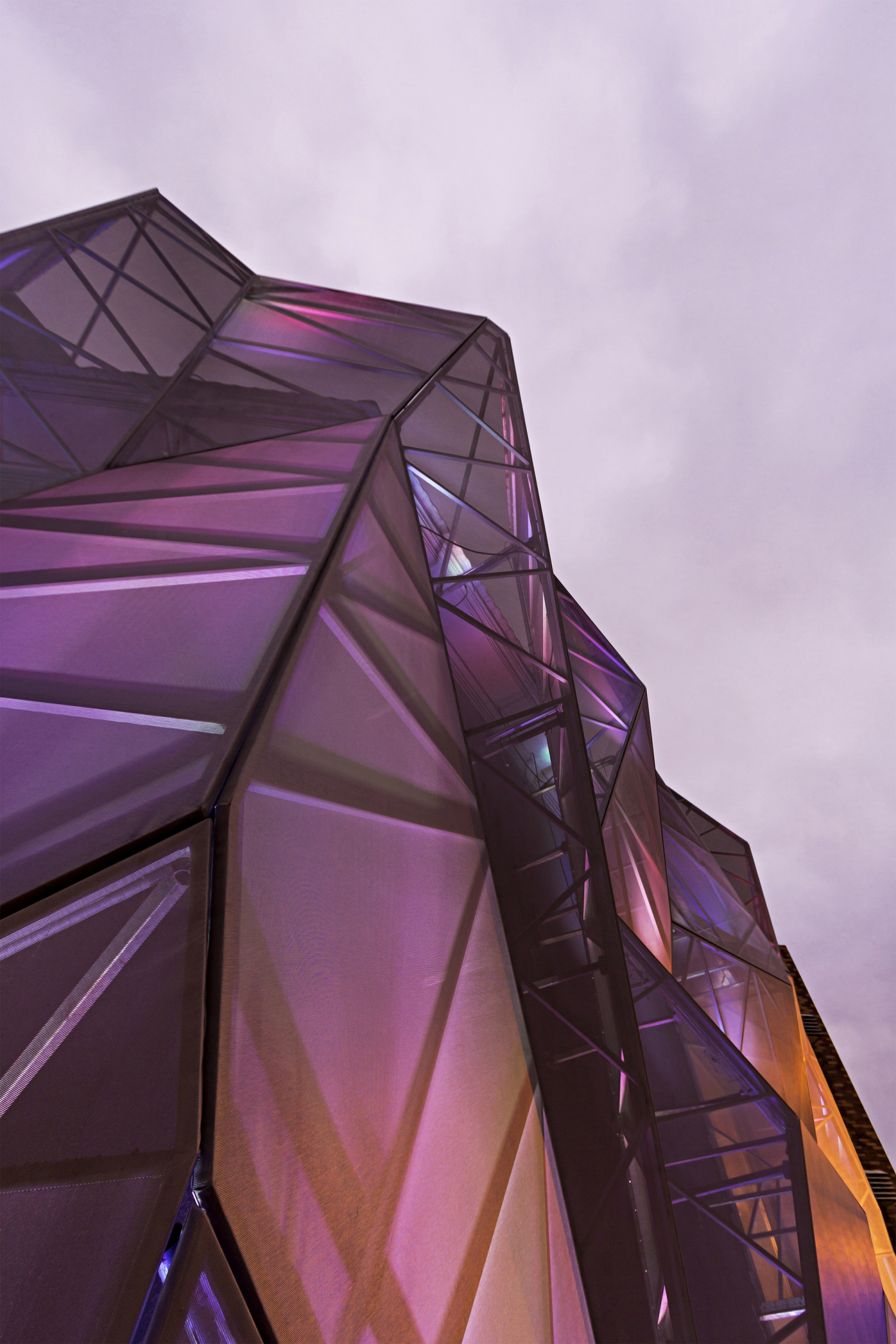

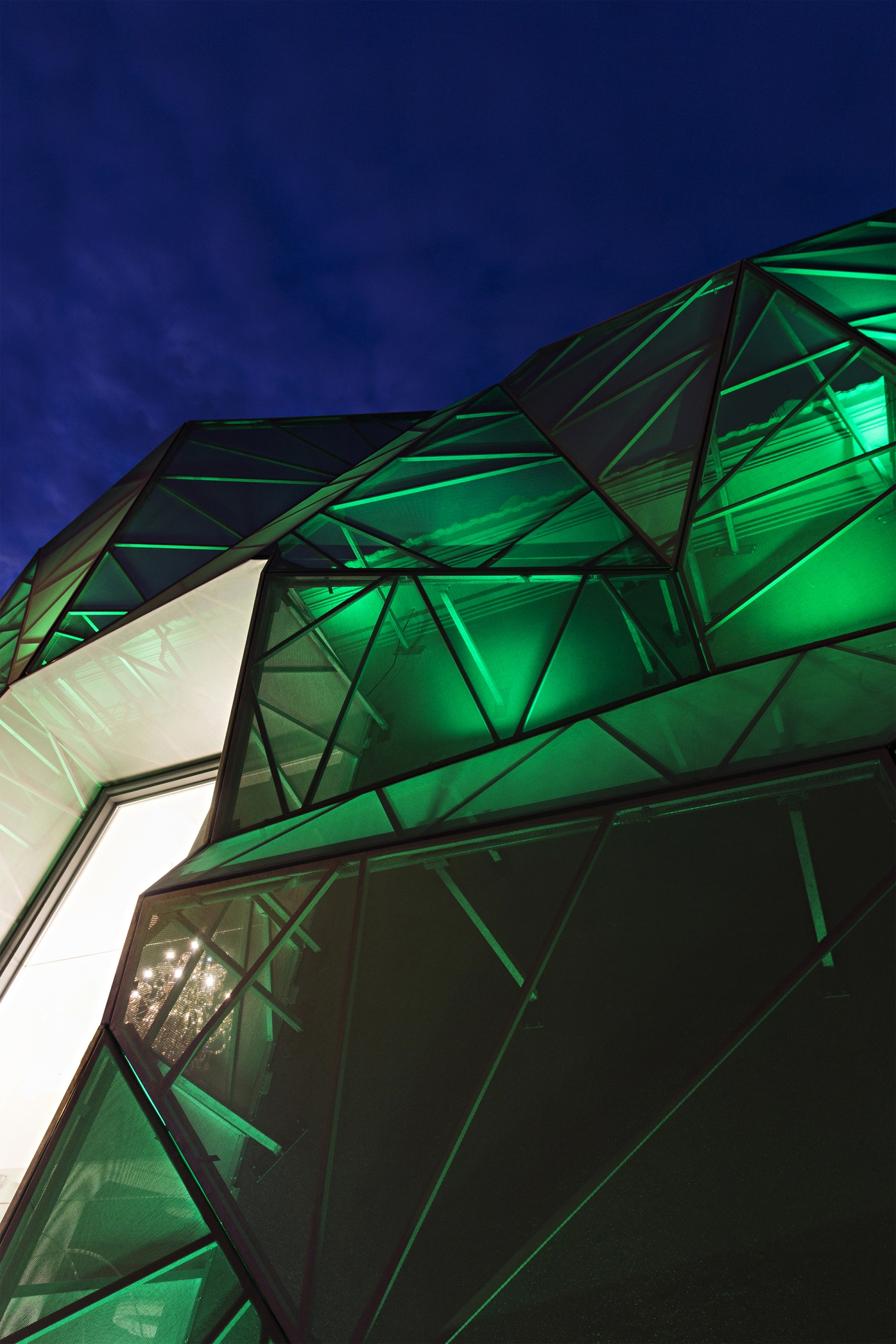

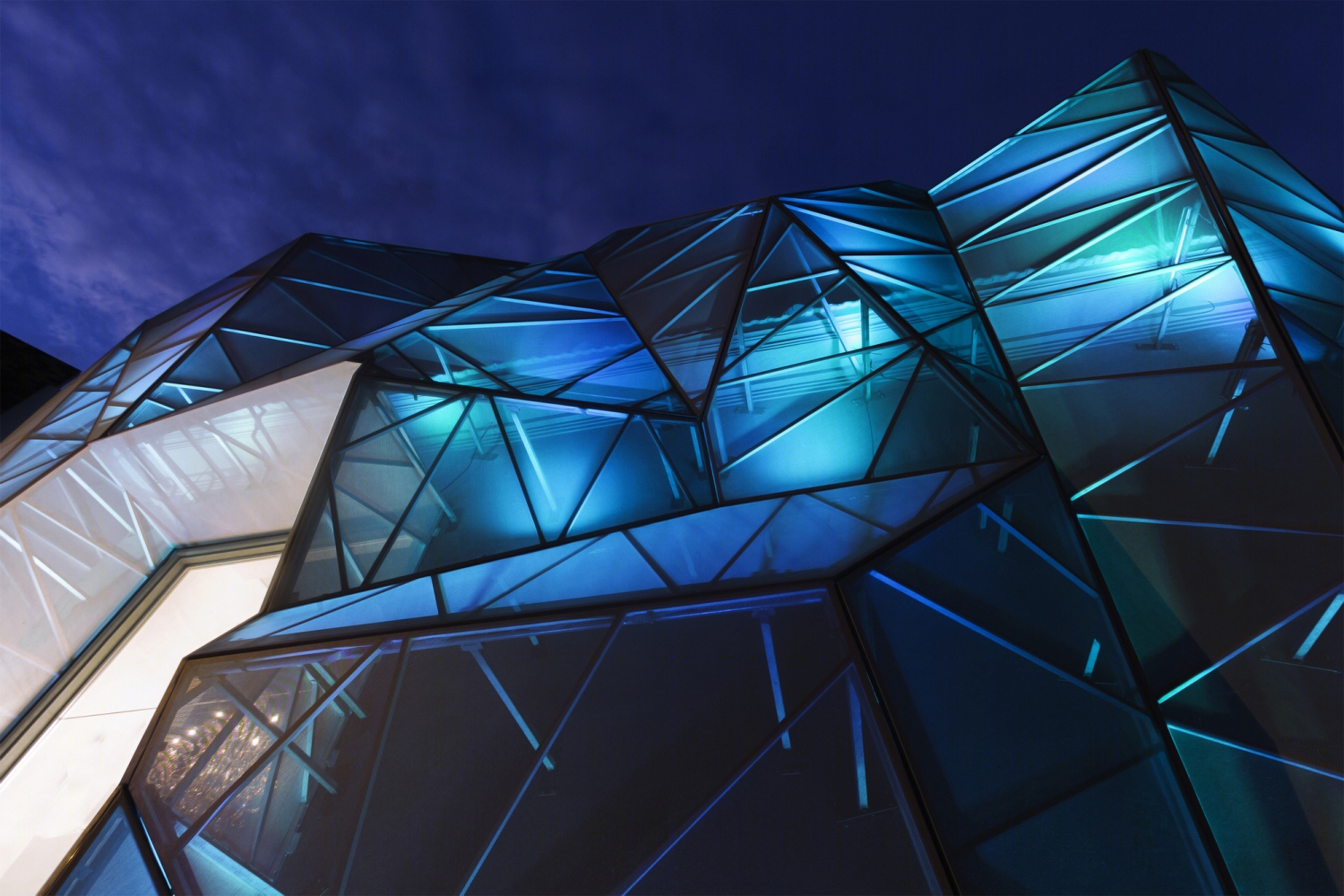

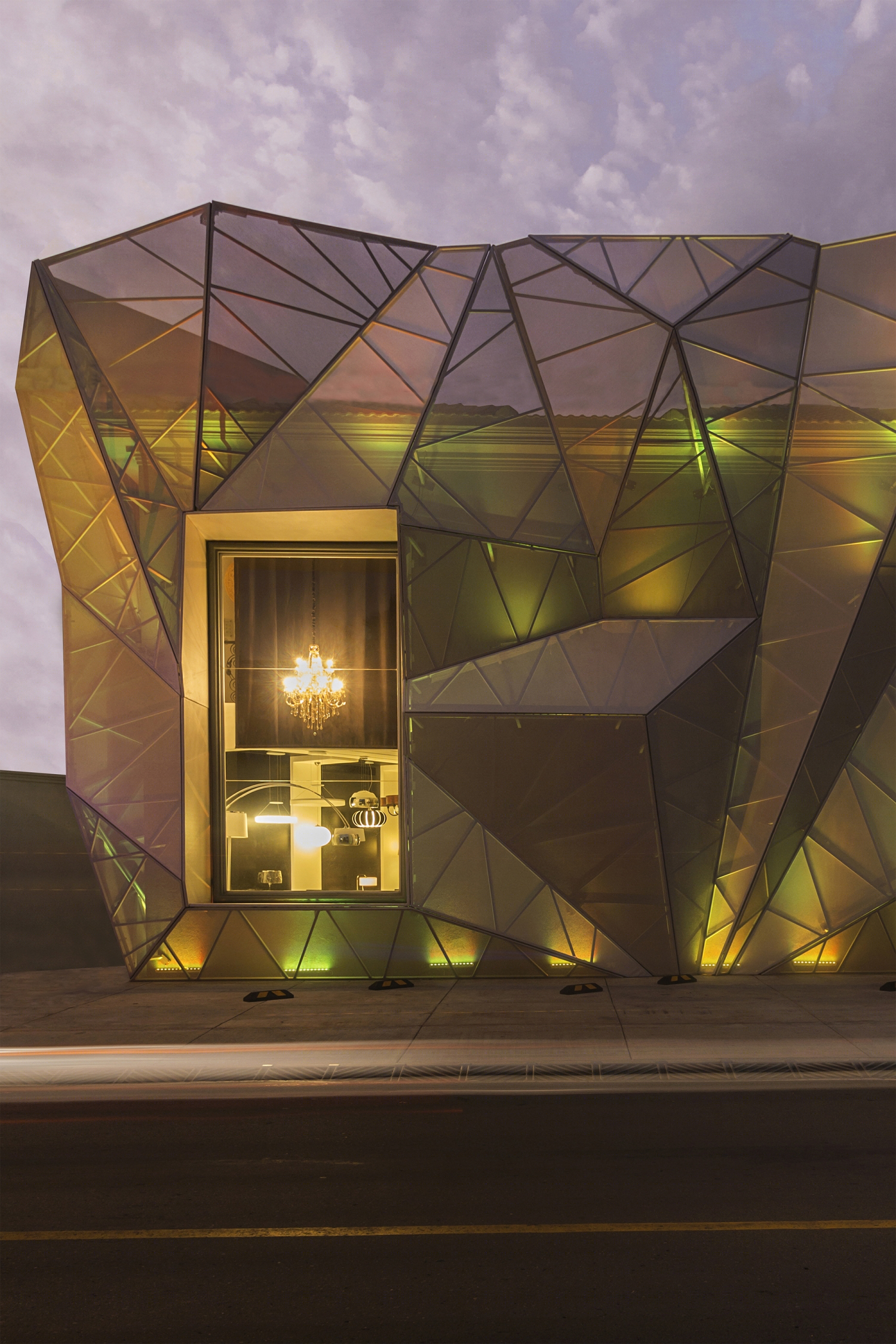

瓜亚基尔积分灯光商业建筑外部夜景实景图

瓜亚基尔积分灯光商业建筑外部夜景门口实景图

瓜亚基尔积分灯光商业建筑外部夜景过道实景图

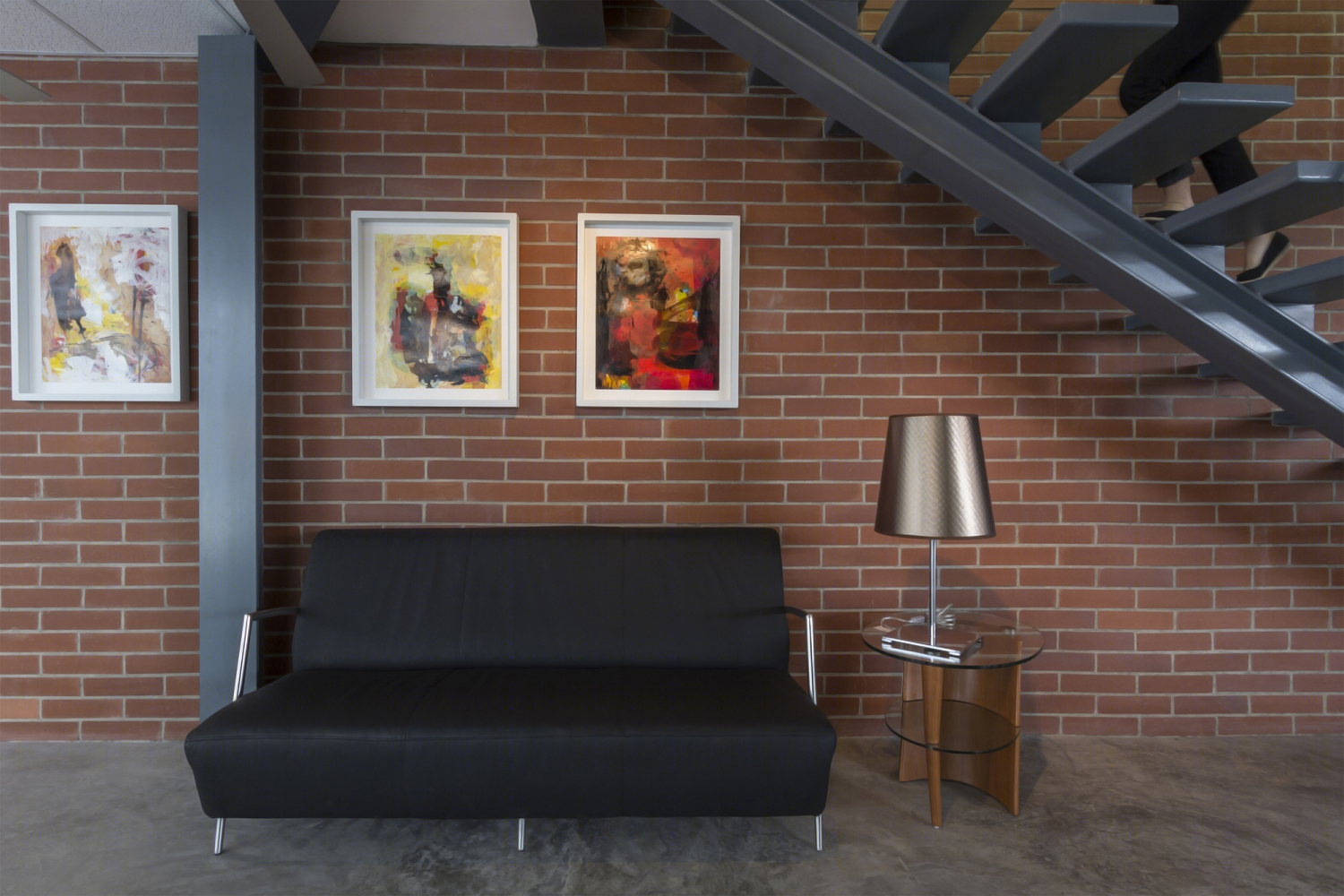

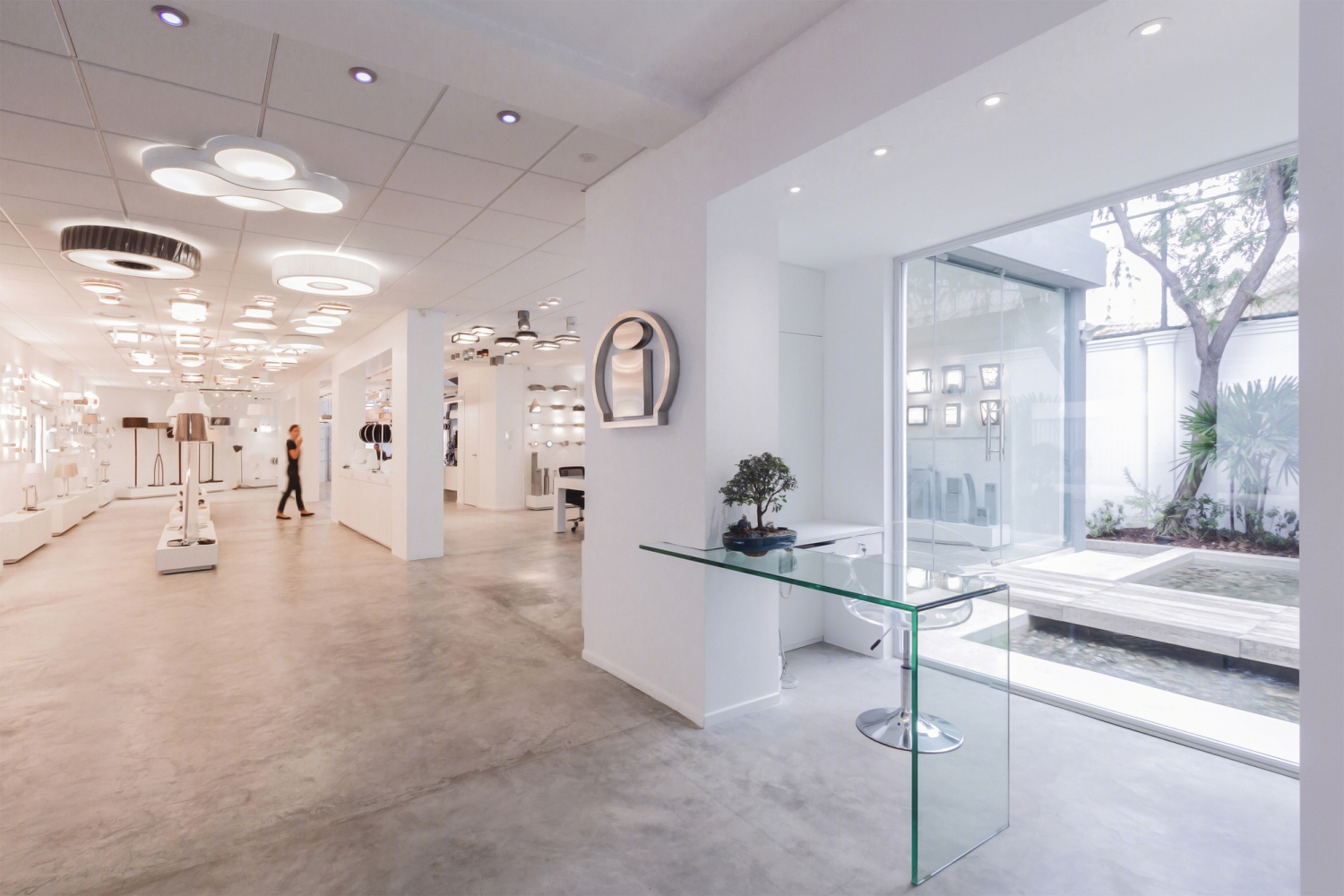

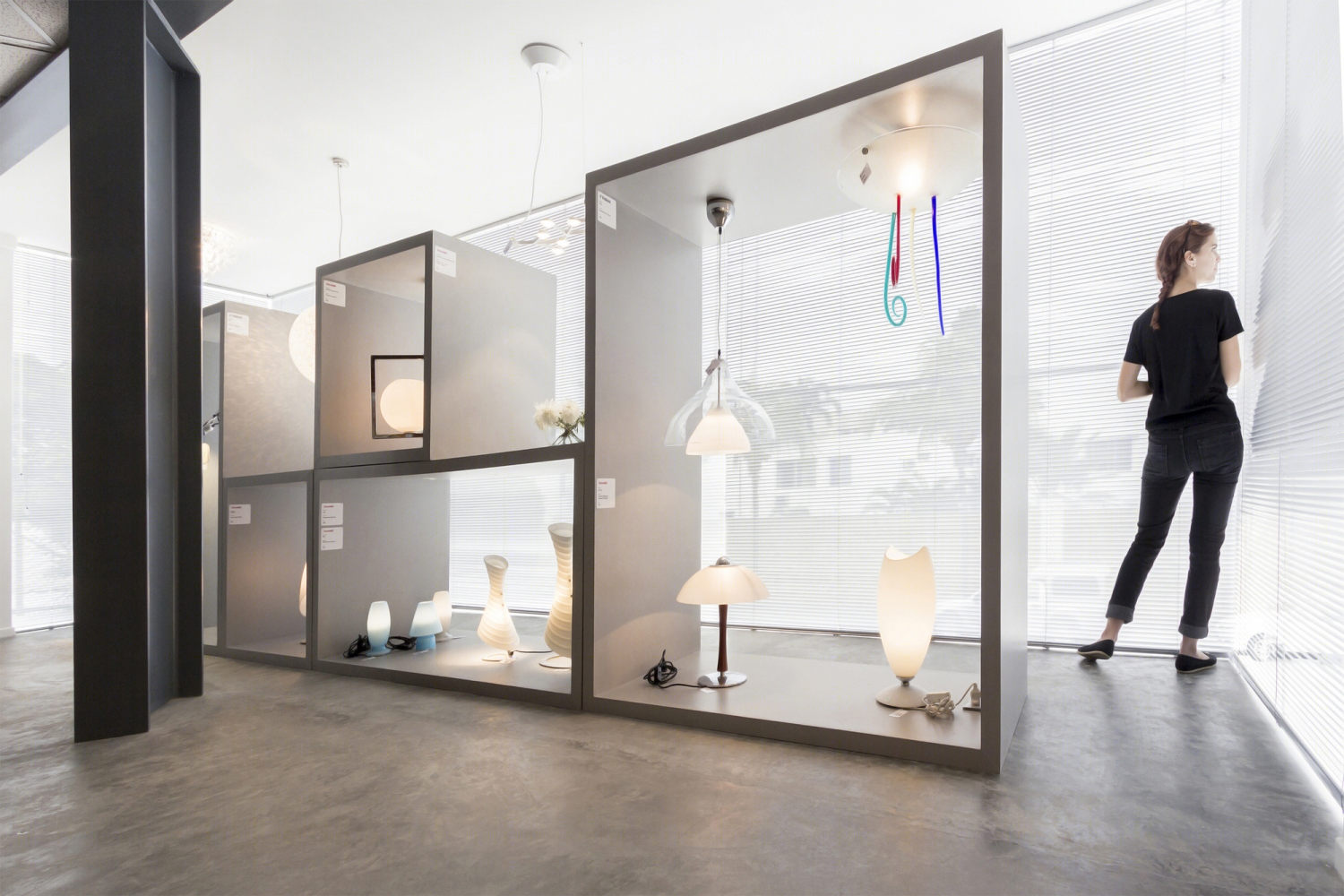

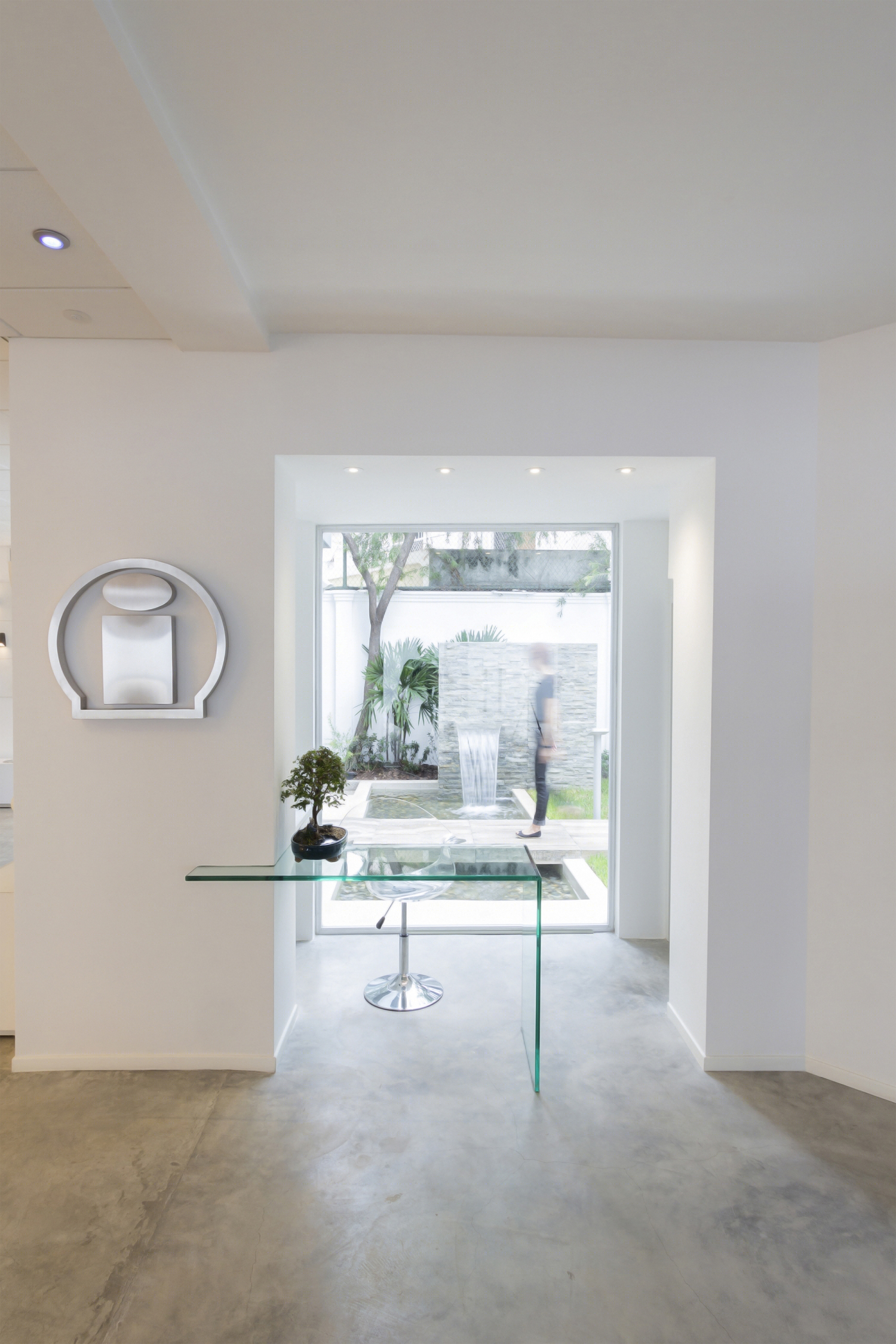

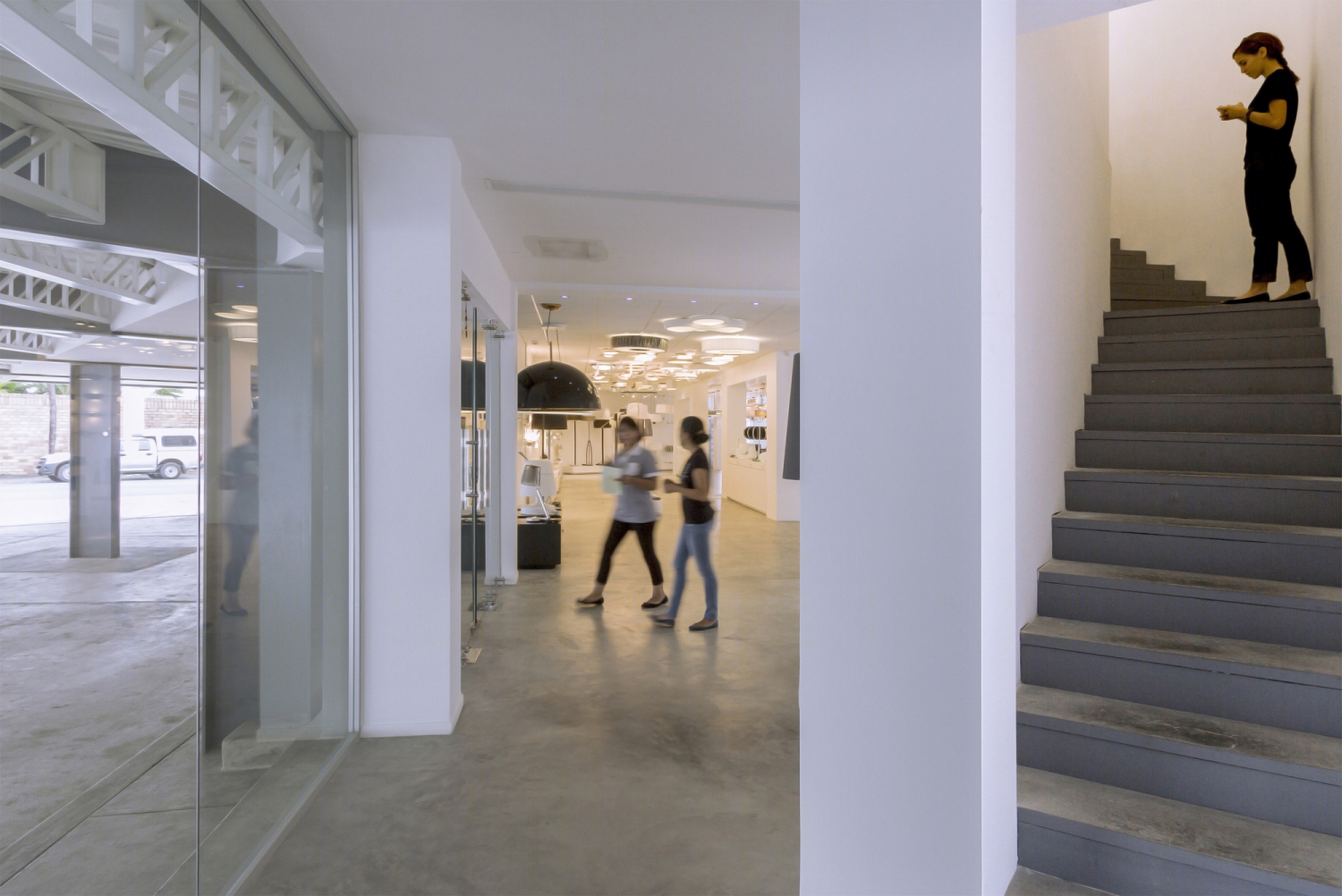

瓜亚基尔积分灯光商业建筑内部实景图

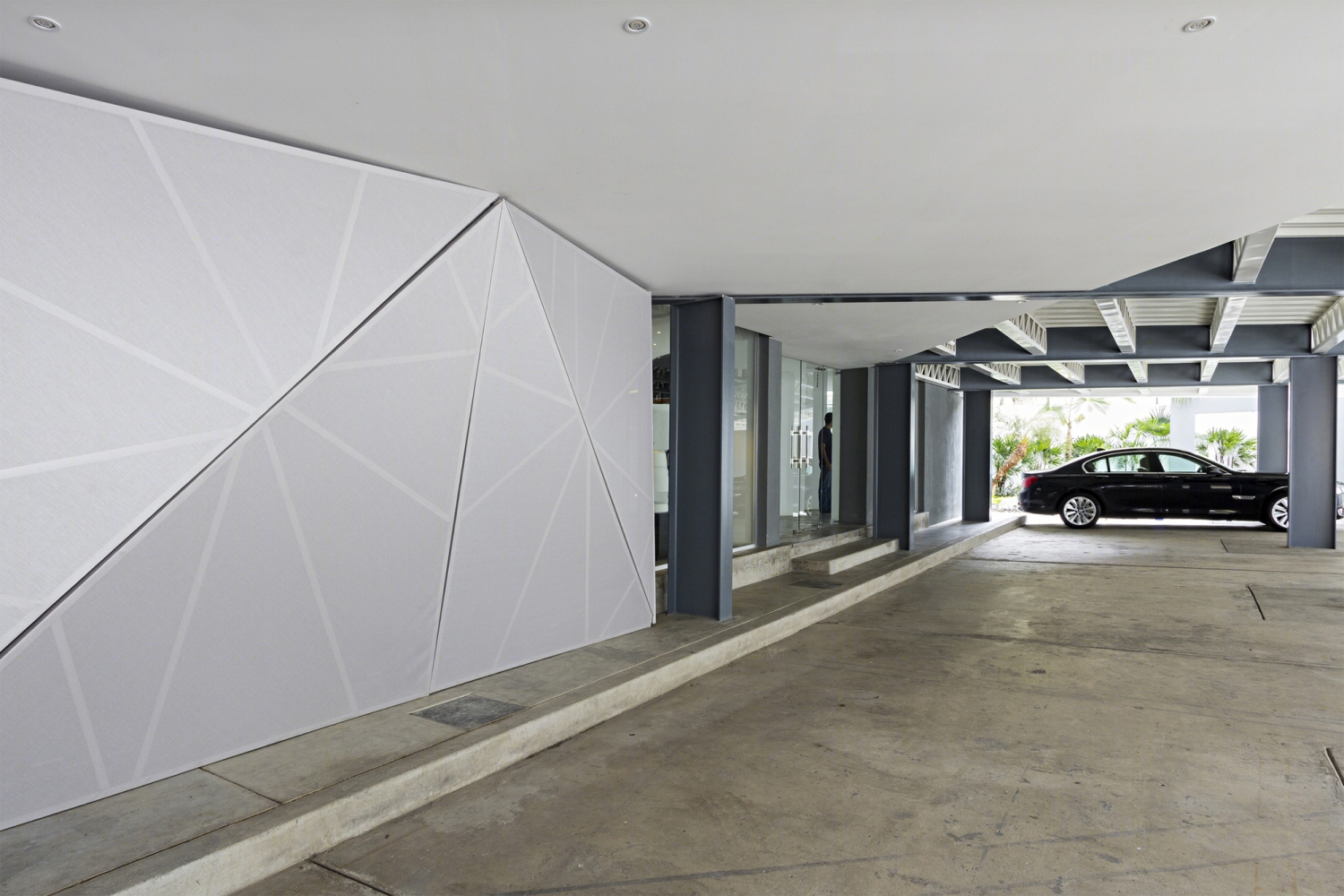

瓜亚基尔积分灯光商业建筑外部过道实景图

瓜亚基尔积分灯光商业建筑内部局部实景图

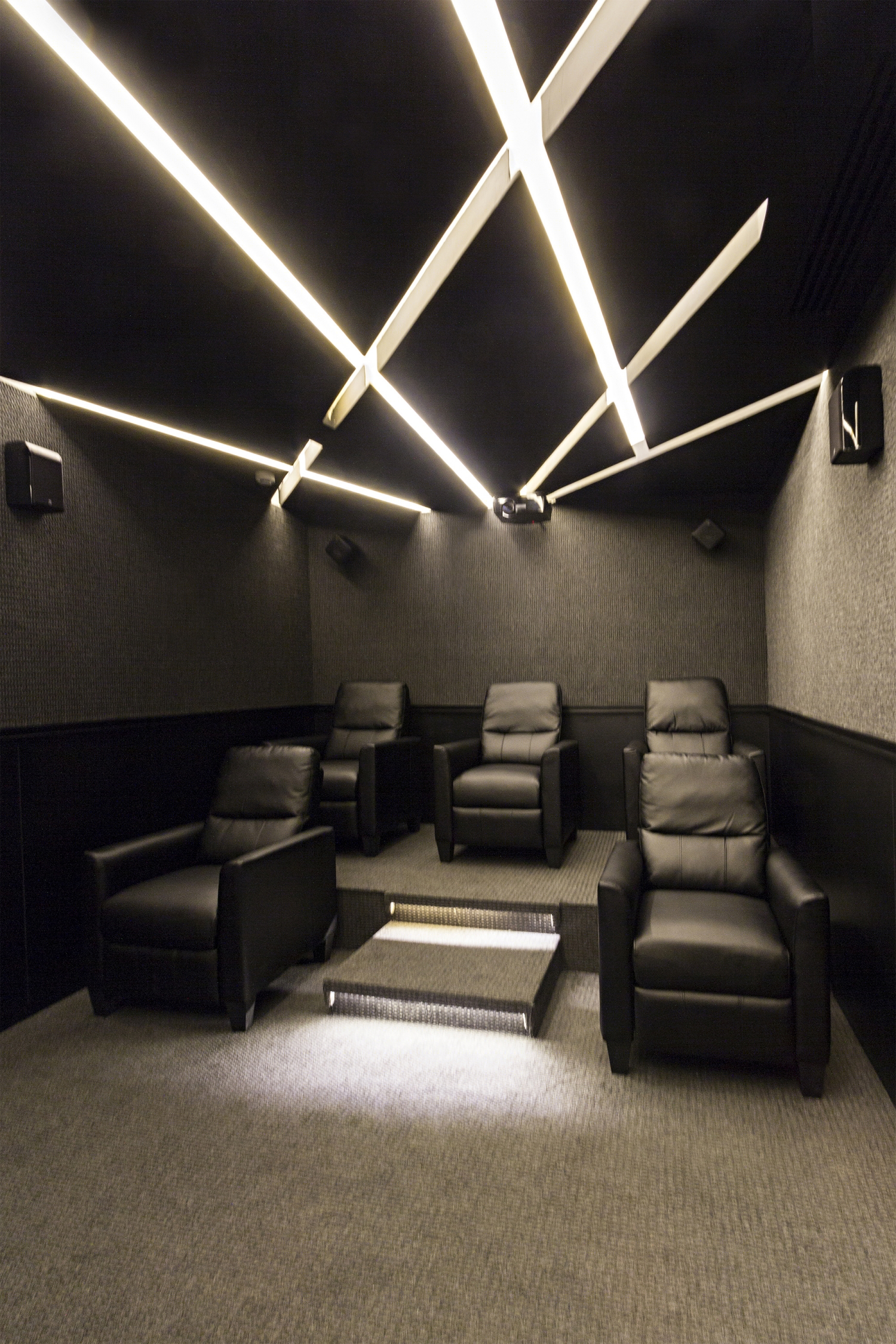

瓜亚基尔积分灯光商业建筑内部多功能影厅实景图

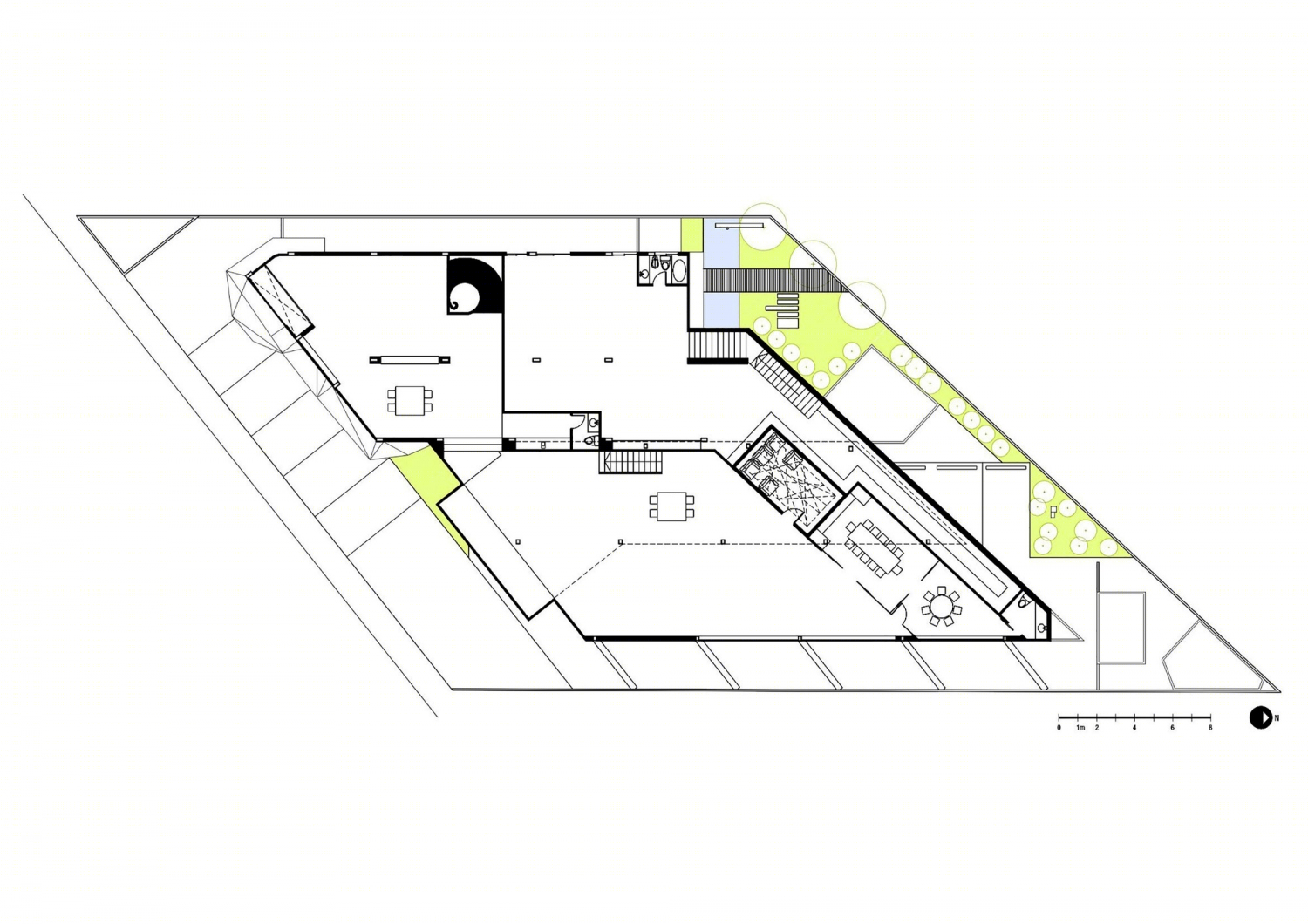

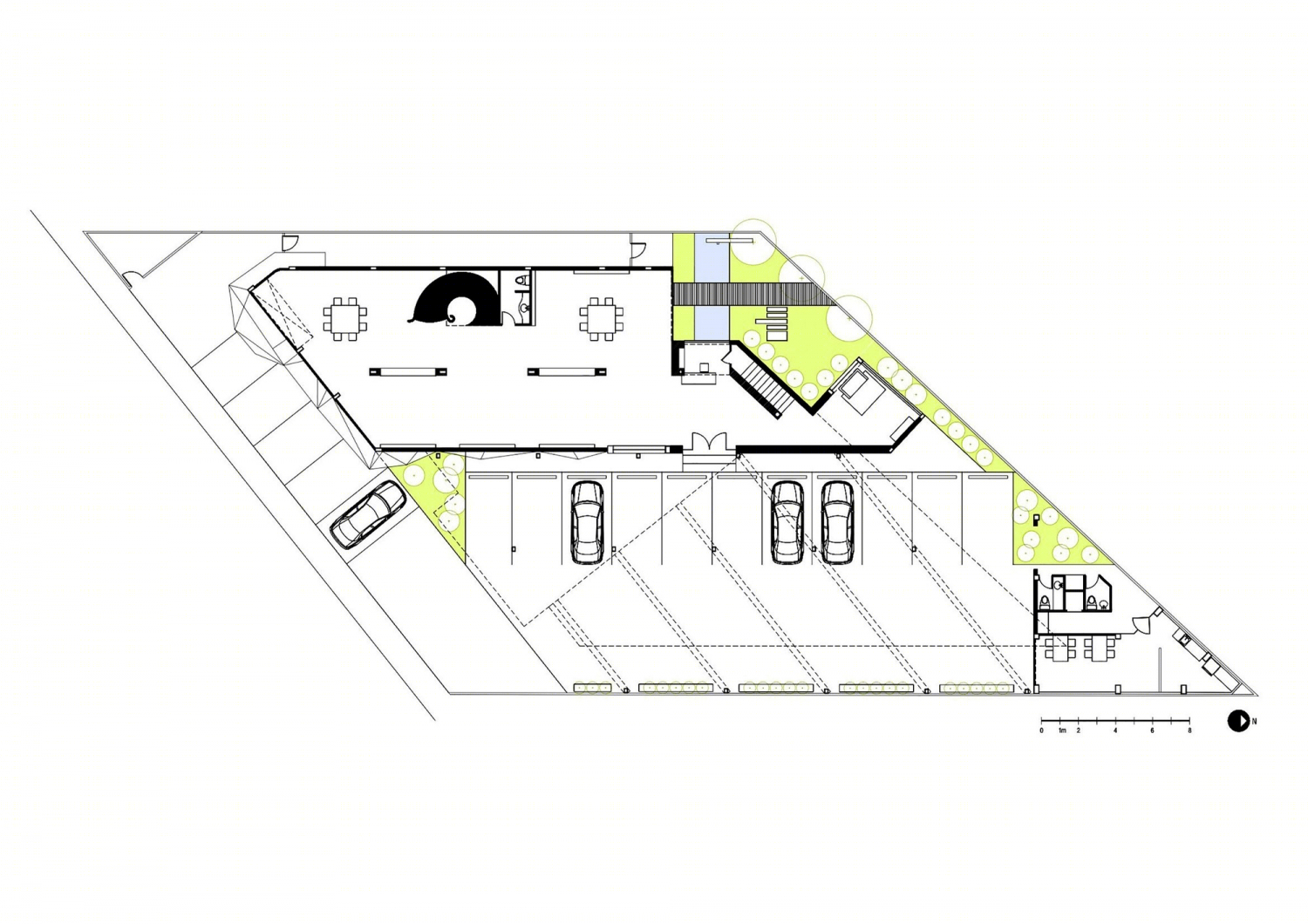

瓜亚基尔积分灯光商业建筑底层平面图

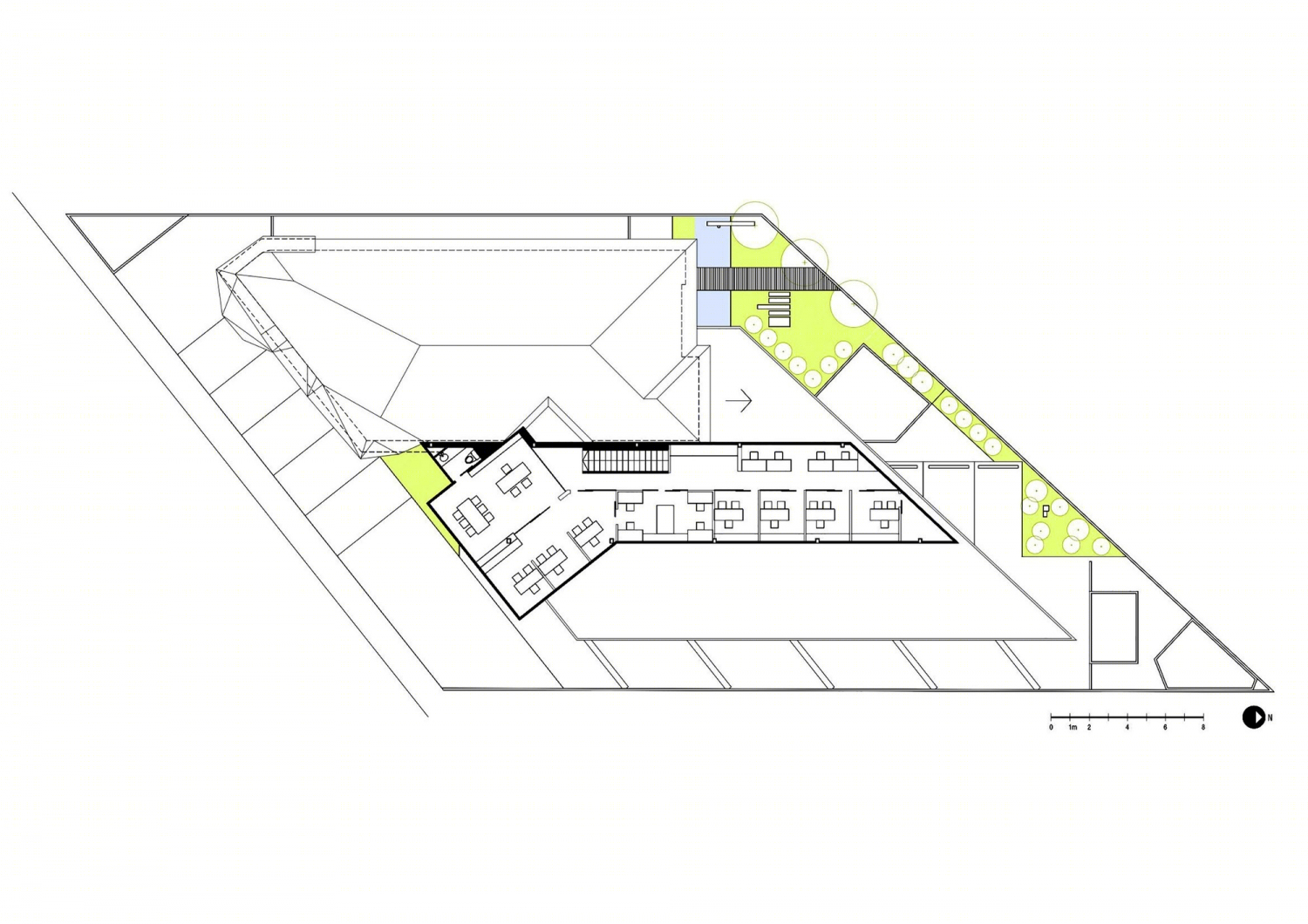

瓜亚基尔积分灯光商业建筑二层平面图

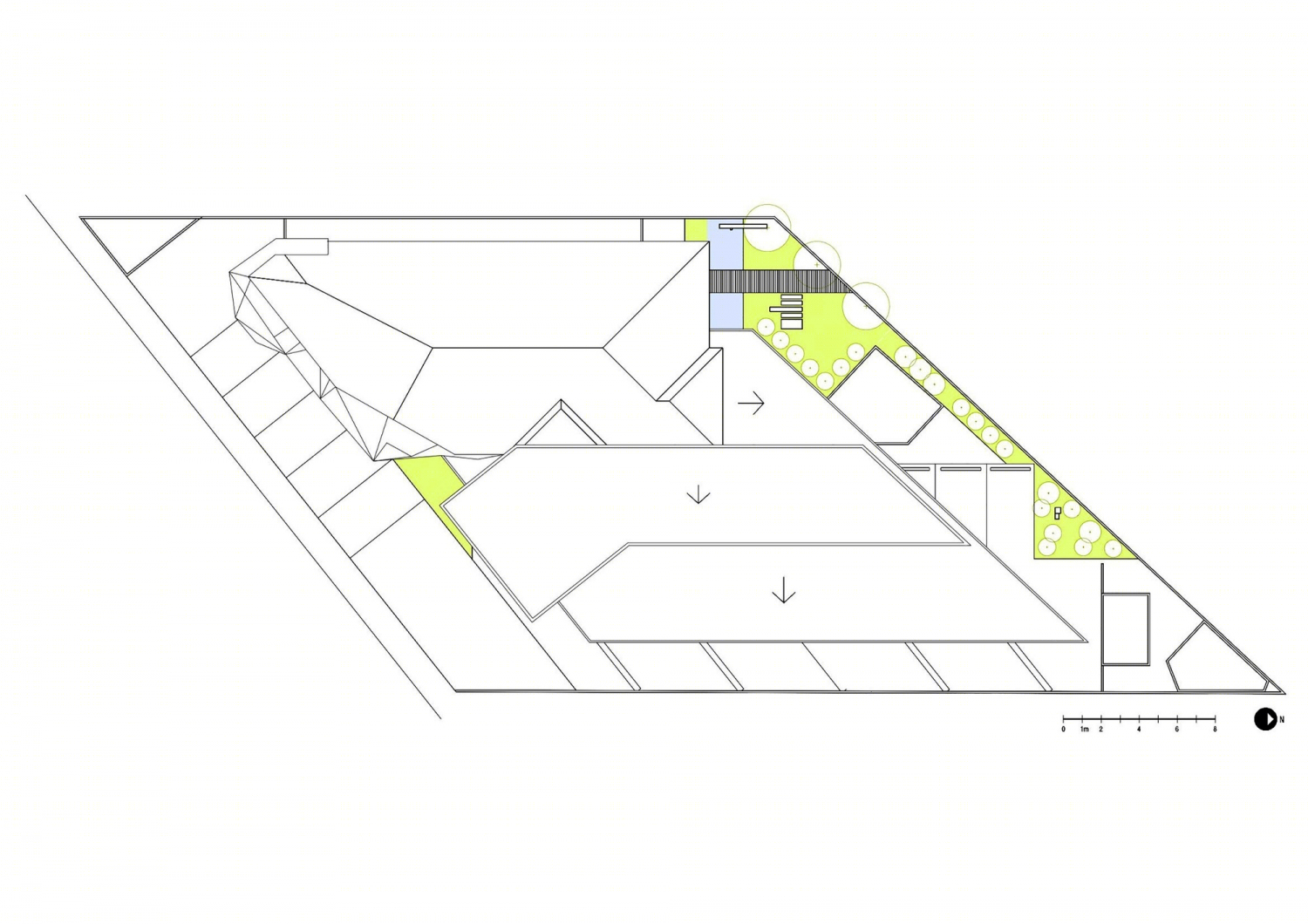

瓜亚基尔积分灯光商业建筑屋顶平面图

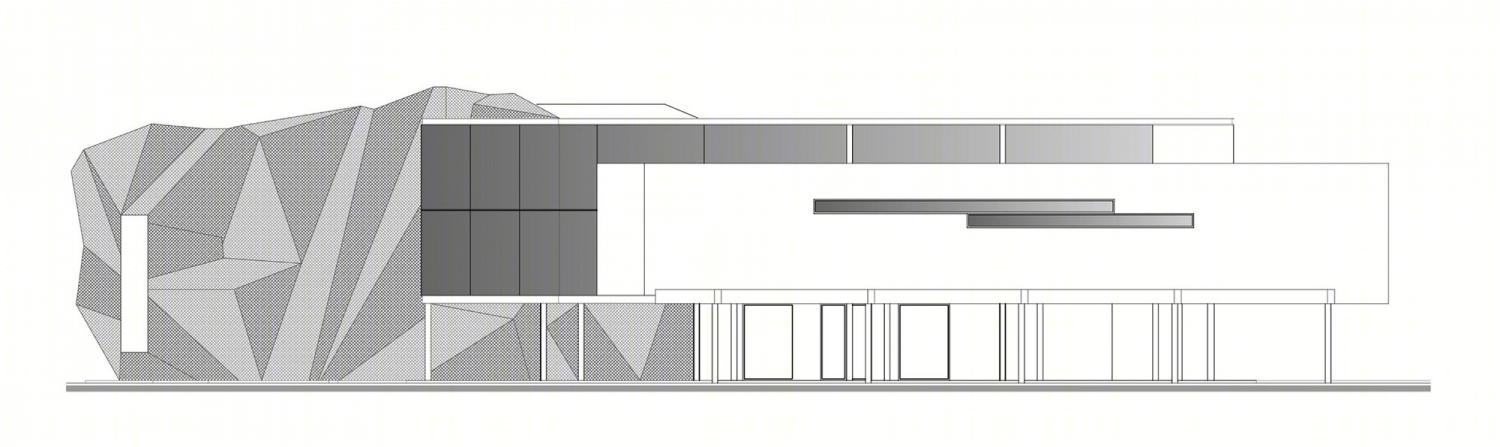

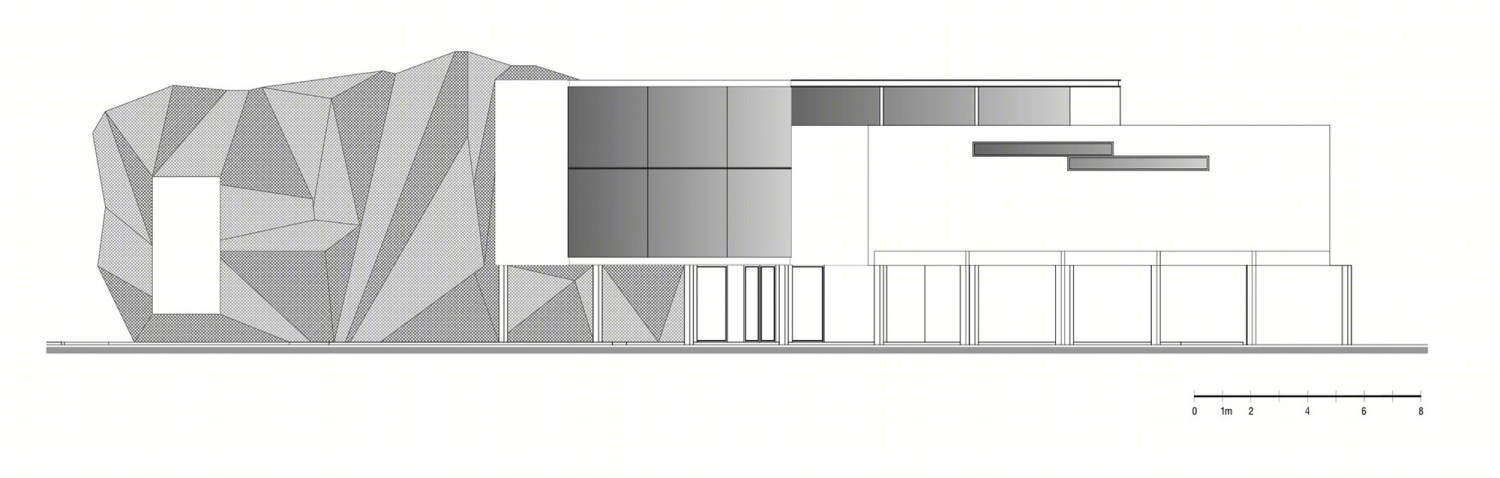

瓜亚基尔积分灯光商业建筑正面图

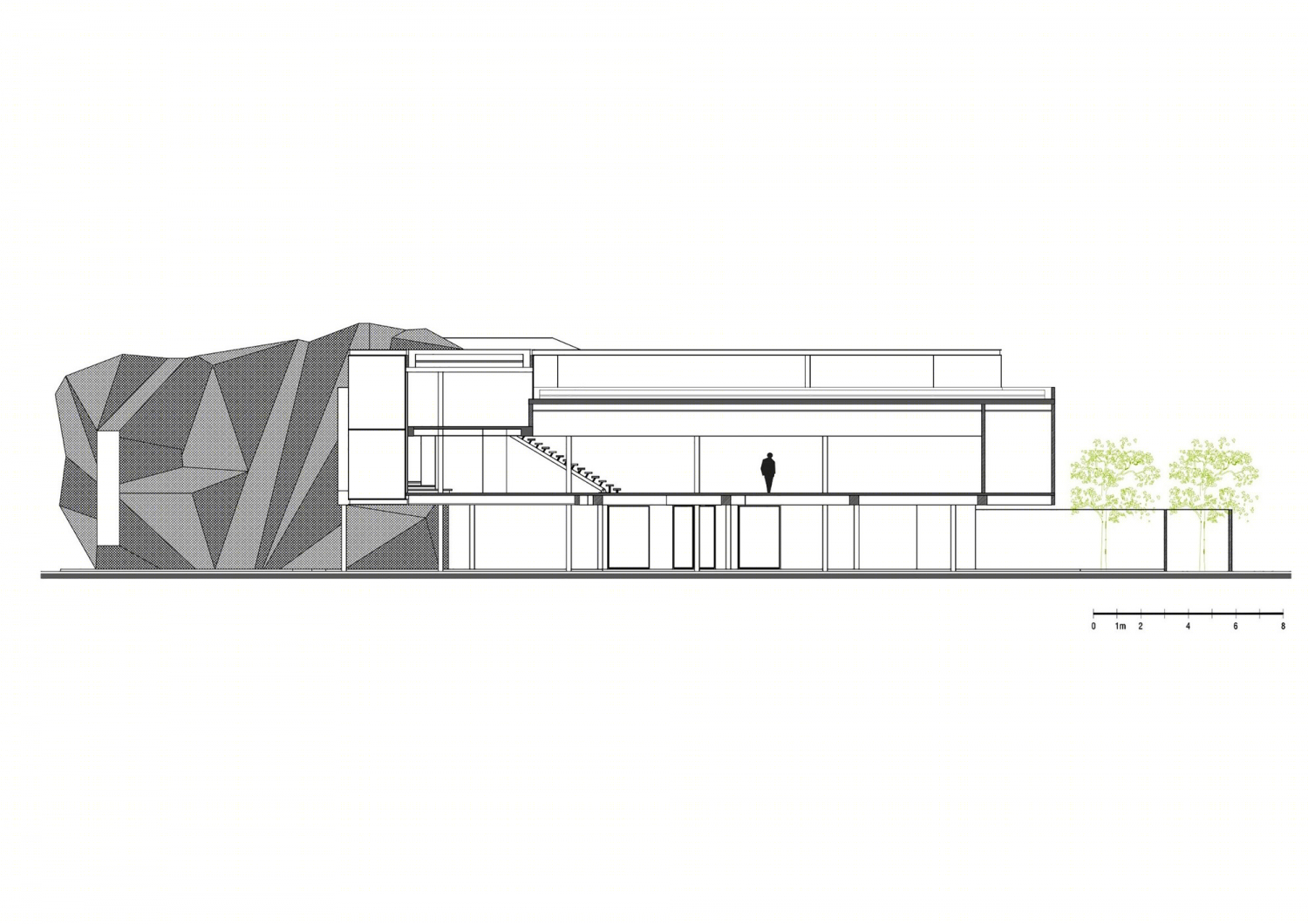

瓜亚基尔积分灯光商业建筑剖面图

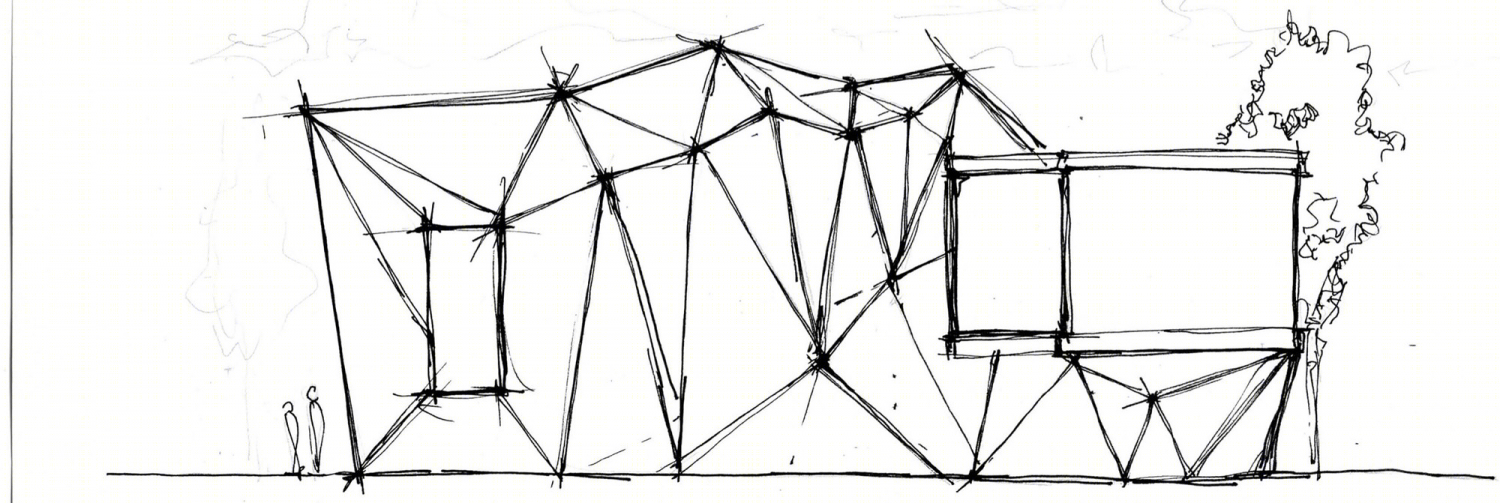

瓜亚基尔积分灯光商业建筑绘图
